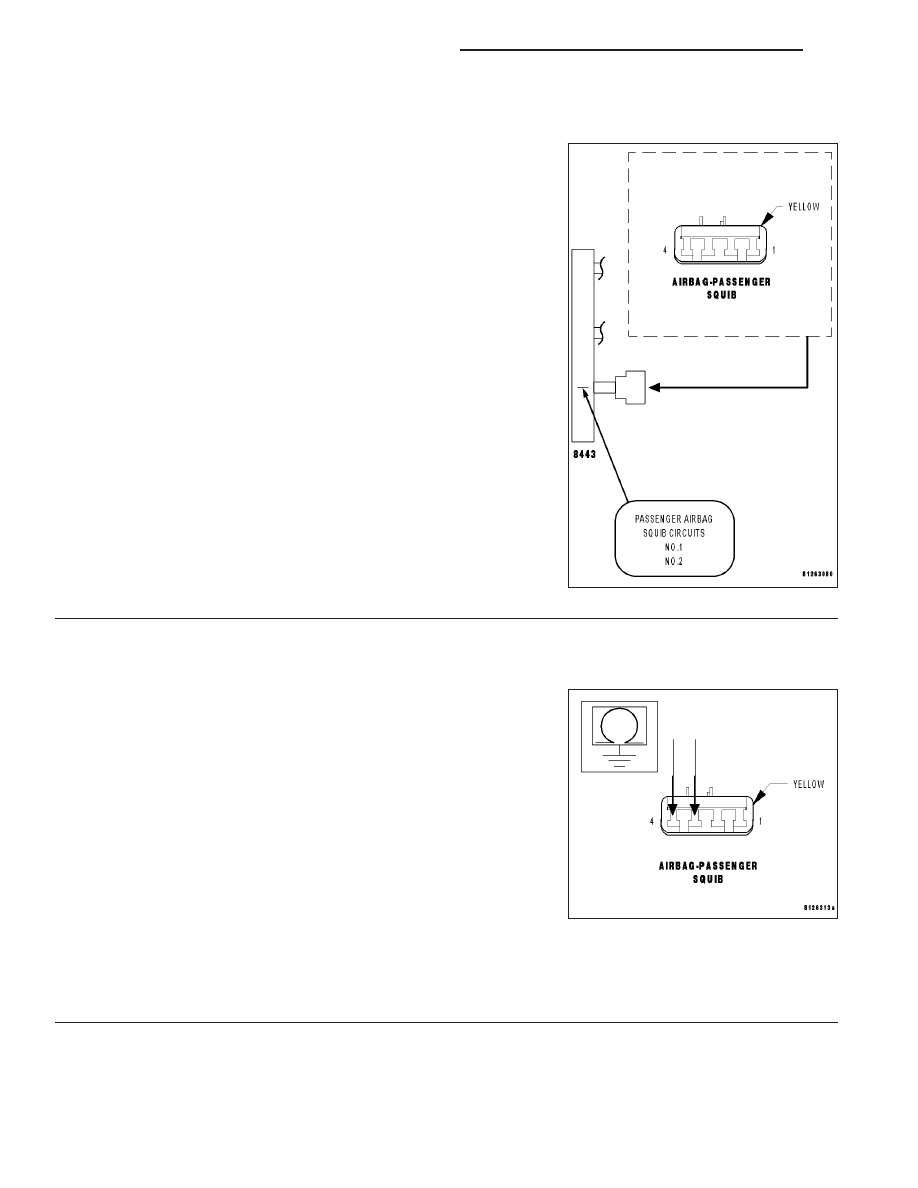

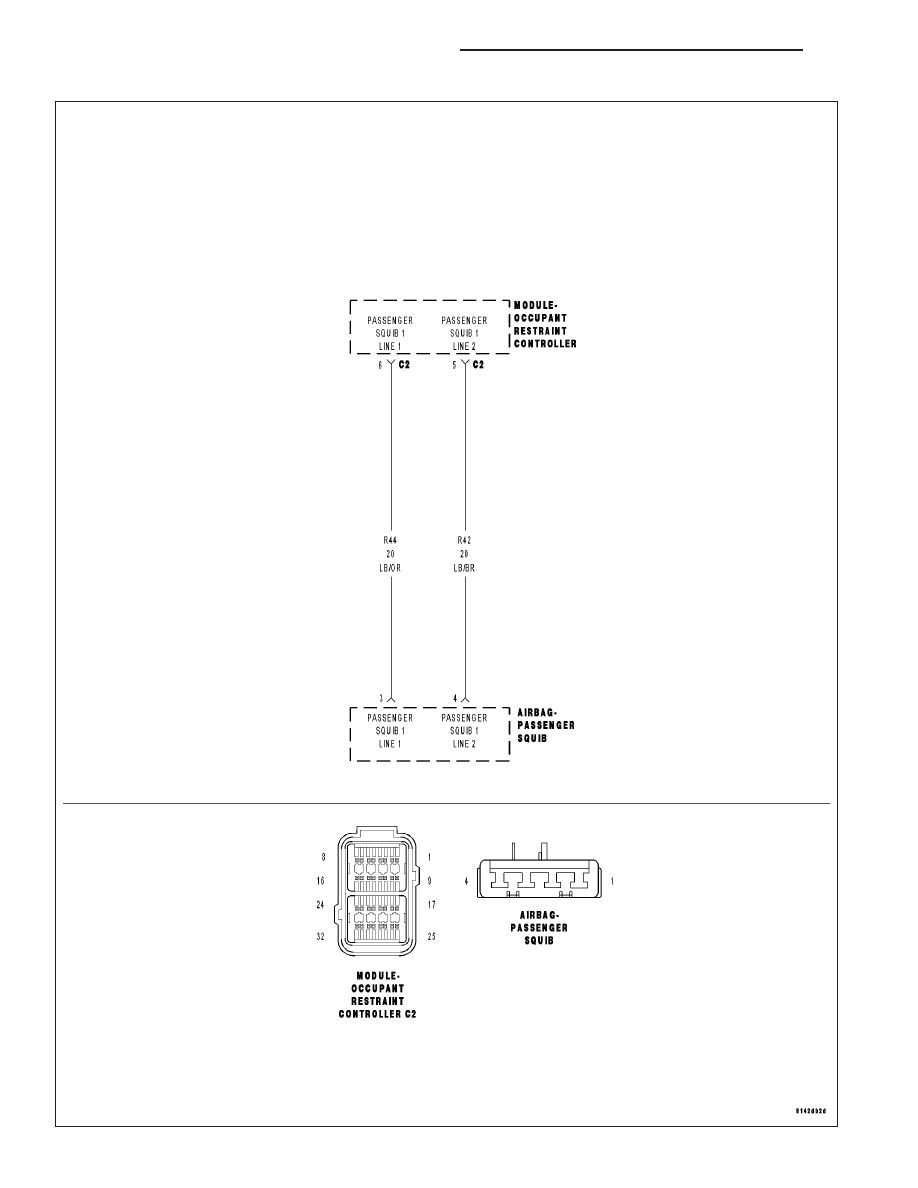

B1B08-PASSENGER AIRBAG SQUIB 1 CIRCUIT LOW (CONTINUED) 2. CHECK FOR SHORTED SQUIB CIRCUITS IN PASSENGER AIRBAG WARNING: To avoid personal injury or death, turn the ignition off, WARNING: To avoid personal injury or death, do not place an NOTE: Check connectors - Clean and repair as necessary. WARNING: To avoid personal injury or death, turn the ignition on, Does the scan tool display: B1B08 PASSENGER AIRBAG Yes >> Go To 3 No >> Replace the Passenger Airbag in accordance with the Ser- vice Information. Perform ORC VERIFICATION TEST - VER 1 3. CHECK (R42) PASSENGER SQUIB 1 LINE 2 CIRCUIT AND (R44) PASSENGER SQUIB 1 LINE 1 CIRCUIT WARNING: To avoid personal injury or death, turn the ignition off, Disconnect the ORC connectors. NOTE: Check connectors - Clean and repair as necessary. Measure the resistance of the (R42) Passenger Squib 1 Line 2 circuit Measure the resistance of the (R44) Passenger Squib 1 Line 1 circuit Is the resistance below 10K ohms on either circuit? Yes >> Repair the Passenger Squib 1 circuits with a resistance below 10K ohms for a short to ground. Perform ORC VERIFICATION TEST - VER 1 No >> Go To 4 8O - 64 RESTRAINTS - ELECTRICAL DIAGNOSTICS ND |
