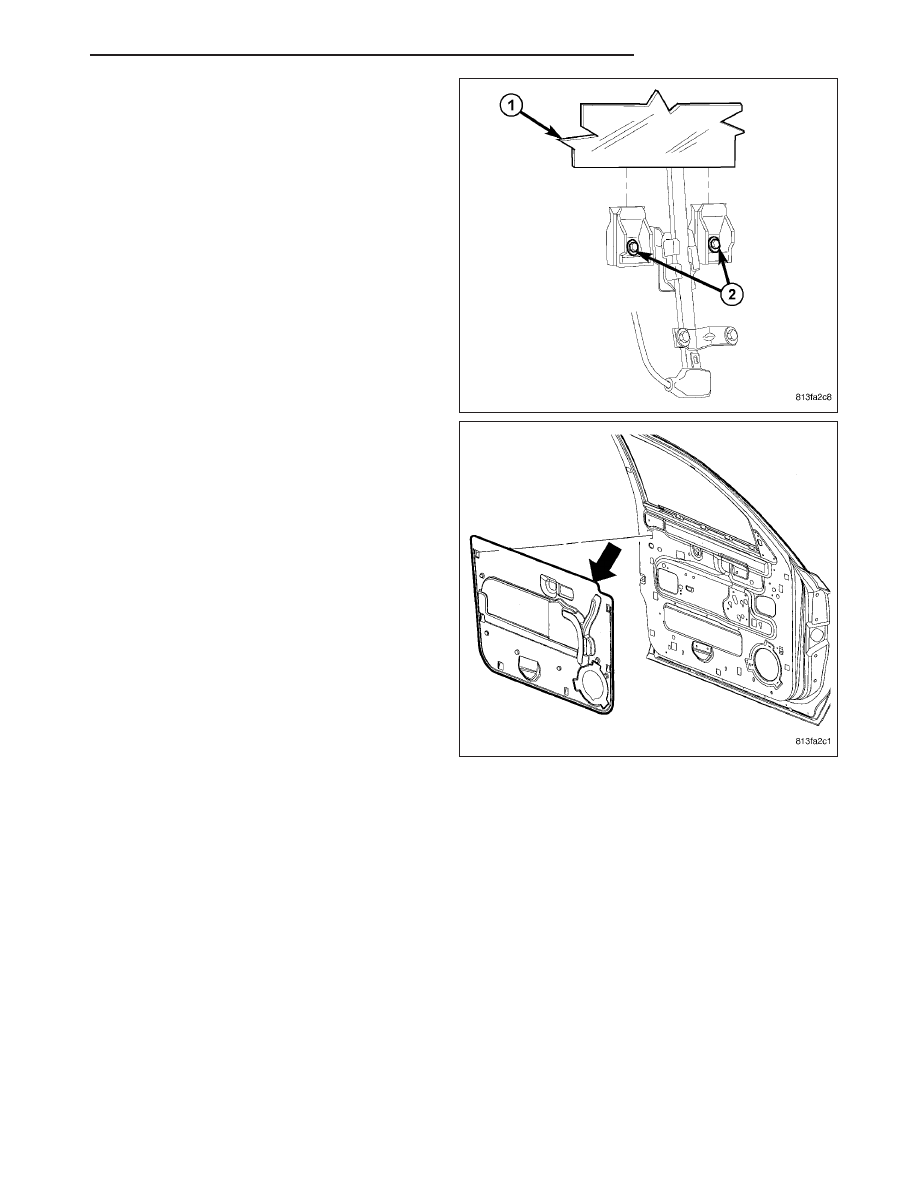

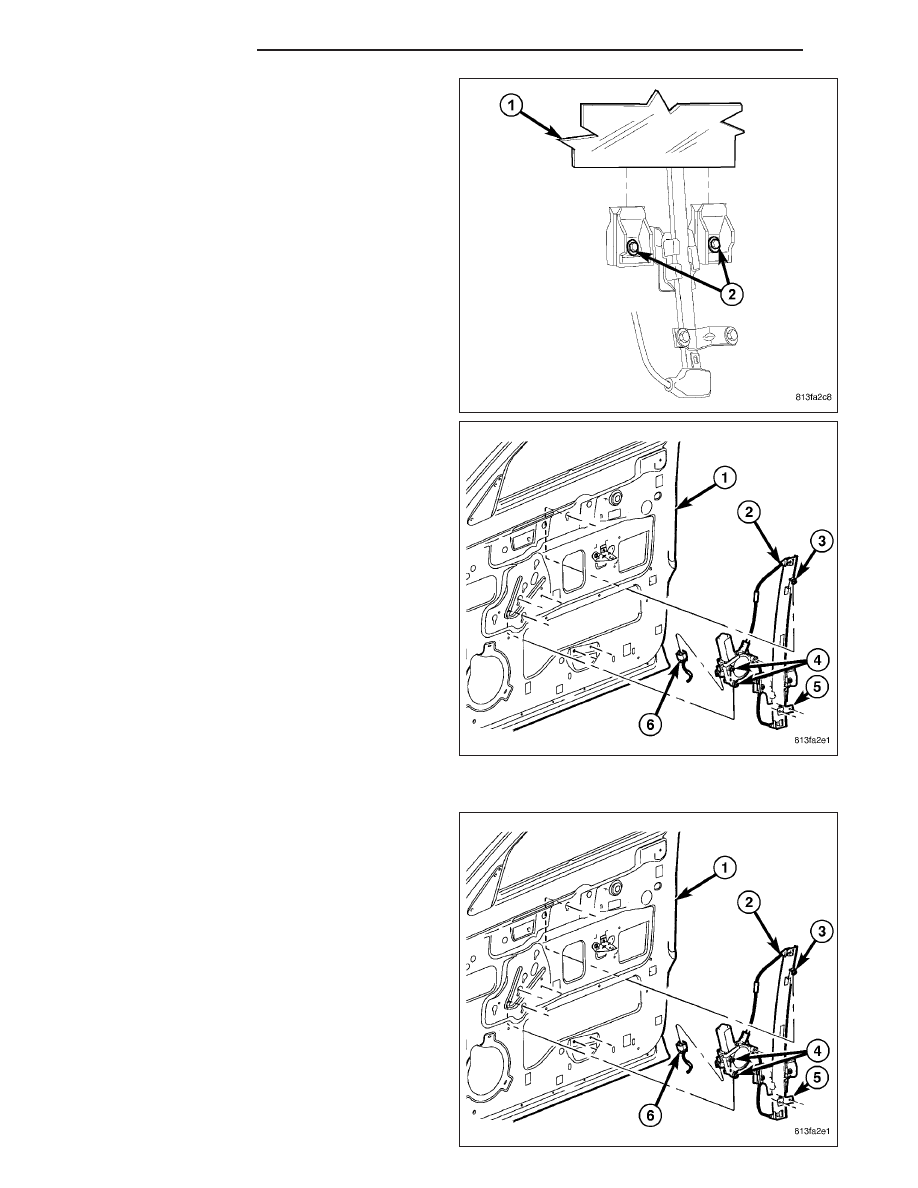

3. Loosen the glass clamp screws (2). 4. Raise the glass into the full up position and secure into place with tape or equivalent. 5. Disconnect the electrical connector (6). 6. Remove the two lower regulator bolts (5). 7. Remove the one bolt at the motor. 8. Loosen the remaining three regulator bolts (3 and 4) located at the keyhole slots. 9. Lift regulator up and out of the keyhole slots and remove from door. INSTALLATION 1. Place the regulator into the door and engage the bolts (3 and 4) into the keyhole slots in the door 2. Install the one bolt at the motor. 3. Install the two lower bolts (5). 4. Tighten all the regulator bolts to 10 N·m (85 in. lbs.). 5. Connect the electrical connector (6). 23 - 76 DOOR - FRONT ND |
