SUPPLEMENTAL RESTRAINT SYSTEM(SRS) 8B-9

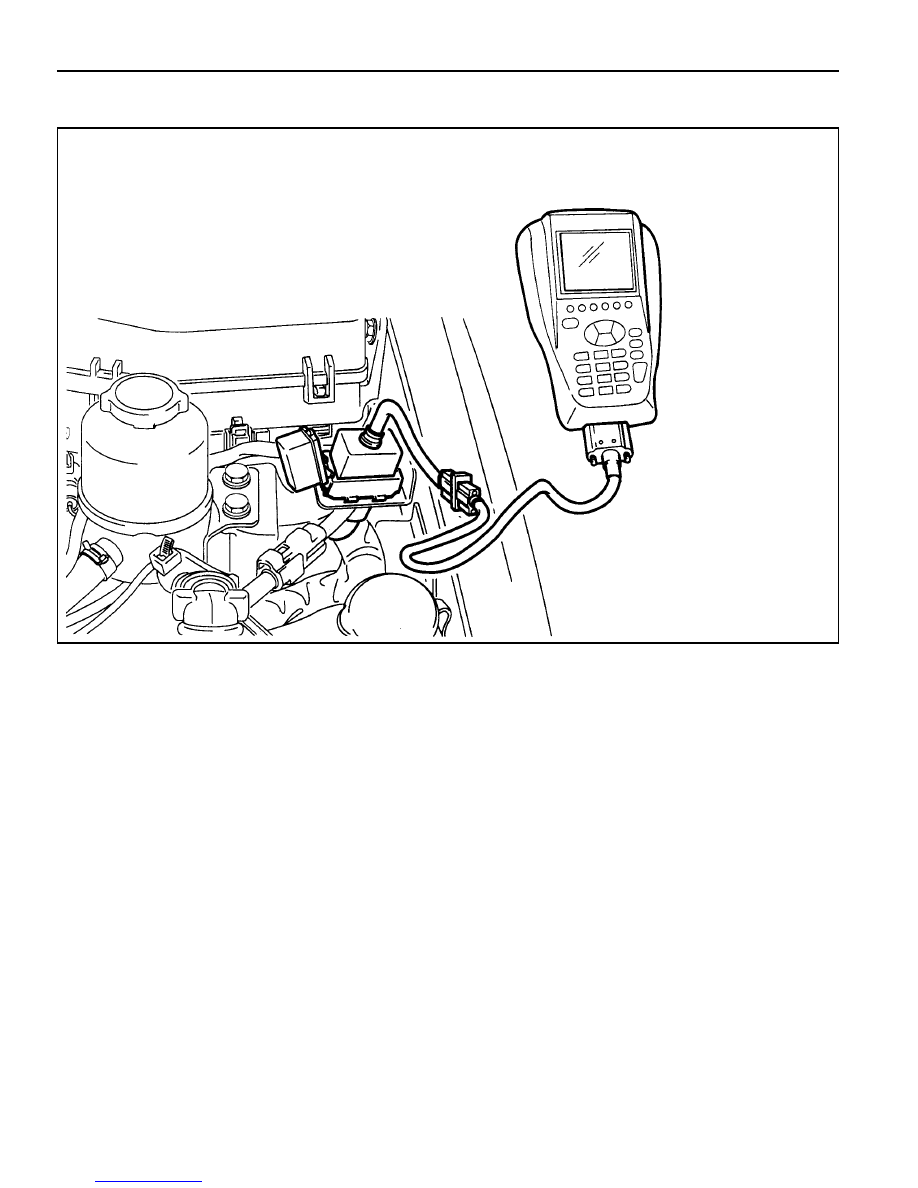

Diagnosis
Air bag control unit diagnoses each function in the intervals of 250ms - 20 sec. during start-up or driving to prevent
unwanted air bag deployment. If there is defect, it turns on or blinks warning lamp to indicate defects in the air bag
system to the driver. And fatal defect is found, air bag control unit enters overall or partial shutdown status and fault
code will be stored.
Air bag control unit diagnoses following items.
- Ignition TR
- Acceleration
- Microprocessor, RAM and ROM
- Watchdog
- Shutdown Switch
Diagnosis Condition
Diagnosis Items
Start-up (ignition ON)
During Driving
Lamp Blinking Mode
There are 2 kinds of blinking mode
1. When system internal fault is found, the lamp will stay on.
2. The lamp will blink according to external fault and there are 2 blinking codes.
Blinking code 1 (Squib resistance fault in the driver’s air bag squib line)
Blinking code 2 (Squib short on plus and minus in the air bag squib line)
Lamp blinking code is as follows. The last blinking will be within 0.5 sec. and 1 cycle of blinking will be repeated every
5 seconds.
Blinking Code 1
(Sec.) 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5
Blinking Code 3
(Sec.) 0 0.5 1 1.5 2 2.5 3 3.5 4 4.5
- Squib resistance
- Squib line short to battery and ground
- Energy reserve system
- Lamp output
- Battery voltage
- ASIC communication
- Arming sensor
- ASIC overheating
- RAM and W/D
- EEPROM
