5D2-18  TRANSFER CASE (TOD)

CODING

Coding Tool

SCANNER

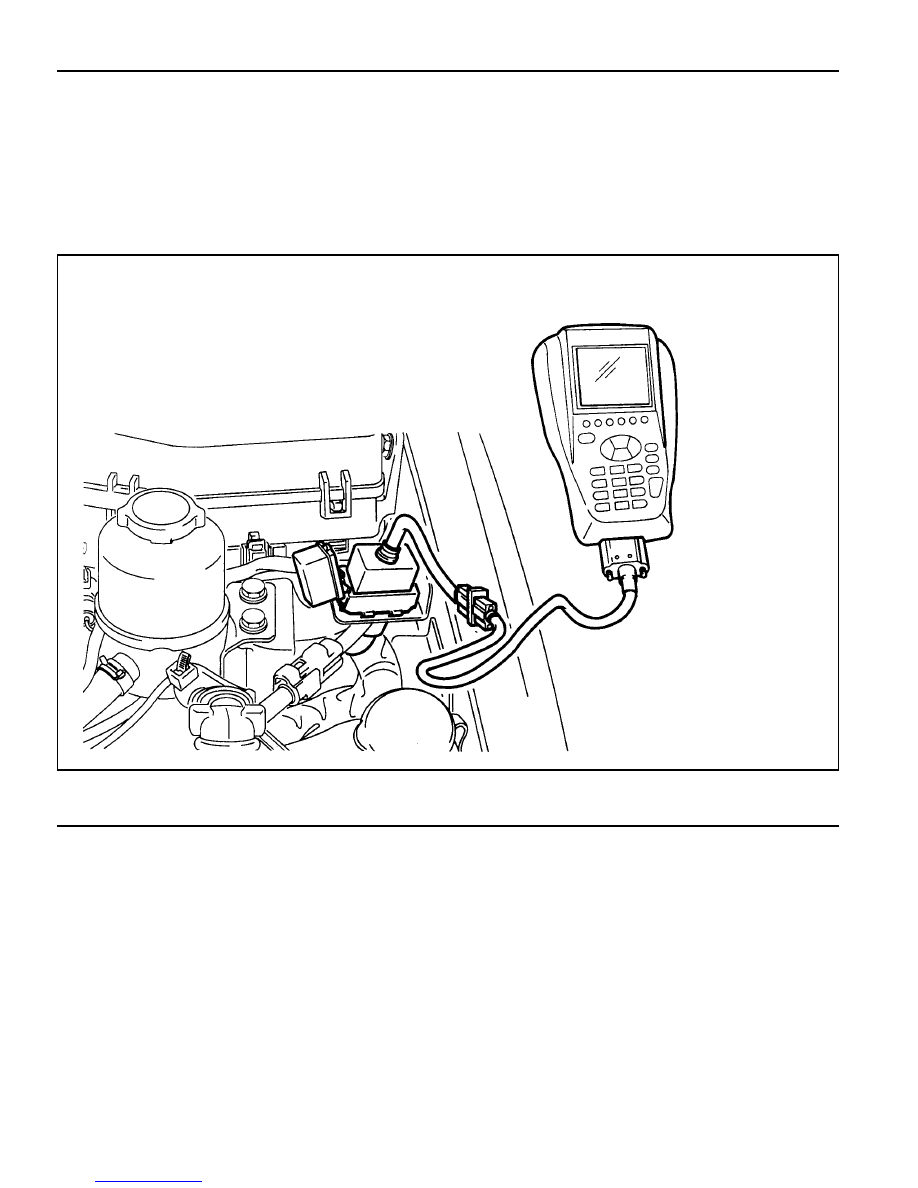

Connection of Coding Tool

Construct SCANNER into diagnosis connector (20 pins) near fuse box in engine room as below figure.

1 Diagnosis Connector

2 SCANNER

Notice

Coding ; An input activity of data for the proper
performance by matching specification, devices and
system with control unit.

TRANSFER CASE (TOD)  5D2-19

Classification

Engine Type

Transmission/Vehicle Type

Axle Ratio

Tire Size

Coding Required

1. Replacement of TOD control unit.

2. Adjustment by input error.

3. Change of tire specification.

Items

Gasoline Engine (E32)

661 Diesel Engine

661LA Diesel Turbo Engine

662 Diesel Engine

662LA Diesel Turbo Engine

Manual Transmission

Automatic Transmission

MUSSO

KORANDO

3.73

4.55

4.89

5.38

5.86

P215

P235

P255

P275

Coding Method

1. Check and record engine type, axle ratio and tire size.

2. Ignition “OFF”.

3. Connect SCANNER with diagnosis connector in engine

room.

4. Ignition “ON”.

5. Read the current memorized specification in TOD control

unit.

6. Compare memorized specification with the checked record.

If not matched, perform a coding.

7. Read again memorized coding specification in TOD control

unit for confirmation of coding.

8. Check coding specification whether it matches with vehicle

or not. If not, perform a coding again.

Coding items

5D2-20  TRANSFER CASE (TOD)

ELIMINATE THE MEMORIZED FAULT
CODE

When diagnose by SCANNER, it is required that you make
adequate service on defects against all fault codes. And then
you should delete the memorized fault codes in TOD control
unit using SCANNER as follows;

1. Connect SCANNER with diagnosis connector.

2. Select “trouble code clear” in SCANNER.

3. In “trouble code clear” screen, press “enter” key to erase

the fault code.

4. Confirm deletion of fault code and, if not, repeat 2.-3.

process.

TRANSFER CASE (TOD)  5D2-21

DIAGNOSIS

Malfunction interior TOD control unit ; fault code
1714

l

Phenomenon

1. When ignition “ON”, “4WD CHECK” lamp illuminates

continuously.

2. On diagnosis by SCAN-100, it displays fault code “1714”.

l

Cause ; Error of EEPROM checksum in TOD control unit

Test Stage / Contents

Result

Stage

Test Contents and Procedure

Specified Value

/Yes/No

Countermeasure

Check power supply for TOD control unit.

1. Disconnect 30 pin connector from TOD control unit.
2. Ignition “ON”.
3. Using multi-tester, measure voltage between pin 5(+)

and 17/18 (-).
- Specified value
- Measured value is within specified range ?

11-14 Vdc

Yes

No

Perform A2 stage
Perform A3 stage

Check connection status in TOD control unit connector.

1. Check connection status.

- Is it connected exactly?

2. In case of mal-connection, connect tightly then perform

the follows.
a. Delete fault code using Scan-100.
b. Ignition “OFF”.
c. Ignition “ON”.
d. Diagnose by Scan-100.

- Does it display fault code “1714”?

Yes

No

Yes

No

Check short of 10A fuse (fuse No.20).

1. Detach No.20 fuse from engine room fuse box.
2. Check the existence of short.

- Is fuse normal?

Yes

No

Check ground of TOD control unit.

1. Ignition “ON”.
2. Check voltage between 4/19 (+) pin and 17/18 (-)

using multi-tester (keep connection status).
- Specified value (battery is good)

- Measured value

3. Check short between 17/18 pin and body after

disconnect 30 pin connector.
- Is resistance "

¥

"?

12Vdc (battery

voltage)

Yes

No

Yes

No

A1

A2

A3

A4

Perform A3 stage
Perform A2 stage

Perform A3 stage
Normal system

Perform A4 stage
Replace fuse, then
perform A1 stage

Perform A4-3 stage
Replace TOD control
unit

Repair ground wiring
Ground is O.K.,
perform A5 stage
