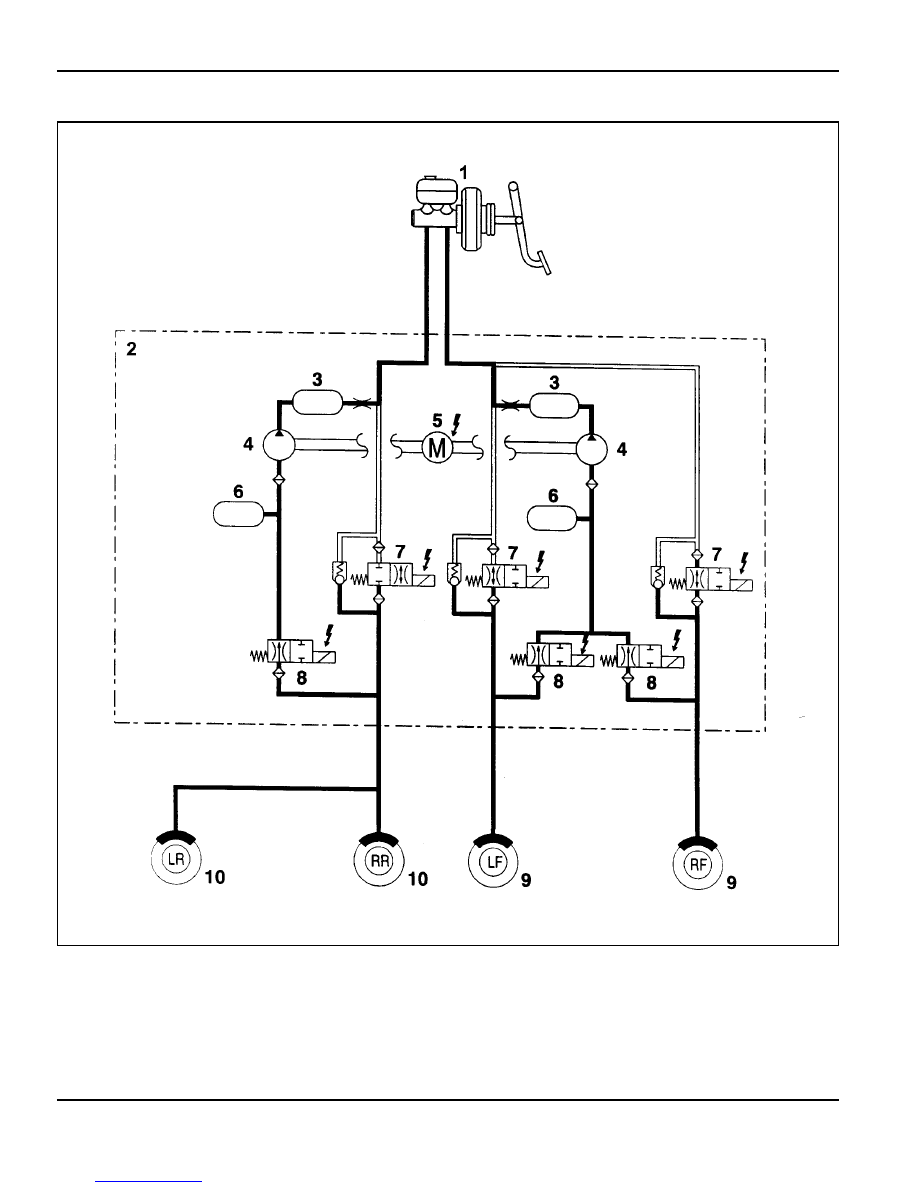

4F-22  ANTILOCK BRAKE SYSTEM

Pressure Decreased

1 Master Cylinder
2 Hydraulic Unit
3 Damping Chamber
4 Return Pump
5 Return Pump Motor

6 Accumulator Chamber
7 Inlet Valve for Each Wheel
8 Outlet Valve for Each Wheel
9 Front Wheel

10 Rear Wheel

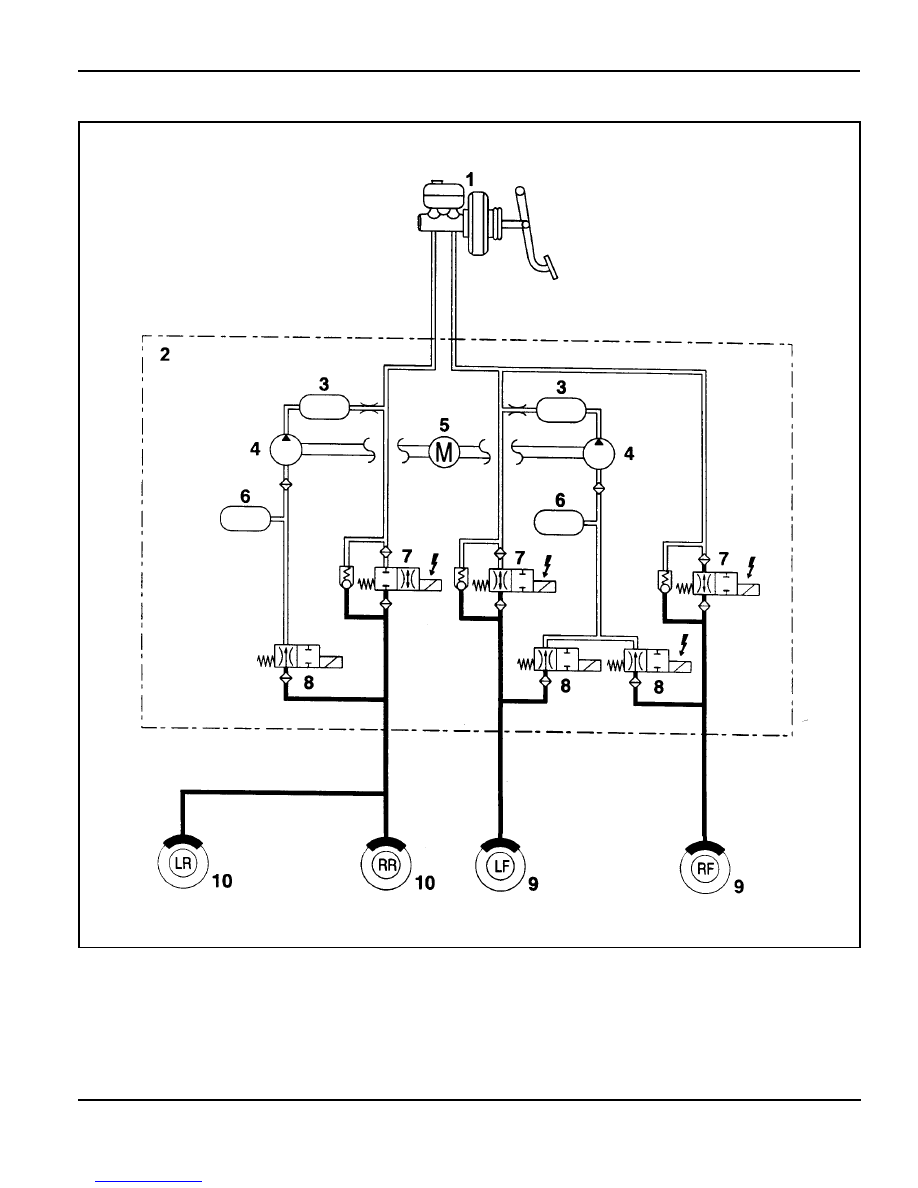

ANTILOCK BRAKE SYSTEM  4F-23

Pressure Maintained

1 Master Cylinder
2 Hydraulic Unit
3 Damping Chamber
4 Return Pump
5 Return Pump Motor

6 Accumulator Chamber
7 Inlet Valve for Each Wheel
8 Outlet Valve for Each Wheel
9 Front Wheel

10 Rear Wheel

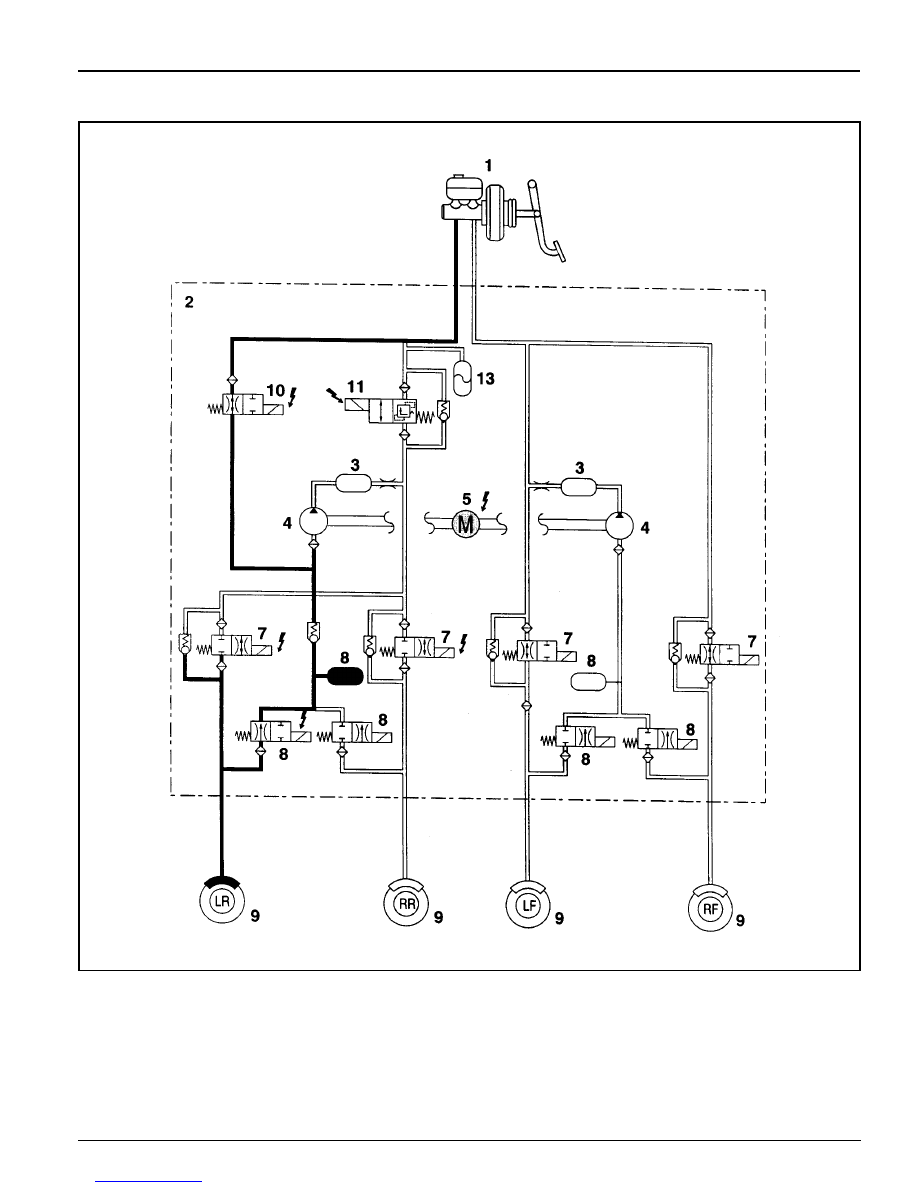

4F-24  ANTILOCK BRAKE SYSTEM

ABS/ABD 5.3

Pressure Increased

1 Master Cylinder
2 Hydraulic Unit
3 Damping Chamber
4 Return Pump
5 Return Pump Motor
6 Accumulator Chamber

7 Inlet Valve for Each Wheel
8 Outlet Valve for Each Wheel
9 Wheel

10 Prime Valve (ASV)

11 Pilot Valve (USV)

12 Check Valve
13 ISD (Integrated Suction Damper)

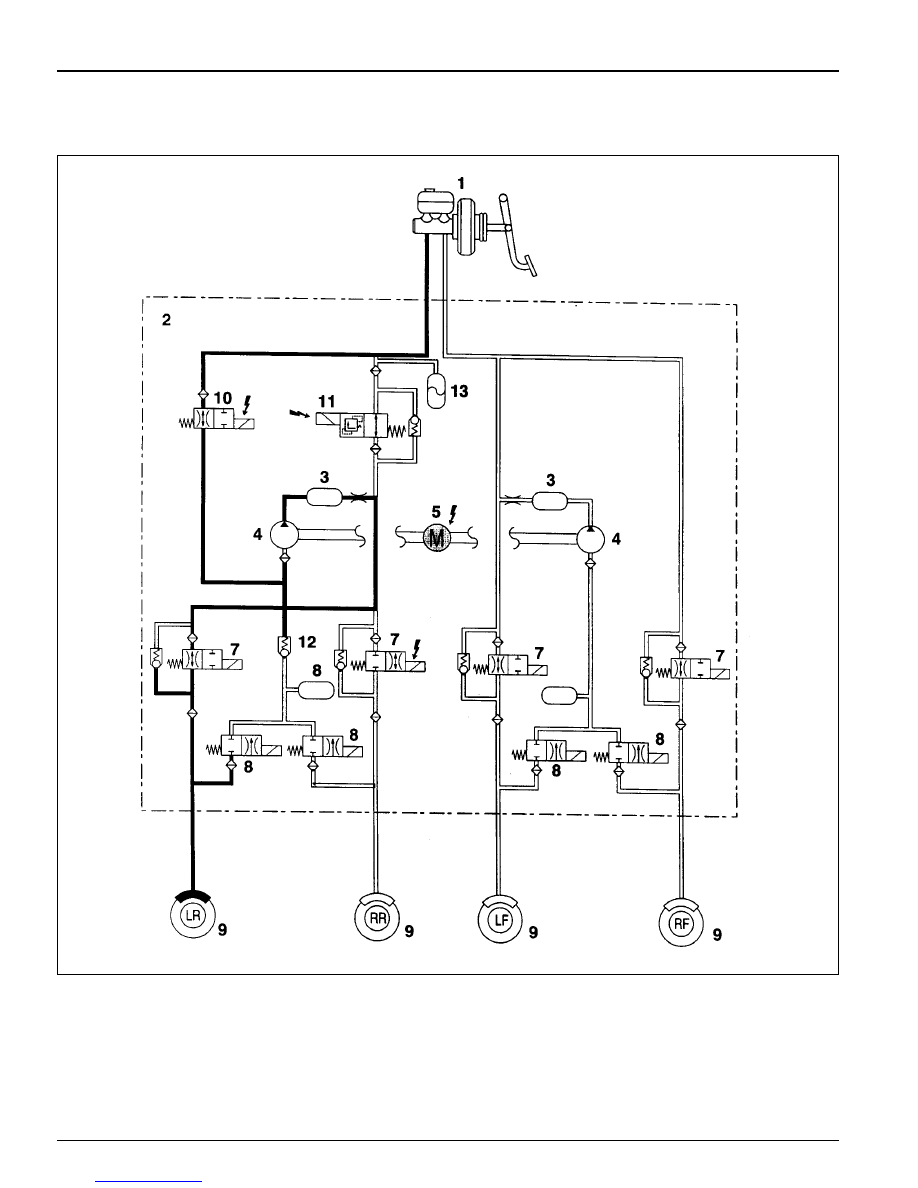

ANTILOCK BRAKE SYSTEM  4F-25

Pressure Decreased

1 Master Cylinder
2 Hydraulic Unit
3 Damping Chamber
4 Return Pump
5 Return Pump Motor
6 Accumulator Chamber

7 Inlet Valve for Each Wheel
8 Outlet Valve for Each Wheel
9 Wheel

10 Prime Valve (ASV)

11 Pilot Valve (USV)

12 Check Valve
13 ISD (Integrated Suction Damper)
