4A-14  HYDRAULIC BRAKES

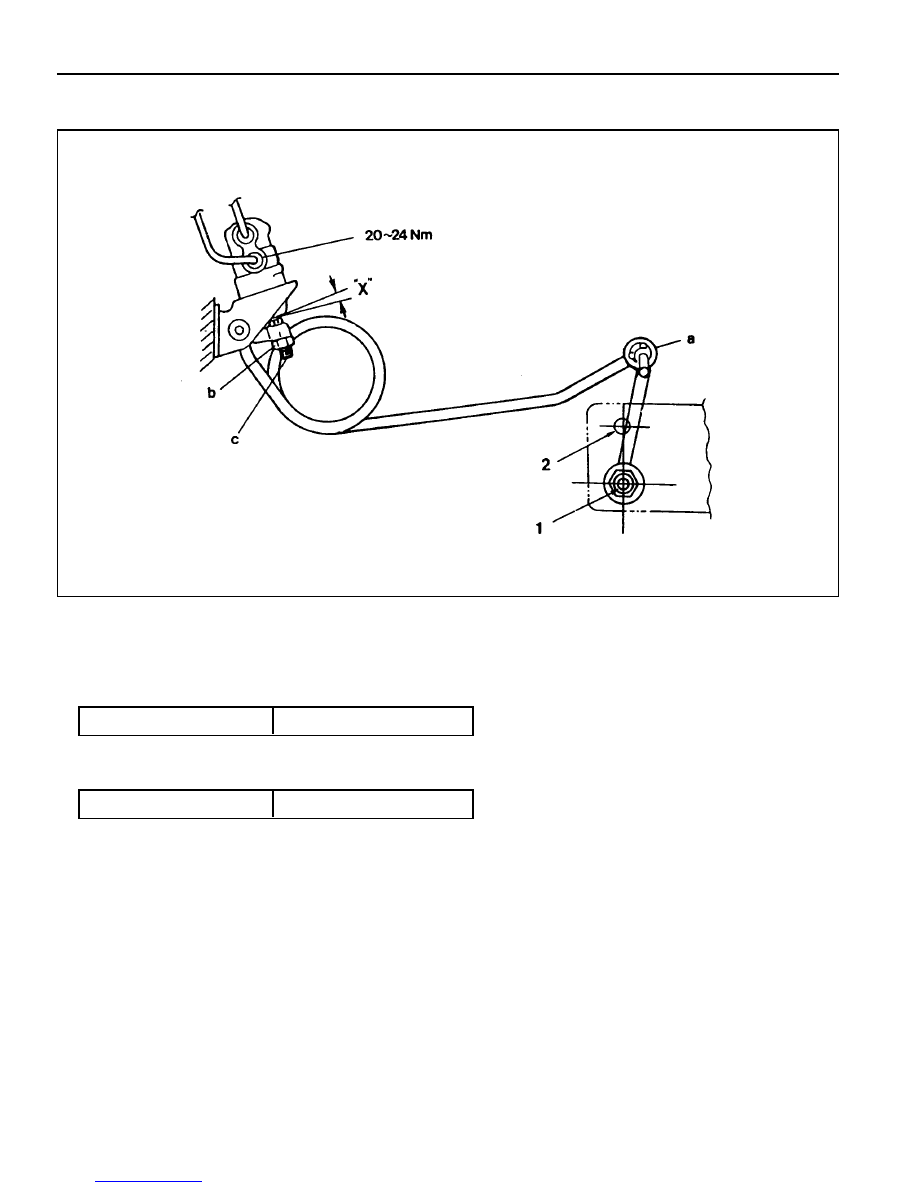

LCRV SETTING METHOD

1. LCRV setting should be performed with unladen vehicle

condition.

2. Install the connecting rod (a) to the No.1 hole.

Tightening Torque

14 - 18 Nm

3. Adjust the clearance “X” to be 0 mm and tighten the bolt (c)

using the lock nut (b).

Tightening  Torque

14 - 18 Nm

4. Remove the connecting rod (a) from the No.1 hole and

reinstall it to the No. 2 hole.

5. Place alignment marks between the lock nut (b) and

adjusting screw (c) after the valve setting.

SECTION 4B

MASTER  CYLINDER

Specifications . . . . . . . . . . . . . . . . . . . . . . . .  4B-1

Fastener  Tightening  Specifications . . . . . . . . .  4B-1

Maintenance and Repair . . . . . . . . . . . . . . .  4B-2

TABLE OF CONTENTS

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Application

Master Cylinder Nut

Booster Nut

N

·

·

·

·

·

m

14 - 22

8 - 18

On-Vehicle Service . . . . . . . . . . . . . . . . . . . . .  4B-2

Booster & Brake Master Cylinder . . . . . . . . . .  4B-2

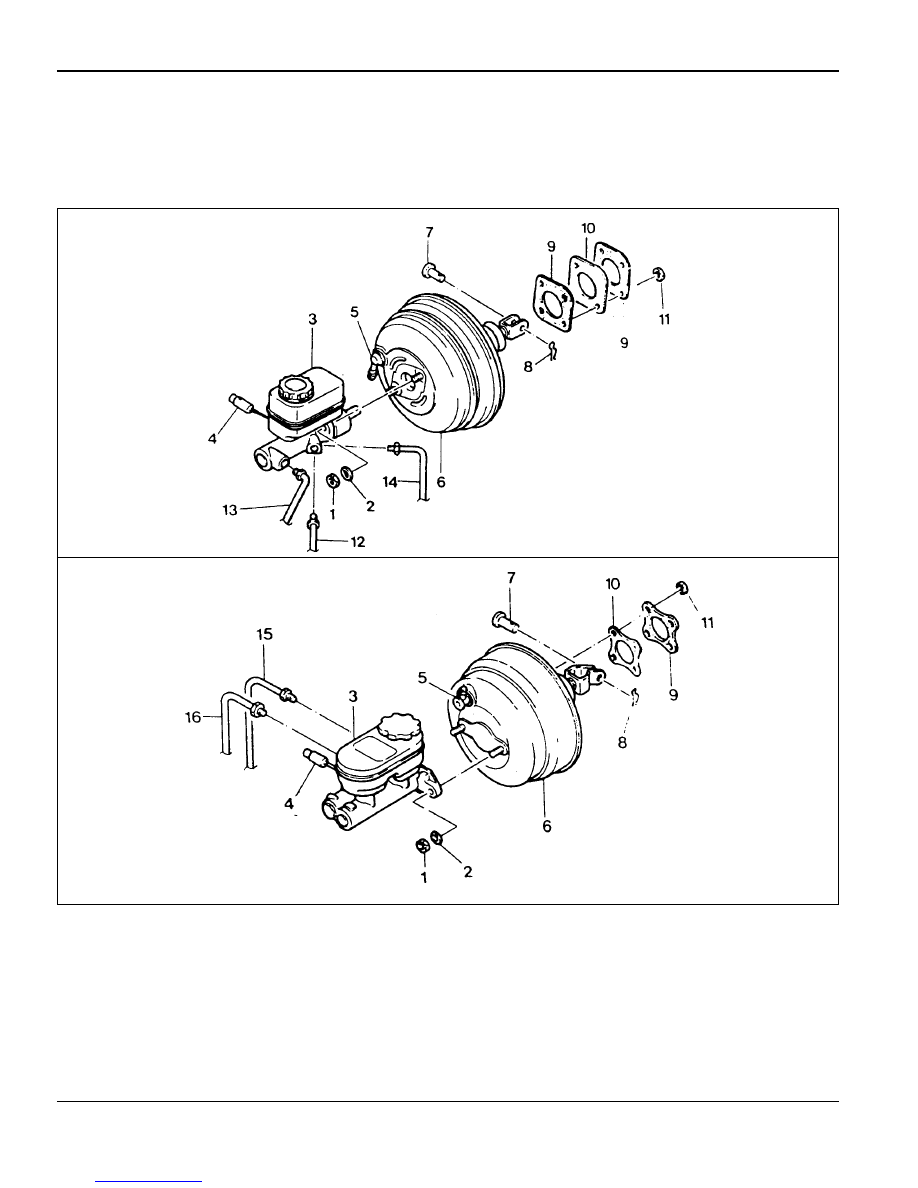

4B-2  MASTER CYLINDER

1 Nut ....................................................... 14-22 Nm
2 Washer
3 Master Cylinder Assembly
4 Oil Level Sensor
5 Check Valve
6 Booster
7 Clevis Pin
8 Snap Pin

9 Seal

10 Spacer

11 Nut ......................................................... 8-18 Nm

12 Front Tube (LH)
13 Front Tube (RH)
14 Rear Tube
15 1st Tube (Primary)
16 2nd Tube (Secondary)

   MANDO

   PBR

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

BOOSTER AND BRAKE MASTER CYLINDER

MASTER CYLINDER  4B-3

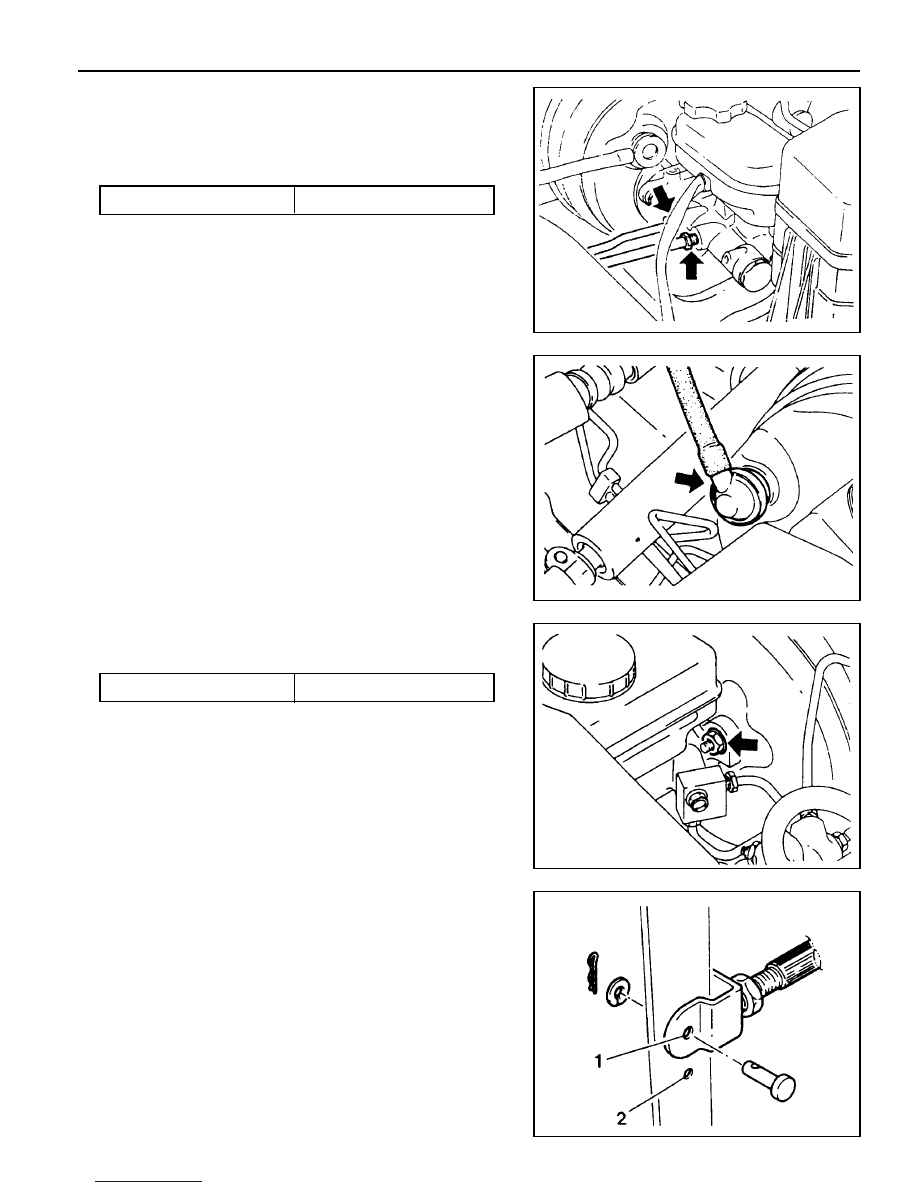

Removal & Installation Procedure

1. Remove the oil level sensor connector.

2. Remove the tube from the master cylinder.

Installation Notice

Notice

l

Be careful not to drop the oil when removing the tube.

l

If the oil is dropped, promptly sweep up.

3. Remove the booster vacuum hose.

Notice

l

Connect fully to the end of vacuum hose when installing.

4. Loosen the nut of master cylinder.

Installation Notice

5. Remove the clevis pin and disconnect the pedal and brake

booster push rod.

Notice

l

Install in the upper hole when PBR brake.

l

Connect the snap pin in the hole of clevis pin fully.

l

Apply the grease around the hole of clevis pin.

Tightening  Torque

14 - 22 Nm

Tightening  Torque

15 - 19 Nm
