2E-4  TIRES AND WHEELS

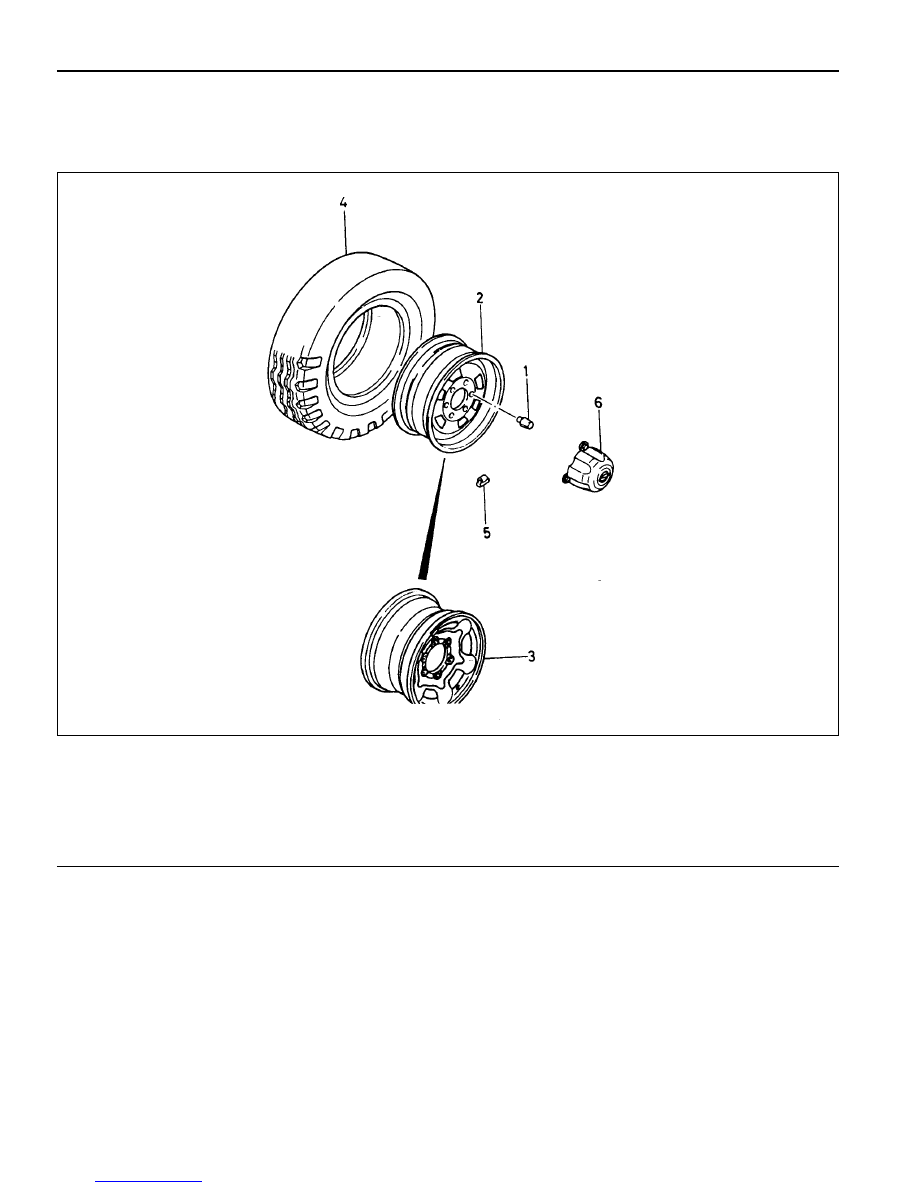

COMPONENT LOCATOR

WHEEL AND TIRE

1 Wheel Bolts ................. Steel Wheel : 80-120 Nm

.......................... Aluminium Wheel : 110-130 Nm

2 Steel Wheel
3 Aluminium Wheel

4 Tire
5 Steel Wheel Weight Balance
6 Hub Cap

  TIRES AND WHEELS  2E-5

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

WHEELS AND TIRES

Removal & Installation Procedure

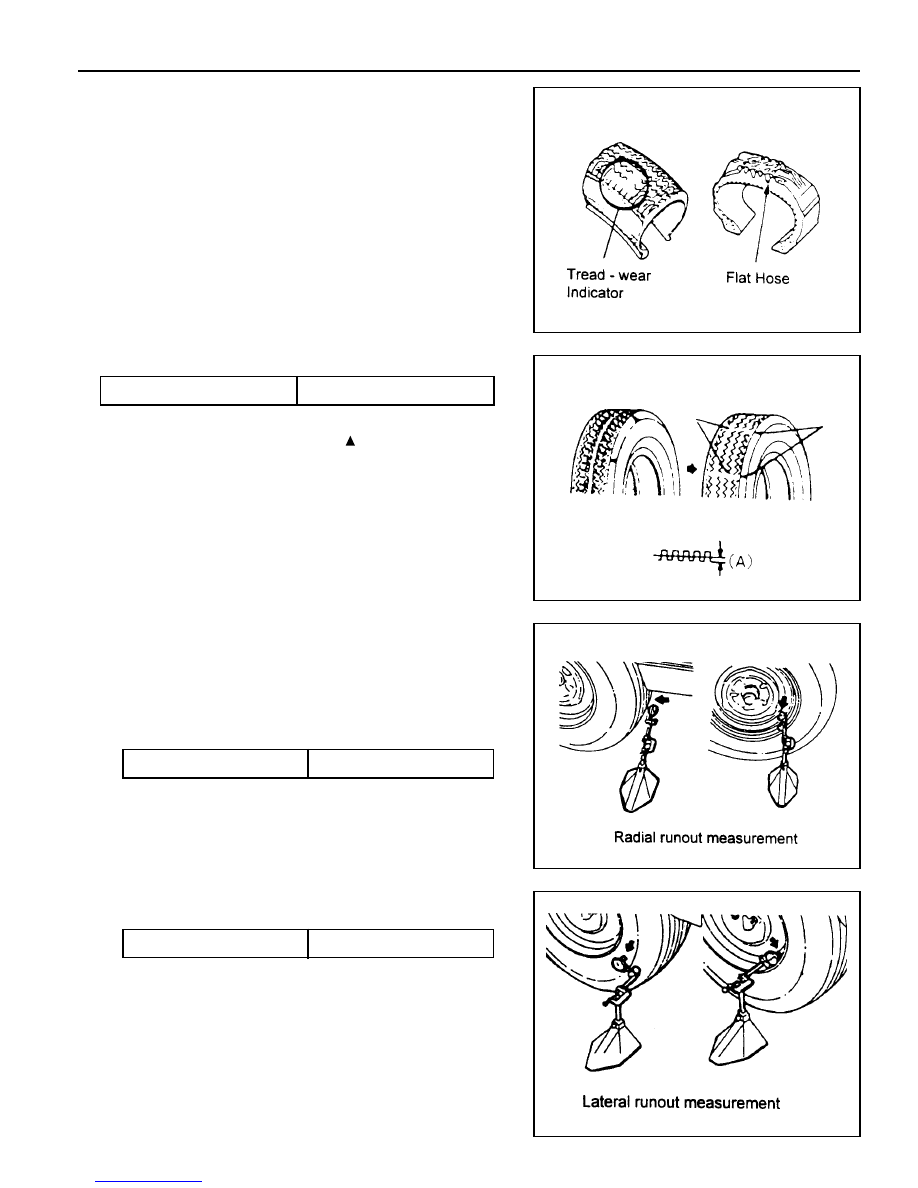

1. Inspection of tire

Check tread area for tread surface, crack, damage by nail
in or stones. Replace or  repair if necessary.

l

Replace the tire if tread-wear indicator of the tread

grooves appears where marked '  '

.

l

The wear limit of snow tire is the same as normal tire

(1.6mm) and indicator location is marked '

¯

'

.

Limit

1.6mm

Standard

2.66mm

Standard

2.03mm

2. Wear limit.

3. Runout measurement.

l

Excessive runout of tires and wheels can cause the

abnormal wear of tire. Using a dial indicator, measure
wheel and tire runout.

l

Measure radial runout at the rim flange and center of

the tire tread area.

l

Measure lateral runout at the tire bead area of the wheel

and tire sidewall.

Notice

If runout is excessive, replace the tire or wheel.

2E-6  TIRES AND WHEELS

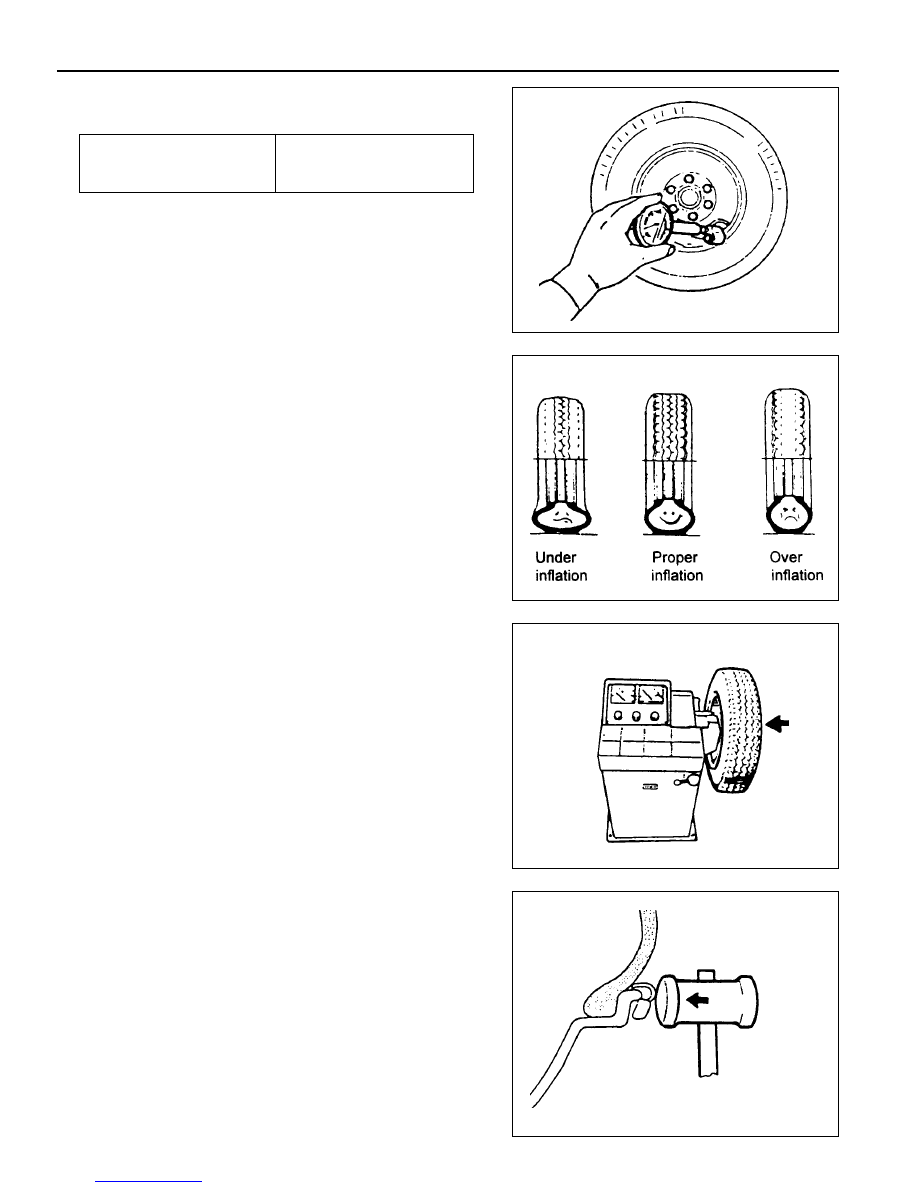

4. Tire pressure inspection.

l

Tire pressure.

l

Check tread contact with road.

Notice

l

If underinflated, tire may come away from the wheel

during rapid steering.

l

An overinflated tire will cause a hard riding and uneven

wear.

Front & Rear

(P235/75R15)

2.1kg/cm (30PSI)

2

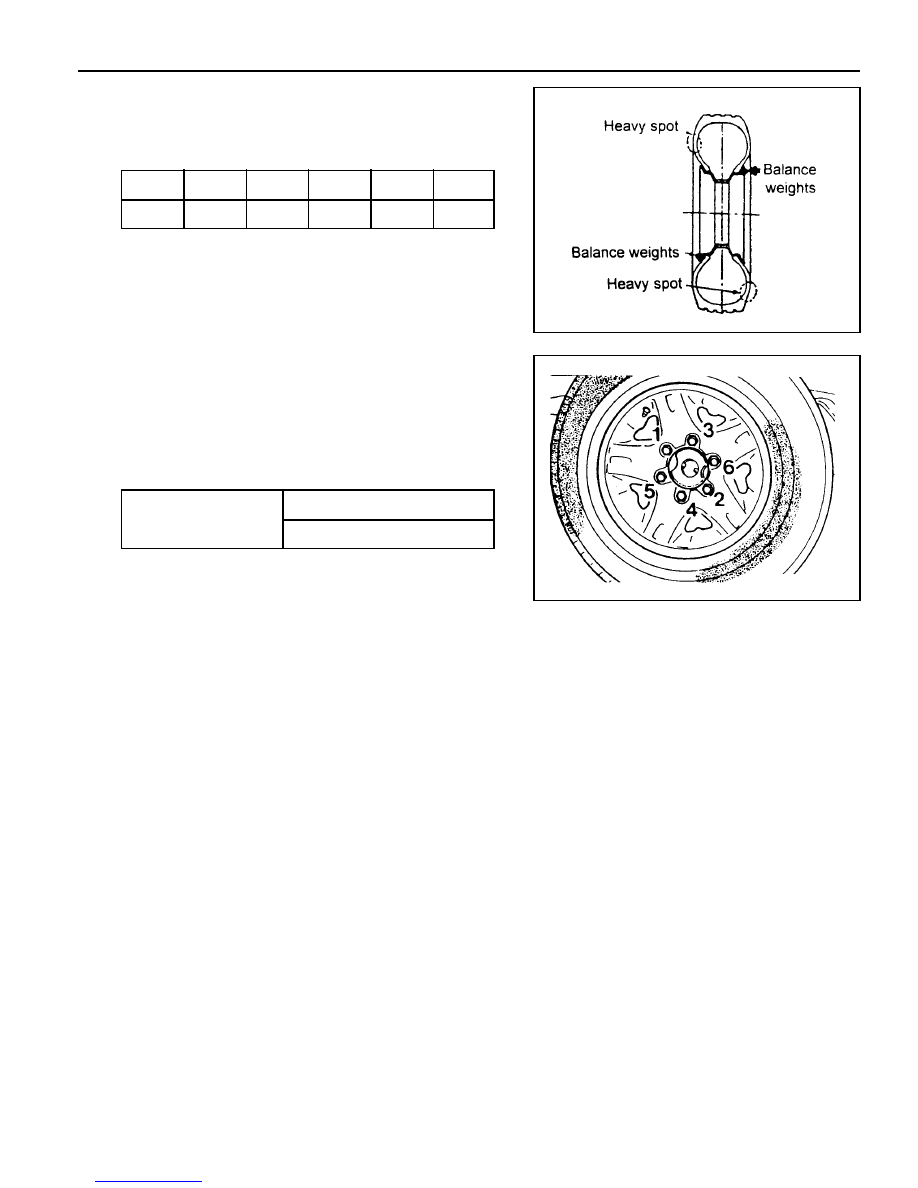

5. Wheel balance.

l

Balance weights should be on each side. When the wheel

is out of balance or a tire has been repaired, be sure to
balance the wheel again.

l

If total weight is over 150g, readjust the balance by

reinstalling the tire on the wheel.

l

Balance weight should not protrude from the wheel rim

over 3mm.

l

For aluminum wheel, use aluminum wheel balance weight

only.

  TIRES AND WHEELS  2E-7

l

To correct unbalance, install equal weights 180° opposite

each other, one on the inside of the wheel and one on
the outside, at the point of unbalance.

l

Balance Weight

6. Cautions for installation and removal.

l

Clean the mounting surfaces of hub and wheel.

l

Do not apply grease or oil on the nuts and bolts (It will

cause looseness and poor tightening).

l

Using a jack, lift up the tire about 3cm from the ground.

l

Tighten nuts in a criss-cross pattern 2-3 times.

10g

0.4oz

20g

0.7oz

30g

1.10oz

40g

1.40oz

50g

1.80oz

60g

2.1oz

Steel : 80 - 120Nm

Aluminium : 110 - 130Nm
