1G2-2  M161 ENGINE INTAKE & EXHAUST

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

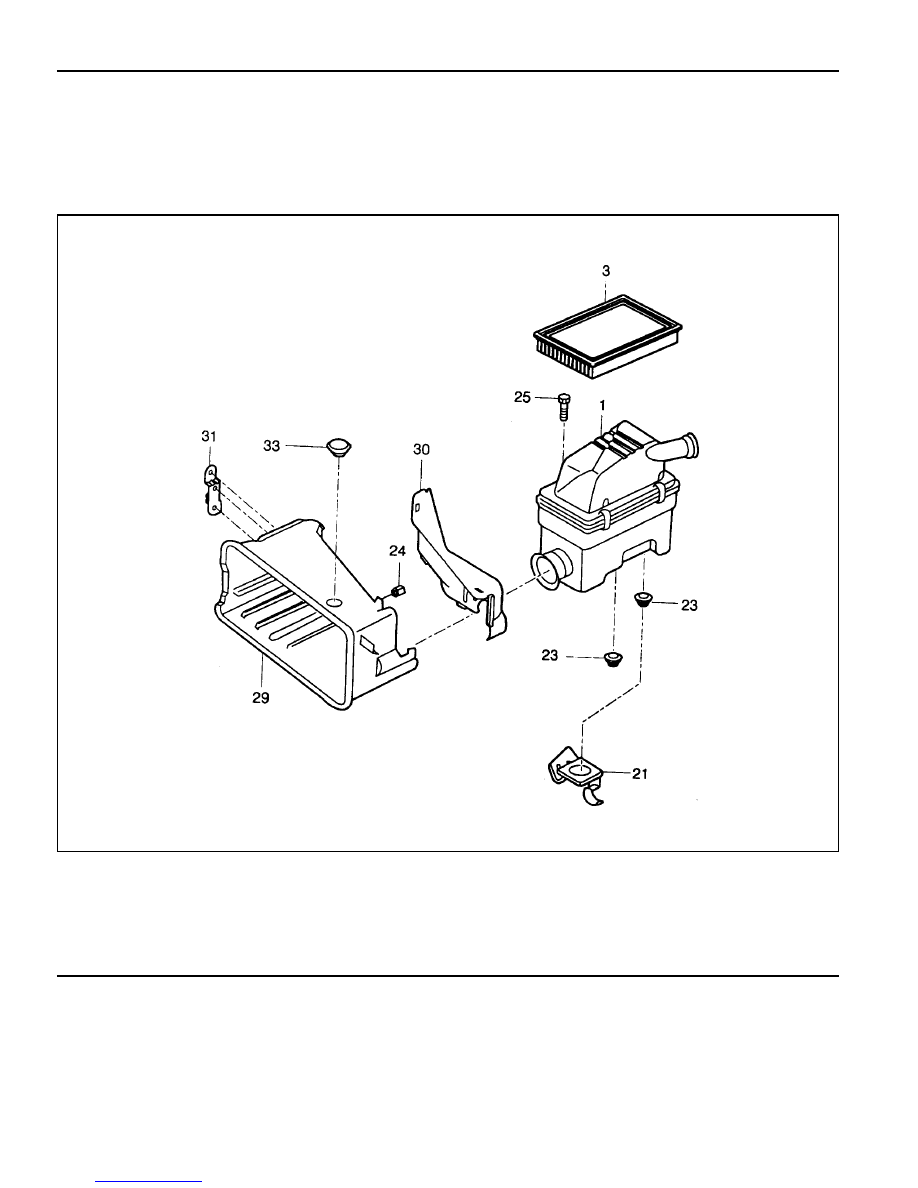

AIR CLEANER

1 Air Cleaner Assembly
2 Element Assembly
3 Insulator
4 Air Duct Hose

5 Air Inlet Duct
6 Bolt (M8 × 30 ) ................................... 22.5-27.5 Nm

7

Bolt (M6 × 35 ) ........................................... 9-11 Nm

 M161 ENGINE INTAKE & EXHAUST  1G2-3

Removal & Installation Procedure

1. Release the clamp securing HFM sensor and air cleaner.

2. Disengage the air cleaner assembly and HFM sensor

assembly.

3. Unserew the mounting bolt(6) from the bracket.

Installation Notice

Tightening  Torque

22.5 - 27.5 Nm

4. Release the clamp from air cleaner assembly housing and

remove the cover.

5. Remove the air cleaner assembly.

6. Remove the air cleaner housing from insulator.

Notice

Make sure the air cleaner to be seated in insulator.

7. Disengage the air duct hose and air cleaner housing and

remove the housing.

8. Remove the air duct hose.

9. Unscrew the two bolts(7) from air inlet duct.

Installation Notice

10. Remove the air inlet duct.

11. Installation should follow the removal procedure in the

reverse order.

Tightening  Torque

8 - 9 Nm

1G2-4  M161 ENGINE INTAKE & EXHAUST

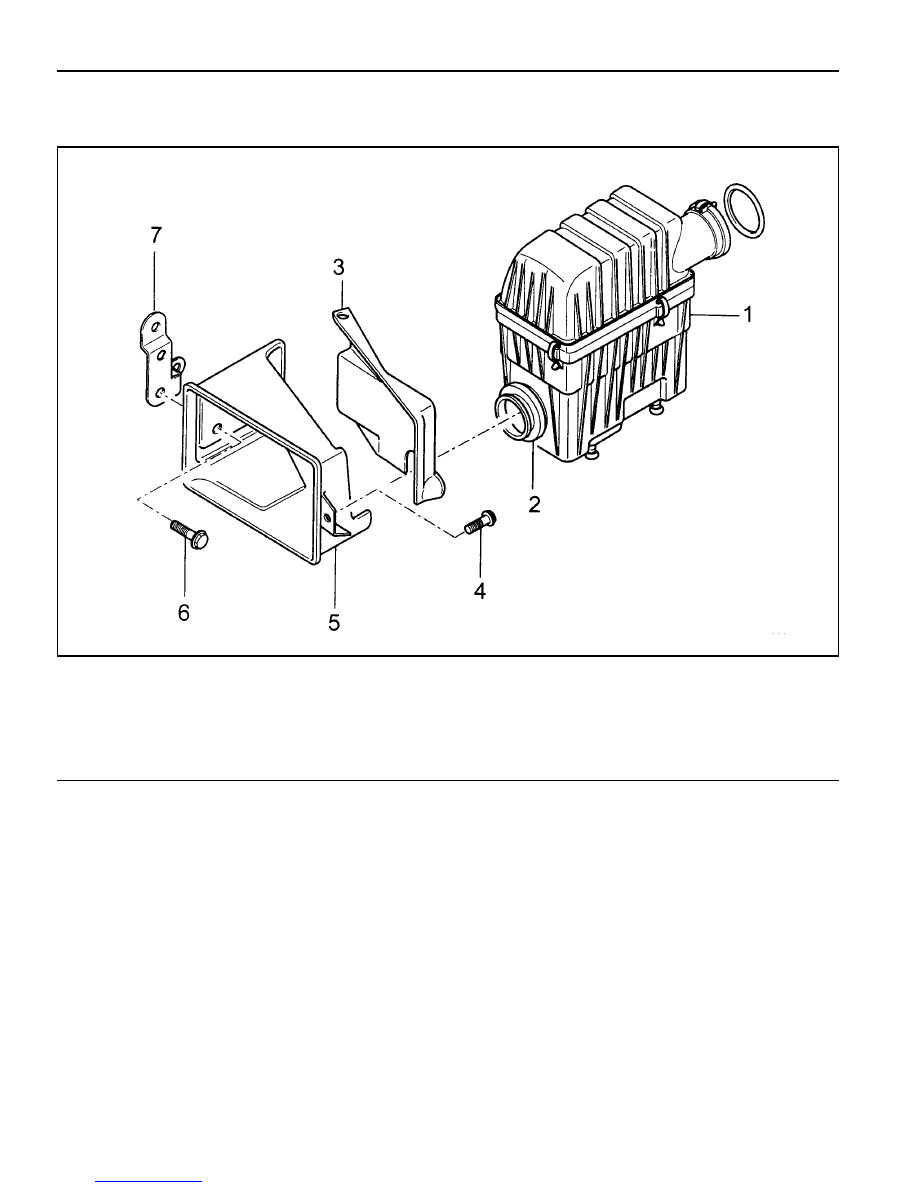

AIR INTAKE SHIELD

Preceding Work : Removal of air cleaner

Removal & Installation Procedure

1. Remove the upper cover (3) from the air intake shield (5)

upper mounting pin.

2. Remove the bolts (4 and 6).

3. Remove the air intake shield (5).

4. Installation should follow the removal procedure in the

reverse order.

1 Air Cleaner
2 Gasket
3 Air Intake Shield Upper Cover
4 Bolt

5 Air Intake Shield
6 Bolt
7 Bracket

 M161 ENGINE INTAKE & EXHAUST  1G2-5

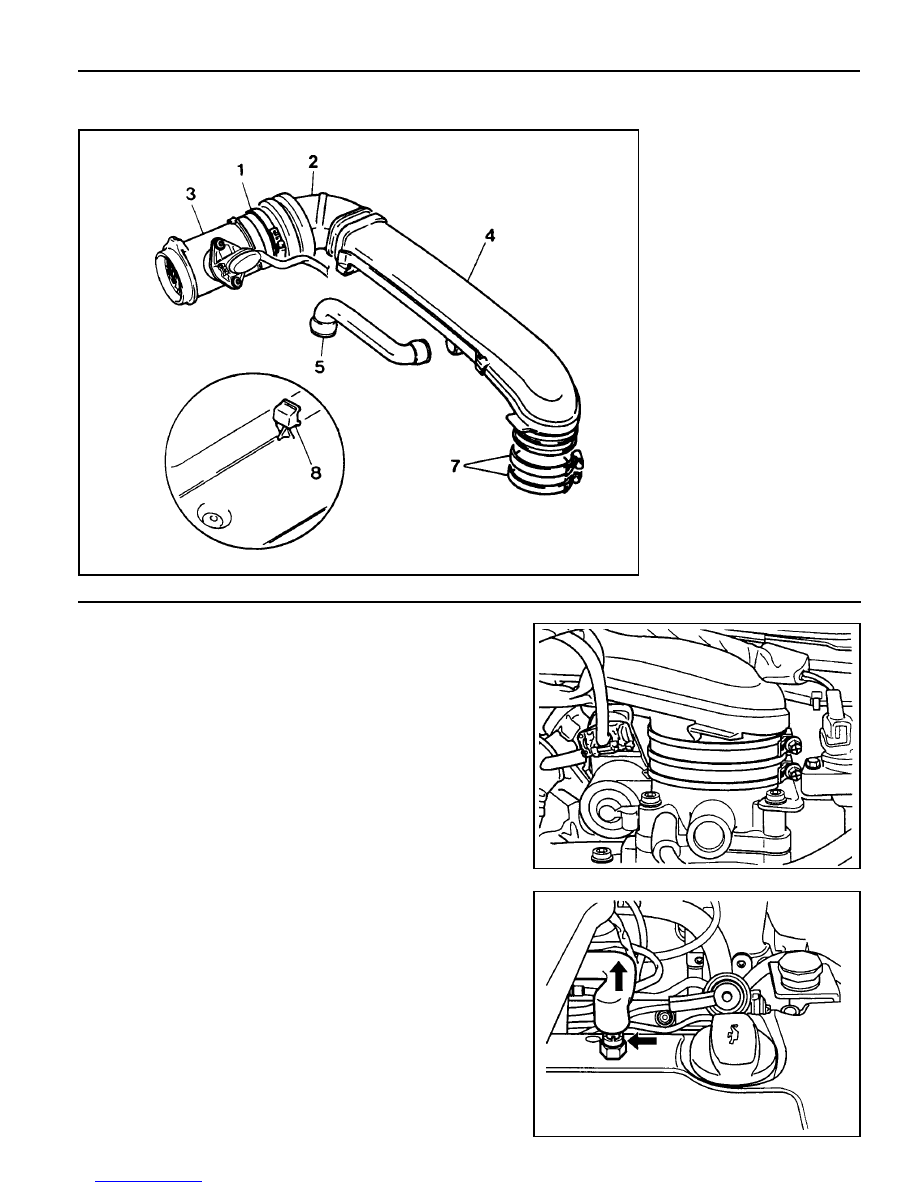

INTAKE AIR DUCT

1 Clamp
2 Sleeve
3 HFM Sensor
4 Intake Air Duct
5 Blow-by Hose
7 Clamp(2 pieces)
8 Intake Air Duct Mounting

Bracket

Removal & Installation Procedure

1. Release the clamp (1) and intake air duct.

2. Remove the Blow-by hose (5) (arrow).
