1D3-12  OM600 ENGINE COOLING

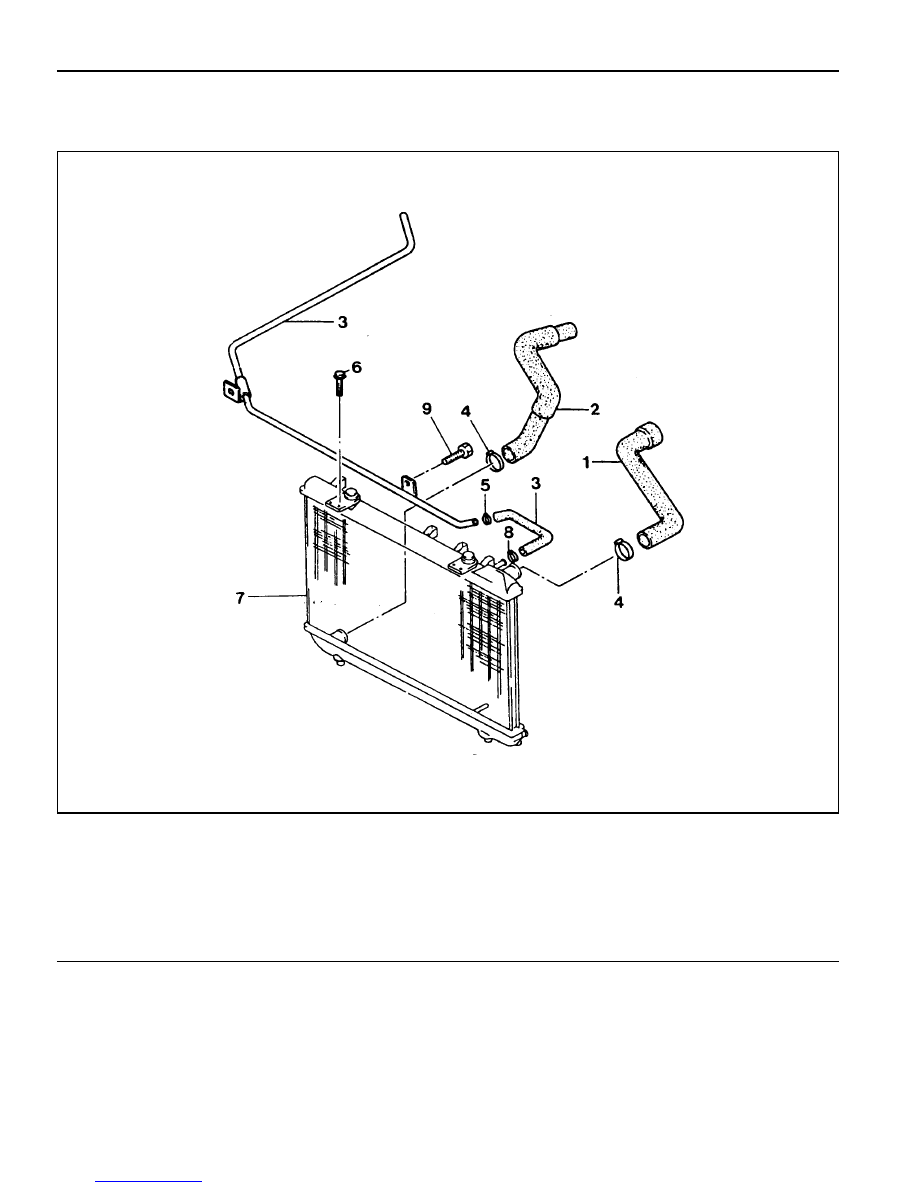

RADIATOR

Preceding : Removal of cooling fan shroud

1 Radiator Inlet Hose ............... OM662LA : 220mm

............................................. OM661LA : 321mm

2 Radiator outlet Hose
3 Radiator Deaeration Tube & Hose
4 Clamp

5 Spring Clamp
6 Bolt .......................................................... 3-7 Nm
7 Radiator
8 Spring Clamp
9 Bolt ........................................................... 3-7Nm

OM600 ENGINE COOLING  1D3-13

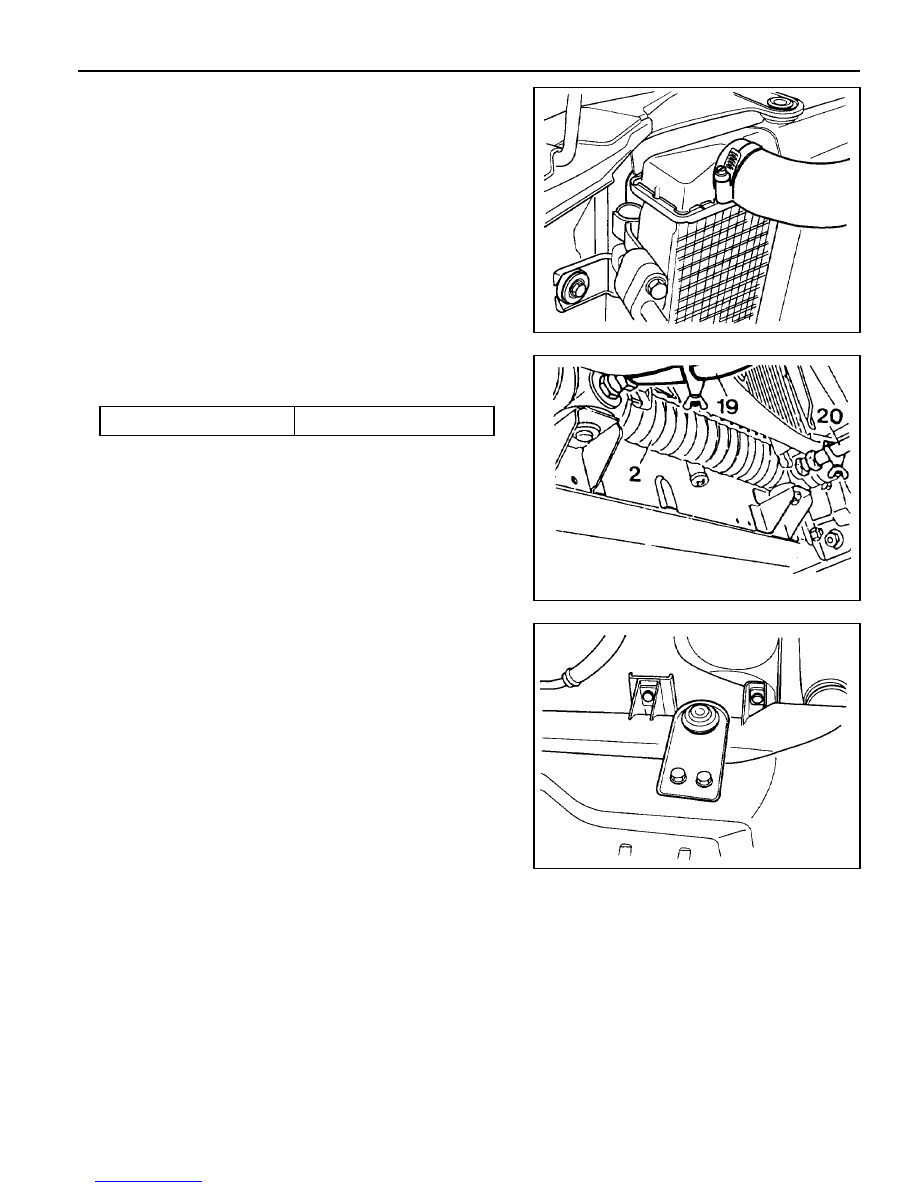

Removal & Installation Procedure

1. Drain coolant from the radiator.

2. Remove the coolant thermoswich connector from radiator.

3. Remove the each coolant hose.

4. Remove the auto T/M oil cooling hose and cooling line.

Installation Notice

5. Loosen the radiator upper mounting bolt and remove the

mounting stopper and insulator.

6. Remove the radiator.

7. Check the radiator pin for crack, leakage and bending and

replace it if necessany.

8. Installation should follow the removal procedure in the

reverse order.

Tightening Torque

Hose : 29 - 40Nm

1D3-14  OM600 ENGINE COOLING

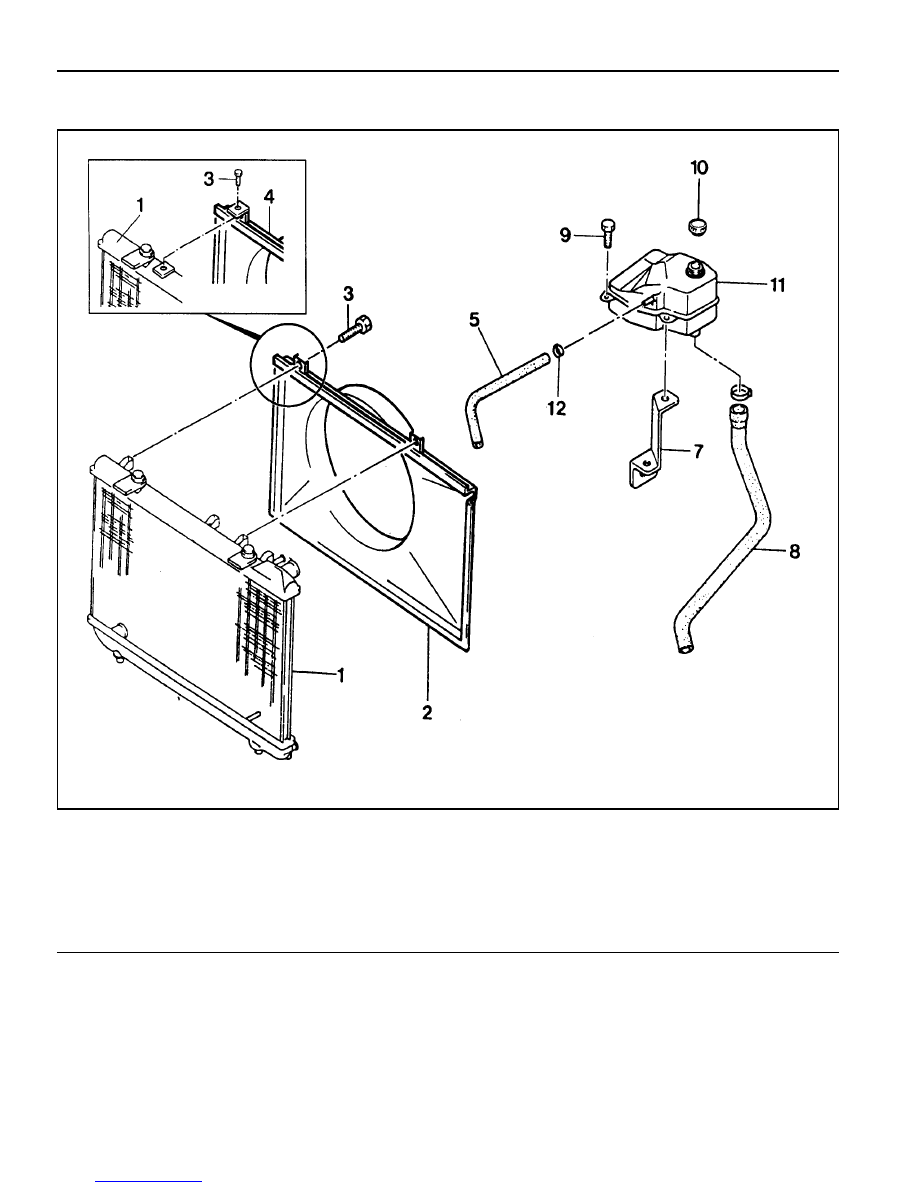

COOLING SUB-SYSTEM

1 Radiator
2 Cooling Fan Shroud
3 Bolt ..........................................................  3-7Nm
4 Cooling Fan Shroud
5 Radiator Deaieration Hose

7 Mounting Bracket
8 Make-up Cooling Hose
9 Bolt ........................................................... 3-7Nm

10 Cooling Reservoir-tank Cap

11 Cooling Reservoir-tank

OM600 ENGINE COOLING  1D3-15

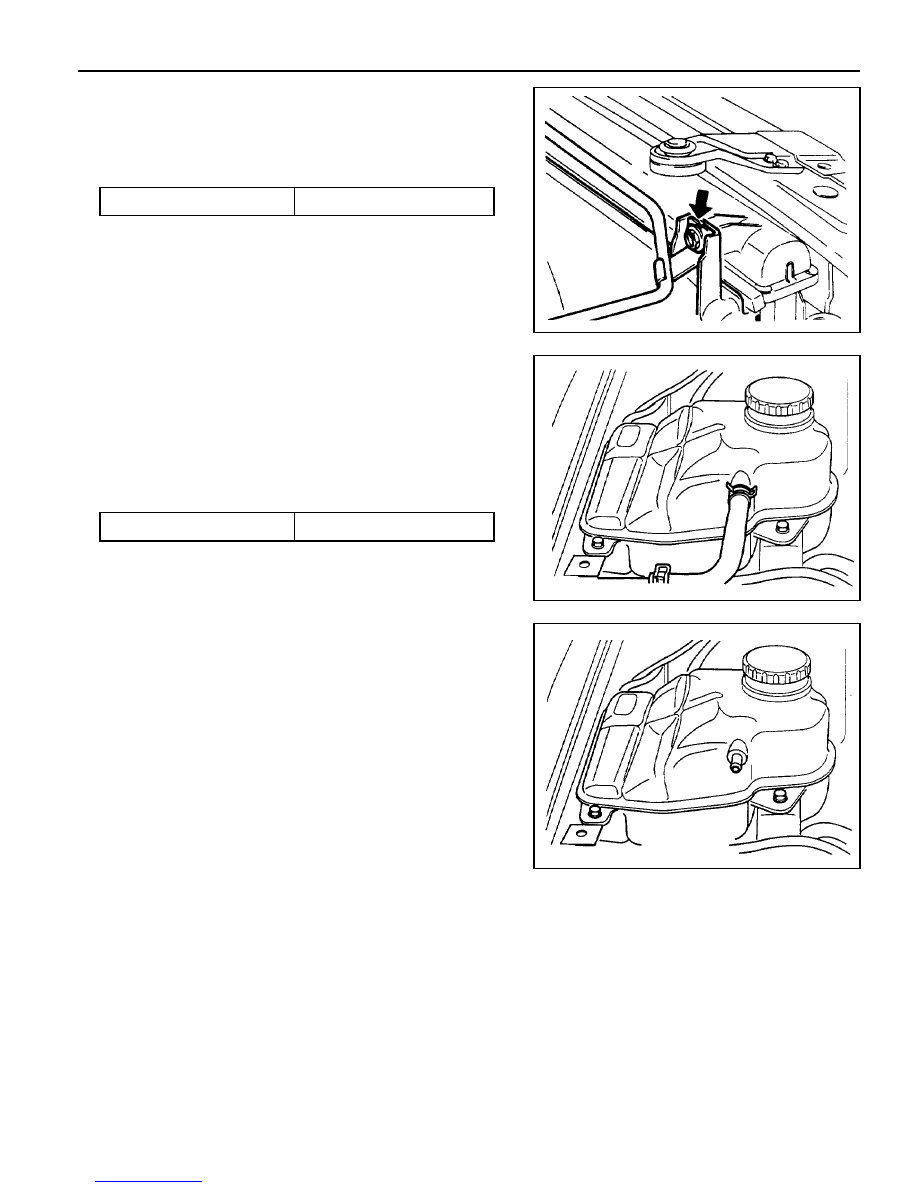

Removal & Installation Procedure

Cooling Fan Shroud

1. Remove the radiator deaeration hose and tube.

Installation Notice

Tightening  Torque

3 - 7 Nm

Tightening torque 3-7Nm

2. Check the shroud.

3. Installation should follow the removal procedure in the

reverse order.

Coolant Sub-Tank

1. Drain the coolant from radiator.

2. Remove the each hose.

3. Loosen the mounting bolt of sub-tank and remove the

coolant sub-tank.

Installation Notice

4. Installation should follow the removal procedure in the

reverse order.

Tightening  Torque

3 - 7 Nm
