OM600 ENGINE MECHANICAL  1B3-171

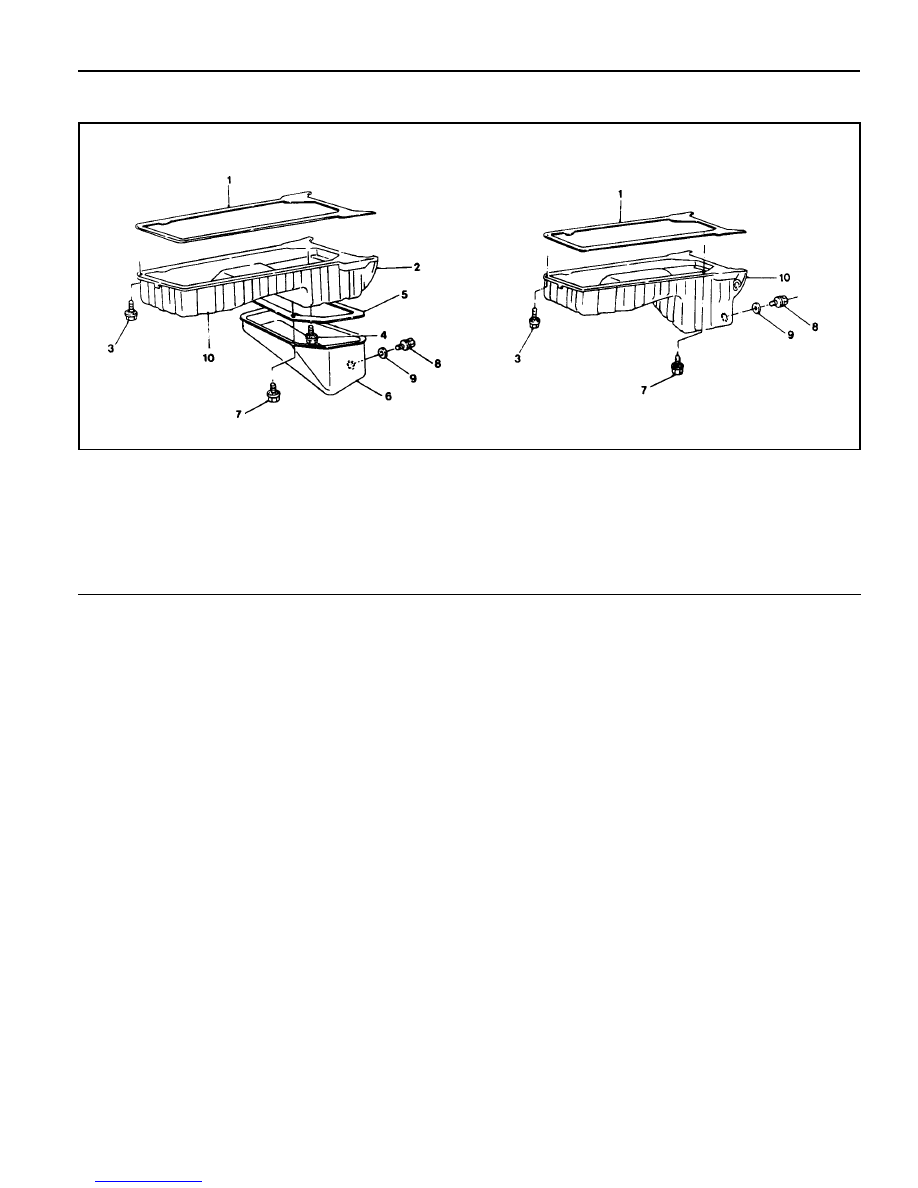

OIL PAN

1 Gasket ................................................... Replace
2 Upper Oil Pan
3 Combination Bolt ...................................... 10 Nm
4 Combination Bolt ...................................... 10 Nm
5 Gasket ................................................... Replace

6 Lower Oil Pan
7 Combination Bolt ...................................... 25 Nm
8 Drain Plug ................................................. 25 Nm
9 Washer Seal .......................................... Replace

10 Oil Pan

*Remove and install as numerical sequence.

Notice

Replace the washer seal with new one.

OM662LA

OM661LA

1B3-172  OM600 ENGINE MECHANICAL

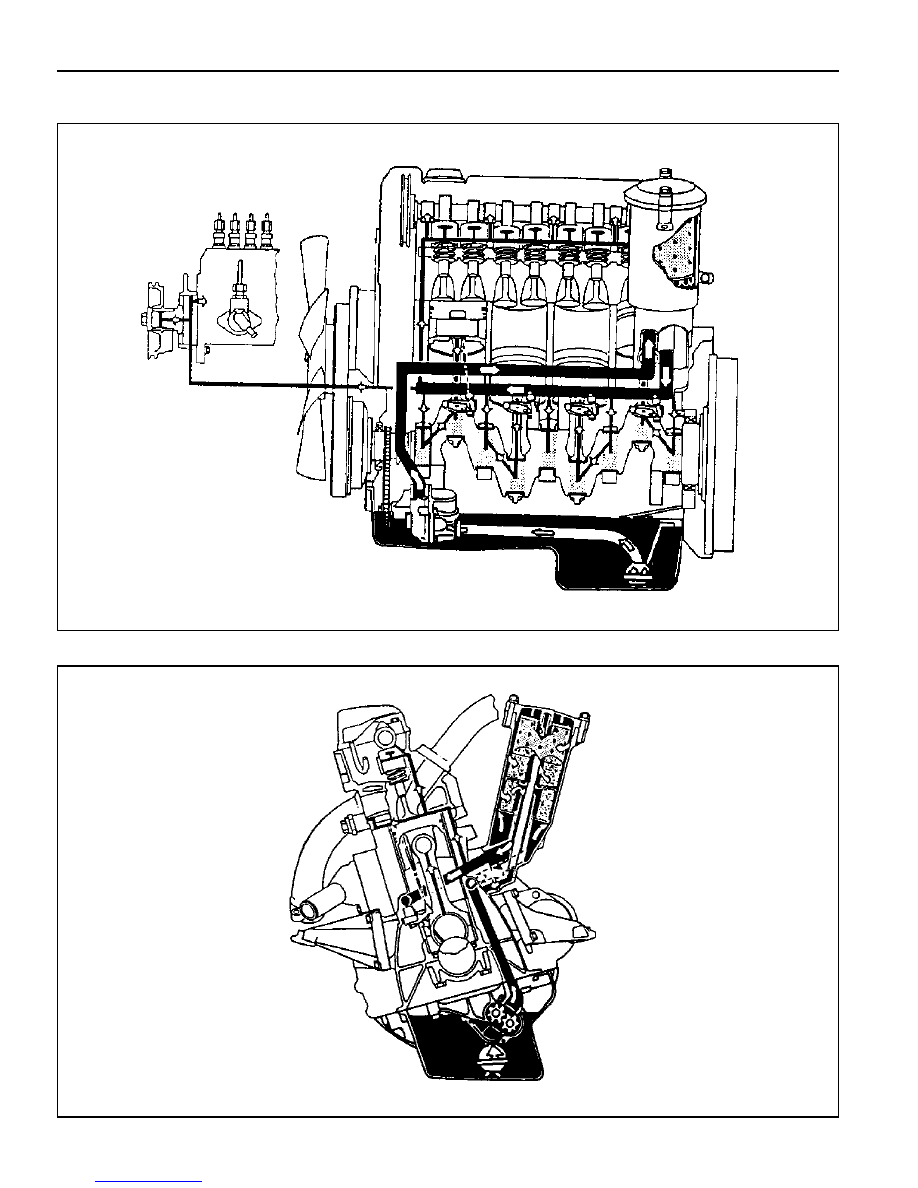

Oil Circulation

OM600 ENGINE MECHANICAL  1B3-173

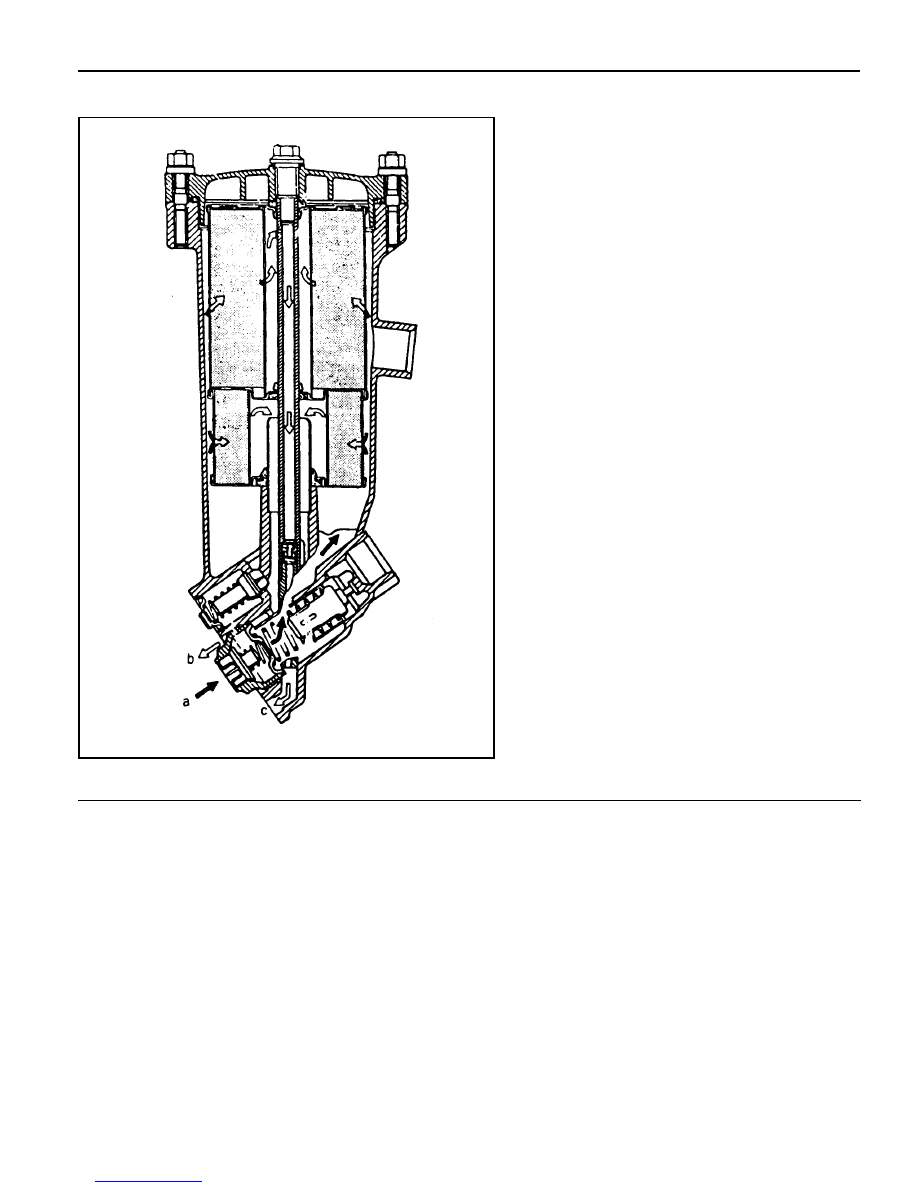

Oil Filter

a From Oil Pump
b To Main Oil Gallery

c To Oil Pan

1B3-174  OM600 ENGINE MECHANICAL

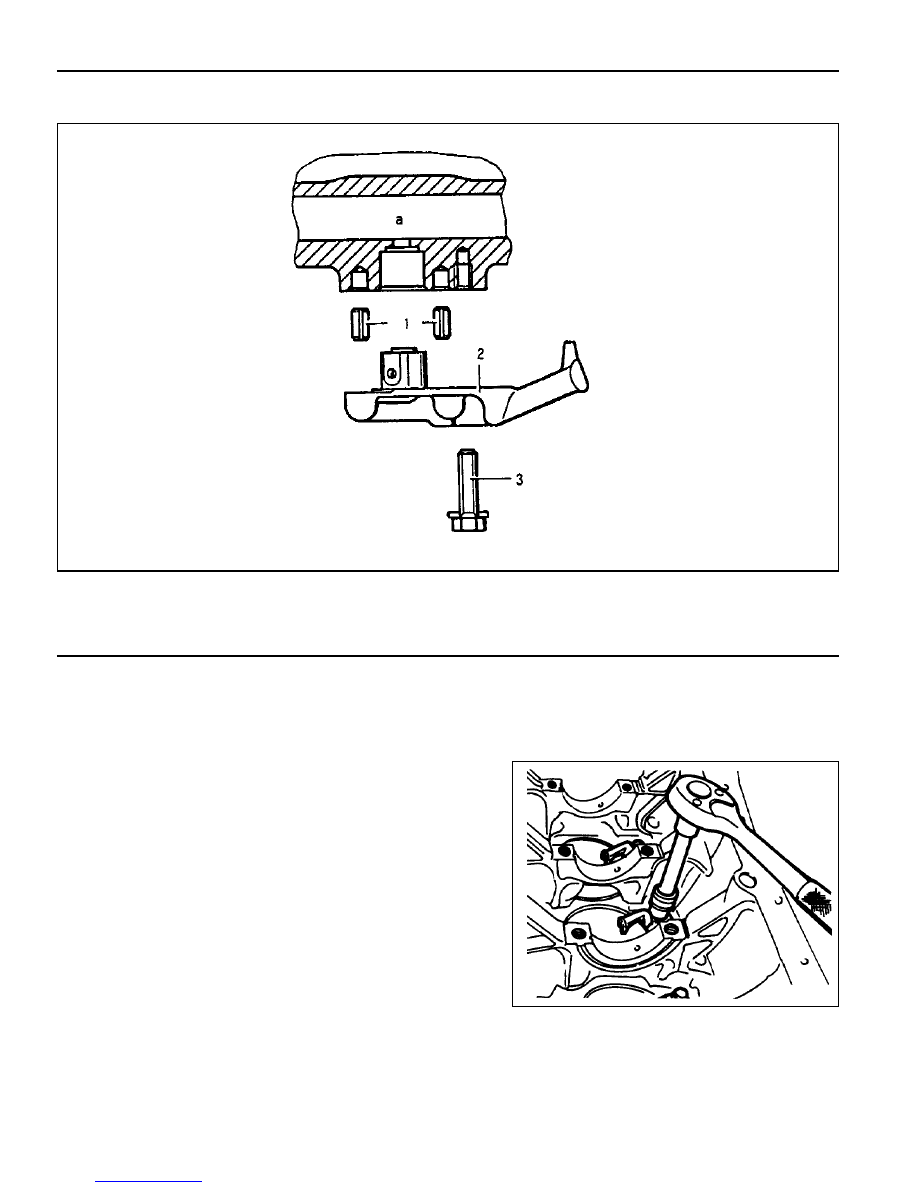

OIL SPRAY NOZZLE

1 Fitting Sleeve
2 Oil Spray Nozzle

Disassembly Procedure

1. Remove oil pan or crankshaft.

2. Loose the bolt and then remove the nozzle.

3 Combination Bolt .....................................  10 Nm

A Oil Duct
