OM600 ENGINE MECHANICAL  1B3-155

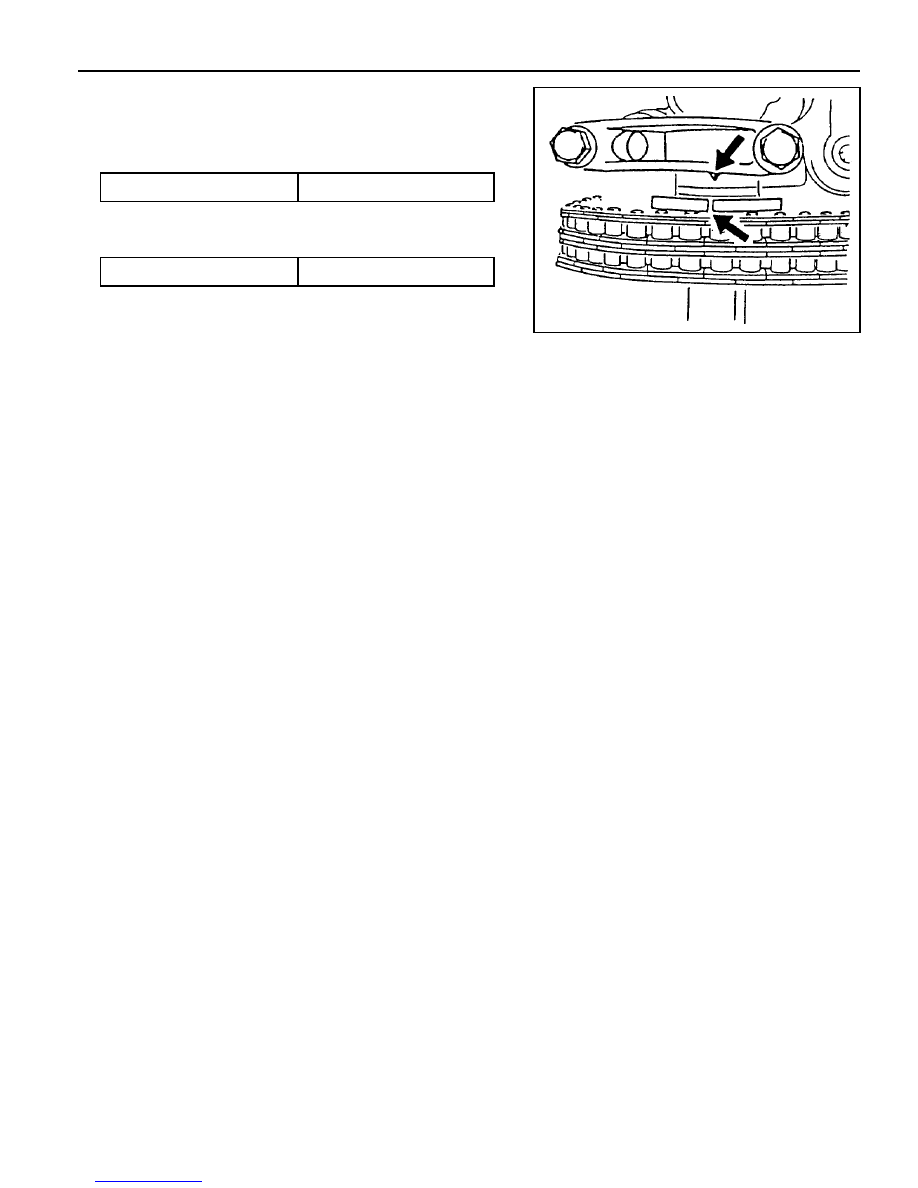

In this position, the marking on the camshaft / camshaft
bearing cap (arrow) must also be aligned.

5. Install the guide pulley (12).

Tightening Torque

23 Nm

6. Attach the tensioning lever (7) to the spring (15) and install.

7. Replace the gasket and install the cylinder head cover.

Tightening Torque

10 Nm

1B3-156  OM600 ENGINE MECHANICAL

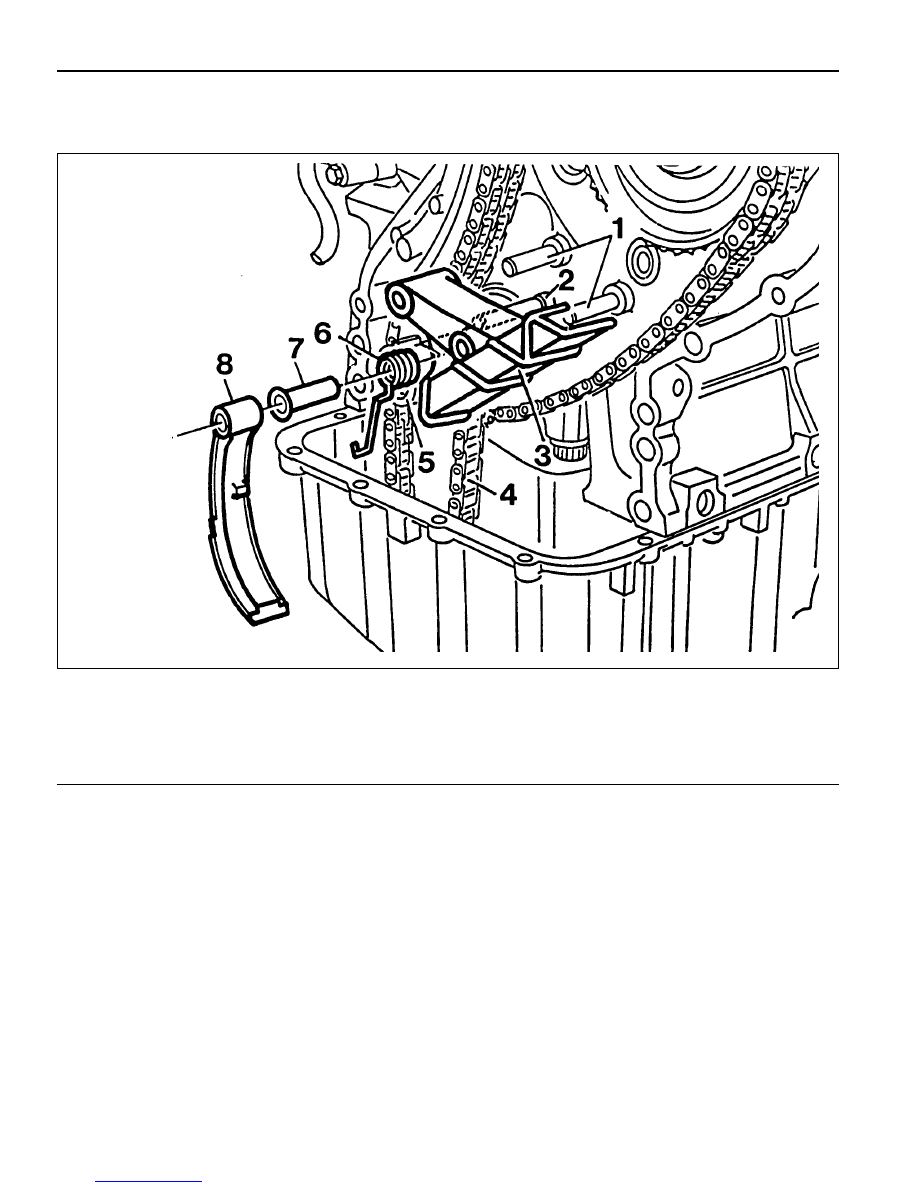

TIMING CASE COVER GUIDE RAIL

Preceding Work : Removal of cylinder head cover

1 Bearing Pin
2 Bearing Pin
3 Guide Rail
4 Oil Pump Chain

5 Crankshaft
6 Spring
7 Bushing
8 Tensioning Lever

OM600 ENGINE MECHANICAL  1B3-157

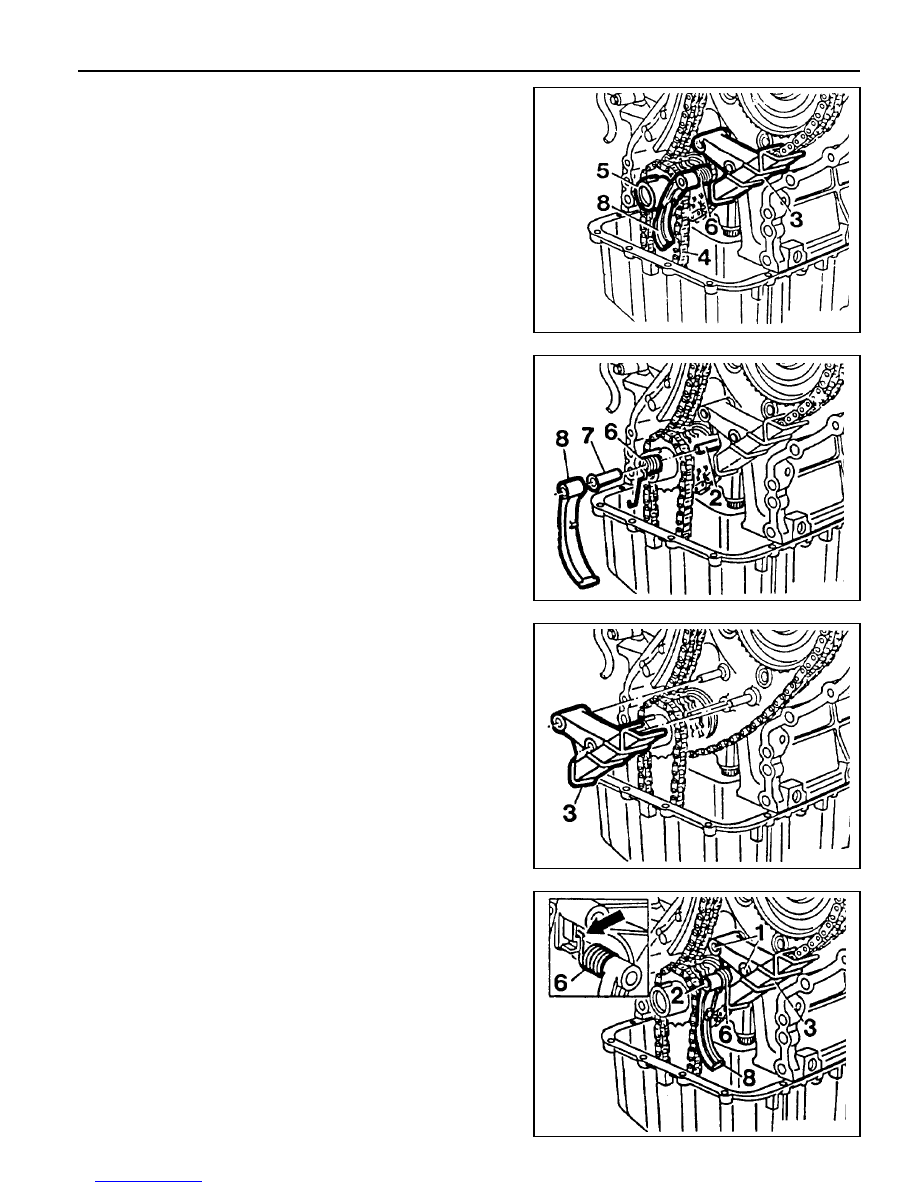

Removal Procedure

1. Pull out the tensioning lever (8) together with the spring (6)

and guide rail (3) far enough until the tensioning lever has
moved passed the oil pump chain (4) and is resting against
the crankshaft (5)

2. Pull the tensioning lever (8) off the bearing pin (2) and

carefully remove the spring (6). Remove the tensioning lever
(8) together  with the spring (6) and bushing (7).

3. Remove the guide rail (3).

Installation Procedure

1. Install the guide rail (3). Attach the spring (6) to the guide

rail and to the tensioning lever (8).

Notice

Ensure that the spring is correctly located in the guide rail
(arrow).

2. Push the guide rail, spring, bushing and tensioning lever

together onto the bearing pin (1, 2).

1B3-158  OM600 ENGINE MECHANICAL

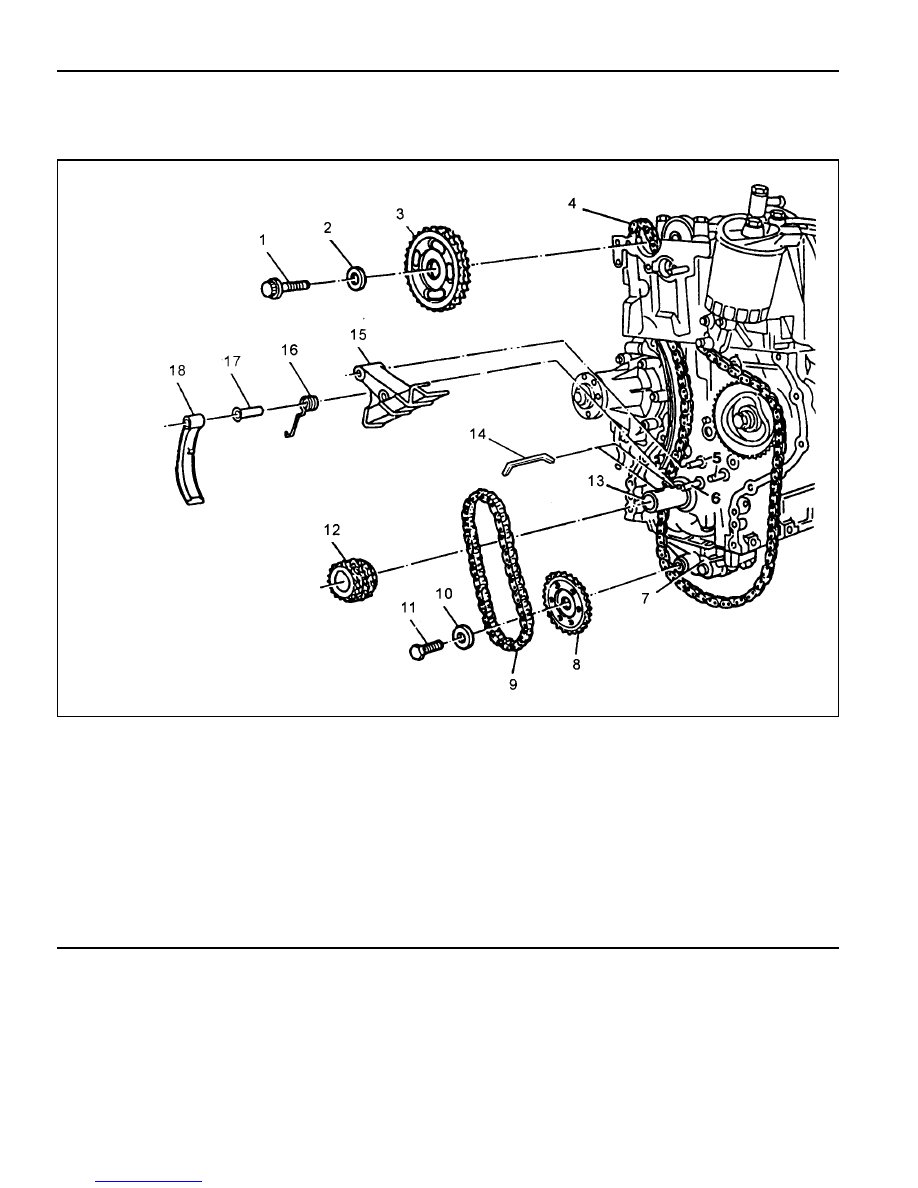

CRANKSHAFT SPROCKET

Preceding Work   : Removal of oil pan

Removal of timing case cover

1 12-Sided Stretch Bolt (M11) .. Check, 25Nm + 90°
2 Washer
3 Camshaft Sprocket
4 Timing Chain
5 Bearing Pin
6 Bearing Pin
7 Oil Pump
8 Oil Pump Sprocket
9 Oil Pump Chain

10 Washer

11 Bolt ............................................................ 25Nm

12 Crankshaft Sprocket
13 Crankshaft
15 Key
16 Guide Rail
17 Spring
18 Bushing
19 Tensioning Lever
