1B2-84  M161 ENGINE MECHANICAL

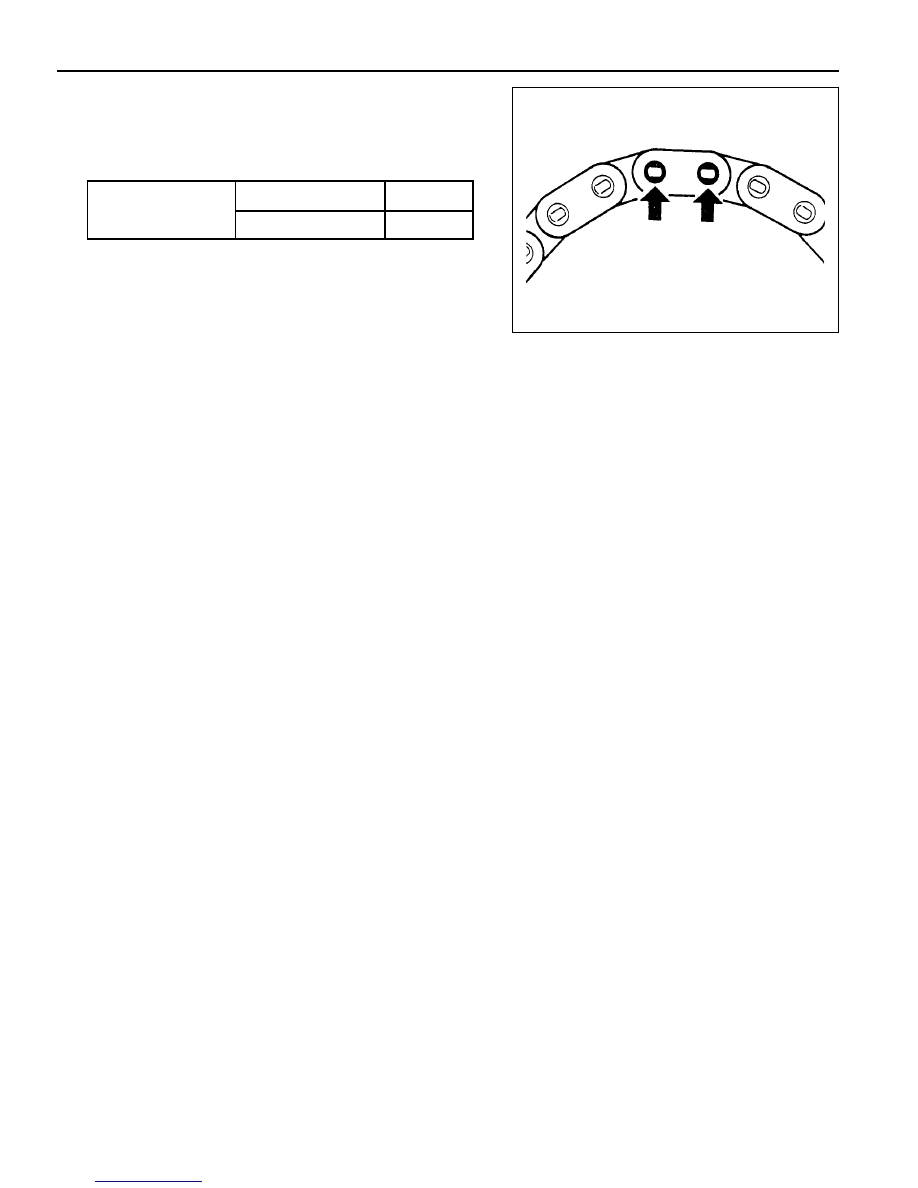

17. Rivet the link pin.

Check the condition and it again if necessary.

18. Install the chain tensioner.

Installation Notice

19. Check the camshaft timing position.

Tightening Torque

Screw Plug

40 Nm

Tensioner Assembly 72 - 88 Nm

M161 ENGINE MECHANICAL  1B2-85

TENSIONING RAIL

Preceding Work : Removal of cylinder head

Removal & Installation Procedure

1. Remove the timing gear case cover (3).

Notice

Be careful not to damage the gasket.

2. Remove the sliding rail (1) from the sliding rail pin (2).

Notice

l

Replace the plastic guide (2) if it is damaged.

l

For installation, exactly align the plastic guide (2) with

the sliding rail (1).

3. Installation should follow the removal procedure in the

reverse order.

1 Sliding Rail Pin
2 Sliding Rail

3 Timing Gear Case Cover

1B2-86  M161 ENGINE MECHANICAL

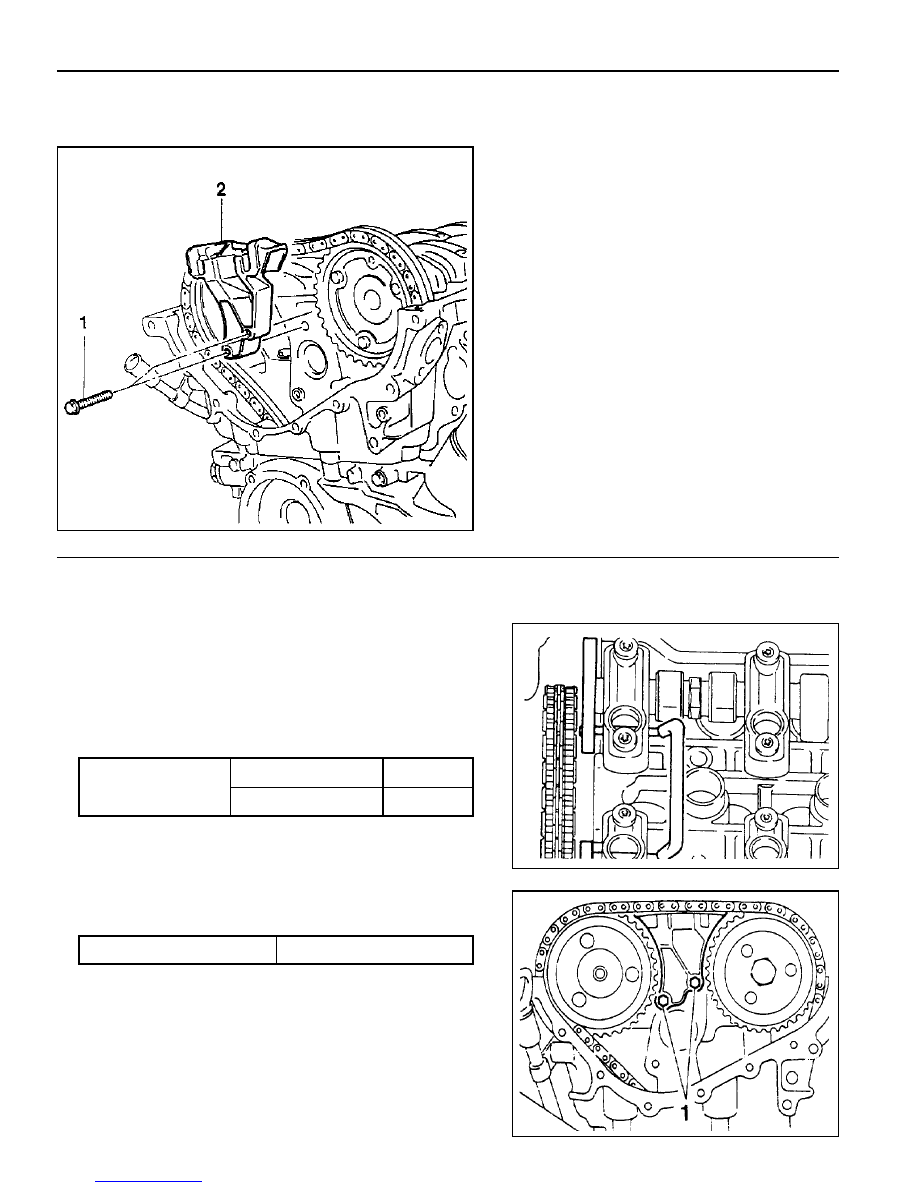

CYLINDER HEAD GUIDE RAIL

Preceding Work : Removal of cylinder head cover

1 Bolt (M6 X 45, 2 pieces) .................. 9-11 Nm
2 Guide Rail

Removal & Installation Procedure

1. Position the number 1 cylinder to ATDC20° guide rail.

2. Install the pin (special tool : 111 589 03 15 00) into the no.1

and no.6 bearing cap hole.

3. Remove the chain tensioner.

Installation Notice

Tightening Torque

Screw Plug

40 Nm

Tensioner Assembly

72 - 88 Nm

4. Unscrew the bolt (1) and remove the guide rail.

Installation Notice

Tightening  Torque

9 - 11 Nm

5. Installation should follow the removal procedure in the

reverse order.

M161 ENGINE MECHANICAL  1B2-87

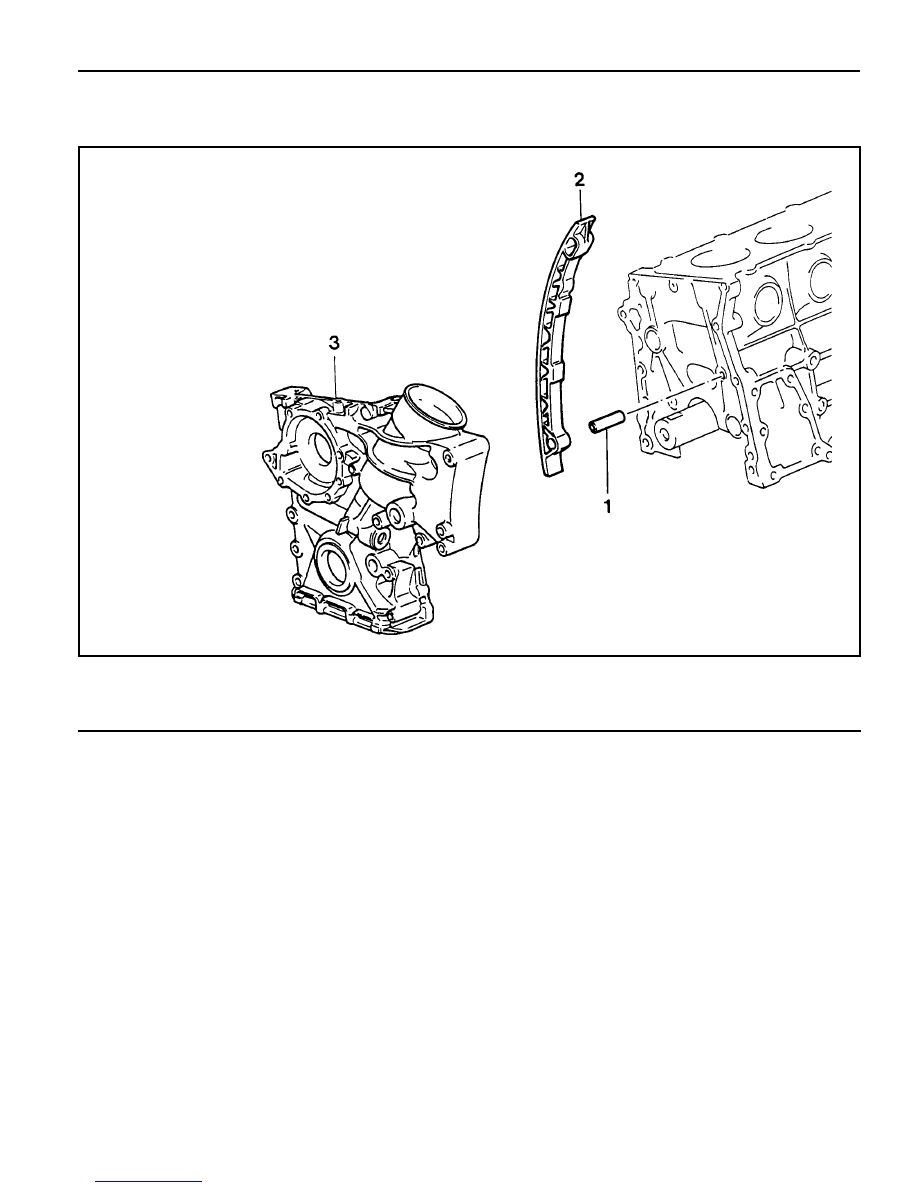

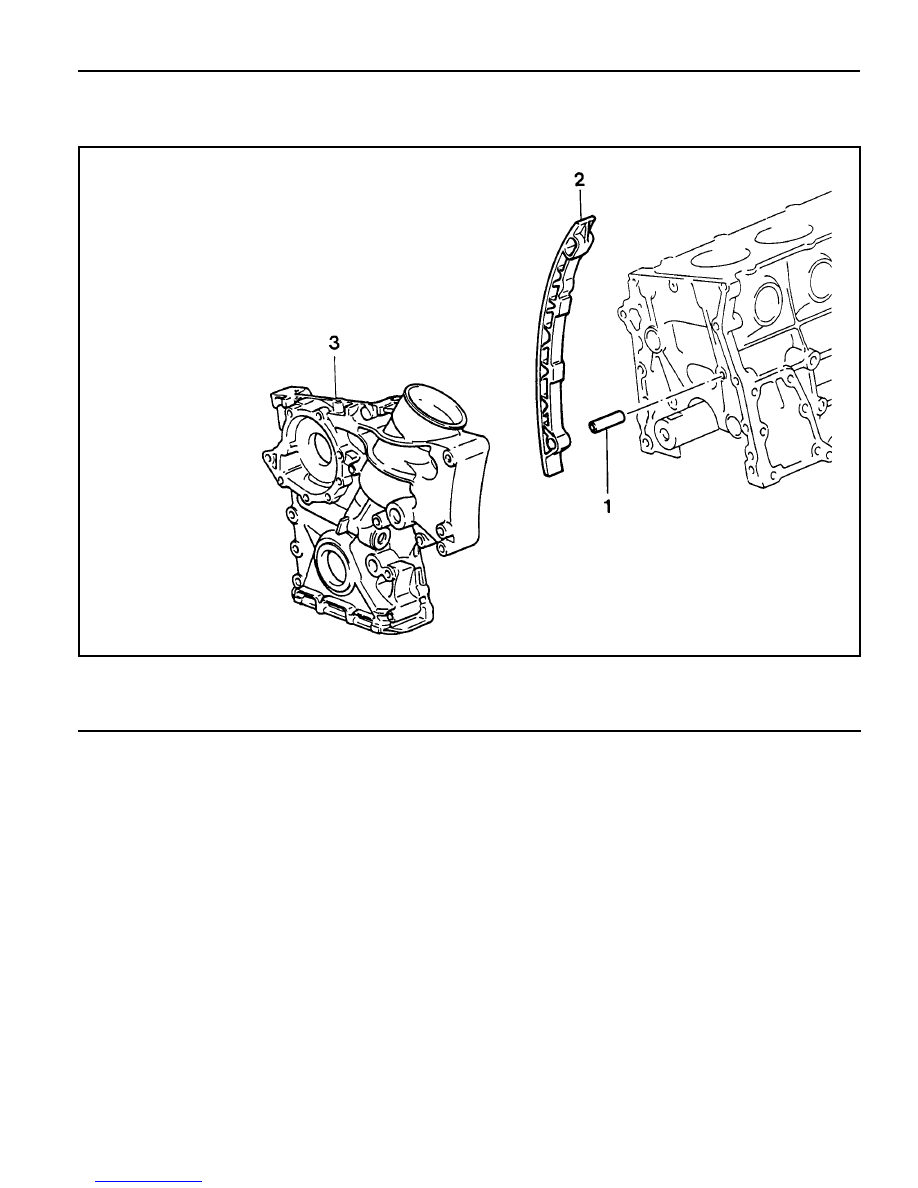

CRANKCASE GUIDE RAIL

Preceding Work : Removal of timing gear case cover

Removal & Installation Procedure

1. Remove the timing gear case cover (3).

Notice

Be careful not to damage the gasket when removing/
installing the timing gear case cover.

2. Remove the guide rail (2) from the guide rail pin(1).

Notice

l

Replace the plastic guide (2) if damaged.

l

Connect the plastic guide (2) and the guide rail (1) by

aligning them accurately when installing.

3. Installation should follow the removal procedure in the

reverse order.

1 Guide Rail Pin
2 Guide Rail

3 Timing Gear Case Cover
