1B2-8  M161 ENGINE MECHANICAL

SPECIAL TOOLS TABLE (Cont’d)

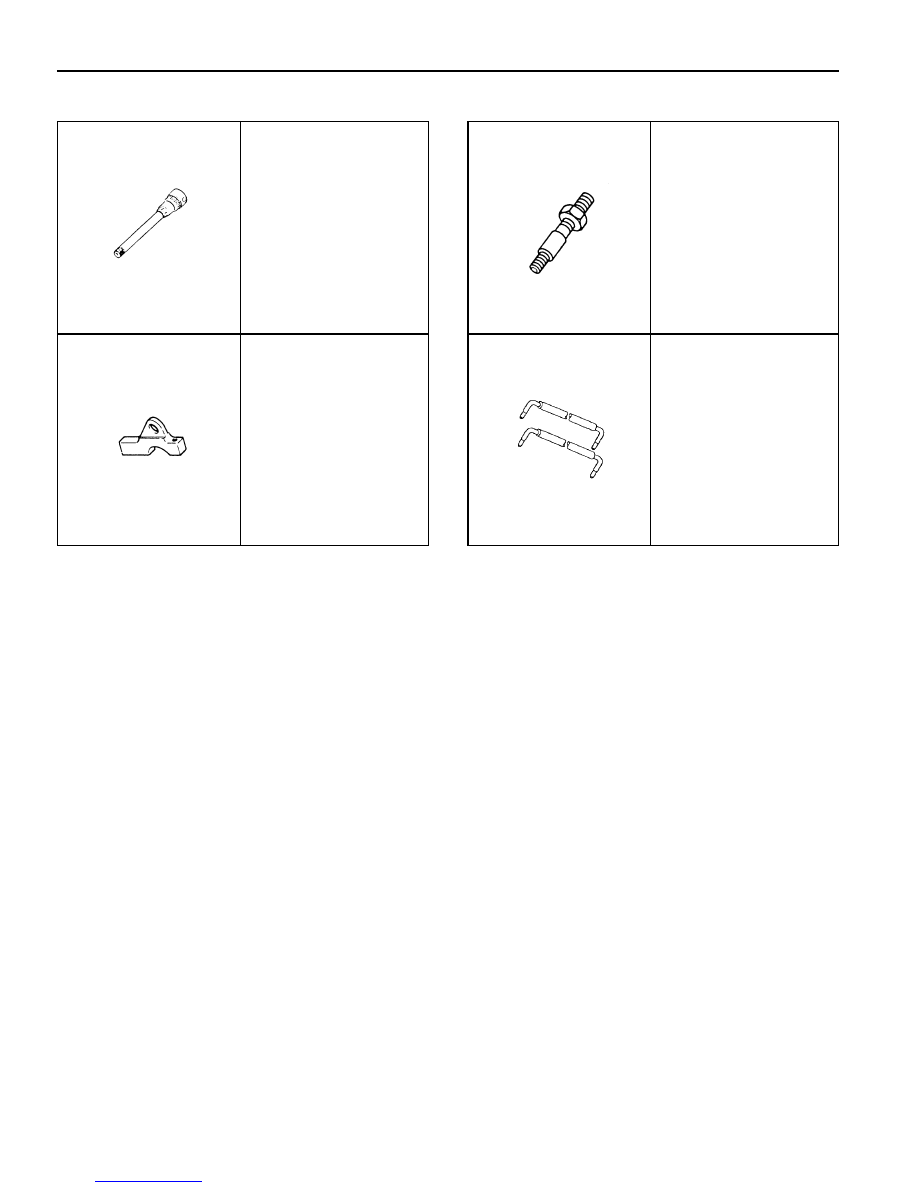

617 589 00 10 00

Wrench Socket

104 589 00 40 00

Holder

111 589 03 15 00

Insert Pin

116 589 01 34 00

Threaded Bolt

M161 ENGINE MECHANICAL  1B2-9

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

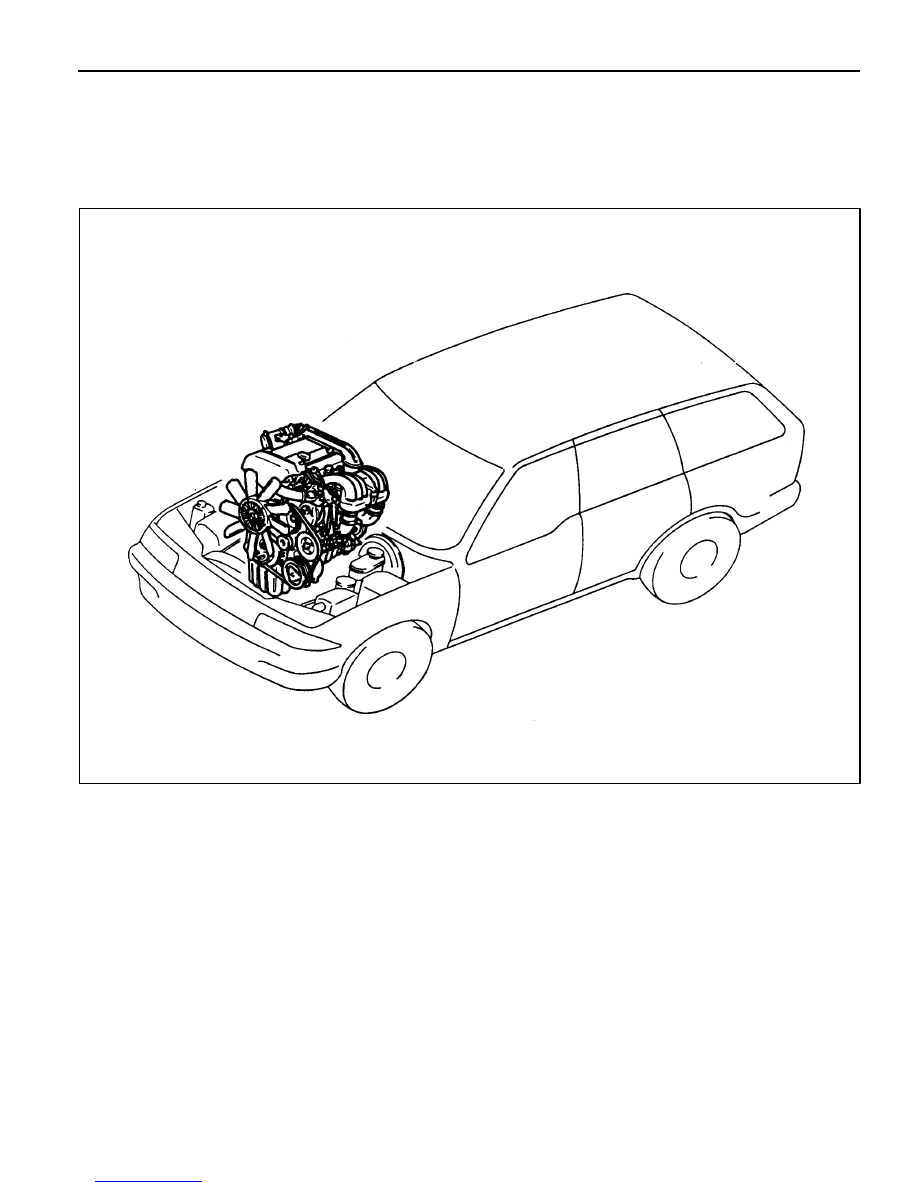

ENGINE ASSEMBLY

Tools Required

000 589 10 99 01 Torque Wrench

000 589 40 37 00 Hose Clamp

112 589 00 72 00

Oil Extractor

1B2-10  M161 ENGINE MECHANICAL

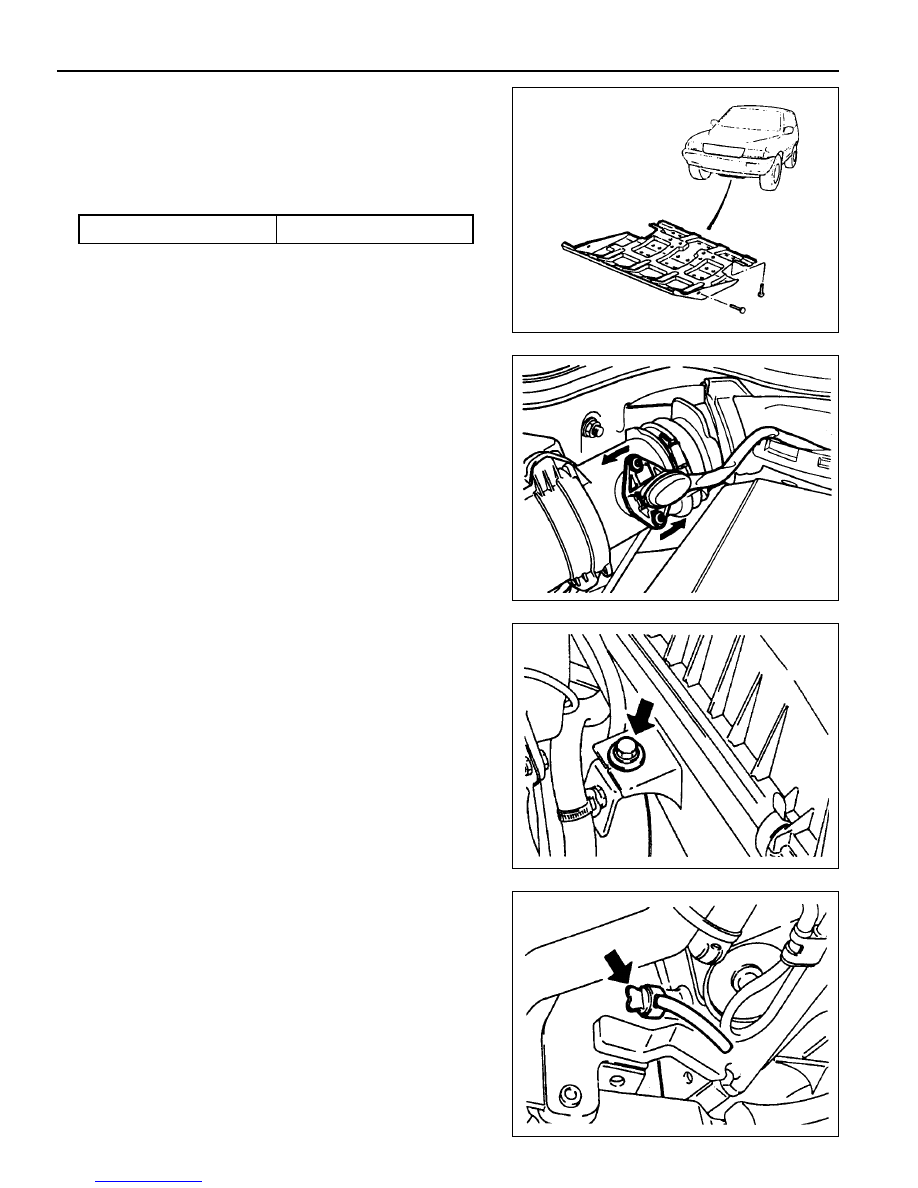

4. Disconnect the coupling of HFM sensor and remove the air

cleaner cross pipe.

6. Loosen the radiator drain cock and drain the coolant.

Notice

Open the coolant reservoir cap.

5. Remove the air cleaner cover. Remove the mounting bolts

and air cleaner housing and element assembly.

Removal & Installation Procedure

1. Disconnect the negative terminal of battery.

2. Remove the hood.

3. Remove the under cover.

Installation Notice

Tightening  Torque

28 - 47 Nm

M161 ENGINE MECHANICAL  1B2-11

10. Remove the upper mounting bolts of radiator and then

remove the radiator.

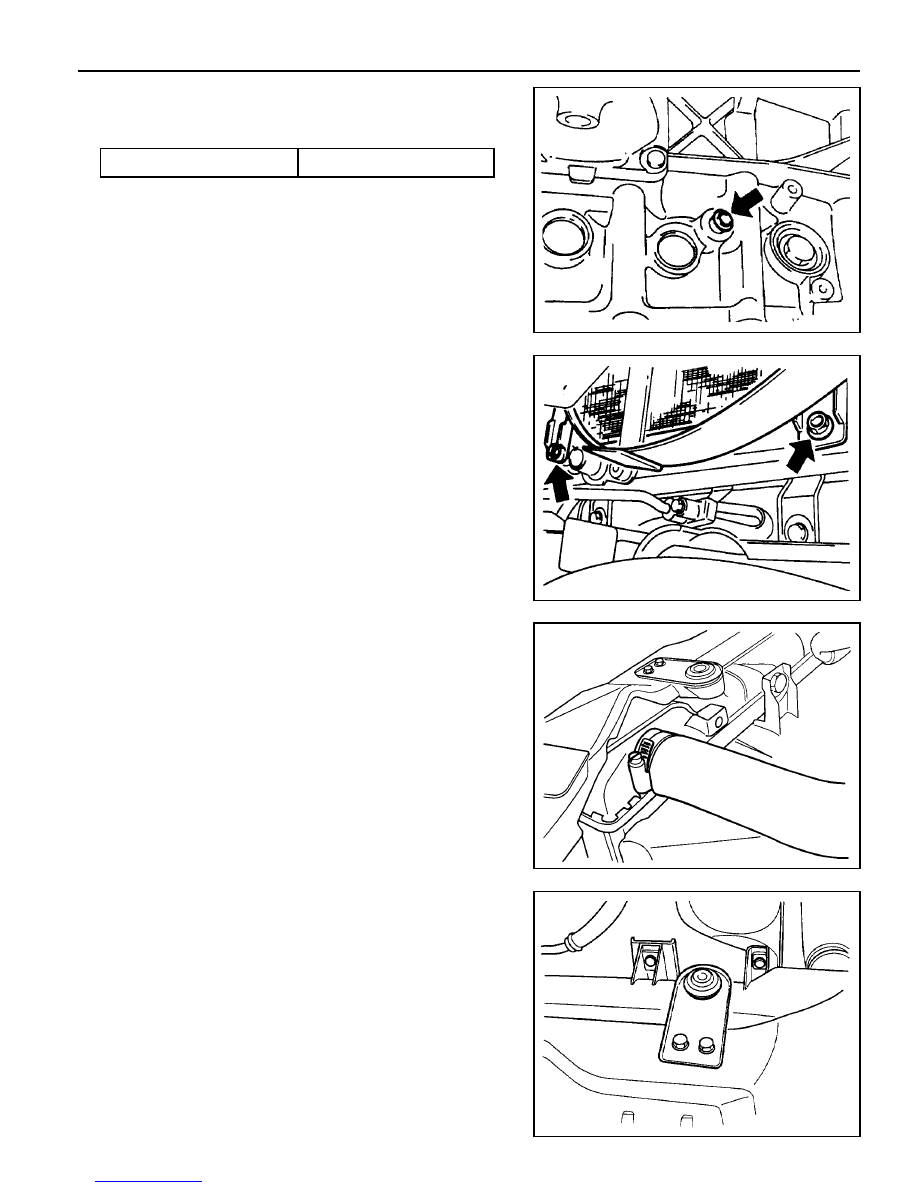

7. Loosen the cylinder block drain plug and then drain the

coolant completely.

Installation Notice

Tightening Torque

30 Nm

Notice

Replace the seal before installation of the drain plug.

8. Remove the cooling fan shroud.

9. Disconnect the each hose from radiator.
