9H – 10  SEATS

D109B541

Installation Procedure

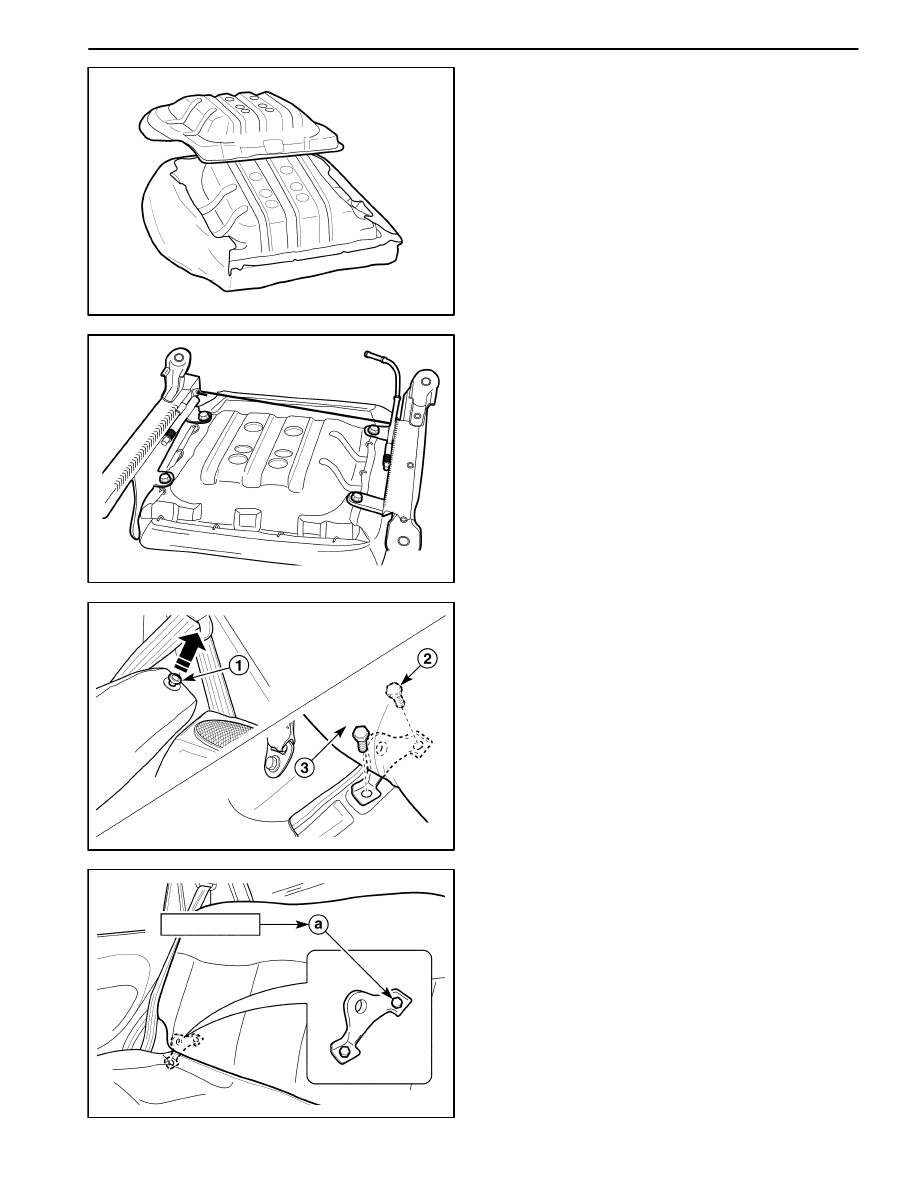

1. Install the seat cushion cover with the hog rings.

D109B540

2. Install the guide rail with the bolts.

3. Install the front seat cushion. Refer to “Front Seat

Cushion” in this section.

4. Connect the negative battery cable.

D109B542

REAR SEATBACK

Removal Procedure

1. Remove the rear seatback.

D

Remove the rear seatback lock by pulling the lock
knob upward (1).

D

Remove the seatback hinge bolts (2).

D

Remove the rear seatback (3).

D19B543A

23–28 N

S

m

Installation Procedure

1. Install the rear seatback with the hinge bolts.

Tighten

Tighten the hinge bolts to 23–28 N.m (17–21 lb-ft).

a. Rear seatback hinge bolt.

2. Press the lock knob.

SEATS  9H – 11

D109B544

REAR SEAT CUSHION

Removal Procedure

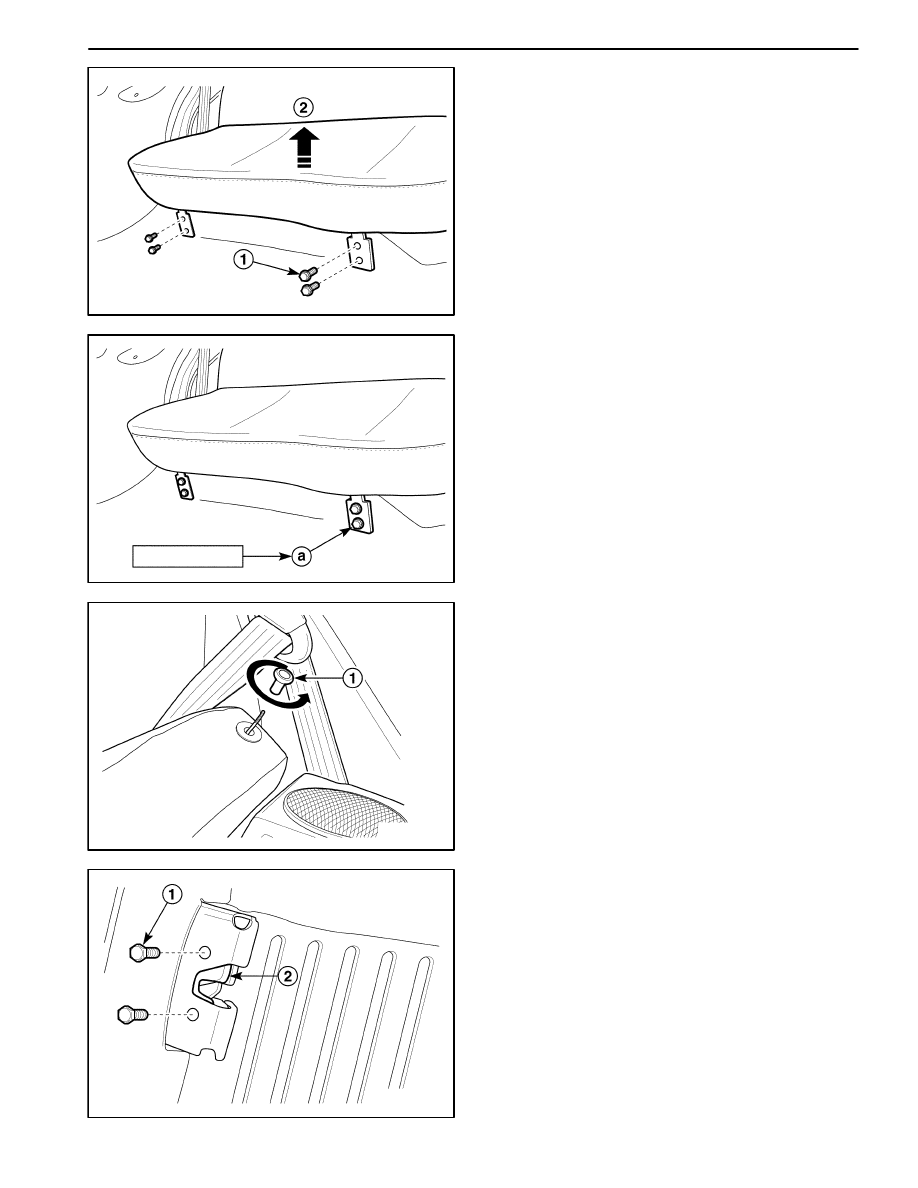

1. Remove the rear seat cushion.

D

Remove the bolts (1).

D

Lift and remove the rear seat cushion (2).

D19B546A

23 – 28 N

S

m

Installation Procedure

1. Install the rear seat cushion with the bolts.

Tighten

Tighten the rear seat cushion bolt to 23–28 N.m
(17–21 lb–ft).

a. Rear seat cushion bolt.

D109B718

REAR SEATBACK LATCH

Removal Procedure

1. Remove the rear seatback assembly. Refer to “Rear

Seatback” in this section.

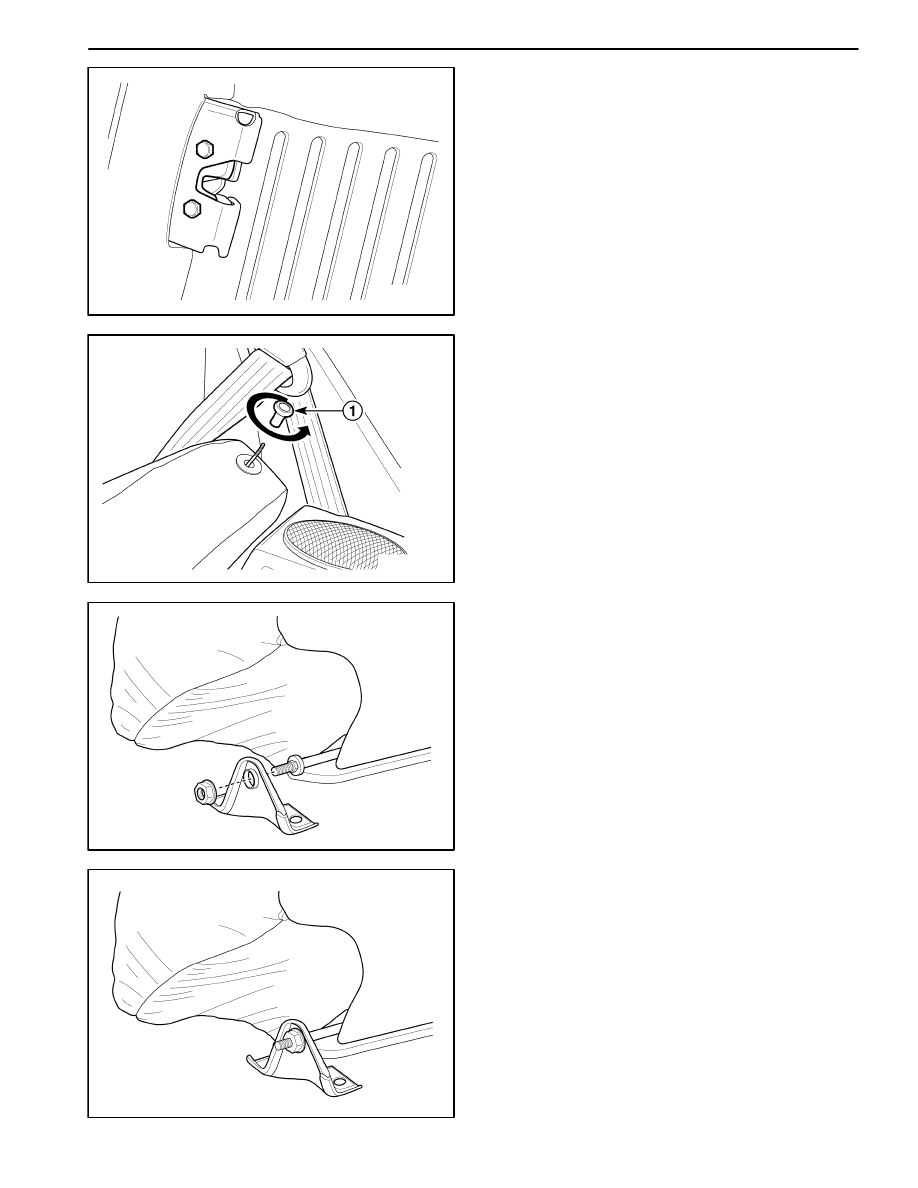

2. Remove the lock knob from the seatback.

D

Remove the lock knob by twisting it (1).

D109B719

3. Remove the rear seatback cover from the seatback

frame.

4. Remove the lock from the seatback frame.

D

Remove the bolts (1).

D

Remove the lock (2).

9H – 12  SEATS

D109B720

Installation Procedure

1. Install the lock to the seatback frame with the bolts.

2. Install the rear seatback cover to the seatback frame.

D109B718

3. Install the lock knob to the seatback.

4. Install the rear seatback assembly. Refer to “Rear

Seatback” in this section.

D109B721

REAR SEATBACK HINGE

Removal Procedure

1. Remove the rear seatback assembly. Refer to “Rear

Seatback” in this section.

2. Remove the hinge from the seatback.

D

Remove the nut.

D

Remove the hinge.

D109B722

Installation Procedure

1. Install the hinge to the seatback with the nut.

2. Install the rear seatback assembly. Refer to “Rear

Seatback” in this section.

SEATS  9H – 13

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Application

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

N

S

m

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

Lb-Ft

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

Lb-In

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Front Seat Bolts (Both)

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

23 – 28

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

17 – 21

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

–

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Rear Seat Cushion Bolts

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

23 – 28

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

17 – 21

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

–

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Rear Seatback Bolts

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

23 – 28

ÁÁÁÁÁÁ

ÁÁÁÁÁÁ

17 – 21

ÁÁÁÁÁÁÁ

ÁÁÁÁÁÁÁ

–
