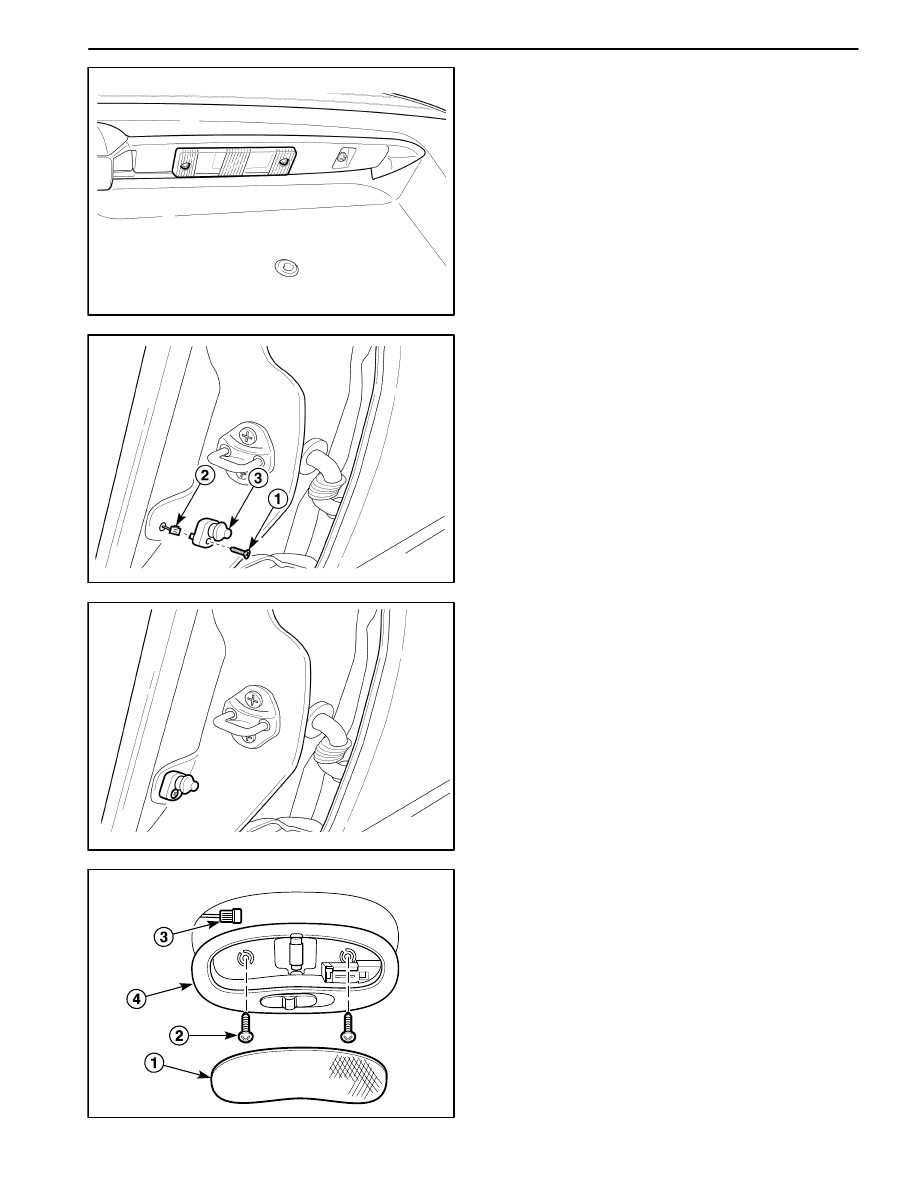

LIGHTING SYSTEMS 9B – 13

D19D512A

Installation Procedure

1. Install the license plate lamp socket.

2. Install the tailgate handle. Refer to Section 9M, Exte-

rior Trim.

3. Connect the electrical connector.

4. Remove the rear window wiper motor assembly. Re-

fer to Section 9D, Wipers/Washer Systems.

5. Install the license plate lamp bulb.

6. Install the license plate lamp with the screws.

7. Connect the negative battery cable.

D109D513

DOOR JAMB SWITCH

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the door jamb switch.

D

Remove the screw (1).

D

Disconnect the electrical connector (2).

D

Remove the door jamb switch (3).

D109D514

Installation Procedure

1. Install the door jamb switch with the screw.

2. Connect the electrical connector.

3. Connect the negative battery cable.

D19D515A

INTERIOR COURTESY LAMP

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the interior courtesy lamp.

D

Pry off the interior courtesy lamp lens (1).

D

Remove the screws (2).

D

Disconnect the electrical connector (3).

D

Remove the interior courtesy lamp (4).

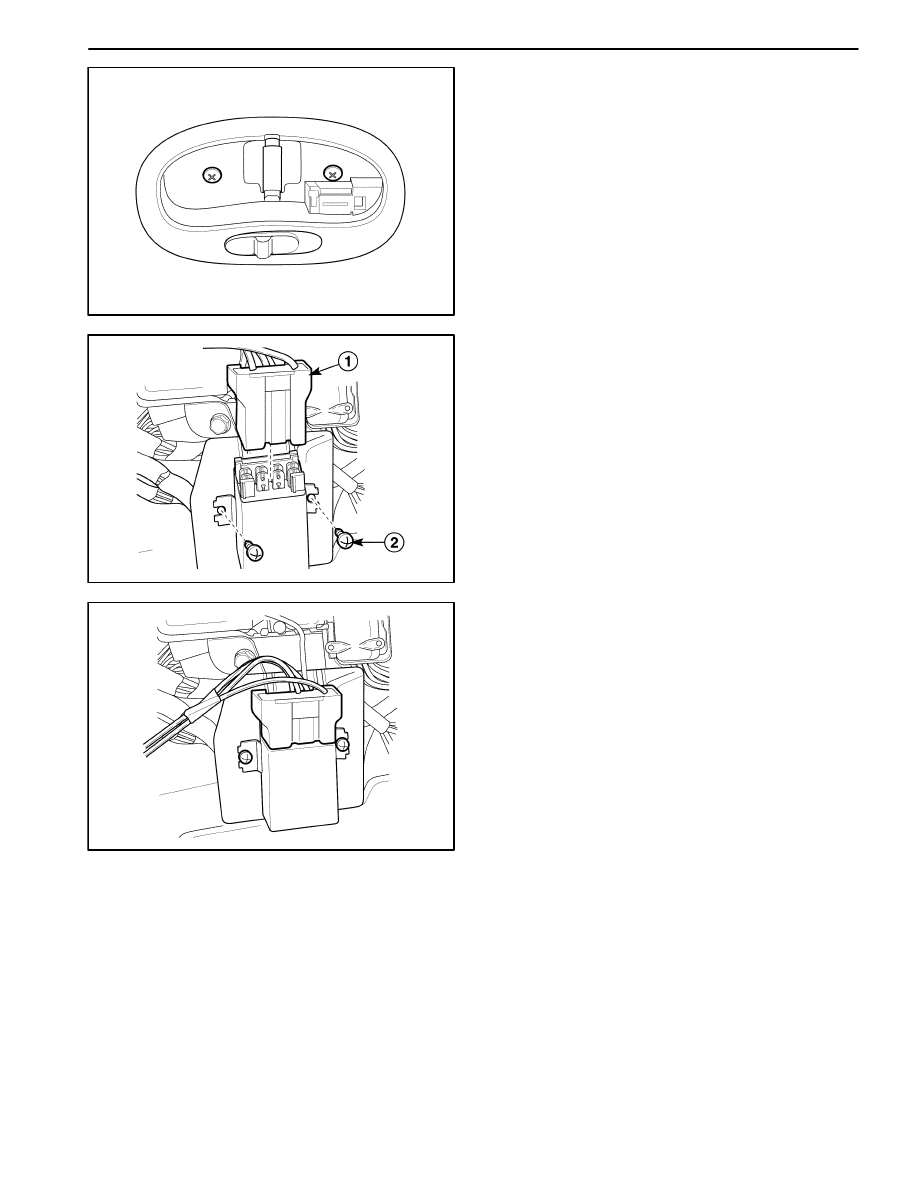

9B – 14 LIGHTING SYSTEMS

D109D516

Installation Procedure

1. Connect the electrical connector.

2. Install the interior courtesy lamp with the screws.

3. Install the interior courtesy lamp lens.

4. Connect the negative battery cable.

D29B007

DAYTIME RUNNING LAMP MODULE
(W/Europe Only)

Removal Procedure

1. Disconnect the negative battery cable.

2. Disconnect the electrical connector (1).

3. Remove the screws (2) and the daytime running lamp

module.

D29B008

Installation Procedure

1. Install the daytime running lamp module with the

bolts.

2. Connect the electrical connector.

3. Connect the negative battery cable.

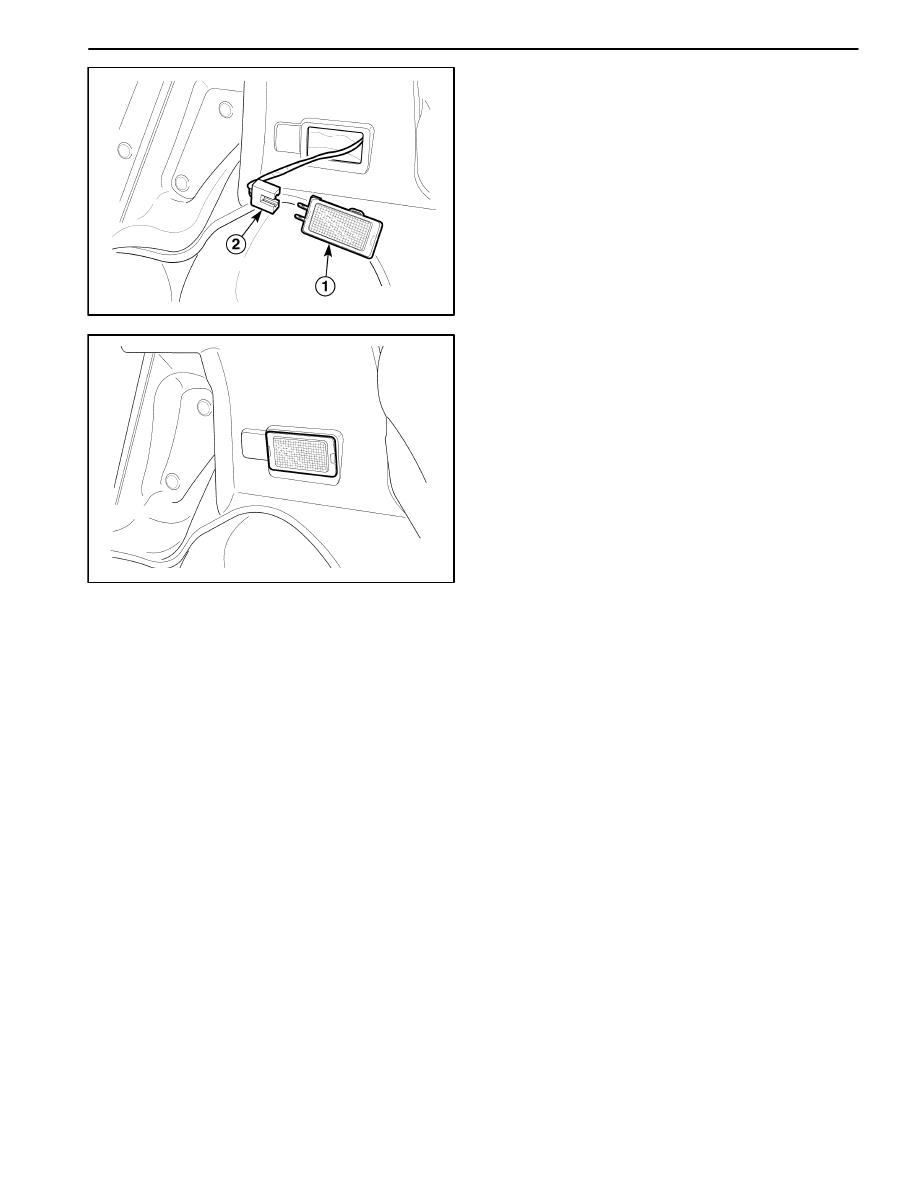

LIGHTING SYSTEMS 9B – 15

D209B104

LUGGAGE ROOM LAMP

Removal Procedure

1. Disconnect the negative battery cable.

2. Open the tailgate.

3. Remove the luggage room lamp.

D

Remove the luggage room lamp (1).

D

Disconnect the electrical connector (2).

D209B105

Installation Procedure

1. Connect the electrical connector.

2. Install the luggage room lamp.

3. Connect the negative battery cable.

9B – 16 LIGHTING SYSTEMS

SPECIFICATIONS

BULB USAGE CHART

Bulb

Replacement Bulb Number

Backup Lamp(s)

21W

Center High Mounted Stoplamp

21W

Headlamps

Double 60/55W

Interior Courtesy Lamp

10W

License Plate Lamp

5W

Front Turn Signal Lamps

21W

Rear Fog Lamp

21W

Rear Turn Signal Lamps

21W

Side Marker Turn Signal Lamps

5W

Tail and Stoplamp

Double 5/21W, 5W

Parking Lamp

5W
