SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR) 8B – 9

BLANK

8B – 10 SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR)

SYSTEM CHECK

D1AB301B

Caution: Use only the scan tool to check the airbag
modules and the sensing and diagnostic module
(SDM). Never measure the resistance of an airbag
module with an ohmmeter. An ohmmeter’s battery
can deploy the airbag and cause injury.

Caution: Before testing, disconnect the negative
battery cable. Wait 1 minute for the SDM capacitor
to discharge. The capacitor supplies reserve power
to deploy the airbags, even if the battery is discon-
nected. Unintentional deployment of the airbags
can cause injury.

Caution: Do not attempt to repair the supplemental
inflatable restraints (SIR) wiring harness. An SIR re-
pair can create a high-resistance connection which
can keep the airbags from deploying when needed,
resulting in injury.

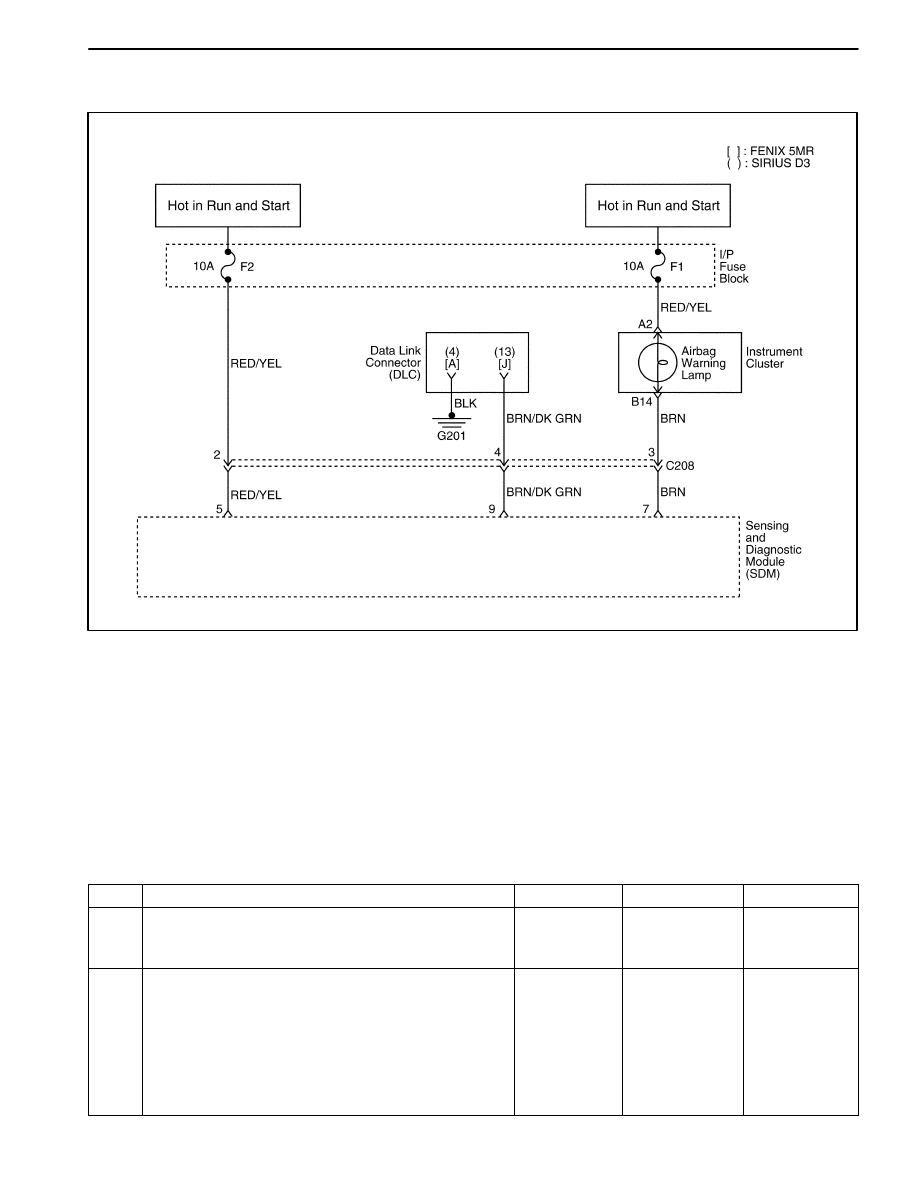

Circuit Description

When the ignition switch is turned ON, the SDM is able
to send serial data from the terminal 9 of the SDM to the
terminal J (13) of the assembly line diagnostic link.

Diagnostic System Check

ÁÁÁÁ

Step

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Action

ÁÁÁÁÁ

Value(s)

ÁÁÁÁÁÁÁ

Yes

ÁÁÁÁÁÁ

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

1. Turn the ignition ON.
2. Check the warning lamp.
Does the warning lamp turn off after 4 seconds?

ÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

System OK

ÁÁÁÁÁÁ

Go to Step 2

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

1. Connect the scan tool cable to the DLC.
2. Connect the scan tool power cable to the cigar

lighter socket.

3. Select the airbag main menu on the scan tool.
4. Select “Fail Code View & Clear “ from the

displayed menu of the diagnostic test codes
(DTC).

Are there any active fault codes?

ÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

Go to the DTC

table for the

fault indicated

ÁÁÁÁÁÁ

Go to Step 3

SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR) 8B – 11

Diagnostic System Check (Cont’d)

ÁÁÁÁ

Step

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Action

ÁÁÁÁÁ

Value(s)

ÁÁÁÁÁÁÁ

Yes

ÁÁÁÁÁÁ

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

1. Check fuse F2.
Is the fuse F2 blown?

ÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

Go to Step 4

ÁÁÁÁÁÁ

Go to Step 5

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

1. Replace fuse F2.
Is the repair complete?

ÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

System OK

ÁÁÁÁÁÁ

–

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

1. Disconnect the electrical connector C208.
2. Check for a short to ground between fuse F2 and

terminal 2 of connector C208.

Is wiring harness shorted to ground?

ÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

Go to Step 6

ÁÁÁÁÁÁ

Go to Step 7

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Repair a short to ground between fuse F2 and
terminal 2 of connector C208.
Is the repair complete?

ÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

System OK

ÁÁÁÁÁÁ

–

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

1. Disconnect the SDM electrical connector.
2. Check for a short to ground between terminal 2

and terminal 5 of SDM connector.

Is wiring harness shorted to ground?

ÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

Go to Step 15

ÁÁÁÁÁÁ

Go to Step 8

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Use an ohmmeter to check for continuity between
terminal A (4) of the DLC and ground G201.
Does the ohmmeter show the specified value?

ÁÁÁÁÁ

≈

ÁÁÁÁÁÁÁ

Go to Step 9

ÁÁÁÁÁÁ

Go to Step 10

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Repair the open DLC ground circuit.
Is the repair complete?

ÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

System OK

ÁÁÁÁÁÁ

–

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

1. Turn the ignition ON.
2. Check the voltage at the cigar lighter positive

terminal.

Does the voltmeter show the specified value?

ÁÁÁÁÁ

11–14V

ÁÁÁÁÁÁÁ

Go to Step 12

ÁÁÁÁÁÁ

Go to Step 11

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Repair the power supply for the cigar lighter socket.
Is the repair complete?

ÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

System OK

ÁÁÁÁÁÁ

–

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Check for a short to ground of open circuit between
terminal J (13) of the DLC and terminal 4 of
connector 208.
Is wiring harness shorted to ground or open?

ÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

Go to Step 13

ÁÁÁÁÁÁ

Go to Step 14

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Repair a short to ground or open circuit between
terminal J (13) of the DLC and terminal 4 of
connector C208.
Is the repair complete?

ÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

System OK

ÁÁÁÁÁÁ

–

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Check for a short to ground or open between
terminal 4 of connector C208 and terminal 9 of the
SDM connector.
Is wiring harness shorted to ground or open?

ÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

Go to Step 15

ÁÁÁÁÁÁ

Go to Step 16

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Replace the SDM waring harness.
Is the repair complete?

ÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

System OK

ÁÁÁÁÁÁ

–

ÁÁÁÁ

ÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁÁ

Replace the SDM.
Is the repair complete?

ÁÁÁÁÁ

–

ÁÁÁÁÁÁÁ

System OK

ÁÁÁÁÁÁ

–

8B – 12 SUPPLEMENTAL INFLATABLE RESTRAINTS (SIR)

FAULT CODES

ÁÁÁÁÁÁ

Fault Codes
