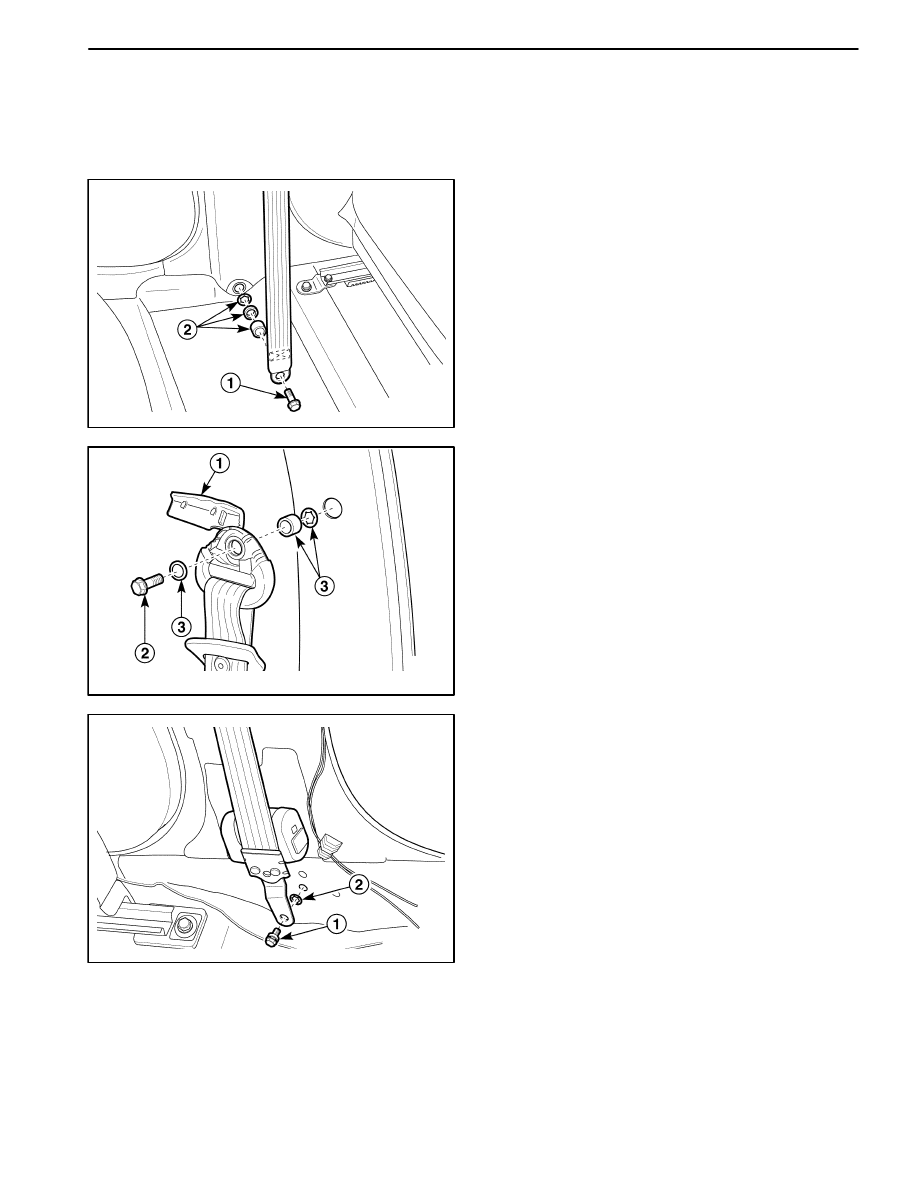

SEAT BELTS  8A – 5

REPAIR INSTRUCTIONS

ON–VEHICLE SERVICE

D110A501

THREE–POINT WLR/ELR FRONT
SEAT BELT

Removal Procedure

1. Slide the front seat forward and fold the seatback.

2. Remove the bolt on the lower B–pillar.

D

Remove the bolt (1).

D

Remove the spacer and the fiber washer (2).

D

Remove the plastic protector on the seat belt an-
chor.

D11A502A

3. Remove the lower B–pillar trim panel. Refer to Sec-

tion 9G, Interior Trim.

4. Remove the bolt on the upper B–pillar.

D

Using a flathead screwdriver, open the bolt cap (1).

D

Remove the bolt (2).

D

Remove the spacer and the fiber washer (3).

D110A503

5. Remove the seat belt retractor bolt.

D

Remove the floor carpet to be seen the retractor.

D

Remove the bolt (1).

D

Remove the fiber washer (2).

D

Remove the seat belt retractor.

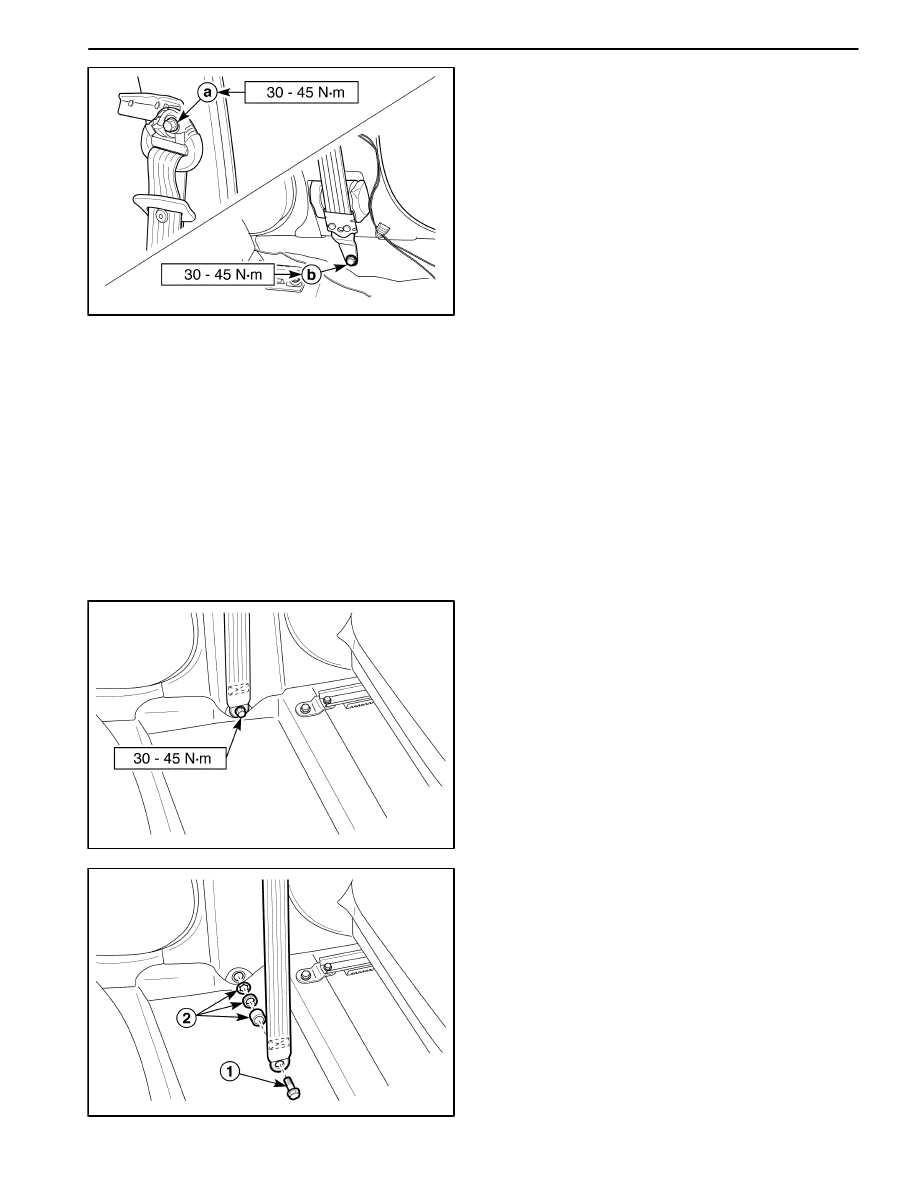

8A – 6  SEAT BELTS

D1AA504D

Installation Procedure

Notice:  Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use the correct
fasteners to prevent premature corrosion.

1. Install in the reverse order of removal.

2. Install the bolt on the upper B–pillar.

Tighten

Tighten the seat belt upper bolt to 30–45 N

S

m (22–33

 lb-ft).

a. Seat belt upper bolt.

3. Install the seat belt retractor with the bolt.

Tighten

Tighten the seat belt retractor bolt to 30–45 N

S

m

(22–33 lb-ft).

b. Seat belt retractor bolt.

D1AA505B

4. Install the bolt on the lower B–pillar.

D

Install the bolt.

Tighten

Tighten the lower B–pillar bolt to 30–45 N

S

m (22–33

lb-ft).

D

Install the spacers and the spring washer.

D

Install the plastic protector on the seat belt anchor.

5. Relocate the seatback.

D110A501

THREE–POINT PRETENSIONER
FRONT SEAT BELT (W/EUROPE
ONLY)

Removal Procedure

1. Slide the front seat forward and fold the seatback.

2. Remove the bolt on the lower B–pillar.

D

Remove the bolt (1).

D

Remove the spacer and the fiber washer (2).

D

Remove the plastic protector on the seat belt an-
chor.

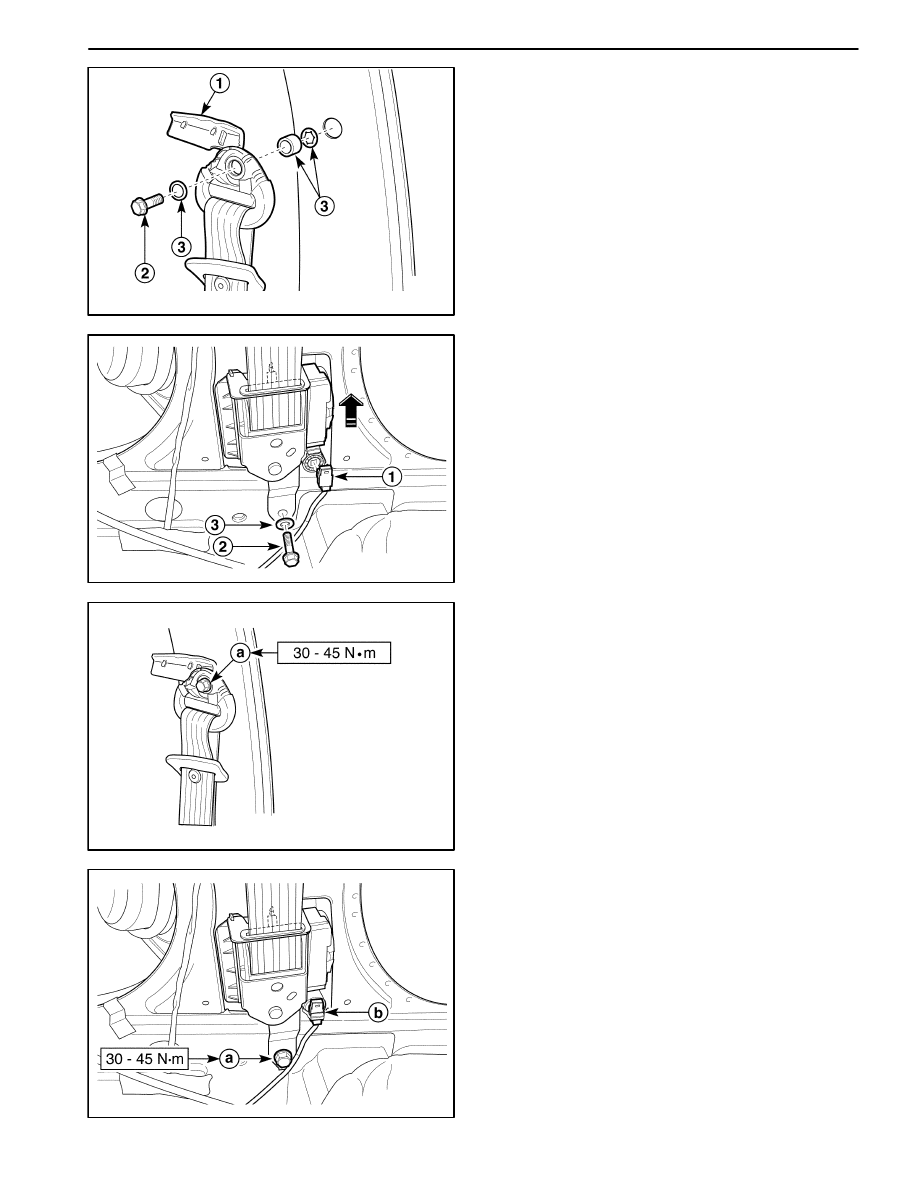

SEAT BELTS  8A – 7

D11A502A

3. Remove the lower B–pillar trim panel. Refer to Sec-

tion 9G, Interior Trim.

4. Remove the bolt on the upper B–pillar.

D

Using a flathead screwdriver, open the bolt cap (1).

D

Remove the bolt (2).

D

Remove the spacer and the fiber washer (3).

D28A001A

5. Remove the seat belt retractor bolts.

D

Remove the floor carpet to be seen the retractor.

D

Disconnect the pretensioner front seat belt con-
nector (1).

D

Remove the lower retractor bolt (2).

D

Remove the fiber washer (3).

D

Remove the seat belt retractor.

D1AA504C

Installation Procedure

Notice:  Dissimilar metals in direct contact with each
other may corrode rapidly. Make sure to use the correct
fasteners to prevent premature corrosion.

1. Install in the reverse order of removal.

2. Install the bolt on the upper B–pillar.

Tighten

Tighten the seat belt upper bolt to 30–45 N

S

m (22–33

lb-ft).

a. Seat belt upper bolt.

D28A002A

3. Install the seat belt retractor with the bolt.

Tighten

D

Tighten the lower retractor bolt to 30–45 N

S

m

(22–33 lb-ft).

a. Lower retractor bolt.

b. Connect the pretensioner front seat belt con-

nector.

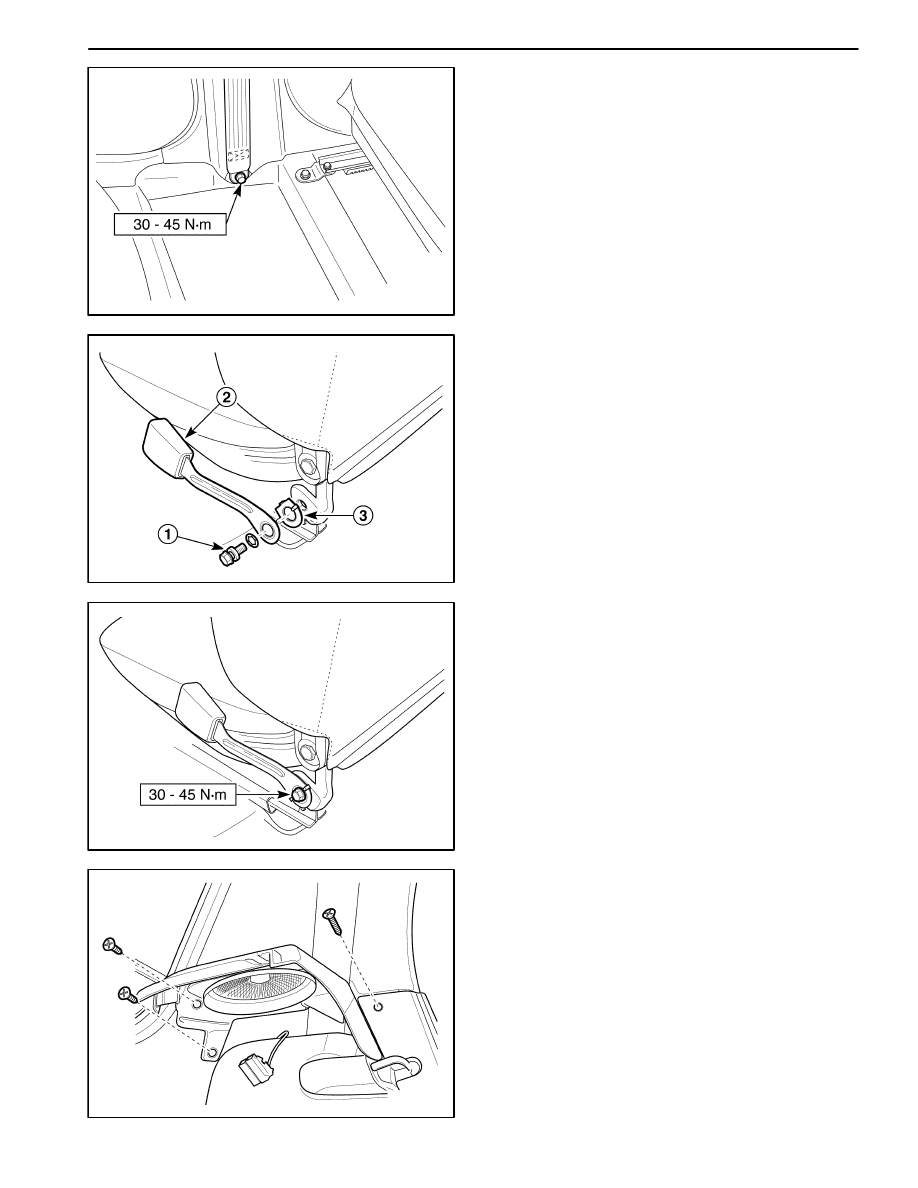

8A – 8  SEAT BELTS

D1AA505B

4. Install the bolt on the lower B–pillar.

D

Install the bolt.

Tighten

Tighten the lower B–pillar bolt to 30–45 N

S

m (22–33

lb-ft).

D

Install the spacers and the fiber washer.

D

Install the plastic protector on the seat belt anchor.

5. Relocate the seatback.

D11A506A

FRONT SEAT BELT BUCKLE

Removal Procedure

1. Remove the front seat belt buckle

D

Remove the bolt (1).

D

Remove the buckle (2).

D

Remove the patch (3).

D

Before removing the driver seat belt buckle, dis-
connect the reminder light connector.

D1AA507B

Installation Procedure

1. Install the front seat belt buckle.

D

Connect the reminder light connector.

D

Install the patch.

D

Install the buckle.

D

Install the bolt.

Tighten

Tighten the seat belt buckle bolt to 30–45 N

S

m

(22–33 lb-ft).

D109E566

THREE–POINT ELR REAR
OUTBOARD SEAT BELT

Removal Procedure

1. Remove the rear seat cushion and the rear seatback.

2. Pry off the rear interior trim panel. Refer to Section

9G, Interior Trim.

D

Pry off the backshelf trim panel.

D

Pry off the luggage compartment side load trim
panel.
