Daewoo Matiz (2003 year). Manual - part 186





7A – 2 HEATING AND VENTILATION SYSTEM

DESCRIPTION AND SYSTEM OPERATION

HEATING AND VENTILATION
SYSTEMS

The base heater system is designed to provide heating,
ventilation, windshield defrosting, and side window de-
fogging.

The heater and fan assembly blower regulates the air-
flow from the air inlet for further processing and distribu-
tion.

The heater core transfers the heat from the engine cool-
ant to the inlet air.

The temperature door regulates the amount of the air
that passes through the heater core. The temperature
door also controls the temperature of the air by control-
ling the mix of the heated air and the ambient air.

The mode door regulates the flow and the distribution
of the processed air to the heater ducts and to the de-
froster ducts.

This console-mounted heating and ventilation panel
contains the following:

Three Rotary Control Knobs

1. The Rotary Temperature Control Knob

D

Actuates by cable.

D

Raises the temperature of the air entering the ve-
hicle by rotation toward the right, or the red portion
of the knob.

2. The Rotary Blower Control Knob

D

Turns on to operate the blower motor at four speeds.

D

Turns   to stop the blower.

D

Operates completely independently both from the
mode control that regulates the defroster door and
from the temperature control knob.

D

Changes the fan speed in any mode and at any
temperature setting.

3. The Rotary Mode Control Knob:

D

Actuates by cable.

D

Regulates the air distribution between the wind-
shield, the instrument panel, and the floor vents.

Push Knobs

1. The Rear Window Defogger Push Knob

D

Controls the rear window defogger.

D

Turns ON the rear window defogger when the push
knob is pressed and the indicator lamp is illumi-
nated.

2. The A/C Push Knob (if the vehicle is equipped with air

conditioning)

D

Controls the A/C.

D

Turns the A/C ON when the push knob is down.
However, if the blower control knob is OFF, the A/C
system is OFF, regardless of the position of the
A/C knob.

One Lever

1. The Fresh Air Control Lever

D

Operates by cable.

D

Switches between recirculating passenger compart-
ment air and bringing outside air into the passenger
compartment.

D

Draws in outside air when the lever is moved to the
left.

D

Recirculates inside air when the lever is moved to
the right.

HEATING AND VENTILATION SYSTEM 7A – 3

COMPONENT LOCATOR

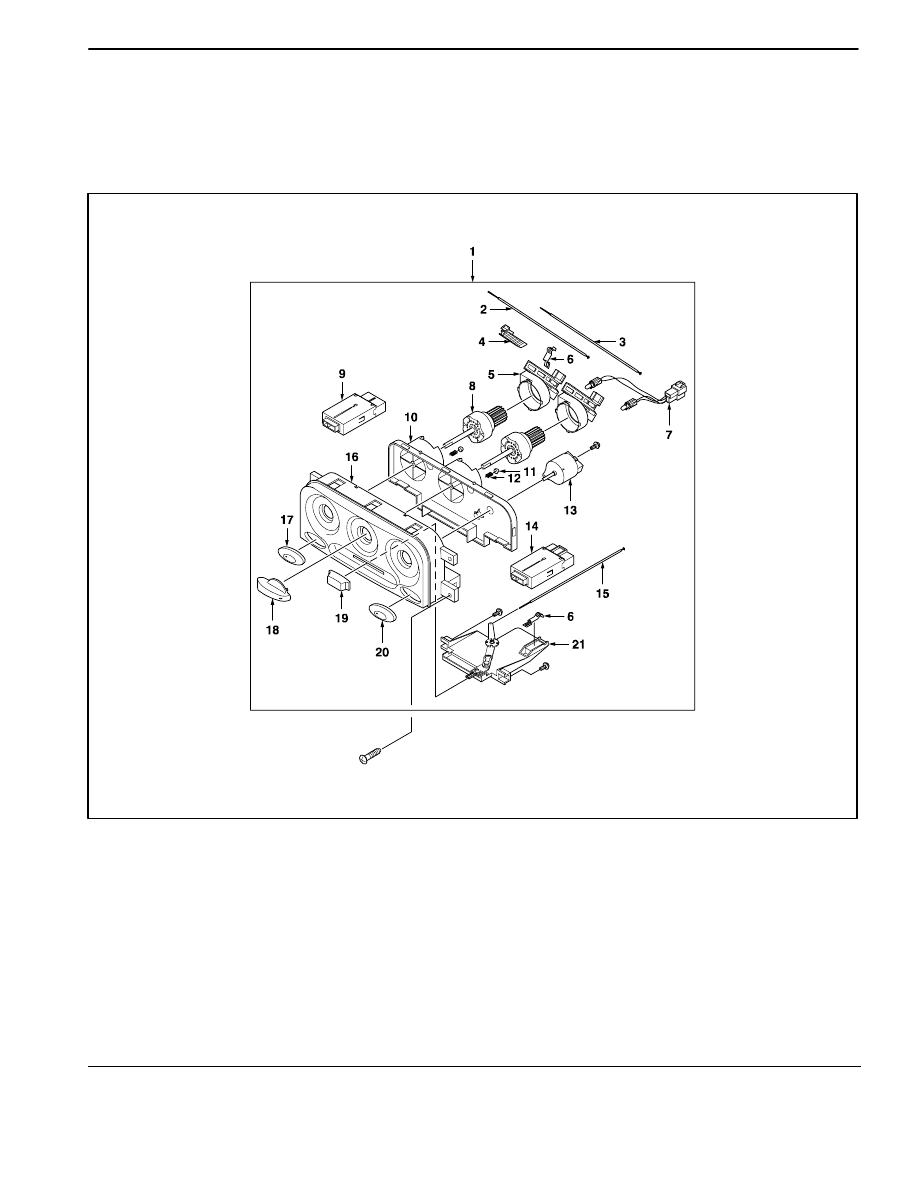

CONTROL ASSEMBLY

(Left–Hand Drive Shown, Right–Hand Drive Similar)

D108A401

1. HVAC Control Assembly
2. Temperature Control Cable
3. Mode Select Cable
4. Rack
5. Bracket
6. Cable Clamp
7. Bulb Socket Assembly
8. Pinion Assembly
9. A/C Switch

10. Housing

11. Detent Cap

12. Detent Spring
13. Blower Switch
14. Rear Defogger Switch
15. Recirculating/Fresh Air Door Cable
16. Panel
17. A/C Push Knob
18. Rotary Knob
19. Recirculating Knob
20. Rear Defogger Push Knob
21. Recirculation

7A – 4 HEATING AND VENTILATION SYSTEM

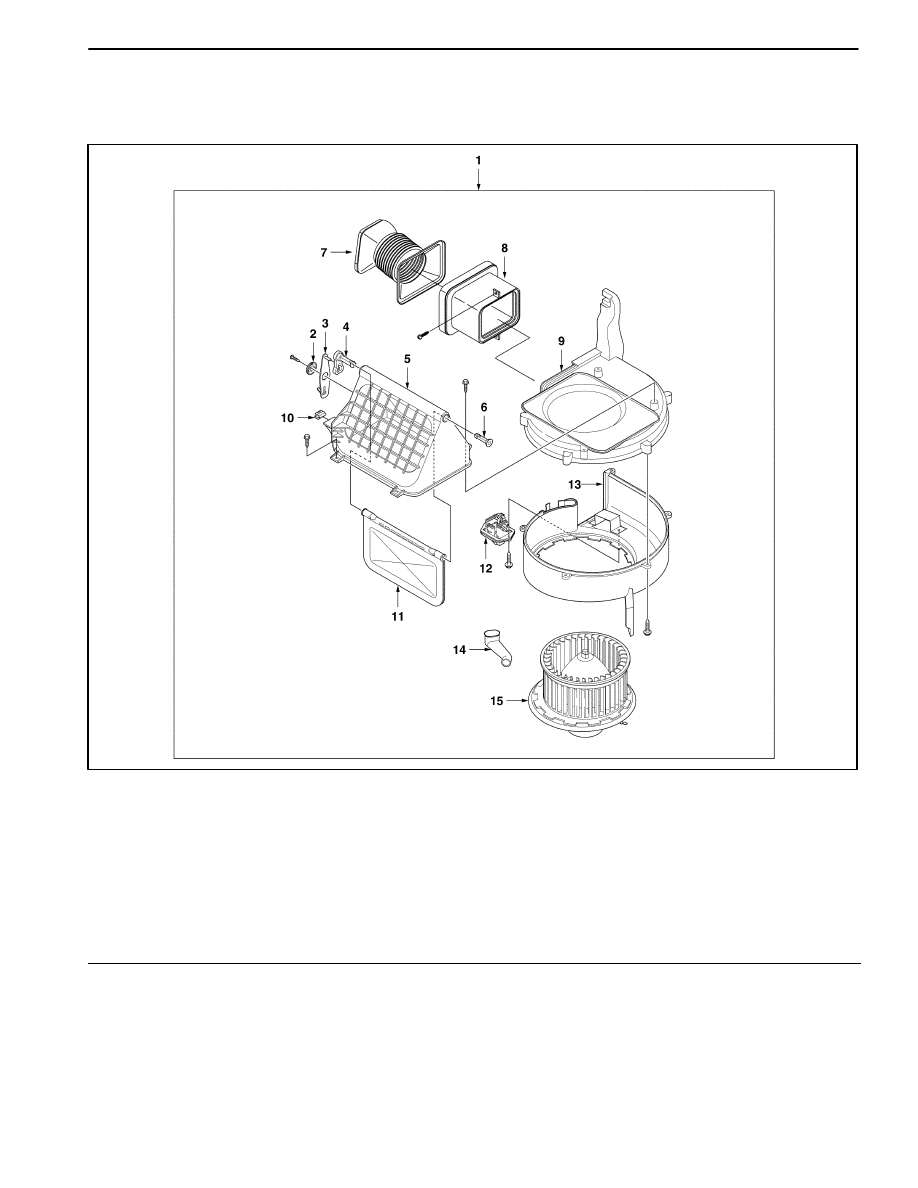

BLOWER MODULE ASSEMBLY

(Left–Hand Drive Shown, Right–Hand Drive Similar)

D18A402A

1. Blower Module Assembly
2. Plastic Washer
3. Blower Link
4. Blower Lever
5. Air Intake Case
6. Valve Retainer
7. Heater Duct Assembly
8. Blower Connector Duct

9. Orifice Case

10. Cable Clamp

11. Blower Valve

12. Blower Resistor
13. Lower Case
14. Cooling Hose
15. Blower Motor

HEATING AND VENTILATION SYSTEM 7A – 5

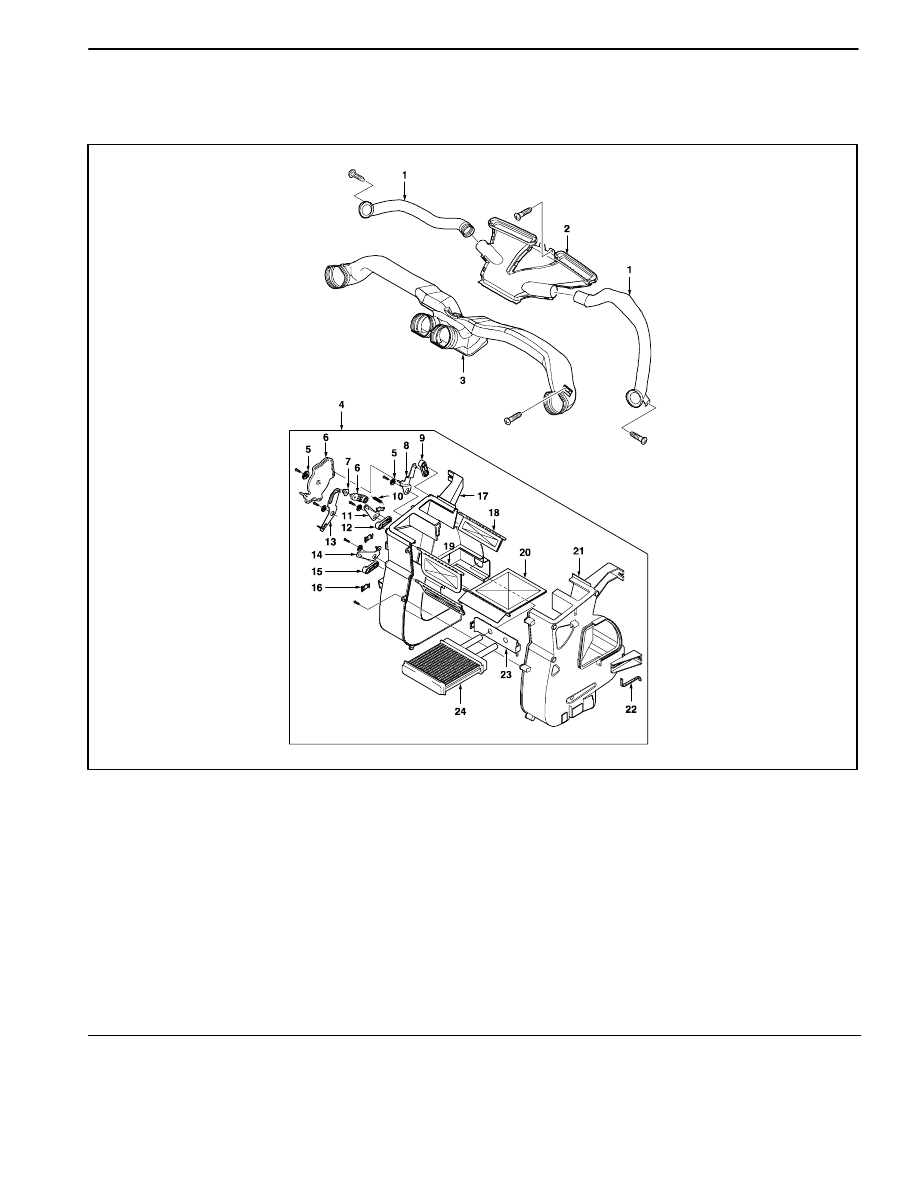

AIR DISTRIBUTOR AND HEATER MODULE ASSEMBLY

(Left–Hand Drive Shown, Right–Hand Drive Similar)

D108A403

1. Defroster Duct Hose
2. Defroster Duct
3. Ventilation Duct
4. Heater Module Assembly
5. Plastic Washer
6. Temperature Control Lever
7. Temperature Control Lever Bearing
8. Defroster Link
9. Defroster Lever

10. Spring

11. Ventilation Link

12. Ventilation Lever

13. Temperature Control Link
14. Heater Link
15. Heater Lever
16. Cable Link
17. Left Heater Case
18. Defroster Valve
19. Ventilation Valve
20. Temperature Control Valve
21. Right Heater Case
22. Case Seal
23. Heater Core Cover
24. Heater Core
