6B – 6 POWER STEERING PUMP
D105C531
D

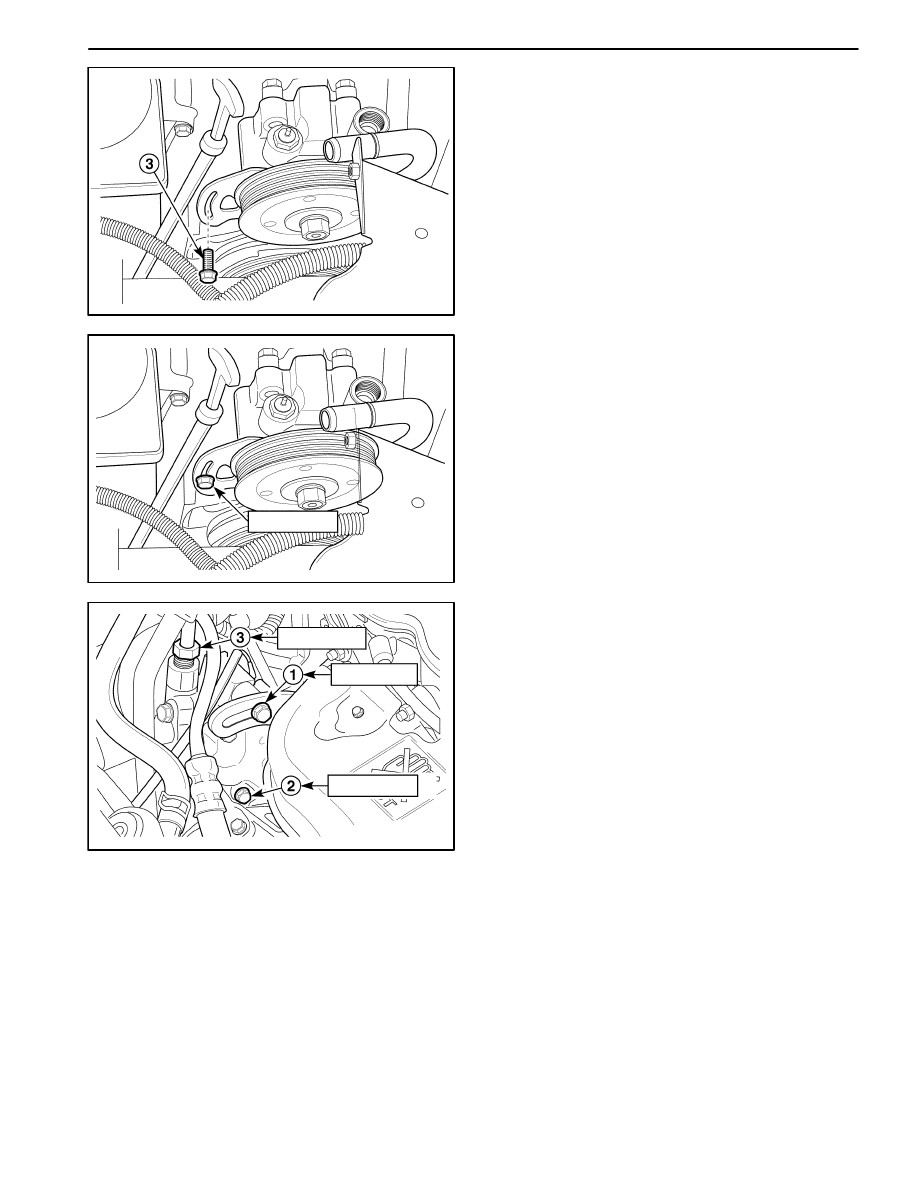

Remove the bolt (3).
18–22 N
S
m
D15C532A
Installation Procedure
1. Install the power steering pump with the bolt.
Tighten
Tighten the bolt to 18–22 N
S
m (13–16 lb-ft).
2. Connect the power steering pressure switch connec-
tor. Refer to Section 6A, Power Steering System.
3. Install the pump drive belt. Refer to “Pump Drive Belt”
in this section.
20–24 N
S
m
20–24 N
S
m
21–35 N
S
m
D15C533A
4. Install the bolts.
Tighten
D
Tighten the rear bracket adjusting bolt to 20–24
N
S
m (15–18 lb-ft) (1).
D
Tighten the power steering bolt to 20–24 N
S
m
(15–18 lb-ft) (2).
5. Connect the pressure line pipe to the outlet connec-
tion on the steering pump.
Tighten
Tighten the pressure line pipe fitting to 21–35 N
S
m
(16–26 lb-ft) (3).
6. Install the front passenger side headlamp.
Refer to Section 9B, Lighting Systems.
Notice: When adding fluid or making a complete fluid
change, always use DEXRON
r-
II or DEXRON
r
-III pow-
er steering fluid. Failure to use the proper fluid will cause
hose and seal damage and fluid leaks.
7. Refill the pump with new fluid and bleed the air from
the system. Refer to Section 6A, Bleeding the Power
Steering System.
8. Inspect for leaks. If leaks are found, correct the cause
of the leak and bleed the system.
