ANTILOCK BRAKE SYSTEM 4F – 41

BLANK

4F – 42 ANTILOCK BRAKE SYSTEM

D17E304B

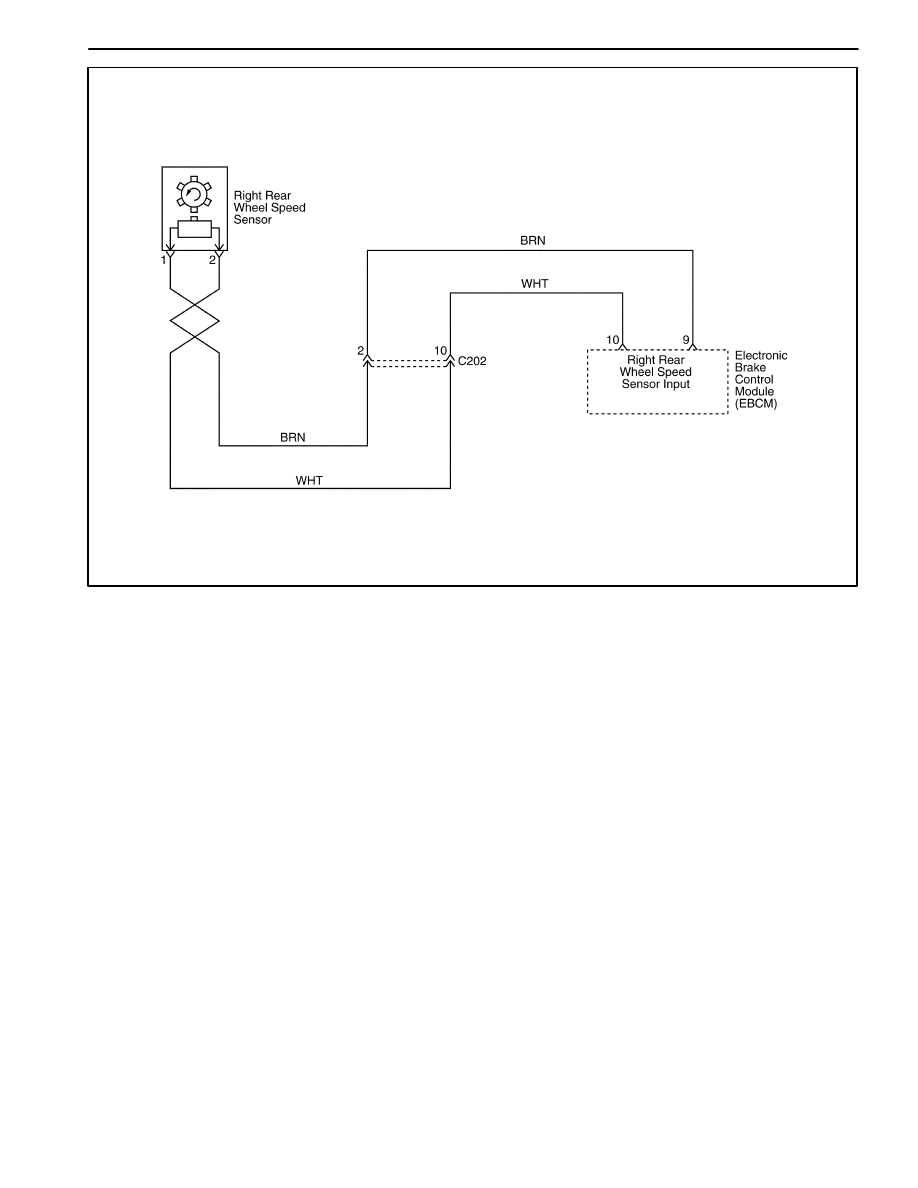

DIAGNOSTIC TROUBLE CODE (DTC) 0504

RIGHT REAR WHEEL SPEED SENSOR CIRCUIT OPEN OR SHORTED

Circuit Description

As a toothed ring passes by the wheel speed sensor,
changes in the electromagnetic field cause the wheel
speed sensor to produce a sinusoidal (AC) voltage sig-
nal whose frequency is proportional to the wheel speed.
The magnitude of this signal is directly related to wheel
speed and the proximity of the wheel speed sensor to
the toothed ring often referred to as the air gap.

Diagnosis

This test detects a short to battery, ground, or open in
the right rear wheel speed sensor circuit.

Cause(s)

The wheel speed circuit is open or shorted to the bat-
tery or ground.

There is a loose connection in the wheel speed cir-
cuit.

The wheel speed sensor resistance is very high.

The EBCM is malfunctioning.

Fail Action

This is a critical operational fault. The ABS is disabled
and the ABS warning lamp is turned on. The proportion-
ing is operation.

Diagnostic Aids

An ‘‘intermittent’’ malfunction may be caused by a poor
connection, rubbed through wire insulation, or a wire
that is broken inside the insulation.

Thoroughly check any circuitry suspected of causing the
intermittent complaint. Look for backed out terminals,
improper mating, broken locks, improperly formed or
damaged terminals, poor terminal to wiring connections,
or physical damage to the wiring harness.

Wheel speed sensor resistance will increase as the sen-
sor temperature increases.

When replacing a wheel speed sensor, inspect the sen-
sor terminals and harness connector for corrosion and/
or water intrusion. If evidence of corrosion or water

ANTILOCK BRAKE SYSTEM 4F – 43

intrusion exists, replace the wheel speed sensor har-
ness. If replacing a wheel speed sensor harness, in-
spect the sensor terminals. If you find evidence of
corrosion or water intrusion, replace the wheel speed
sensor. Refer to “Rear Wheel Speed Sensor” in this sec-
tion.

Important: Wheel speed sensor intermittent malfunc-
tions may be difficult to locate. Take care not to disturb
any electrical connections before performing an indi-
cated step of this table. That will ensure that an intermit-
tent connection will not be corrected before the source
of the malfunction is found.

DTC 0504 – Right Rear Wheel Speed Sensor Circuit Open or Shorted

ÑÑÑÑ

Step

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Action

ÑÑÑÑÑ

Value(s)

ÑÑÑÑÑÑÑ

Yes

ÑÑÑÑÑÑ

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

1. Turn the ignition switch to OFF.
2. Disconnect the EBCM harness connector from

the EBCM.

3. Use a digital voltmeter (DVM) to measure the

resistance between terminals 9 and 10 of
connector on the EBCM harness.

Is the resistance within the specified value?

ÑÑÑÑÑ

1.0 k

1.5 k

ÑÑÑÑÑÑÑ

Go to Step 4

ÑÑÑÑÑÑ

Go to Step 2

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

1. Disconnect the harness from the right rear wheel

speed sensor.

2. Use a DVM to measure the resistance between

terminals 1 and 2 of the right rear wheel speed
sensor connector.

Is the resistance within the specified value?

ÑÑÑÑÑ

1.0 k

1.5 k

ÑÑÑÑÑÑÑ

Go to Step 4

ÑÑÑÑÑÑ

Go to Step 3

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Replace the wheel speed sensor.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

1. Disconnect the connector C202.
2. Use a DVM to measure the resistance between

terminal 2 of the connector C202 and terminal 9
of the EBCM connector.

Does the DVM show the specified value?

ÑÑÑÑÑ

less than 1

ÑÑÑÑÑÑÑ

Go to Step 6

ÑÑÑÑÑÑ

Go to Step 5

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the high resistance between terminal 2 of the
connector C202 and terminal 9 of the EBCM con-
nector.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Use a DVM to measure the resistance between ter-
minal 2 of the connector C202 and terminal 2 of the
right rear wheel speed sensor harness connector.
Is the resistance within the specified value?

ÑÑÑÑÑ

less than 1

ÑÑÑÑÑÑÑ

Go to Step 8

ÑÑÑÑÑÑ

Go to Step 7

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the high resistance between terminal 2 of the
connector C202 and terminal 2 of the right rear
wheel speed sensor harness connector.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Use a DVM to measure the resistance between ter-
minal 10 of the connector C202 and terminal 10 of
the EBCM connector.
Does the DVM show the specified value?

ÑÑÑÑÑ

less than 1

ÑÑÑÑÑÑÑ

Go to Step 10

ÑÑÑÑÑÑ

Go to Step 9

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the high resistance between terminal 10 of
the connector C202 and terminal 10 of the EBCM
connector.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

4F – 44 ANTILOCK BRAKE SYSTEM

DTC 0504 – Right Rear Wheel Speed Sensor Circuit Open or Shorted (Cont’d)

ÑÑÑÑ

Step

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Action

ÑÑÑÑÑ

Value(s)

ÑÑÑÑÑÑÑ

Yes

ÑÑÑÑÑÑ

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Use a DVM to measure the resistance between ter-
minal 10 of the connector C202 and terminal 1 of the
right rear wheel speed sensor harness connector.
Is the resistance within specified value?

ÑÑÑÑÑ

less than 1

ÑÑÑÑÑÑÑ

Go to Step 12

ÑÑÑÑÑÑ

Go to Step 11

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the high resistance between terminal 10 of
the connector C202 and terminal 1 of the right rear
wheel speed sensor harness connector.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Use a DVM to measure the resistance between
ground and terminal 9 of the EBCM connector.
Does the DVM show the specified value?

ÑÑÑÑÑ

ÑÑÑÑÑÑÑ

Go to Step 14

ÑÑÑÑÑÑ

Go to Step 13

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the short to ground between terminal 2 of the
connector C202 and terminal 9 of the EBCM con-
nector.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Use a DVM to measure the resistance between
ground and terminal 2 of the connector C202.
Does the DVM show the specified value?

ÑÑÑÑÑ

ÑÑÑÑÑÑÑ

Go to Step 16

ÑÑÑÑÑÑ

Go to Step 15

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the short to ground between terminal 2 of the
connector C202 and terminal 2 of the right rear
wheel speed sensor harness connector.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Use a DVM to measure the resistance between
ground and terminal 10 of the EBCM connector.
Does the DVM show the specified value?

ÑÑÑÑÑ

ÑÑÑÑÑÑÑ

Go to Step 18

ÑÑÑÑÑÑ

Go to Step 17

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the short to ground between terminal 10 of
the connector C202 and terminal 10 of the EBCM
connector.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Use a DVM to measure the resistance between
ground and terminal 10 of the connector C202.
Does the DVM show the specified value?

ÑÑÑÑÑ

ÑÑÑÑÑÑÑ

Go to Step 20

ÑÑÑÑÑÑ

Go to Step 19

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the short to ground between terminal 10 of
the connector C202 and terminal 1 of the right rear
wheel speed sensor harness connector.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

1. Turn the ignition switch to ON.
2. Use a DVM to measure the voltage between

ground and terminal 9 of the EBCM connector.

Is the voltage within the specified value?

ÑÑÑÑÑ

0 v

ÑÑÑÑÑÑÑ

Go to Step 22

ÑÑÑÑÑÑ

Go to Step 21

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

Repair the short to voltage between terminal 2 of the
connector C202 and terminal 9 of the EBCM con-
nector.
Is the repair complete?

ÑÑÑÑÑ

–

ÑÑÑÑÑÑÑ

System OK

ÑÑÑÑÑÑ

–

ÑÑÑÑ

ÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑÑ

1. Turn the ignition switch to ON.
2. Use a DVM to measure the voltage between

ground and terminal 2 of the connector C202.

Is the voltage within the specified value?

ÑÑÑÑÑ

0 v

ÑÑÑÑÑÑÑ

Go to Step 24

ÑÑÑÑÑÑ

Go to Step 23
