SECTION 9R

BODY  FRONT  END

TABLE OF CONTENTS

Maintenance and Repair . . . . . . . . . . . . . . .  9R-2

On-Vehicle Service . . . . . . . . . . . . . . . . . . . . .  9R-2

HOOD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  9R-2

9R-2  BODY FRONT END

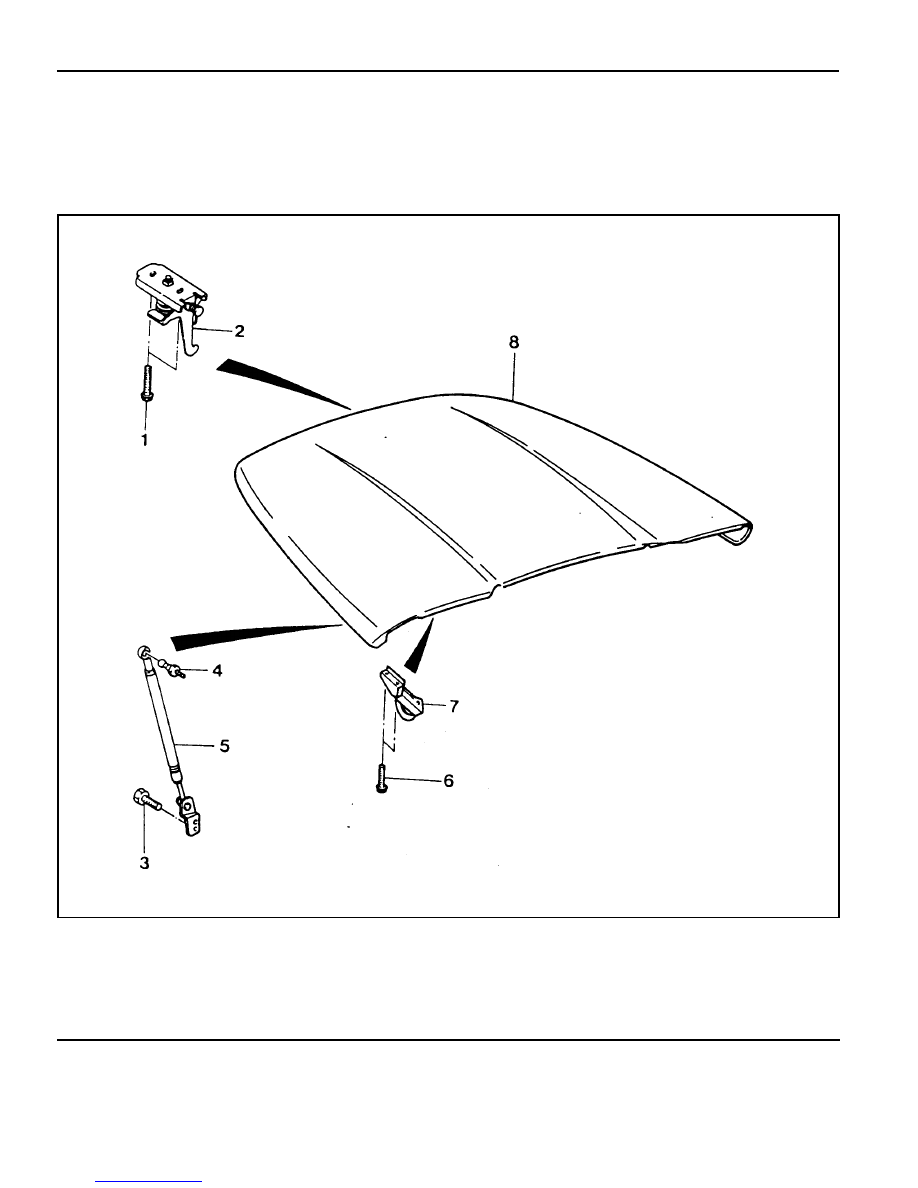

1 Bolt
2 Hood Striker Safety Assembly
3 Bolt
4 Mounting Ball Stud

5 Hood Lifter Assembly
6 Bolt
7 Hood Hinge Assembly
8 Hood

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

HOOD

BODY FRONT END  9R-3

Removal & Installation Procedure

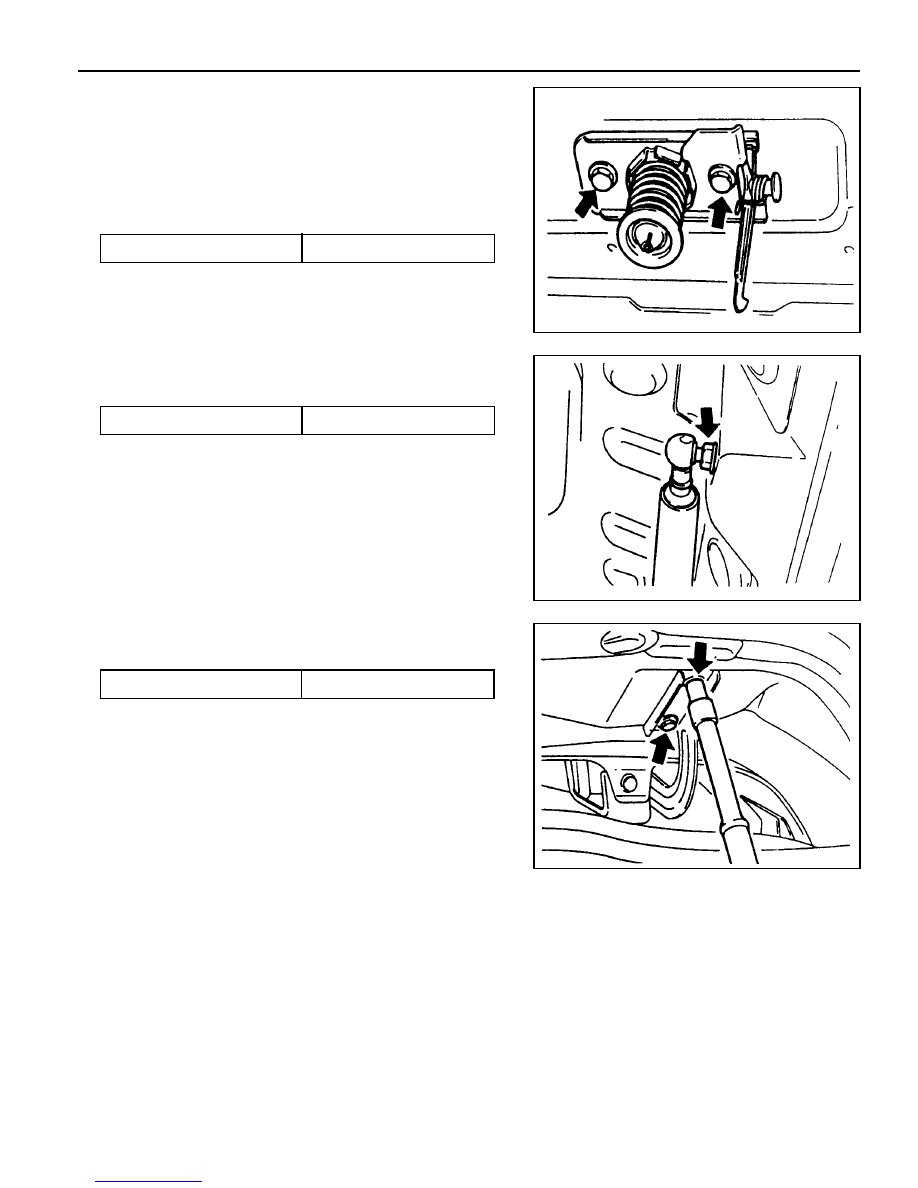

1. Remove the hood striker assembly.

Notice

When installing, tighten the bolt after setting the hole
between wratch and hood striker assembly.

Installation Notice

Tightening Toque

8 - 11 Nm

2. Remove the hood bolt(2EA) of hood lifter assembly.

Installation Notice

3. Remove the hood lifter assembly from the upper ball stud.

Notice

Insert the hood lifter assembly into ball stud fully until it
sounds "click".

Tightening Toque

14 - 26 Nm

4. Loosen the hood hinge assembly bolt and remove the hood.

Installation Notice

5. Installation should follow the removal procedure in the

reverse order.

Tightening Toque

13 - 26 Nm

9R-4  BODY FRONT END

Adjustment Procedure

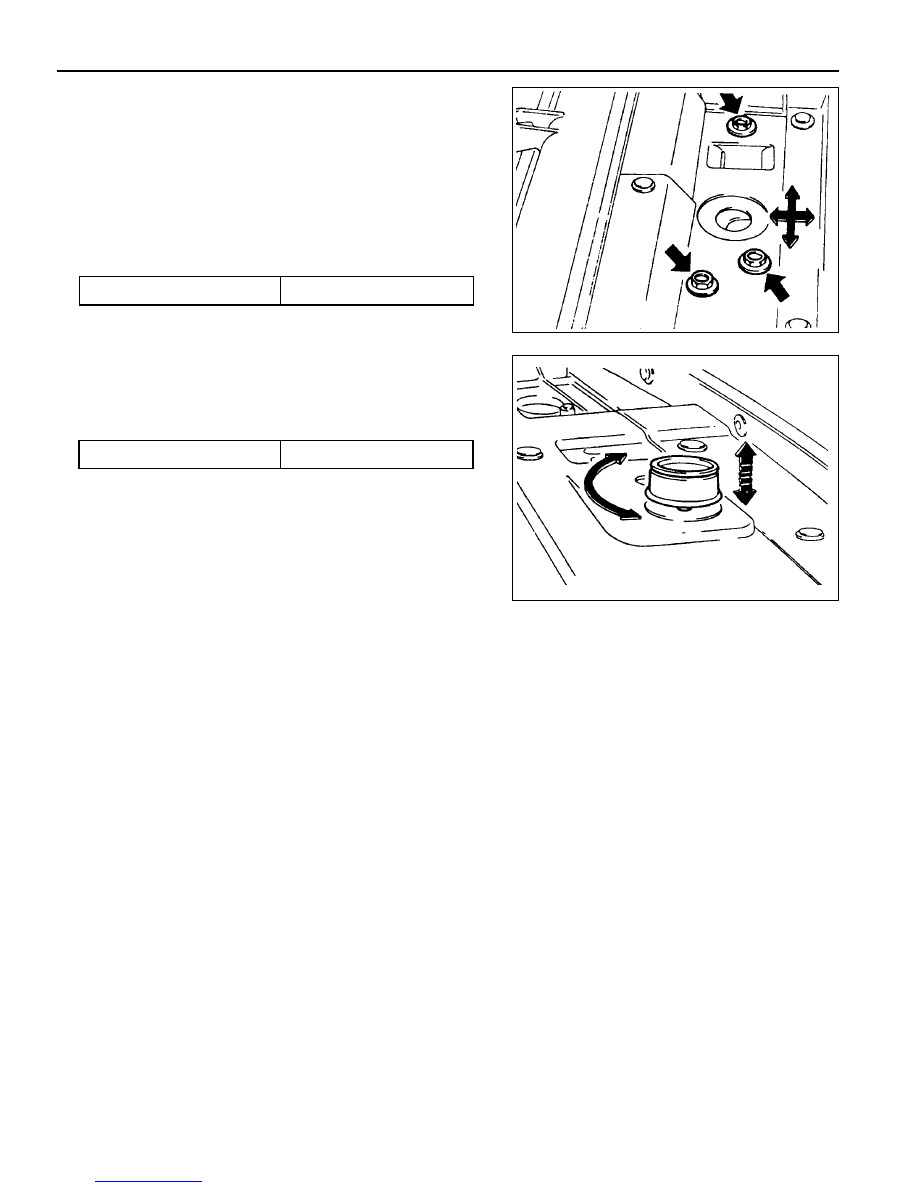

1. Alignment between hood striker and latch hole.

l

Loosen the mounting bolt of hood latch slightly and adjust

hood in forward/rearward and left/right directions. Then
align the center between hood striker and latch hole.

Notice

Tighten the bolt fully after alignment.

Installation Notice

Tightening Toque

13 - 26 Nm

2. Adjusting the height of hood overslam bumper.

Unlock the hood and check the clearance between hood
and fender by adjusting the hood overslam bumper in left/
right directions.

Normal

20 - 22 Nm
