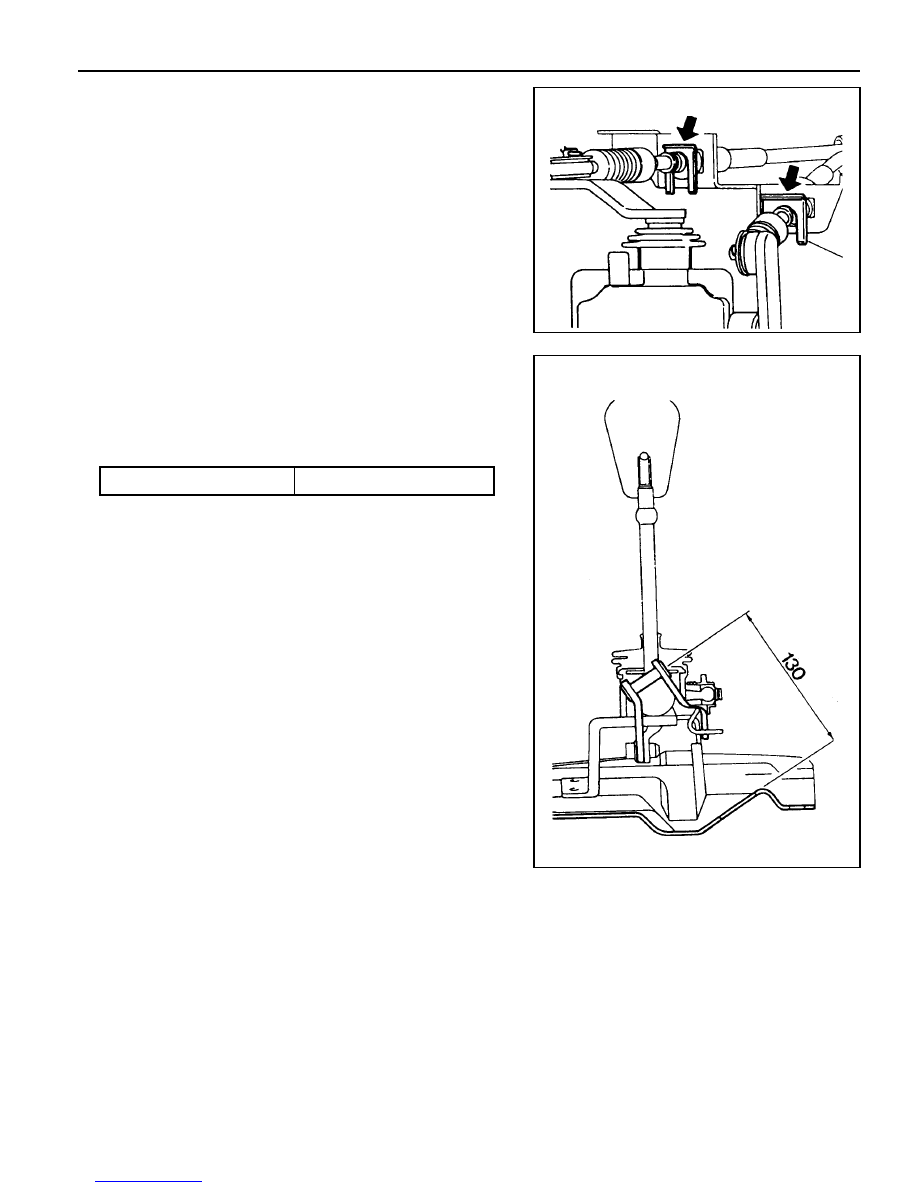

MANUAL TRANSMISSION  5B-13

5. Pull out the clip from the bracket and remove the shift cable

and select cable.

6. Installation is reverse order of the removal.

Inspection Procedure

1. The shift lever should be positioned in neutral.

2. Apply liquid gasket on the cable contact surface.

3. Keep 130 mm between the center of the cable end-eye

and floor.

Notice

If necessary, adjust the adjust nut.

Standard

130 mm

5B-14  MANUAL TRANSMISSION

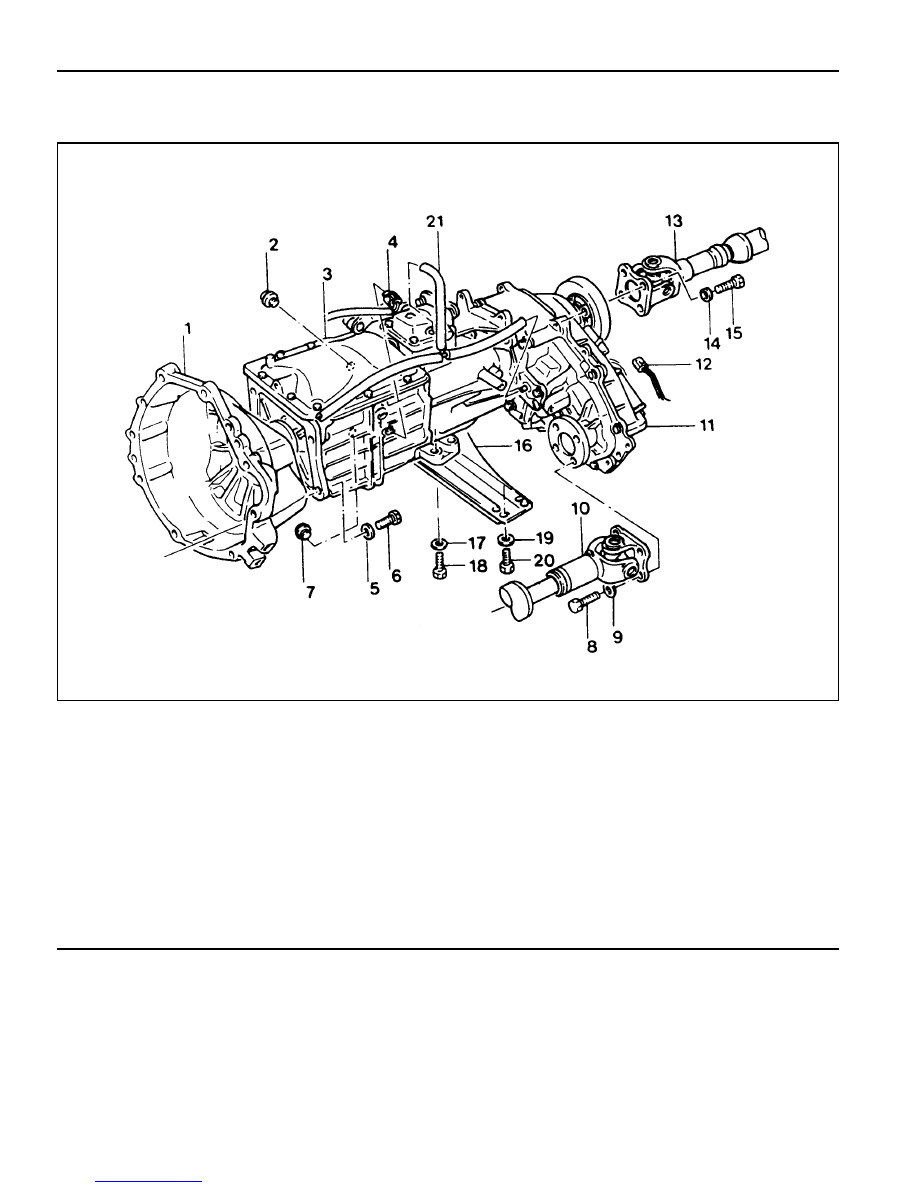

TRANSMISSION

Preceding Work : Removal of the shift control cable

1 Clutch Housing
2 Oil Filler Plug ............................................ 25 Nm
3 Transmission Assembly
4 Back-up Switch
5 Washer
6 Bolt ...................................................... 77-87 Nm
7 Oil Drain Plug ............................................ 25 Nm
8 Bolt ...................................................... 81-89 Nm
9 Washer

10 Front Propeller Shaft

11 Transfer Case Assembly

12 Speedometer Cable
13 Rear Propeller Shaft
14 Washer
15 Bolt ...................................................... 70-80 Nm
16 Cross Member
17 Washer
18 Bolt ...................................................... 21-35 Nm
19 Washer
20 Bolt ...................................................... 62-93 Nm
21 Breather Hose

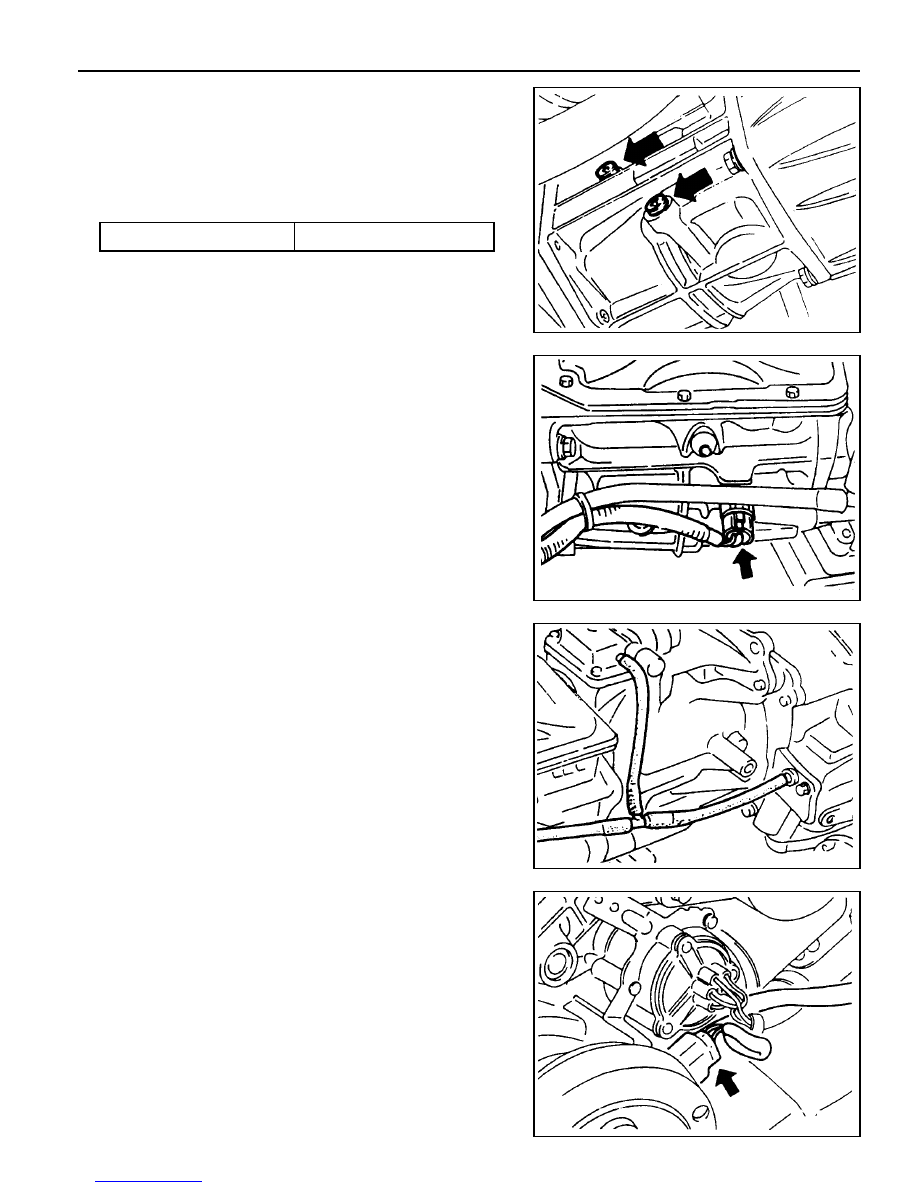

MANUAL TRANSMISSION  5B-15

Removal & Installation Procedure

1. Disconnect the negative terminal from the battery.

2. Lift up the vehicle and fix it safely.

3. Remove the drain plug from the transmission housing and

drain the oil. Reinstall the drain plug.

Installation Notice

Tightening Torque

25 Nm

4. Disconnect the back-up switch connector.

5. Remove the breather hose.

6. Remove the speedometer connector and other wiring

harnesses and connectors.

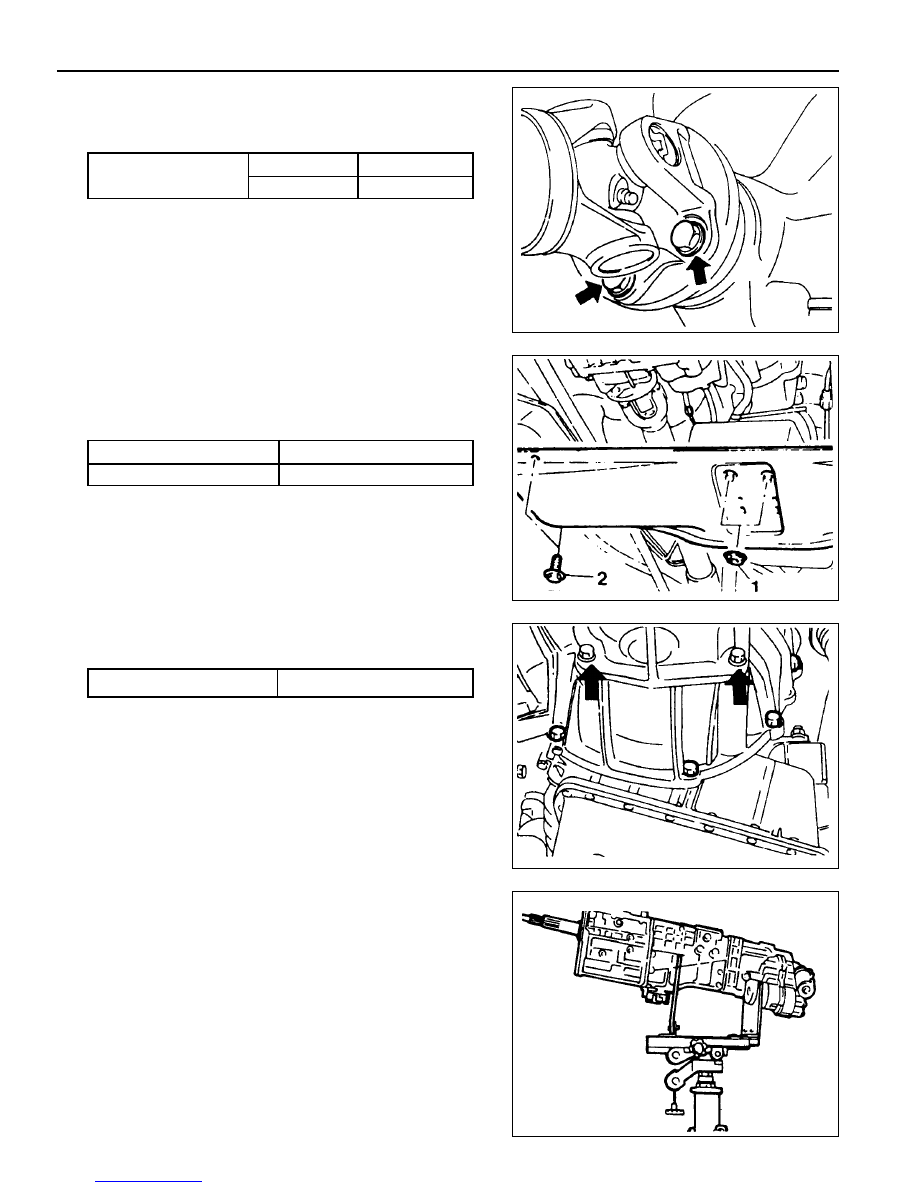

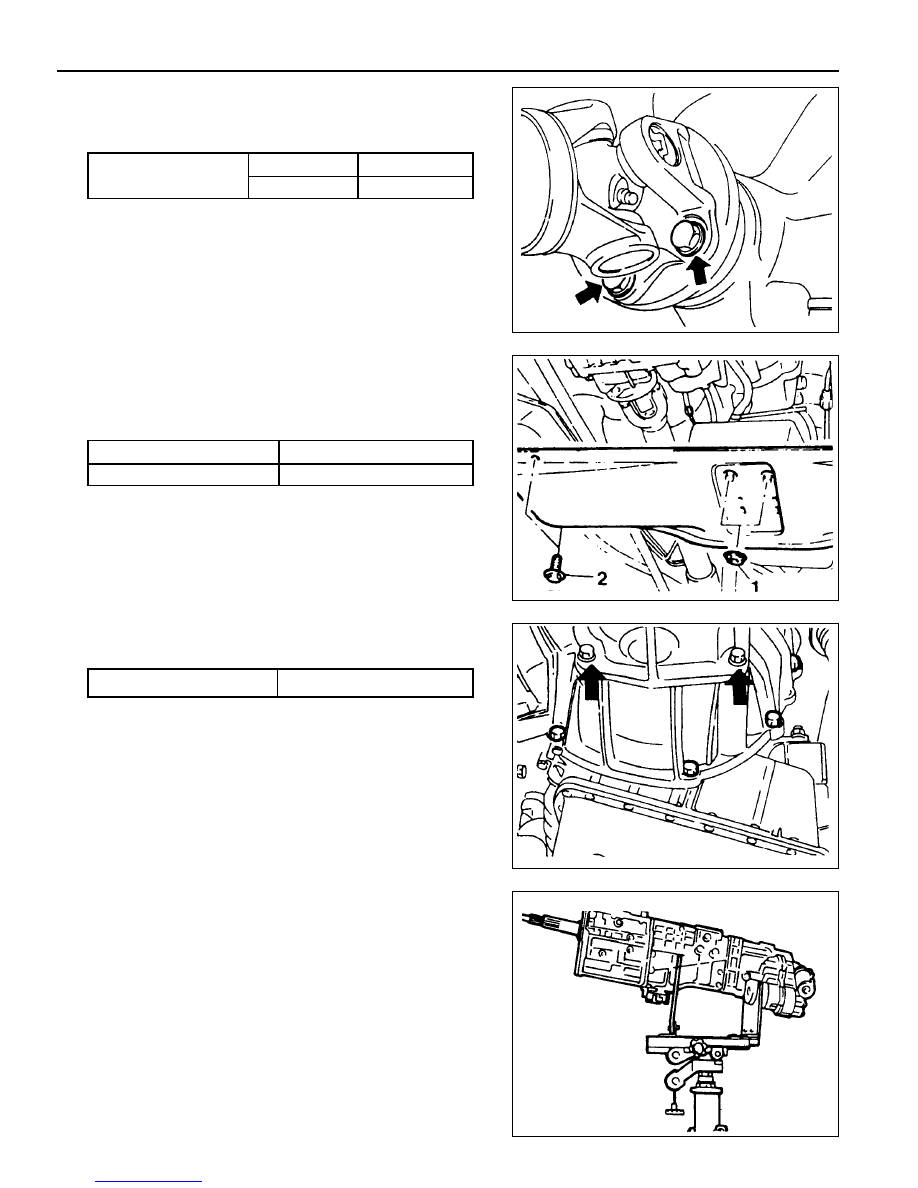

5B-16  MANUAL TRANSMISSION

7. Remove the front and rear propeller shafts from the

transmission.

Installation Notice

Tightening Torque

81 - 89 Nm

70 - 90 Nm

Front

Rear

8. Support the transmission on an suitable jack.

Unscrew the center mounting nuts and each sides
mounting bolts and remove the cross member.

Installation Notice

9. Unscrew the transmission mounting bolts.

Installation Notice

Tightening Torque (1)

Tightening Torque (2)

21 - 35 Nm

62 - 93 Nm

10. Move the transmission jack backward careful and

disengage the transmission input shaft from the engine.

Remove the transmission.

11. Installation should follow the removal procedure in the

reverse order.

Tightening  Torque

77 - 87 Nm
