AUTOMATIC TRANSMISSION 5A-31
K-Line
The K-line is typically used for obtaining diagnostic information from the TCU. A computer with a special interface is
connected to the TCU and all current faults, stored faults, runtime parameters are then available. The stored fault
codes can also be cleared.
The K-line can be used for vehicle coding at the manufacturer’s plant or in the workshop. This allows for one TCU
design to be used over different vehicle models. The particular code is sent to the microprocessor via the K line and
this results in the software selecting the correct shift and VPS ramp parameters.
HYDRAULIC CONTROL SYSTEM

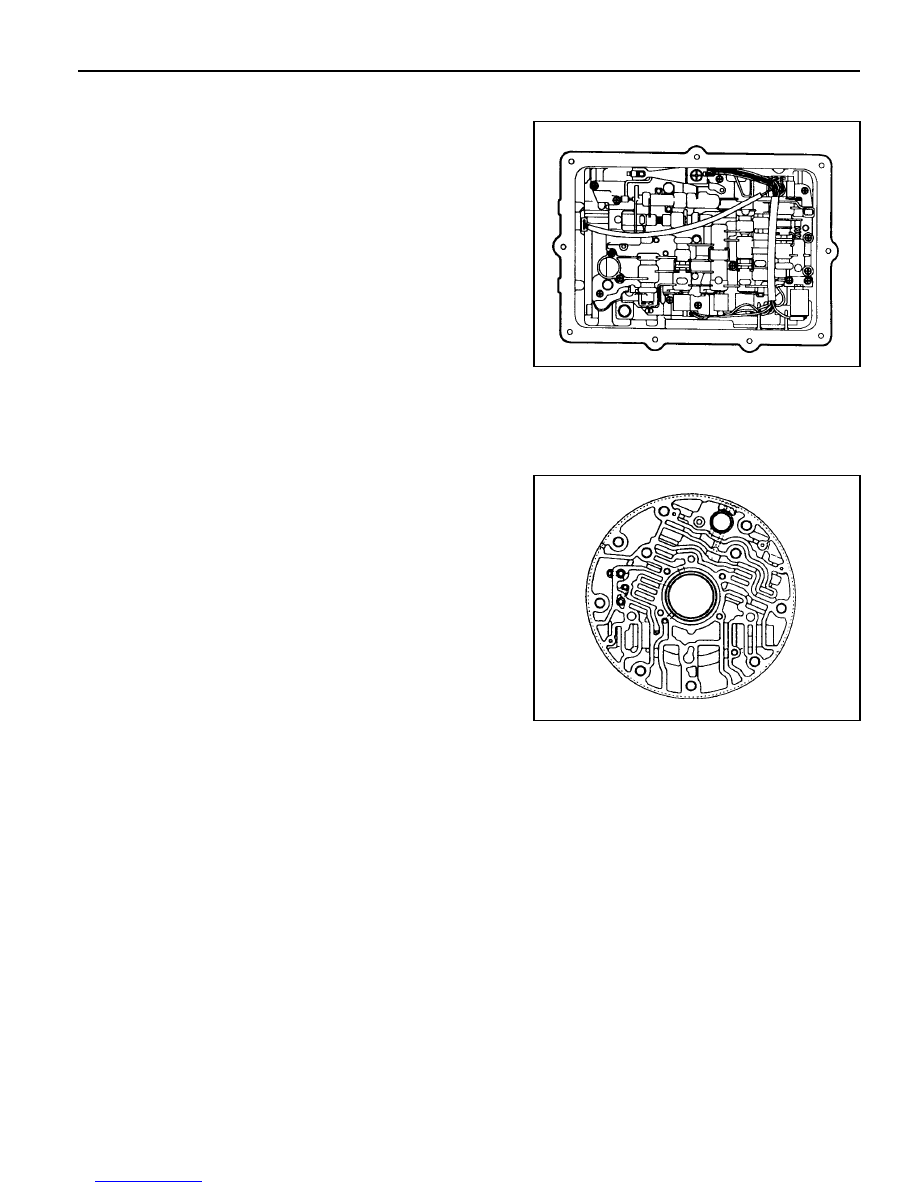

The hydraulic controls are located in the valve body, pump body and main case.
The valve body contains the following:
l

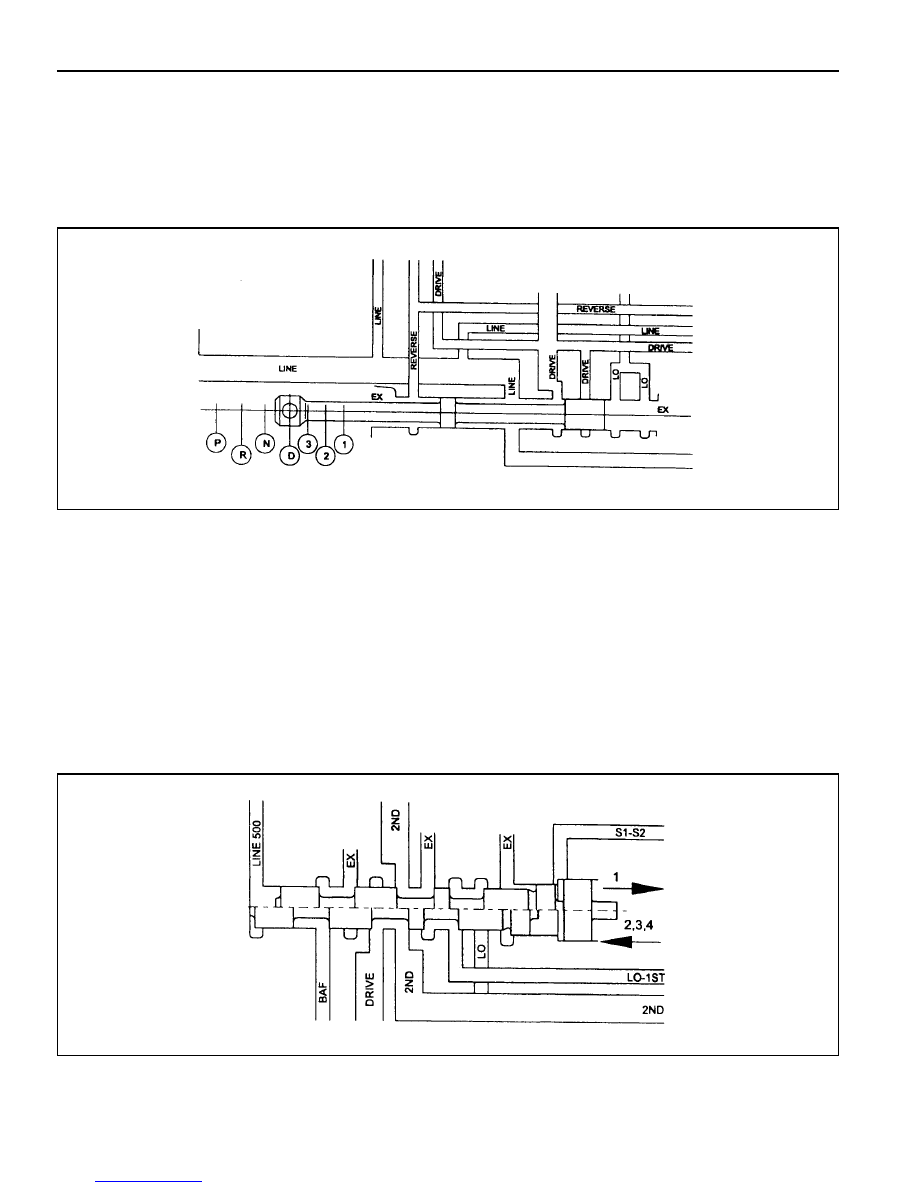

Manual valve,
l
Three shift valves,
l
Sequence valve,
l
solenoid supply pressure regulator valve,
l
line pressure control valve,
l
clutch apply regulator valve,
l
band apply regulator valve,
l
S1 to S6, and
l
Reverse lockout valve.
l
The pump body contains the following:
l
Primary regulator valve for line pressure,
l
converter clutch regulator valve,
l
converter clutch control valve,
l
S7,and
l
C1 bias valve.
The main case contains the following:
l
B1R exhaust valve
The hydraulic control system schematic is shown at figure 3.7.
All upshifts are accomplished by simultaneously switching on a shift valve(s), switching VPS pressure to the band
and/or clutch regulator valve, and then sending the VPS a ramped current. The shift is completed by switching the
regulators off and at the same time causing the VPS to reach maximum . pressure. All downshifts are accomplished
by switching VPS pressure to the band and/or clutch regulator valve and sending a ramped current to the VPS. The
shift is completed by simultaneously switching the regulators off, switching the shift valves and at the same time
causing the VPS to return to stand-by pressure.
The primary regulator valve is located in the pump cover and supplies four line pressures; high and low for forward
gears, and high and low for reverse. This pressure has no effect on shift quality and merely provides static clutch
capacity during steady state operation. Low pressure can be obtained by activating an On/off solenoid with high line
pressure being the default mode.
Torque converter lock-up is initiated by toggling the converter clutch control valve with an On/off solenoid. The actual
apply and release of the clutch is regulated by the VPS via the converter clutch regulator valve. As an additional
safety feature, the lock-up is hydraulically disabled in first and second gear by the bias valve which only supplies oil
to the lock-up solenoid when C1 is applied in third and fourth gears. This prevents the vehicle from being rendered
immobile in the unlikely event of S7 becoming stuck.
The solenoid supply valve provides reference pressure for all the solenoids.
