1B3-42  OM600 ENGINE MECHANICAL

14. Pull out the accelerator control linkage.

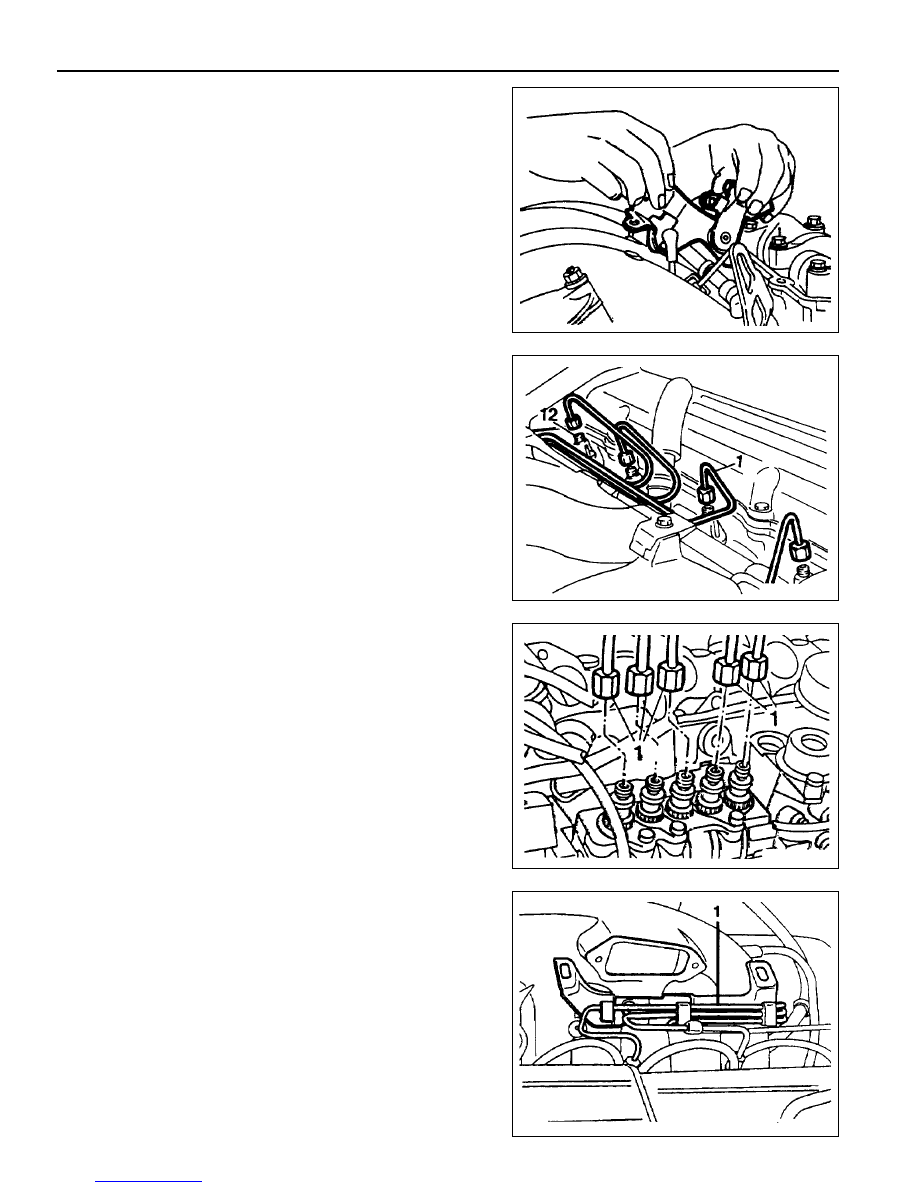

15. Remove the fuel injection line(1) from the fuel injection

nozzle(12).

Box Wrench Inset 000 589 77 03 00

16. Remove the fuel injection line from the fuel injection pump.

Box Wrench Insert 000 589 77 03 00

17. Remove the bracket mounting bolts and then remove the

fuel injection line(1).

OM600 ENGINE MECHANICAL  1B3-43

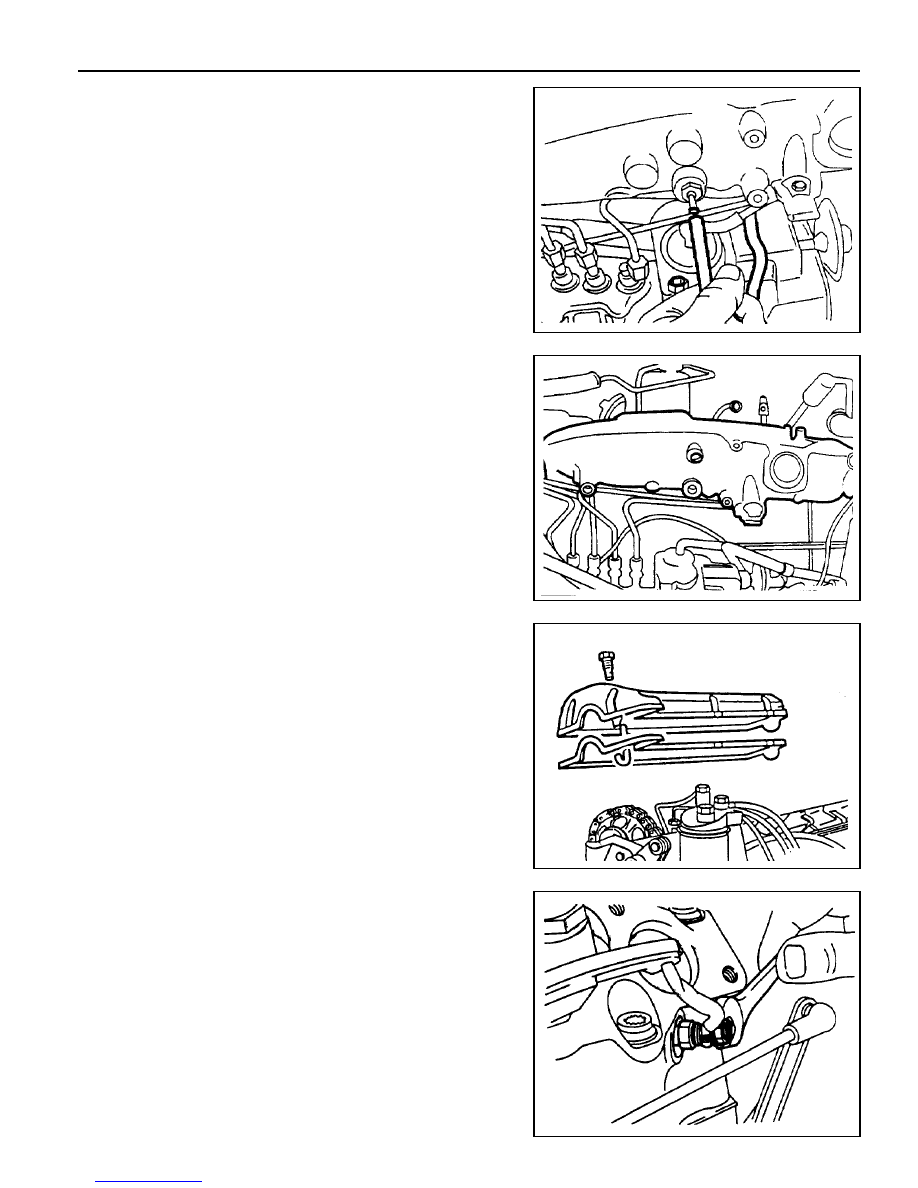

18. Disconnect the booster hose connected to intake manifold.

19. Remove the intake manifold and gasket.

20. Remove the cylinder head cover and gasket with the blow-

by gas hose.

21. Disconnect the glow plug cables.

1B3-44  OM600 ENGINE MECHANICAL

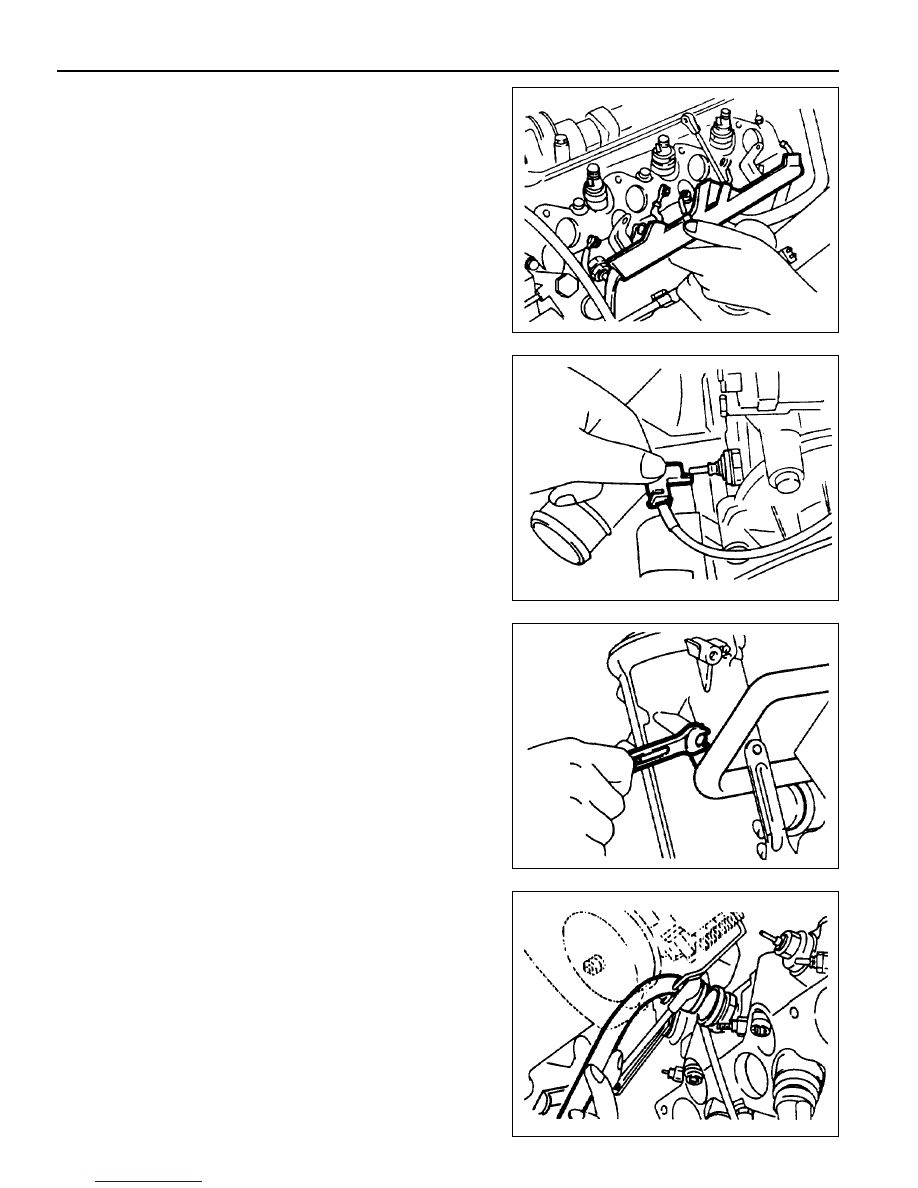

22. Remove the cable channel.

23. Disconnect the cables from the glow plug sensor and

coolant temperature sensor.

24. Remove the heater pipe bracket from the oil filter.

25. Pry off the clamp and push the heater feed pipe forward

and then pull out the pipe.

OM600 ENGINE MECHANICAL  1B3-45

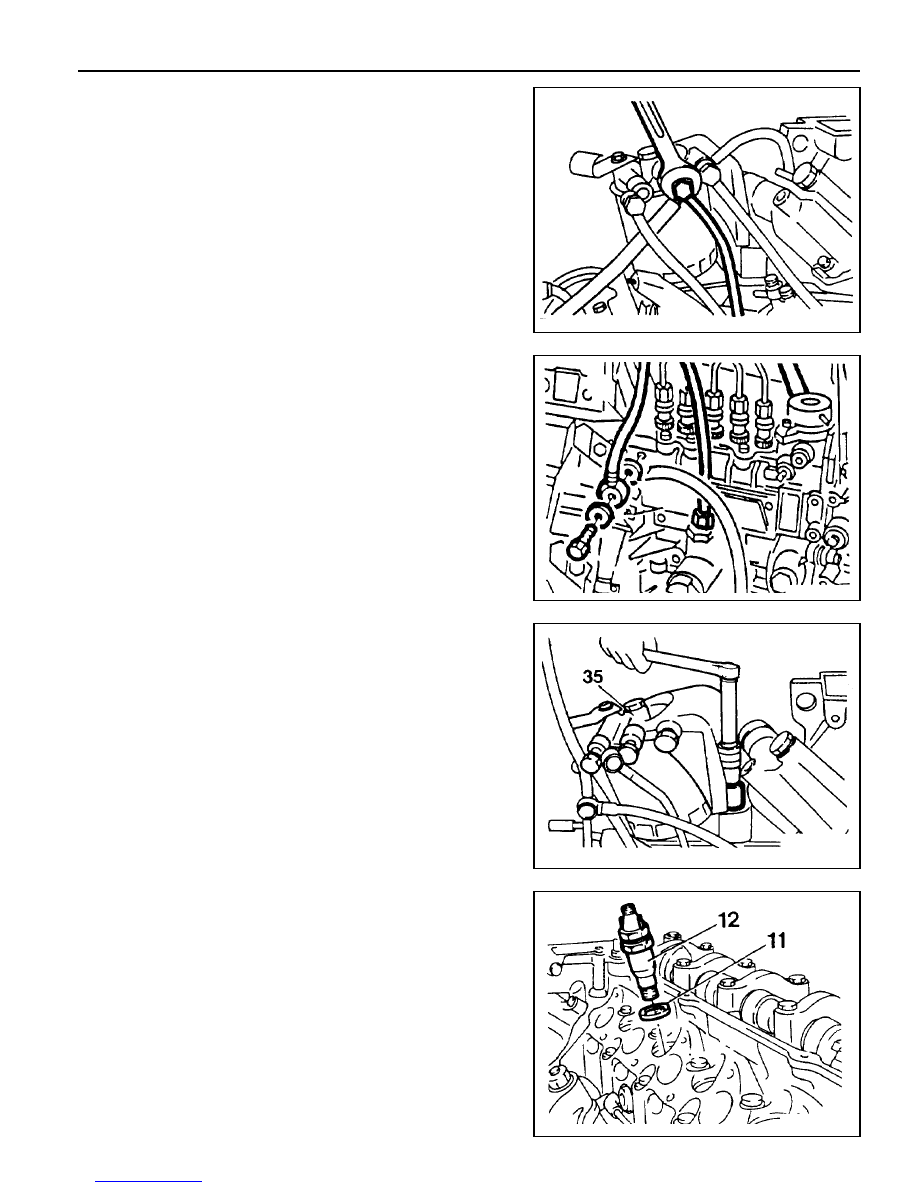

26. Disconnect the fuel lines from the fuel filter.

27. Disconnect the fuel lines from the injection pump.

28. Remove the fuel filter(35).

29. Remove the fuel injection nozzle(12) and nozzle

washer(11).

Socket Wrench Insert 001 589 65 09 00
