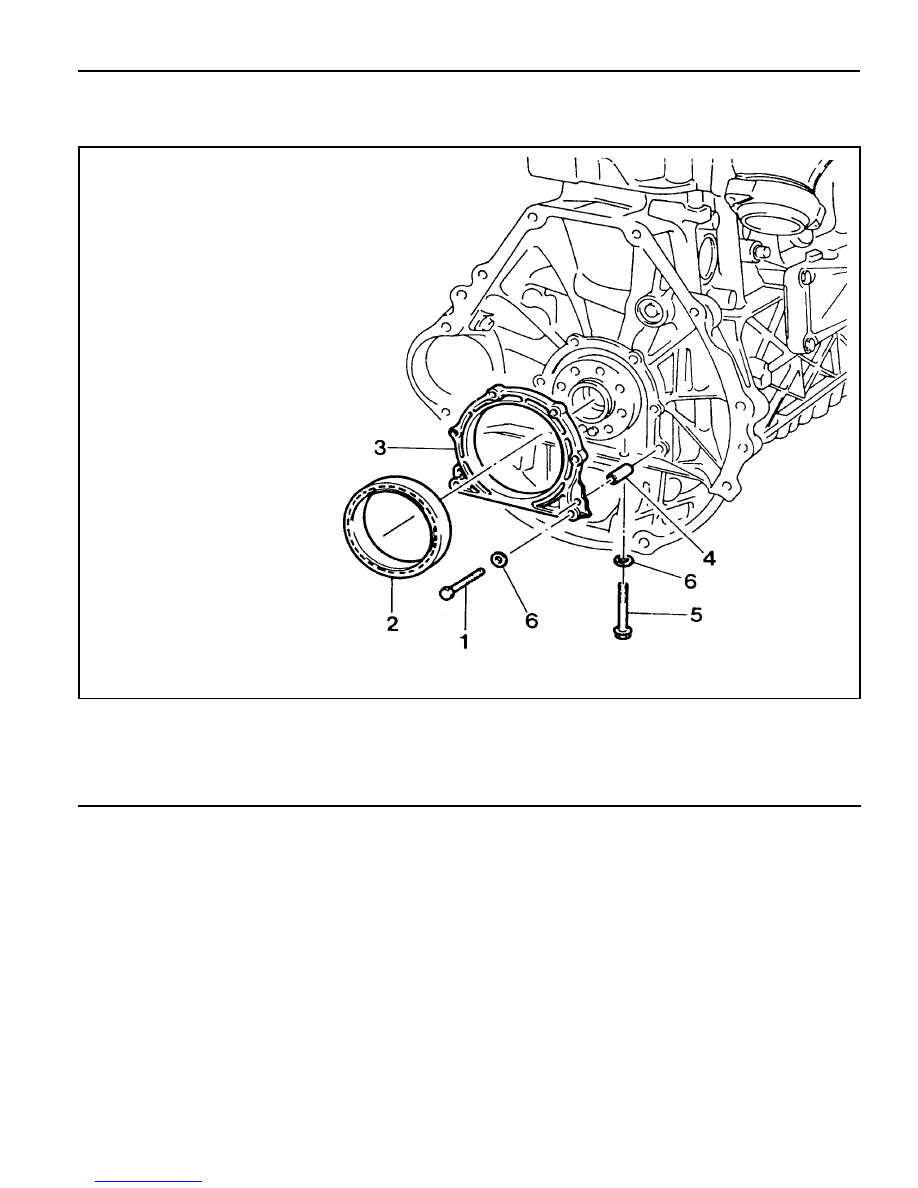

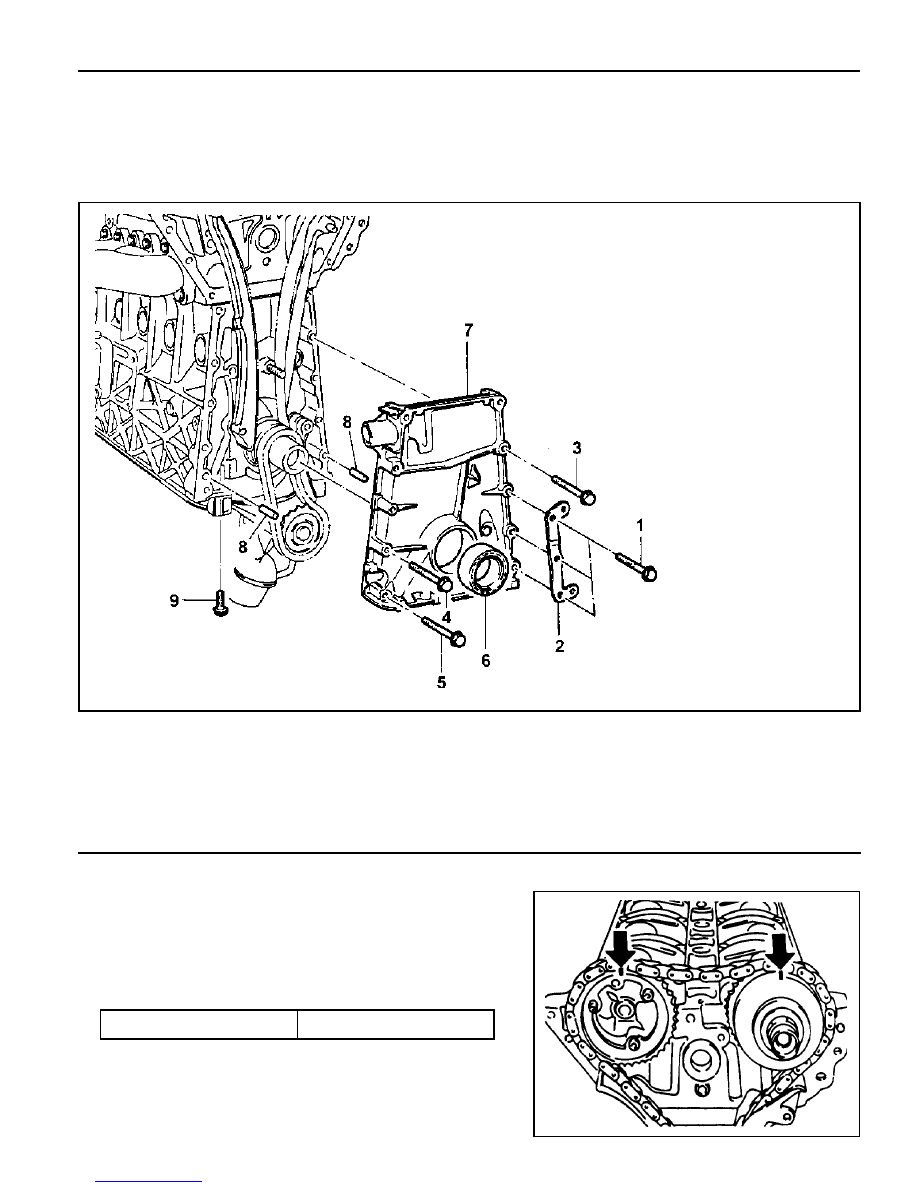

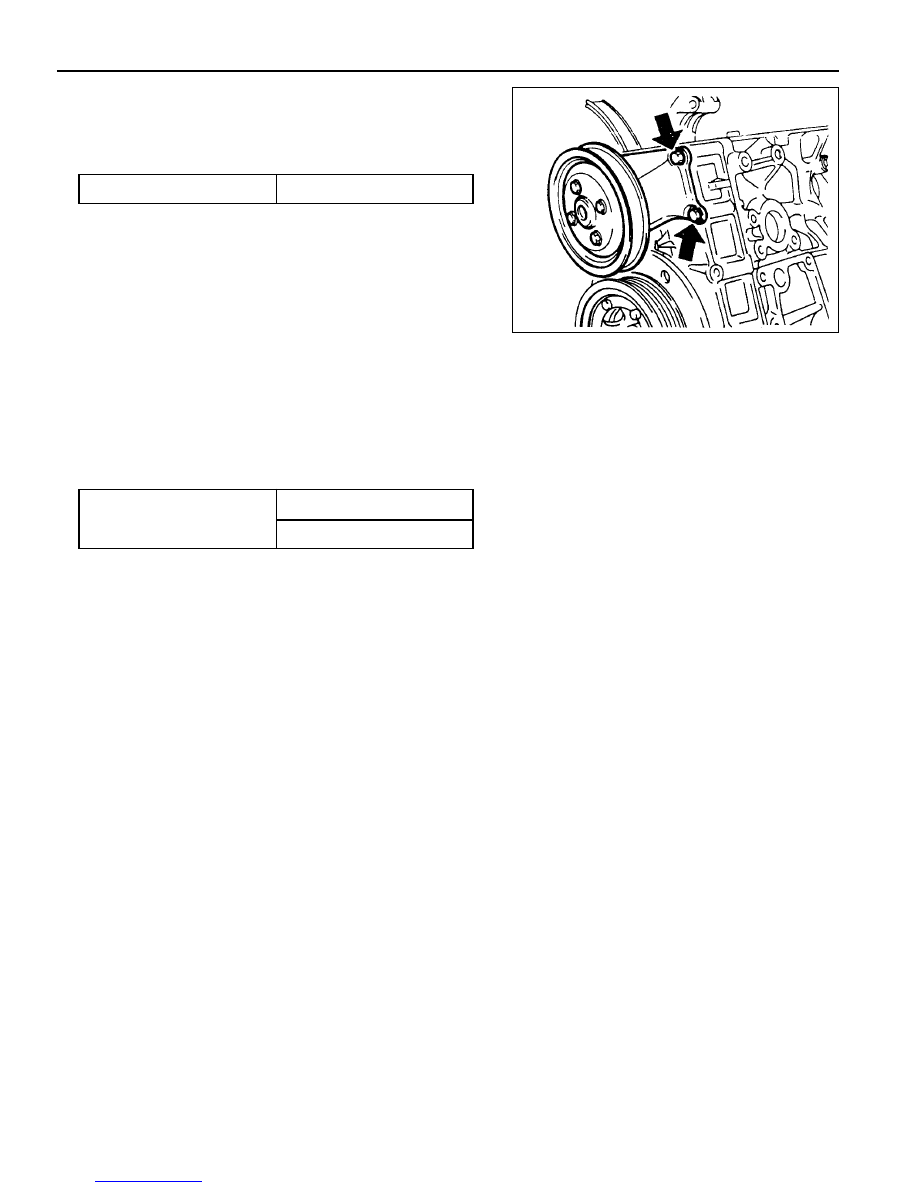

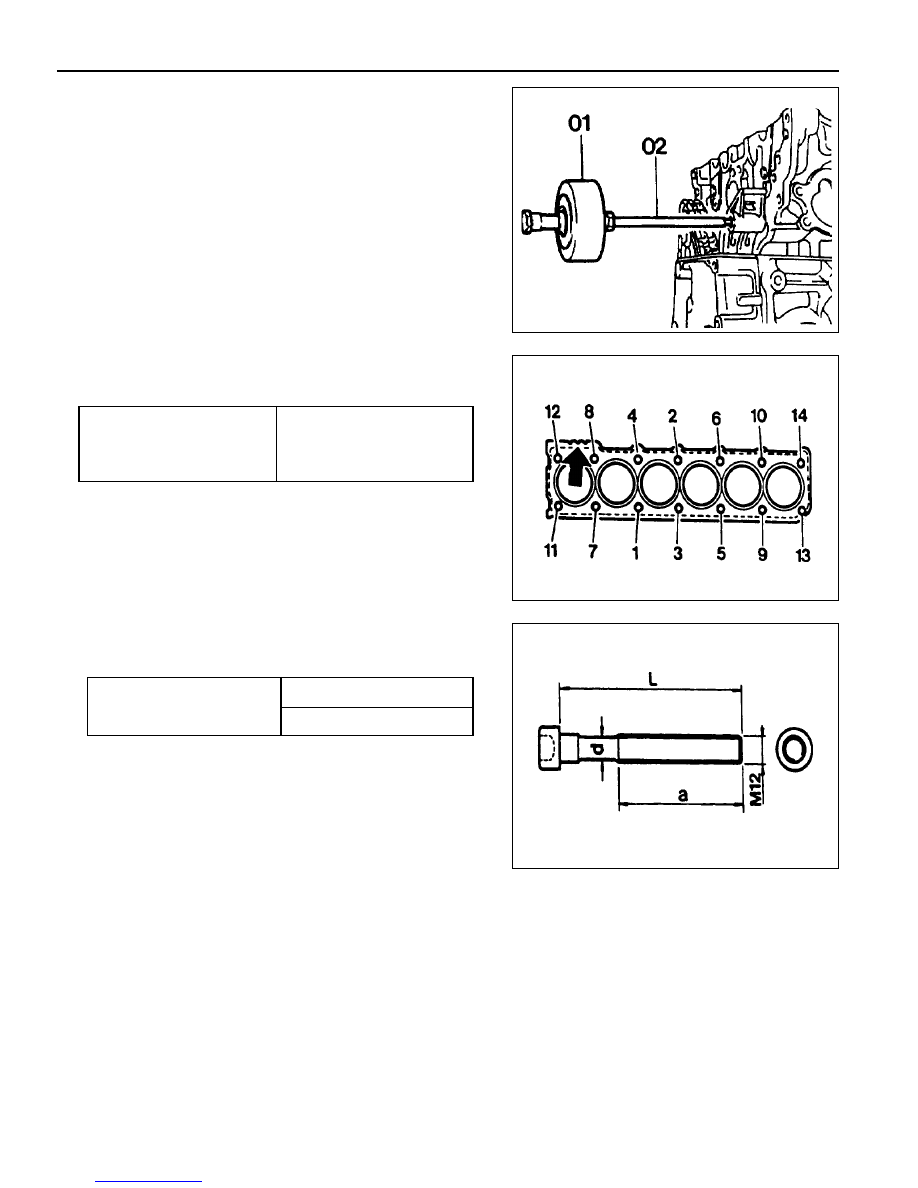

1B1-36 M162 ENGINE MECHANICAL 7. Remove the cylinder head bolts in numerical order. Installation Notice 8. Check the length of the cylinder head bolt. Installation Notice Box Wrench Insert 000 589 01 10 00 l Replace the bolt if the measured length exceed the max. l Apply the oil to the thread surface of bolt. 9. Carefully remove the cylinder head and check the mating surface. 10. Installation should follow the removal procedure in the reverse order. 6. Remove the guide rail fixing pin from the cylinder head using the sliding hammer (01) and the threaded pin (02). Sliding Hammer 116 589 20 33 00 Threaded Pin 116 589 02 34 00 Tightening Torque 1st step 55 Nm 2nd step 90° 3rd step 90° Length (L) New 160 ± 0.8 mm Max. 162 ± 0.7 mm |
