2D – 22

I

REAR SUSPENSION

DAEWOO V–121 BL4

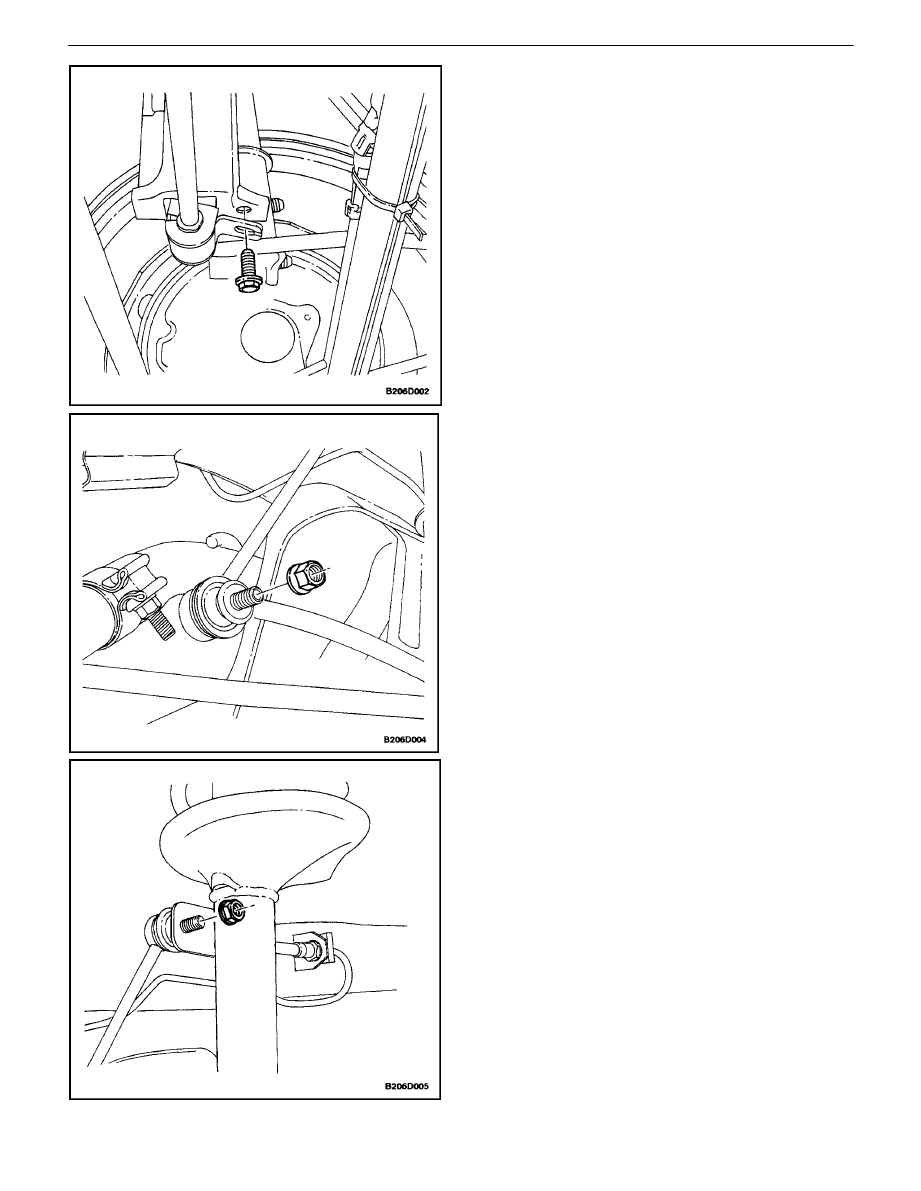

3.  Install the stabilizer shaft clamp bolts.

Tighten

Tighten the stabilizer shaft clamp bolts to 25 N

S

m (18

lb–ft).

4.  Lower the vehicle.

STABILIZER LINK

Removal Procedure

1.  Raise and suitably support the vehicle.
2.  Remove the wheel. Refer to Section 2E, Tires and

Wheels.

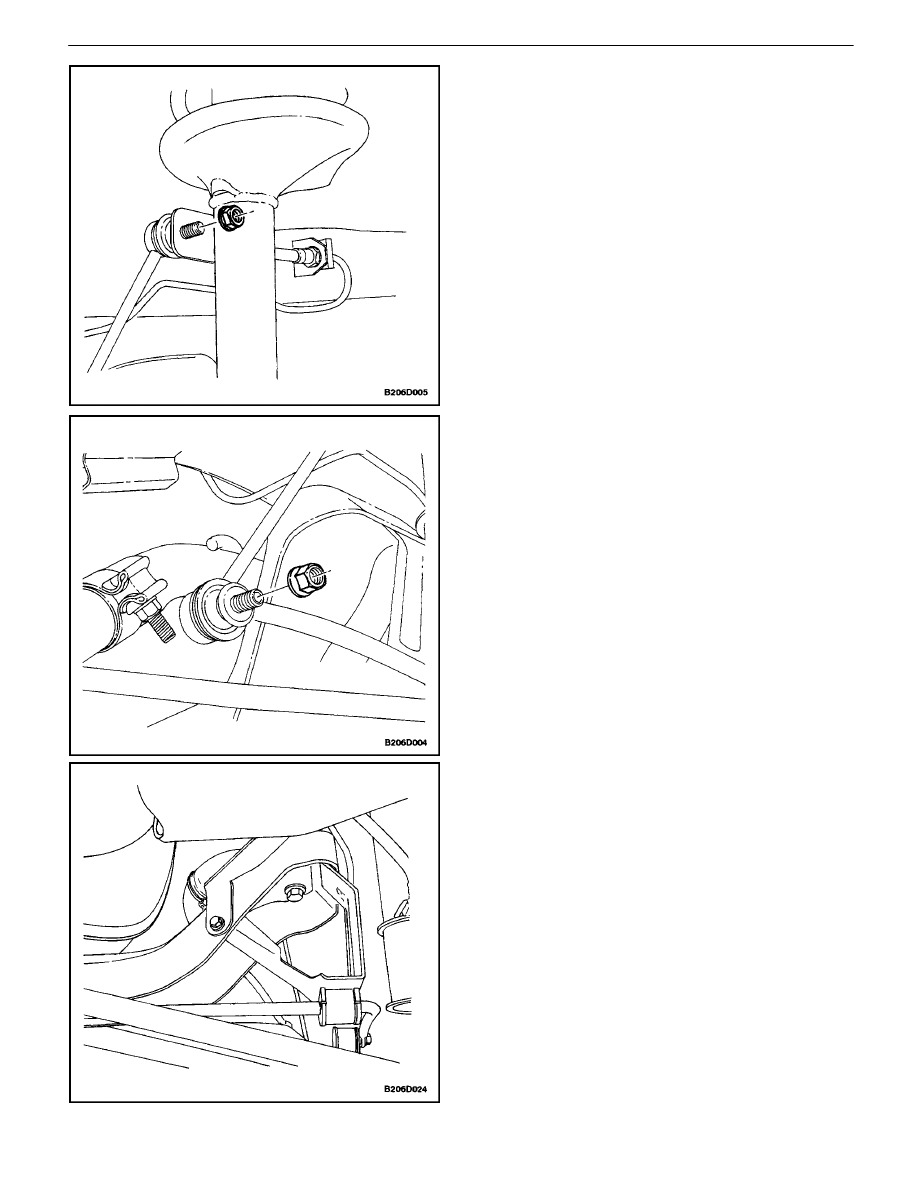

3.  Remove the stabilizer shaft–to–stabilizer link nut.

4.  Remove the stabilizer link–to–strut assembly nut.
5.  Remove the stabilizer link.

REAR SUSPENSION  2D – 23

DAEWOO V–121 BL4

Installation Procedure

1.  Install the stabilizer link.
2.  Install the stabilizer link–to–strut assembly nut.

Tighten

Tighten the stabilizer link–to–strut assembly nut to 47
N

S

m (35 lb–ft).

3.  Install the stabilizer shaft–to–stabilizer link nut.

Tighten

Tighten the stabilizer shaft–to–stabilizer link nut to 47
N

S

m (35 lb–ft).

4.  Install the wheel. Refer toSection 2E, Tires and

Wheels.

5.  Lower the vehicle.

CROSSMEMBER

Removal Procedure

1.  Raise and suitably support the vehicle.
2.  Remove the front parallel link bolt from the cross-

member. Refer to ”Front Parallel Link” in this sec-
tion.

3.  Remove the rear parallel link bolt from the cross-

member. Refer to”Rear Parallel Link” in this section.

4.  Disconnect the fuel filler hose shield by removing

the bolt.

2D – 24

I

REAR SUSPENSION

DAEWOO V–121 BL4

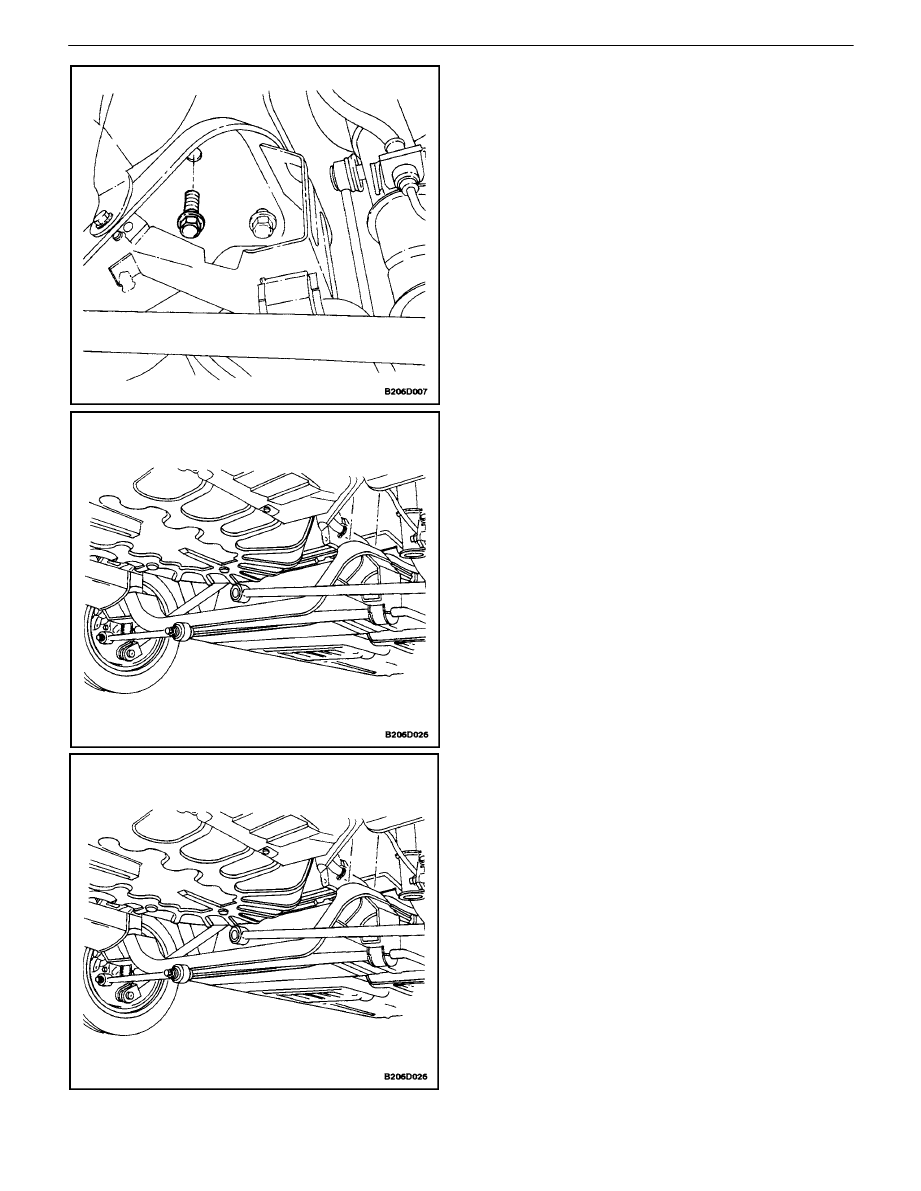

5.  Remove the crossmember–to–body bolts.

6.  Remove the crossmember.

Installation Procedure

1.  Install the crossmember.

REAR SUSPENSION  2D – 25

DAEWOO V–121 BL4

2.  Install the crossmember–to–body bolts.

Tighten

Tighten the crossmember–to–body bolts to 93 N

S

m

(69 lb–ft).

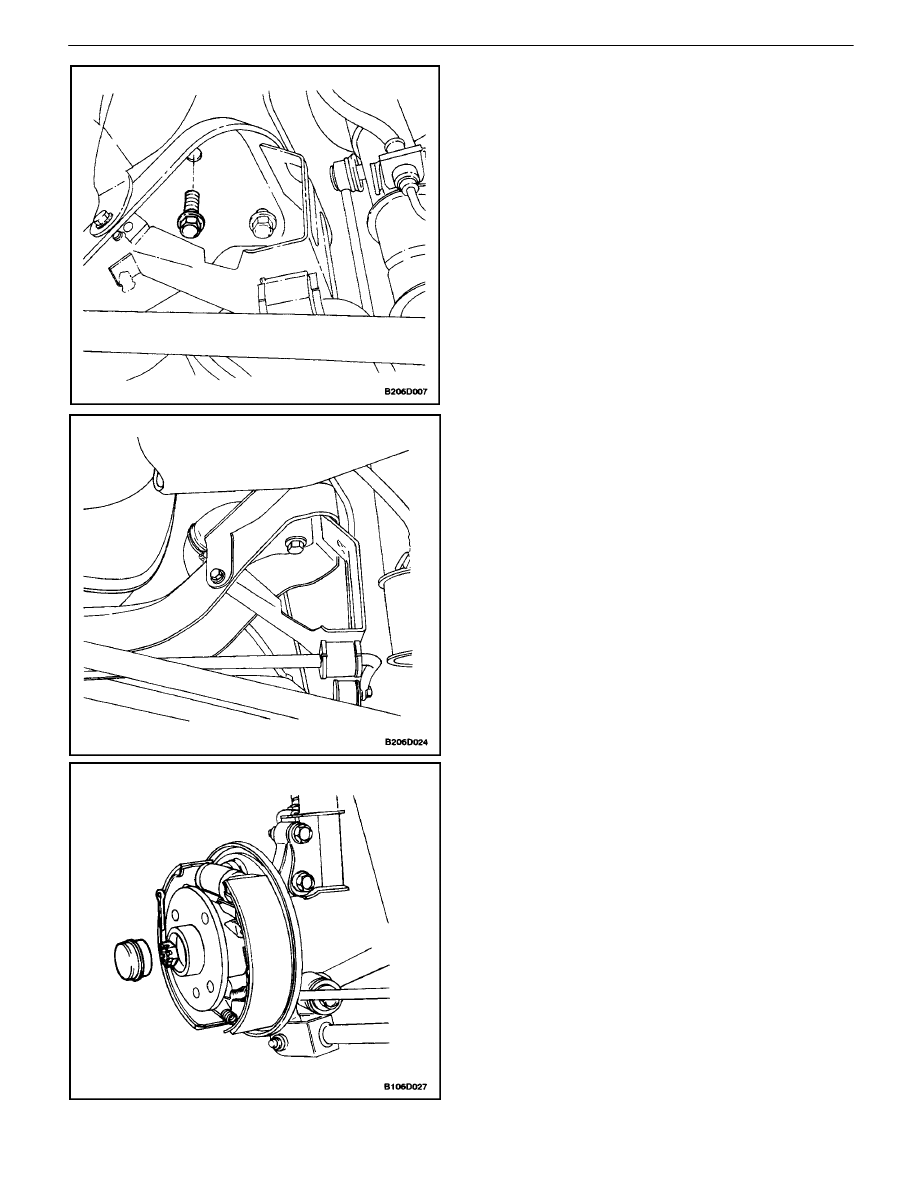

3.  Connect the fuel filler hose shield by installing the

bolt.

Tighten

Tighten the fuel filler hose shield bolt to 20 N

S

m (15

lb–ft).

4.  Install the rear parallel link bolt onto the crossmem-

ber. Refer to”Rear Parallel Link” in this section.

5.  Install the front parallel link bolt onto the crossmem-

ber. Refer to”Front Parallel Link” in this section.

6.  Lower the vehicle.

HUB AND BEARING ASSEMBLY

Removal Procedure

1.  Raise and suitably support the vehicle
2.  Remove the wheel. Refer to Section 2E, Tires and

Wheels.

3.  On vehicles equipped with rear drum brakes, remo-

vethe rear brake drum detent screw and brake
drum. Refer to Section 4E, Rear Brakes.

4.  On vehicles equipped with rear disc brakes, remove

the rear brake caliper and rear brake rotor. Refer to
Section 4E, Rear Brakes.

5.  Remove the dust cap, the cotter pin and the spindle

nut.
