FRONT SUSPENSION  2C – 13

DAEWOO V–121 BL4

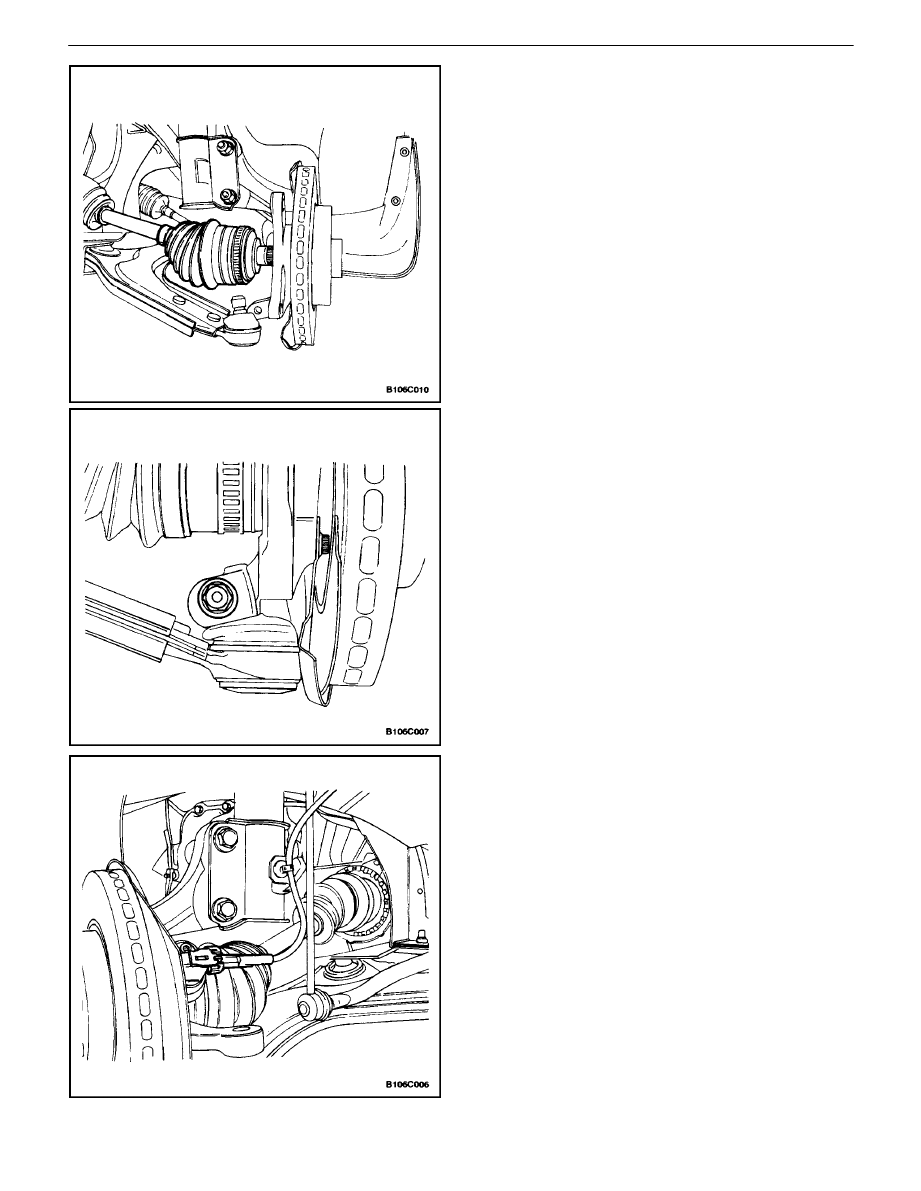

12.  Support the drive axle.
13.  Remove the bolts that connect the knuckle assem-

bly to the strut assembly.

14.  Remove the knuckle assembly from the vehicle.

Installation Procedure

1.  Install the knuckle assembly onto the vehicle.

2.  Install the steering knuckle–to–strut assembly nuts.

Tighten

Tighten the steering knuckle–to–strut assembly nuts
to 100 N

S

m (74 lb–ft).

2C – 14

I

FRONT SUSPENSION

DAEWOO V–121 BL4

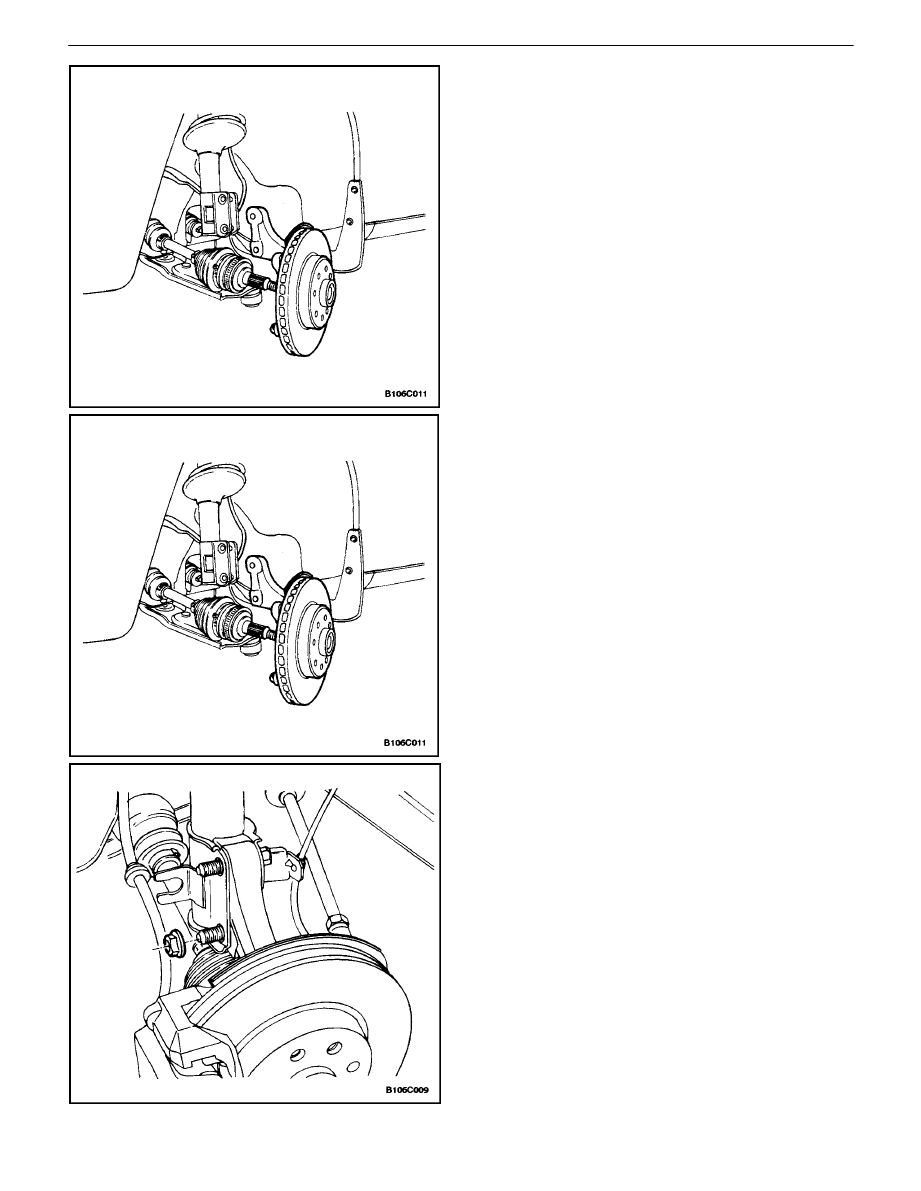

3.  Connect the drive axle to the front wheel hub.

4.  Connect the ball joint to the knuckle assembly.
5.  Install the ball joint pinch bolt and the nut.

Tighten

Tighten the ball joint pinch bolt nut to 60 N

S

m (44 lb–

ft).

6.  Connect the ABS speed sensor electrical connec-

tion. Refer to

FRONT SUSPENSION  2C – 15

DAEWOO V–121 BL4

7.  Connect the outer tie rod to the knuckle assembly.

Refer to Section 6C, Power Steering Gear.

8.  Install the brake caliper onto the rotor. Refer to

Section 4D, Front Disc Brakes.

9.  Install the caulking nut onto the axle shaft.

Tighten

Tighten the drive axle–to–hub caulking nut to 150
N

S

m (111 lb–ft). Loosen the nut, then retighten it to

275 N

S

m (126 lb–ft).

10.  Install the wheel. Refer to Section 2E, Tires and

Wheels.

11.  Lower the vehicle.

HUB AND BEARING

Tools Required

500–20 Hex Nut
J–36661–2 Forcing Screw
J–37105–B–1 Support Bridge
J–37105–B–2 Bearing Adapter
J–37105–B–3 Hub Adapter

Removal Procedure

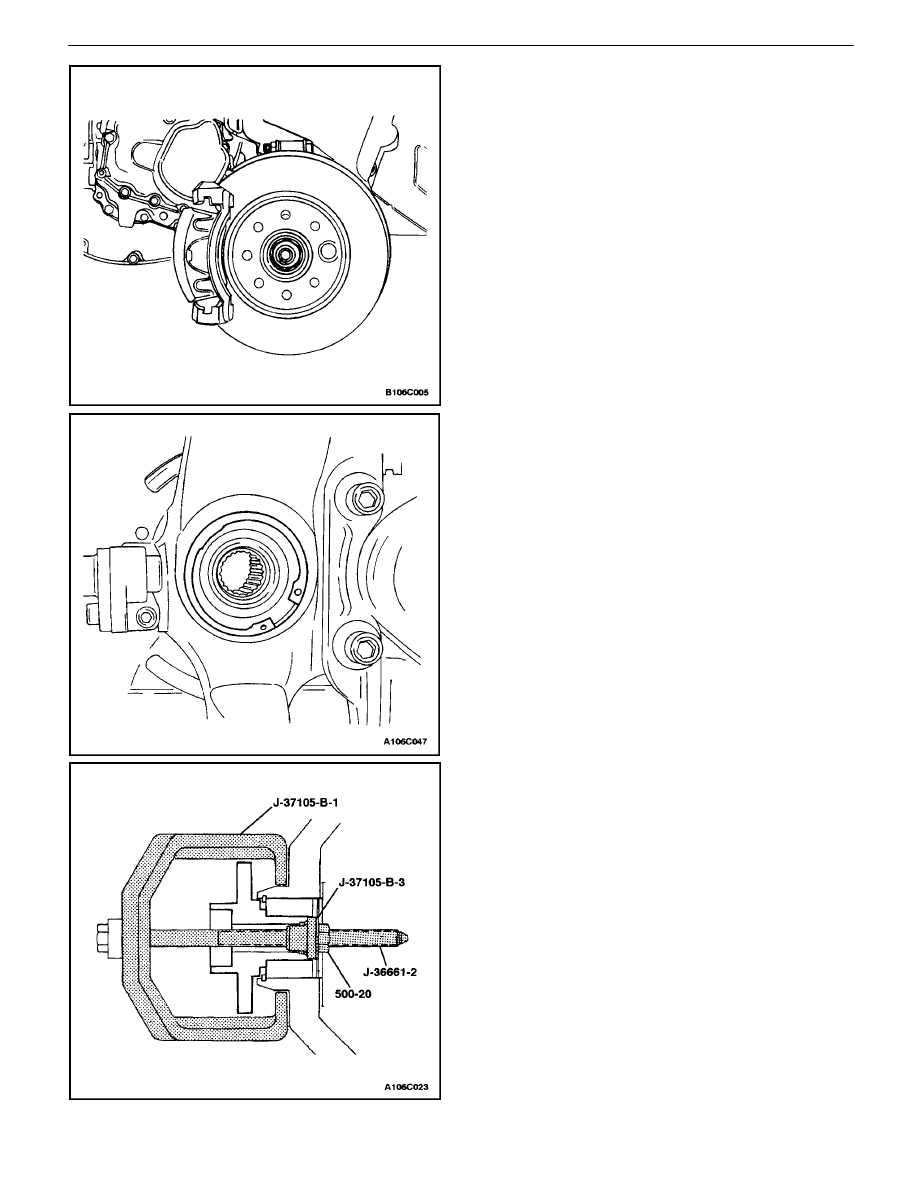

1.  Remove the drive axle from the front wheel hub.

Refer to ”Knuckle Assembly” in this section.

2.  Remove the inner snap ring.

3.  Remove the wheel hub with the support bridge

J–37105–B–1, the hub adapter J–377105–B–3, the
hex nut 500–20, and the forcing screw J–36661–2.

2C – 16

I

FRONT SUSPENSION

DAEWOO V–121 BL4

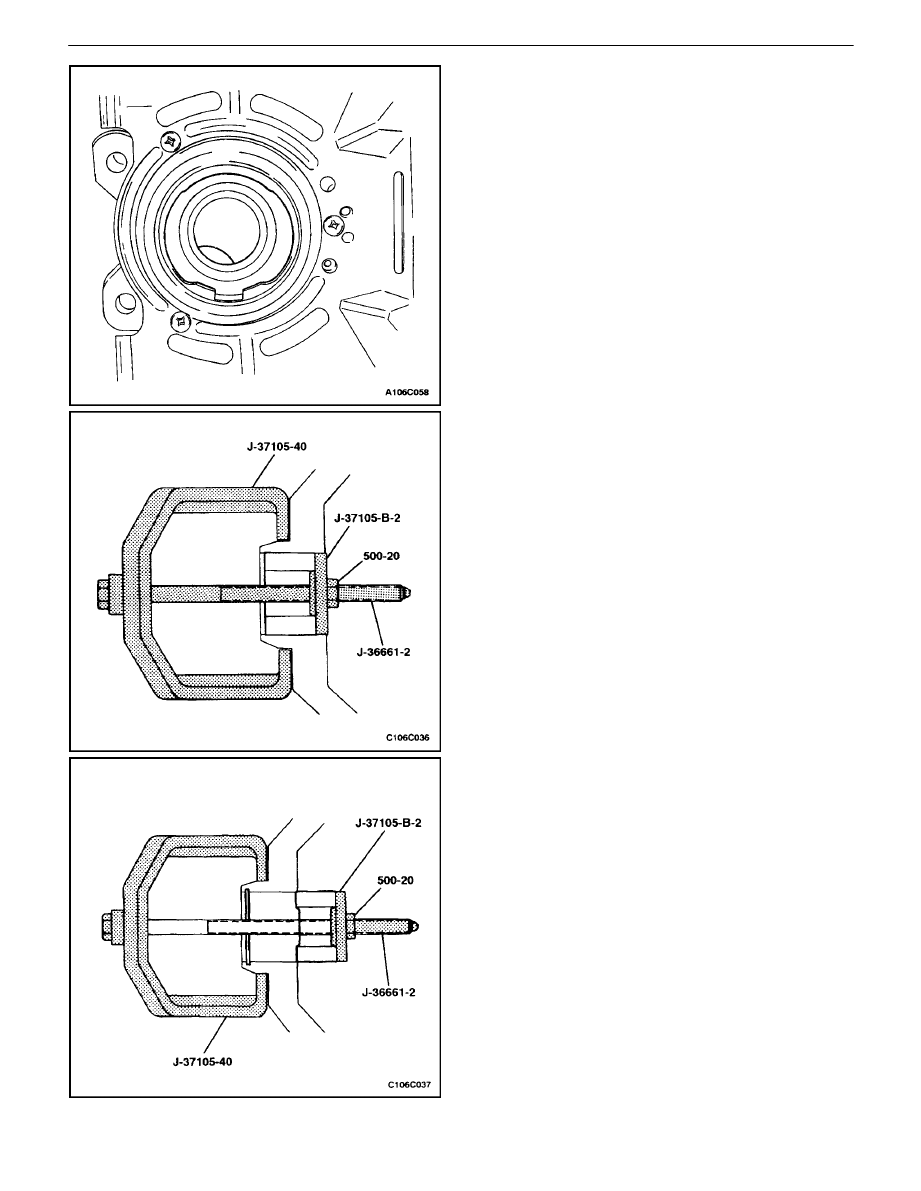

4.  Remove the brake shield. Refer to Section 4D,

Front Disc Brakes.

5.  Remove the outer snap ring.

6.  Remove the wheel bearing with the support bridge

J–37105–B–1, the bearing adapter J–37105–B–2,
the hex nut 500–20, and the forcing screw
J–36661–2.

7.  Clean the bore of the knuckle.

Installation Procedure

1.  Install the outer snap ring and push the wheel bear-

ing into place with the support bridge
J–37105–B–1, the bearing adapter J–37105–B–2,
the hex nut 500–20, and the forcing screw
J–36661–2.
