Daewoo Nubira. Manual - part 210

8A – 12

I

SEAT BELTS

DAEWOO V–121 BL4

GENERAL DESCRIPTION

AND SYSTEM OPERATION

DRIVER SEAT BELT WARNING

The driver

’

s safety belt incorporates a safety belt reminder

light in the instrument cluster to remind the driver if the
safety belt is not fastened when the the ignition is turned
ON.

PRETENSIONER FRONT SEAT BELT

The pretensioner front seat belt contains a mechanically
controlled pyrotechnical retractor which reduces seat belt
slack when it is activated in a head–on or angled front colli-
sion. The pretensioner front seat belt must be replaced af-
ter an accident that causes its activation.

THREE–POINT CLR REAR
OUTBOARD SEAT BELT

Three–point CLR seat belts are standard for the rear seat
outboard passenger positions. The CLR seat belt has two
operation modes. Normally, the seat belt allows the pas-
senger freedom of movement except in emergency situa-
tions. However, when the belt is fully extended and re-
leased, the seat belt does not allow movement and is
designed to hold a child seat firmly to the rear seat.

TWO–POINT LAP REAR CENTER
SEAT BELT

The two–point lap rear center seat belt is a single continu-
ous length of webbing. The webbing is routed from the an-
chor through a latch plate and into a single retractor.

OPERATIONAL AND FUNCTIONAL
CHECKS

S



 Keep sharp objects and potentially damaging ob-
jects away from the seat belts.

S



 Avoid bending or damaging any portion of the
buckle or the latch plate.

S



 Do not bleach or dye the belt webbing. Use only
mild soap and water in order to clean the belts.

S



 When installing the seat belt anchor bolts and the
screws, start the bolts and the screws by hand in
order to prevent cross–threading.

S



 Do not attempt any repairs on the retractor mecha-
nisms or the covers. Replace any defective assem-
blies with new assemblies.

S



 Replace any belts that are cut or damaged in any
way.

1.  Inspect all seat belt anchor bolts and the screws in

order to verify that they are secure.

2.  Inspect the seat belt buckle. The buckle must lock

and unlock easily.

3.  After inserting the latch into the buckle, tug sharply

on the belt. The buckle must remain locked.

4.  Fully extend the shoulder belt portion to make sure

that there is no twisting or tears in the belt.

5.  Let the shoulder belt retract fully. The belt should

retract easily.

CHILD SEAT TETHER ANCHOR

There are three child seat tether anchors located on the
read deck lid sill plate. There is one anchor for each rear
seat position.

SECTION : 9H

SEATS

CAUTION :  Disconnect the negative battery cable before removing or installing any electrical unit or when a tool
or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help
prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwise noted.

TABLE OF CONTENTS

SPECIFICATIONS

9H–1

. . . . . . . . . . . . . . . . . . . . . . . . . .

FASTENER TIGHTENING SPECIFICATIONS

9H–1

.

MAINTENANCE AND REPAIR

9H–2

. . . . . . . . . . . . . . .

ON–VEHICLE SERVICE

9H–2

. . . . . . . . . . . . . . . . . . . . .

FRONT BUCKET SEATS

9H–2

. . . . . . . . . . . . . . . . . . .

HEAD RESTRAINT

9H–3

. . . . . . . . . . . . . . . . . . . . . . . .

FRONT SEATBACK

9H–4

. . . . . . . . . . . . . . . . . . . . . . .

FRONT SEAT CUSHION

9H–5

. . . . . . . . . . . . . . . . . . .

FRONT SEAT ADJUSTERS

9H–7

. . . . . . . . . . . . . . . .

FRONT SEAT TRIM

9H–8

. . . . . . . . . . . . . . . . . . . . . . .

REAR SEAT CUSHION

9H–9

. . . . . . . . . . . . . . . . . . . .

REAR SEATBACK (NOTCHBACK)

9H–10

. . . . . . . . .

60/40 SPLIT REAR SEATBACK HINGE

9H–11

. . . . .

60/40 SPLIT REAR SEATBACK LOCK STRIKER 9H–

12

SEAT COVERS

9H–13

. . . . . . . . . . . . . . . . . . . . . . . . . .

GENERAL DESCRIPTION AND SYSTEM

OPERATION

9H–14

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SEATS

9H–14

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

60/40 SPLIT REAR SEATBACK

9H–14

. . . . . . . . . . . .

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Application

N

S

m

Lb–Ft

Lb–In

Center Seat Hinge Bolts

25

18

–

Front Seatback Bolts

45

33

–

Front Seat Trim Screws

12

–

106

Lower Seat Cushion Bolts

24

18

–

Outer Seat Hinge Bolts

35

26

–

Rear Seatback Bolts

25

18

–

Rear Seatback Lock Striker Bolts

10

–

89

Recliner Adjustment Knob Screw

12

–

106

Seat Cushion Height Adjuster Knob Screws

10

–

89

Seat–to–Floor Bolts (Front)

25

18

–

Seat–to–Floor Bolts (Rear)

25

18

–

Side Seat Cushion Bolts

24

18

–

9H – 2

I

SEATS

DAEWOO V–121 BL4

MAINTENANCE AND REPAIR

ON–VEHICLE SERVICE

FRONT BUCKET SEATS

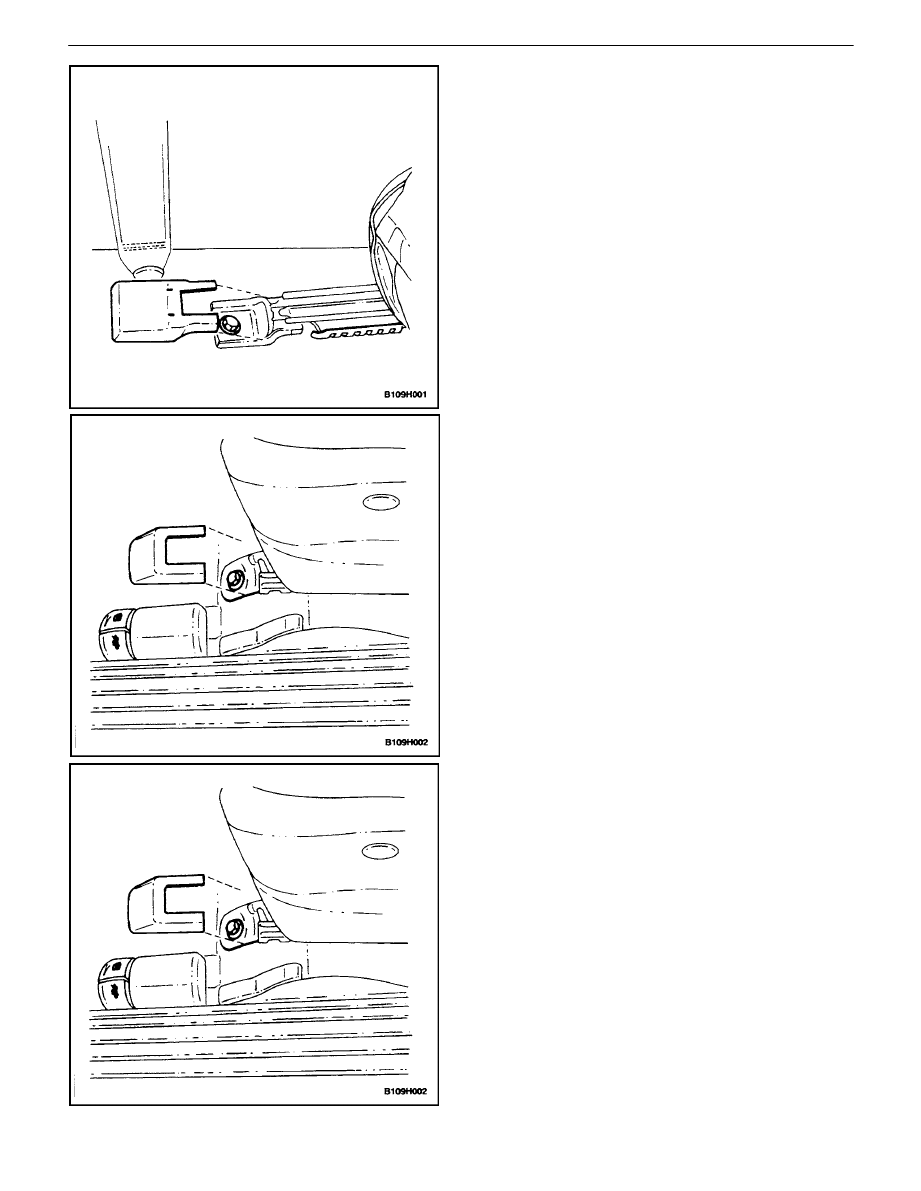

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the plastic caps to reveal the bolts secur-

ing the rear portion of the front seat to the floor.

3.  Remove the bolts securing the rear portion of the

seat to the floor.

4.  Remove the plastic caps to reveal the bolts secur-

ing the front portion of the front seat to the floor.

5.  Remove the bolts securing the front portion of the

front seat to the floor.

6.  Disconnect the electrical connector from the driv-

er’s seat.

7.  Remove the seat.

Installation Procedure

1.  Install the seat.
2.  Connect the electrical connector to the driver’s

seat.

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

3.  Install the bolts into the front portion of the front

seat.

Tighten

Tighten the seat–to–floor bolts (front) to 25 N

S

m (18

lb–ft).

4.  Install the plastic caps.

SEATS  9H – 3

DAEWOO V–121 BL4

5.  Install the bolts into the rear portion of the front

seat.

Tighten

Tighten the seat–to–floor bolts (rear) to 25 N

S

m (18

lbft).

6.  Install the plastic caps.
7.  Connect the negative battery cable.

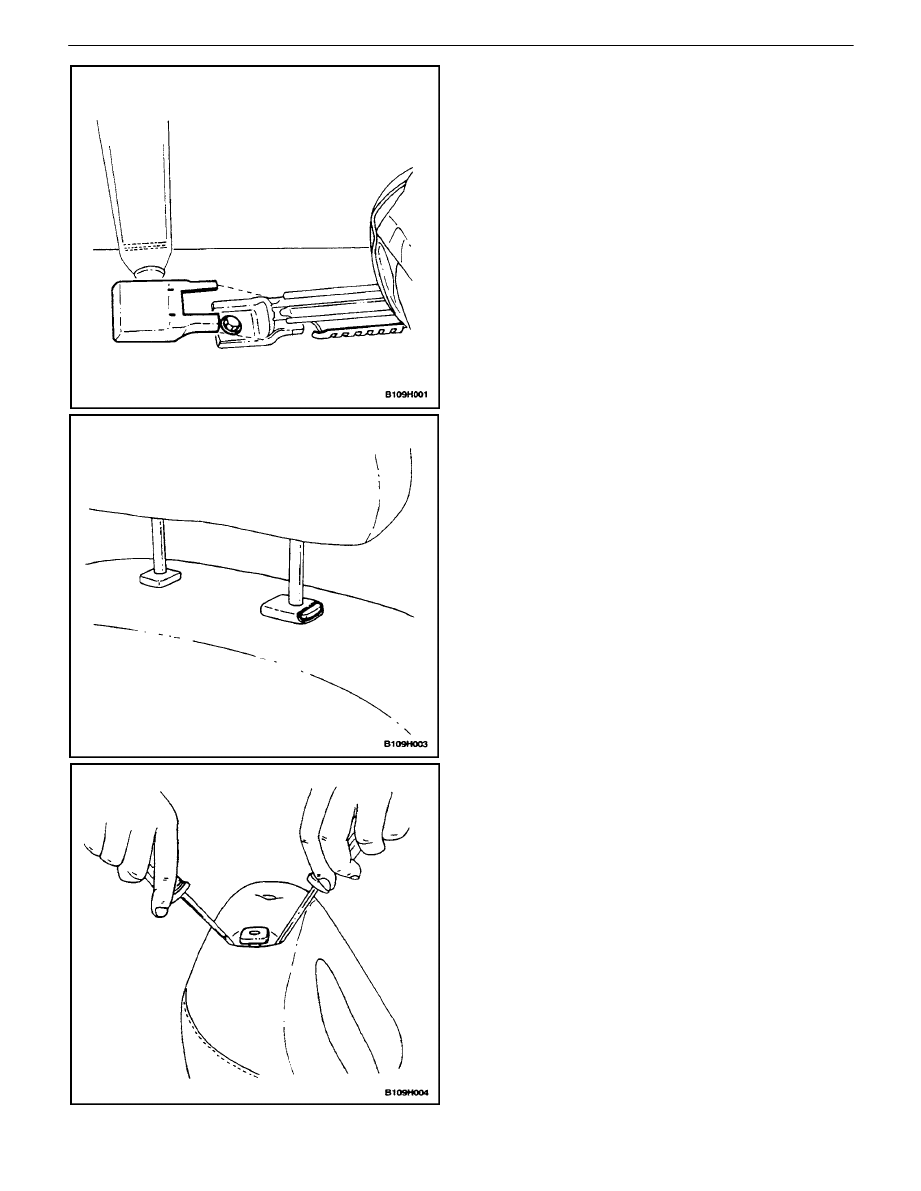

HEAD RESTRAINT

Removal Procedure

1.  Press in the head restraint adjust button and re-

move the head restraint from the seatback.

2.  Insert two flat head screwdrivers down the front and

back side of the guide sleeves.

3.  With the screwdrivers, press in the retaining latches

and remove the guide sleeves.
