INTERIOR TRIM  9G – 29

DAEWOO V–121 BL4

GENERAL DESCRIPTION

AND SYSTEM OPERATION

INTERIOR TRIM PANELS

The interior trim panels are molded plastic and fasten with
screws, bolts or plastic clips.

PRESSURE RELIEF VENT

When all the windows are closed and the ventilation sys-
tem is on, the addition of outside air to the interior of the
vehicle causes a positive pressure within the vehicle. In or-
der to relieve the pressure, air is released through two
pressure relief vents. The pressure relief vents are located
at the rear quarter of the vehicle, behind the bumper fas-
cia.

REAR COMPARTMENT SECURITY
COVER

A rear compartment security cover is provided on the
hatchback and wagon. The rear compartment security
cover can be easily removed if more cargo space is need-
ed.

FLOOR CONSOLE

The floor console fits over the tunnel in the floor of the ve-
hicle and extends from under the center of the instrument
panel to the rear seat area. The floor console contains the
transaxle shift lever, the parking brake lever, and an ash-
tray for the rear seat occupants.

The sensing and diagnostic module (SDM) for the air–bag
system is located under the floor console.

FLOOR CARPET

The molded one–piece floor carpet goes over both the
front and the rear floor pans.

SECTION : 8A

SEAT BELTS

CAUTION :  Disconnect the negative battery cable before removing or installing any electrical unit or when a tool
or equipment could easily come in contact with exposed electrical terminals. Disconnecting this cable will help
prevent personal injury and damage to the vehicle. The ignition must also be in LOCK unless otherwise noted.

TABLE OF CONTENTS

SPECIFICATIONS

8A–1

. . . . . . . . . . . . . . . . . . . . . . . . . .

FASTENER TIGHTENING SPECIFICATIONS

8A–1

.

SCHEMATIC AND WIRING DIAGRAMS

8A–2

. . . . . . .

DRIVER SEAT BELT WARNING

8A–2

. . . . . . . . . . . . .

DIAGNOSIS

8A–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DRIVER SEAT BELT WARNING

8A–3

. . . . . . . . . . . . .

MAINTENANCE AND REPAIR

8A–5

. . . . . . . . . . . . . . .

ON–VEHICLE SERVICE

8A–5

. . . . . . . . . . . . . . . . . . . . .

PRETENSIONER FRONT SEAT BELT

8A–5

. . . . . . .

FRONT SEAT BELT HEIGHT ADJUSTER

8A–7

. . . .

THREE–POINT CLR REAR OUTBOARD SEAT BELT

8A–7

THREE–POINT CLR REAR CENTER SEAT BELT 8A

–9

CHILD SEAT TETHER ANCHOR

8A–10

. . . . . . . . . . .

GENERAL DESCRIPTION AND SYSTEM

OPERATION

8A–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DRIVER SEAT BELT WARNING

8A–12

. . . . . . . . . . . .

PRETENSIONER FRONT SEAT BELT

8A–12

. . . . . .

THREE–POINT CLR REAR OUTBOARD SEAT BELT

8A–12

TWO–POINT LAP REAR CENTER SEAT BELT

8A–

12

OPERATIONAL AND FUNCTIONAL CHECKS 8A–12

CHILD SEAT TETHER ANCHOR

8A–12

. . . . . . . . . . .

SPECIFICATIONS

FASTENER TIGHTENING SPECIFICATIONS

Application

N

S

m

Lb–Ft

Lb–In

Child Seat Tether Anchor
Bolt

25

18

–

Seat Belt Anchor Bolt

35

26

–

Seat Belt Height Adjuster
Bolts

19

14

–

Seat Belt Retractor Bolt

35

26

–

Seat Belt Retractor Screw

10

26

89

8A – 2

I

SEAT BELTS

DAEWOO V–121 BL4

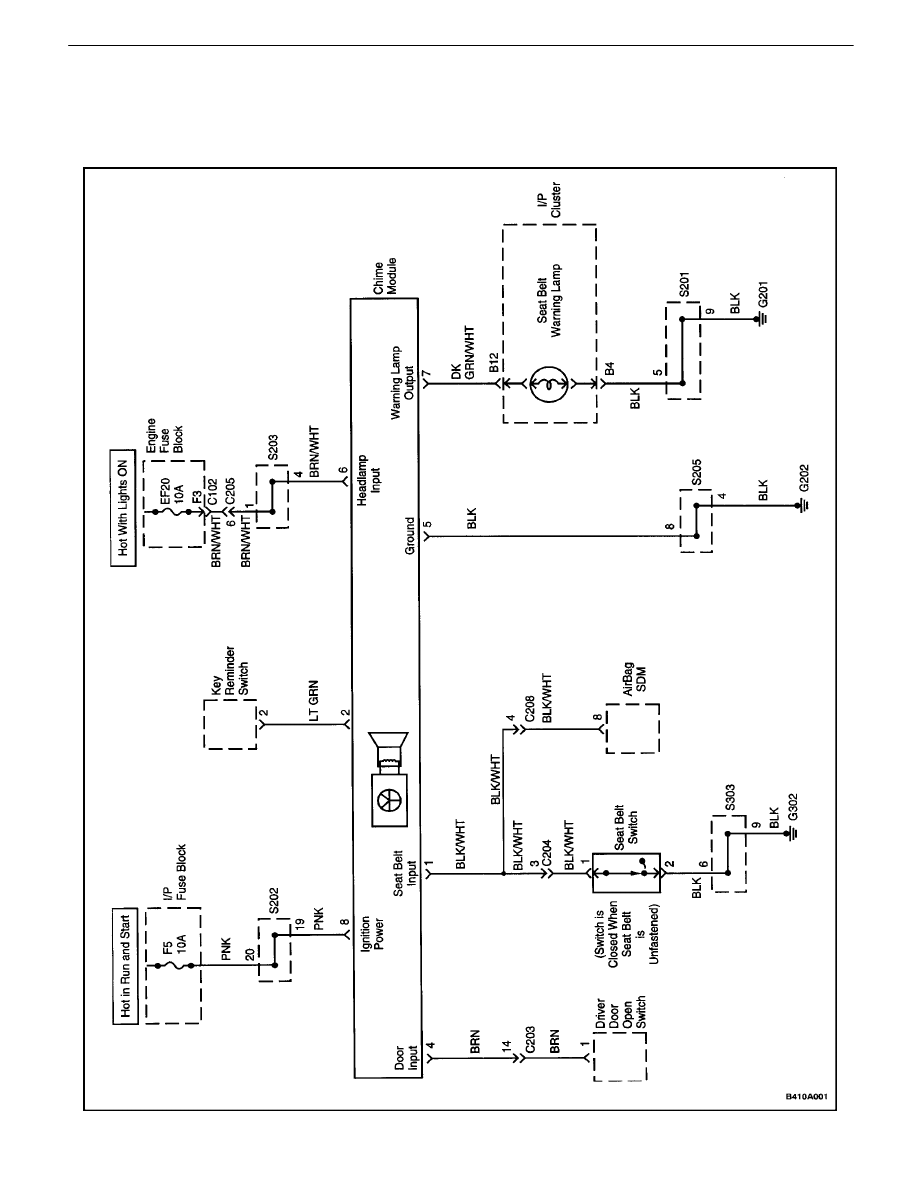

SCHEMATIC AND WIRING DIAGRAMS

DRIVER SEAT BELT WARNING

SEAT BELTS  8A – 3

DAEWOO V–121 BL4

DIAGNOSIS

DRIVER SEAT BELT WARNING

Seat Belt Warning Lamp Does Not Turn On at Any Time

Step

Action

Value(s)

Yes

No

1

1.  Unbuckle the seat belt.
2.  Close the vehicle doors.
3.  Turn the ignition ON.

Is the seat belt warning chime OK?

Go to Step 14

Go to Step 2

2

Check the seat belt warning fuse F5.
Is fuse F5 blown?

Go to Step 3

Go to Step 4

3

1.  Check for a short circuit and repair if neces-

sary.

2.  Replace the fuse.

Is the repair complete?

System OK

4

1.  Turn the ignition ON.
2.  Check the voltage at fuse F5.

Is the voltage equal to the specified value?

11–14 v

Go to Step 6

Go to Step 5

5

Repair the open power supply circuit for fuse F5.
Is the repair complete?

System OK

6

1.  Disconnect the seat belt switch connector (lo-

cated under the driver

’

s seat).

2.  Connect a jumper between the terminals on the

harness side of the seat belt switch connector.

3.  Turn the ignition ON.

Does the seat belt warning lamp turn on?

Go to Step 7

Go to Step 8

7

Replace the seat belt switch.
Is the repair complete?

System OK

8

1.  Disconnect the chime module electrical con-

nector.

2.  Turn the ignition ON.
3.  Check the voltage at terminal 8 of the chime

module connector.

Is the voltage equal to the specified value?

11–14 v

Go to Step 10

Go to Step 9

9

Repair the open circuit between fuse F5 and the
chime module.
Is the repair complete?

System OK

10

1.  Leave the chime module connector discon-

nected.

2.  Turn the ignition OFF.
3.  Use an ohmmeter to measure resistance be-

tween ground and terminal 5 of the chime mod-
ule.

Is the resistance equal to the specified value?

[

 0

W

Go to Step 12

Go to Step 11

11

Repair the ground circuit for the chime module.
Is the repair complete?

System OK
