Daewoo Nubira. Manual - part 203

INTERIOR TRIM  9G – 13

DAEWOO V–121 BL4

Installation Procedure

1.  Install the footwell upper cover with the plastic re-

taining clips.

2.  Install the bolts securing the footwell upper cover.

3.  Install the right side kick panel. Refer to

Kick Pan-

el

"

 in this section.

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

4.  Install the floor console forward trim panel with the

bolt.

Tighten

Tighten the floor console forward trim panel bolt to 4
N

S

m (35 lb–in).

5.  Install the glove box. Refer toSection 9E, Instru-

mentation/Driver Information.

9G – 14

I

INTERIOR TRIM

DAEWOO V–121 BL4

FRONT ROCKER TRIM PANEL

Removal Procedure

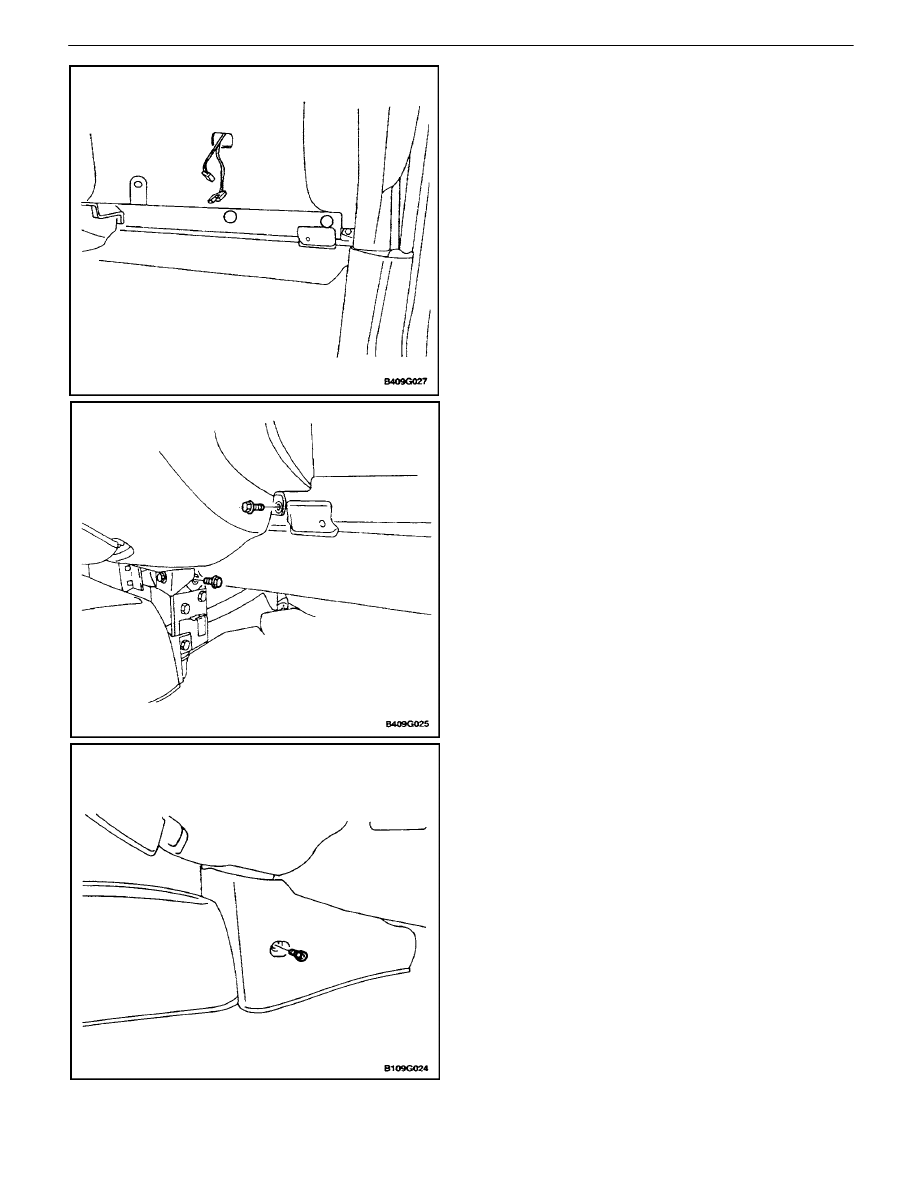

1.  Remove the plastic screws and pry off the front

rocker trim panel.

Installation Procedure

1.  Install the front rocker trim panel with the plastic

screws.

REAR ROCKER TRIM PANEL

Removal Procedure

1.  Remove the rear seat cushion. Refer to Section 9H,

Seats.

2.  Remove the B–pillar trim panel. Refer to”B–pillar

trim panel” in this section.

3.  Pry off the rear rocker trim panel.

INTERIOR TRIM  9G – 15

DAEWOO V–121 BL4

Installation Procedure

1.  Install the rear rocker trim panel.
2.  Install the rear rocker trim panel with the screw.

Tighten

Tighten the trim panel screw to 2 N

S

m (18 lb–in).

3.  Install the rear seat cushion. Refer to Section 9H,

Seats.

FLOOR CARPET

Tools Required

KM–475–B Trim Remover

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the left and the right rear rocker trim pan-

els. Refer to”Rear Rocker Trim Panel”  in this sec-
tion.

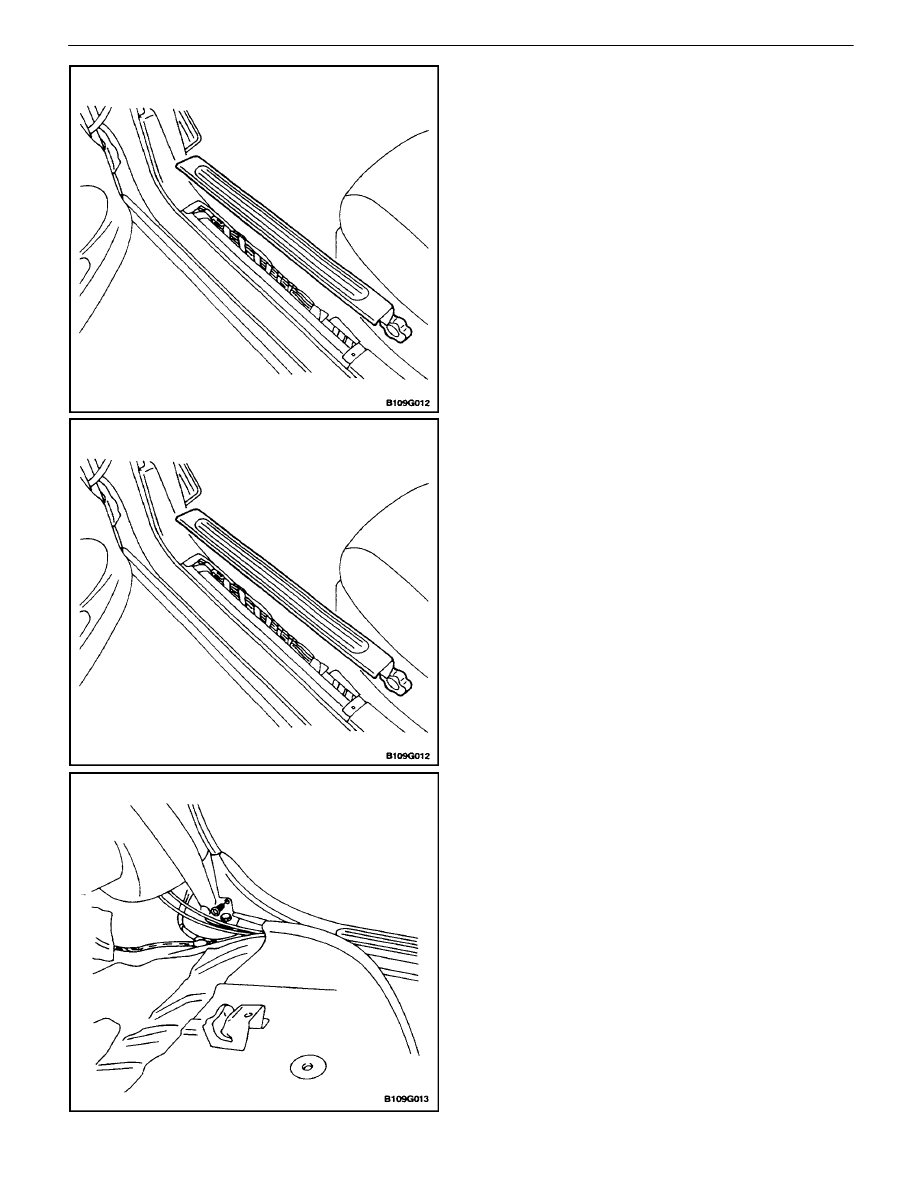

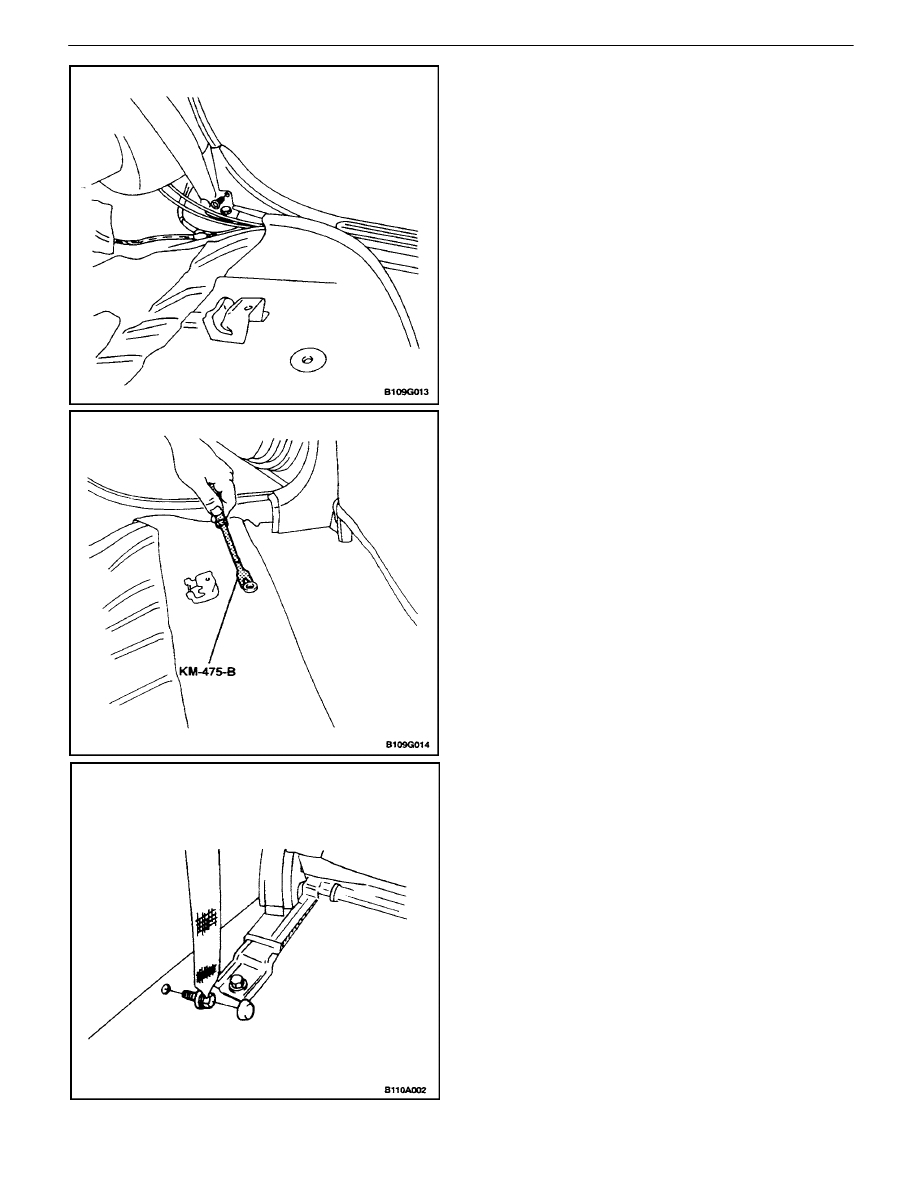

3.  Using the trim remover KM–475–B, remove the car-

pet retainer clips beneath the rear seat cushion.

4.  Remove the bolts and the left and the right lower

Bpillar seat belt anchors.

5.  Remove the left and the right front rocker trim pan-

els. Refer to”Front Rocker Trim Panel” in this sec-
tion.

6.  Remove the left and the right lower B–pillar trim

panels. Refer to”Lower B–Pillar Trim Panel” in this
section.

7.  Remove the left and the right kick panels. Refer

to”Kick Panel” in this section.

8.  Remove the front seats. Refer toSection 9H, Seats.
9.  Remove the floor console. Refer to”Floor Console”

in this section.

10.  Remove the floor carpet.

9G – 16

I

INTERIOR TRIM

DAEWOO V–121 BL4

Installation Procedure

1.  Install the floor carpet.
2.  Install the floor console. Refer to”Floor Console”  in

this section.

3.  Install the front seats. Refer to Section 9H, Seats.
4.  Install the left and the right kick panels. Refer

to”Kick Panel” in this section.

5.  Install the left and the right lower B–pillar trim pan-

els. Refer to”Lower B–Pillar Trim Panel”  in this sec-
tion.

6.  Install the left and the right front rocker trim panels.

Refer to”Front Rocker Trim Panel” in this section.

7.  Install the left and the right lower B–pillar seat belt

anchors to the B–pillar with the bolts.

Tighten

Tighten the seat belt anchor bolts to 35 N

S

m (26 lb–ft).

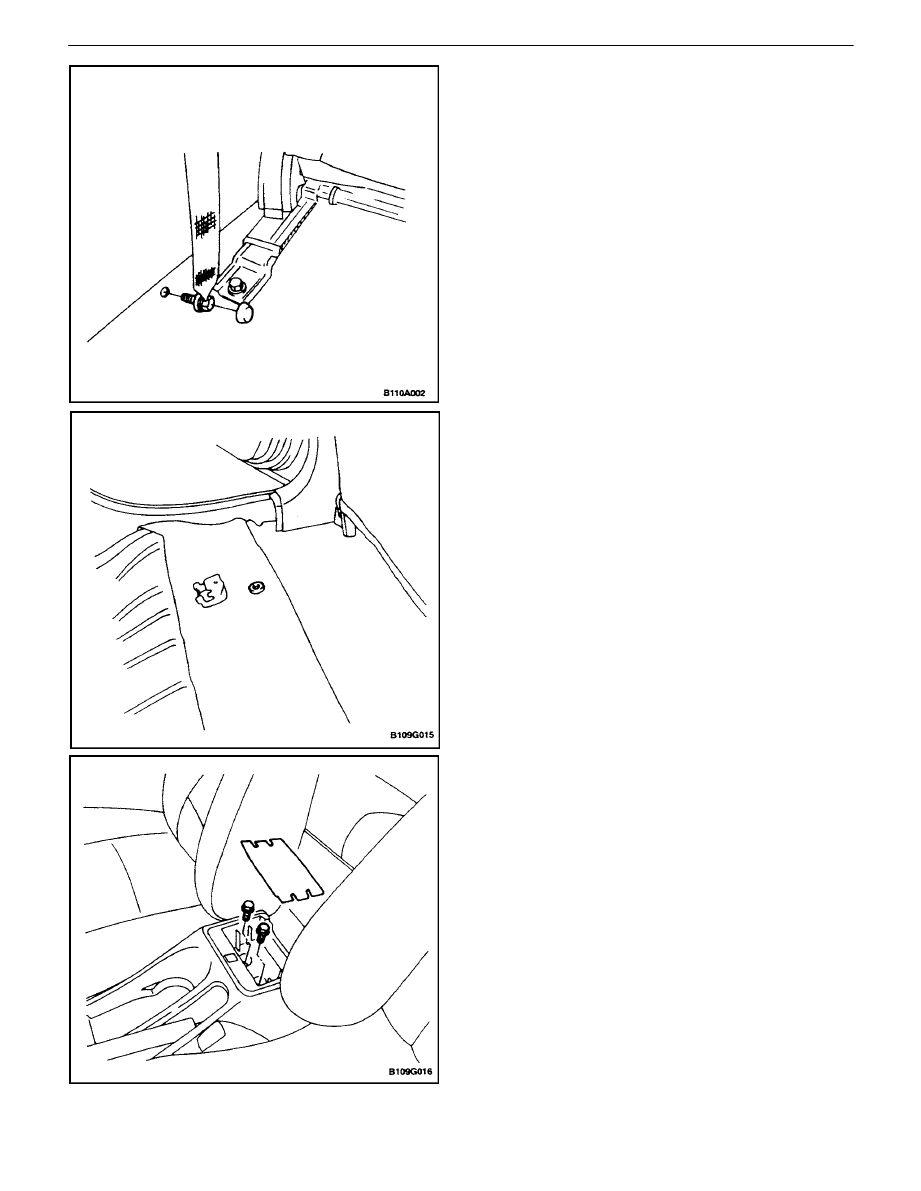

8.  Install the carpet retainer clips beneath the rear

seat cushion.

9.  Install the left and the right rear rocker trim panels.

Refer to”Rear Rocker Trim Panel” in this section.

10.  Connect the negative battery cable.

FLOOR CONSOLE

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Open the rear console storage compartment and

remove the bolts securing the rear portion of the
floor console.
