3–2

W

WIRING DIAGRAM FOR POWER SUPPLIES

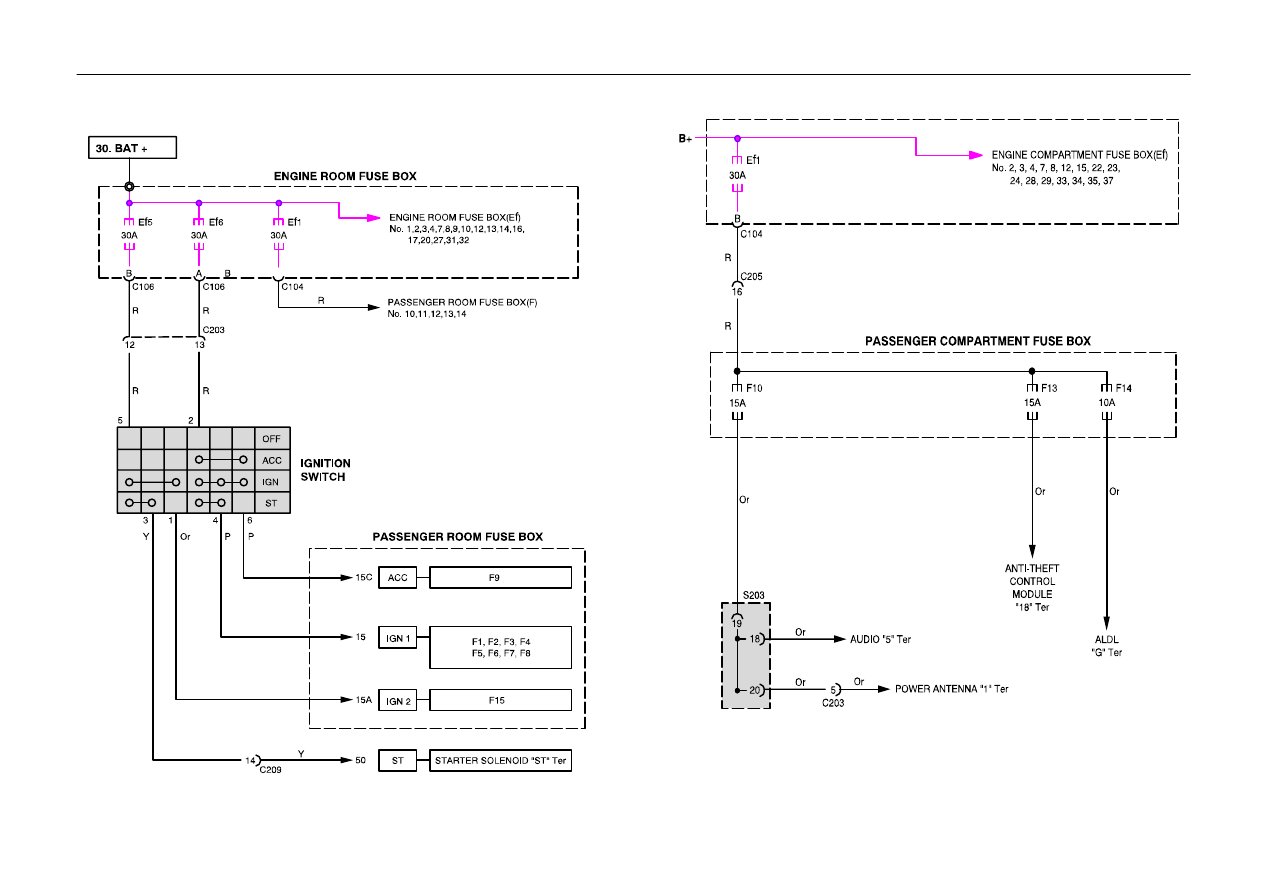

1. IGNITION SWITCH CIRCUIT

WIRING DIAGRAM FOR POWER SUPPLIES

W

3–3

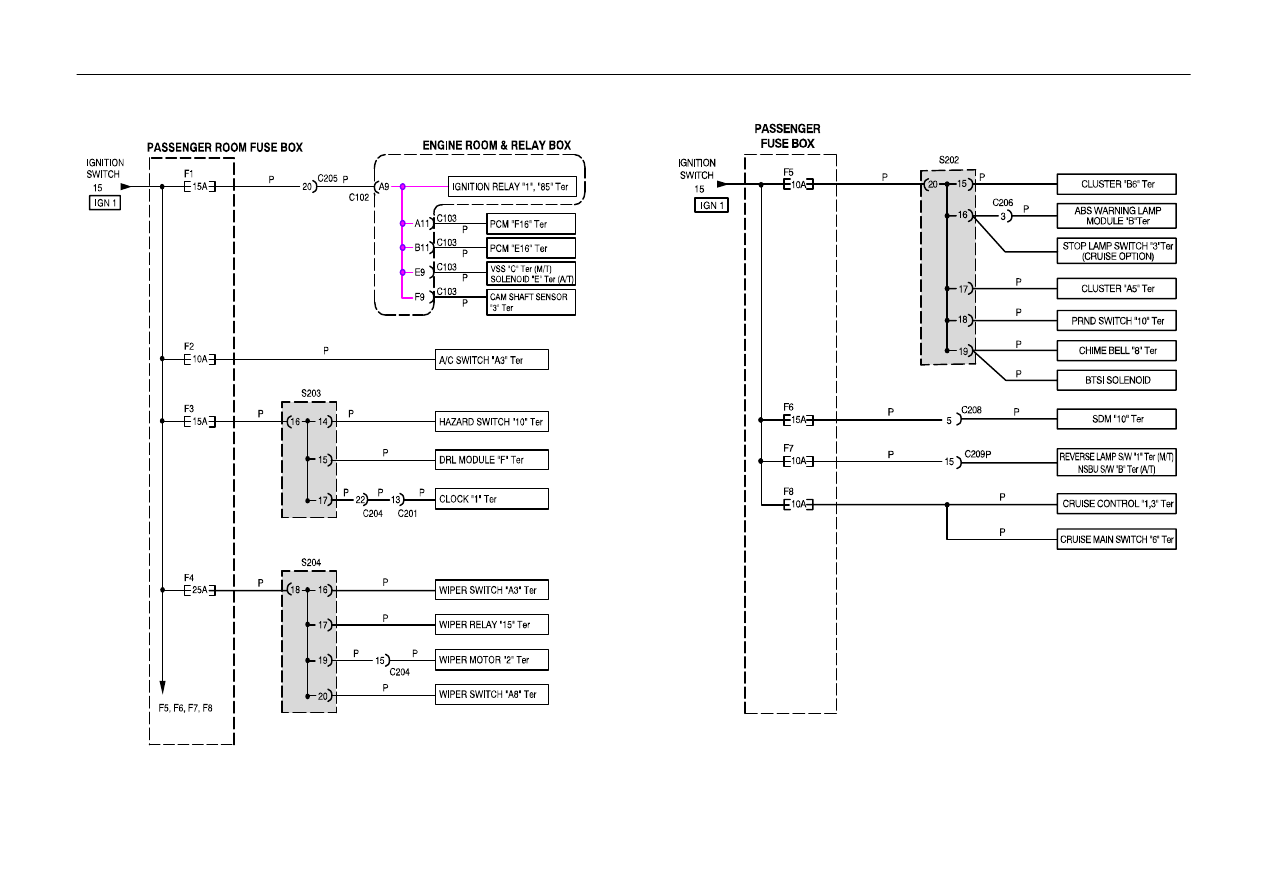

2. 30 Ter BAT+ POWER SUPPLY CIRCUIT(PASSENGER ROOM FUSE BOX)

3–4

W

WIRING DIAGRAM FOR POWER SUPPLIES

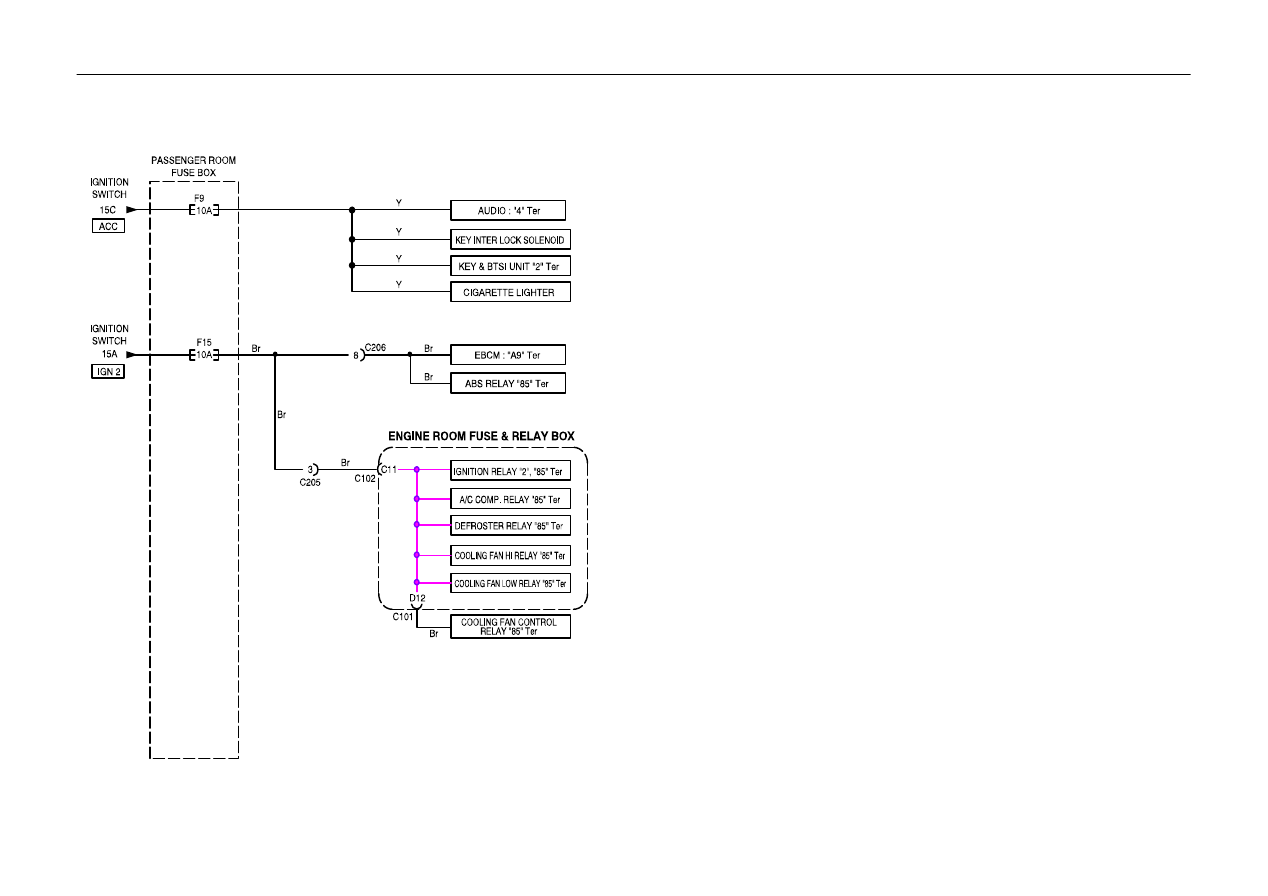

3. 15A IGN 2, 15C ACC POWER SUPPLY CIRCUIT(PASSENGER ROOM

FUSE BOX)

WIRING DIAGRAM FOR POWER SUPPLIES

W

3–5

4. ENGINE ROOM FUSE & RELAY CIRCUIT
