SECTION 2

POSITION OF CONNECTORS AND GROUNDS

2–2

W

POSITION OF CONNECTORS AND GROUNDS

1. CONNECTOR, GROUND AND SPLICE PACK INFORMATION

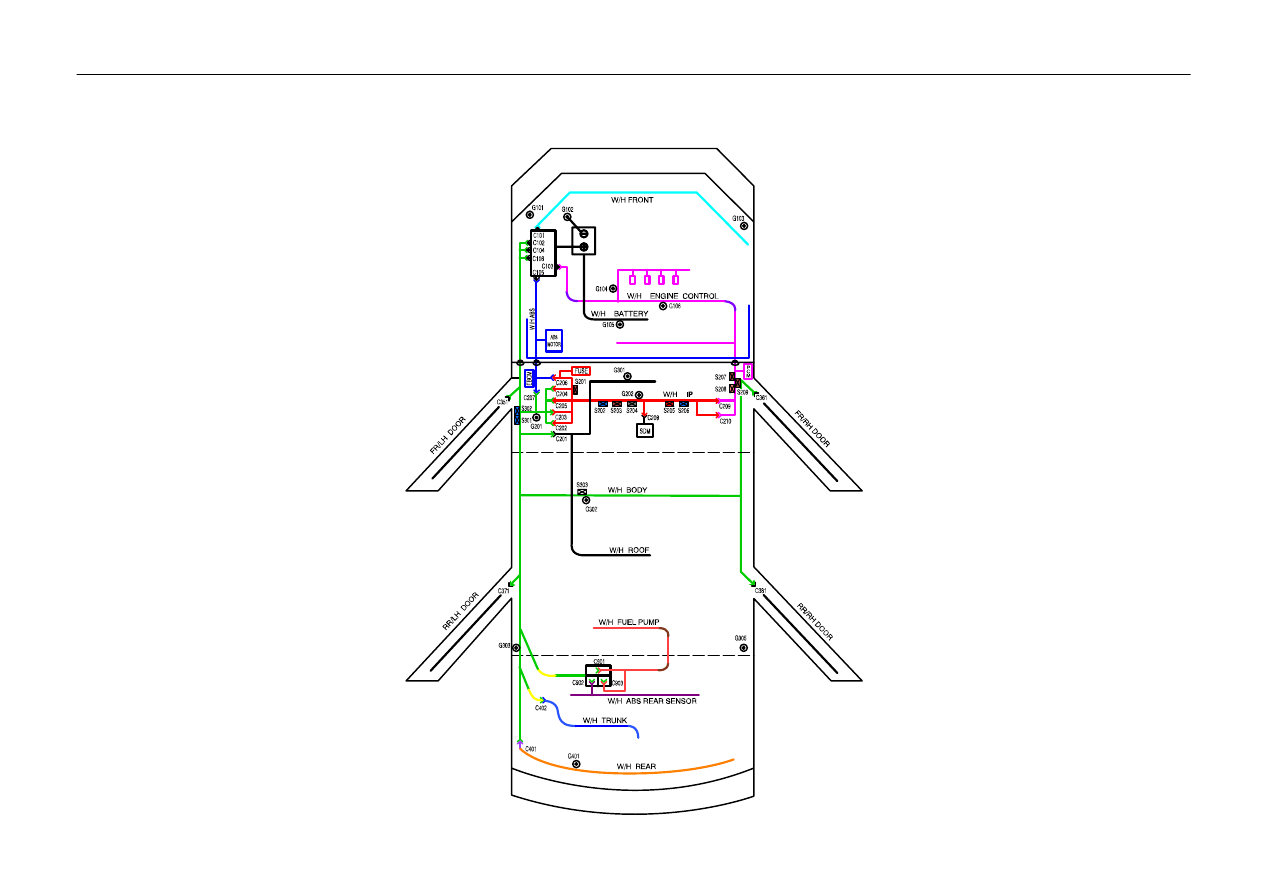

1) WIRING HARNESS & GROUND & SPLICE PACK LOCATION

POSITION OF CONNECTORS AND GROUNDS

W

2–3

2) CONNECTOR

Connector

Number

Terminal

Number

Color

Connecting Wiring Harness

Connector Position

C101

68

Gray

Engine Room Fuse Box

Ĉ

 Front

Engine Room Fuse Box

C102

68

Brown

Engine Room Fuse Box

Ĉ

 Body

Engine Room Fuse Box

C103

68

Black

Engine Room Fuse Box

Ĉ

 Engine

Control

Engine Room Fuse Box

C104

2

Gray

Engine Room Fuse Box

Ĉ

 Body

Engine Room Fuse Box

C105

2

Black

Engine Room Fuse Box

Ĉ

 ABS

Engine Room Fuse Box

C106

2

Green

Engine Room Fuse Box

Ĉ

 Body

Engine Room Fuse Box

C201

13

White

Body

Ĉ

 Roof

Behind Driver Left Kick Panel

C202

12

White

I/P

Ĉ

 Body(Remote Control)

Next to Driver Leg Room Connector Holder

C203

15

White

I.P

Ĉ

 Body

Left Driver Leg Room Connector Holder

C204

22

Yellow

I.P

Ĉ

 Body

Center Driver Leg Room Connector Holder

C205

20

Colorless

I.P

Ĉ

 Body

Right Driver Leg Room Connector Holder

C206

11

White

I/P

Ĉ

 ABS

Upper Driver Leg Room

C207

4

White

Body

Ĉ

 ABS

Upper Driver Leg Room

C208

6

White

I/P

Ĉ

 Air Bag

Behind Car Audio

C209

20

Colorless

I/P

Ĉ

 Engine Control

Upper Co–driver Right Kick Panel

C210

10

White

I/P

Ĉ

 Engine Control

Upper Co–driver Right Kick Panel

C351

29

White

Body

Ĉ

 Driver Door

Inside Left A Pillar

C361

29

White

Body

Ĉ

 Co–driver Door

Inside Right A Pillar

C371

8

Colorless

Body

Ĉ

 Rear Left Door

Inside Left B Pillar

C381

8

Colorless

Body

Ĉ

 Rear Right Door

Inside Right B Pillar

C401

8

White

Body

Ĉ

 Rear

Upper Trunk Room Left Wheel House

C402

4

White

Body

Ĉ

 Trunk/Tailgate(H/B, S/W)

Upper Trunk Room Left

C403

3

White

Body

Ĉ

 Tailgate (H/B)

Upper Trunk Room Left

C404

6

White

Body

Ĉ

 Tailgate (Station Wagon)

Upper Trunk Room Left

C901

8

Black

Body

Ĉ

 Fuel Pump

Under Body Near Trunk

C902

4

Black

Body

Ĉ

 ABS Rear Speed Sensor

Under Body Near Trunk

C903

4

Black

Body

Ĉ

 Fuel Pump

Under Body Near Trunk

3) GROUND

Ground Number

Wiring Harness

Ground Position

G101

W/H Front

Left Fender in Front of Fuse Box

G102

Battery & ABS

Between Battery and Fuse Box

G103

W/H Front

Engine Room Right Fender (Splice Pack)

G104

Engine Control

Cylinder Head Next to #4 Intake Manifold

G105

Battery

Next to Starter Motor

G106

Engine Control

Engine Block Below #2 Intake Manifold

G201

I/P & Body

Behind Driver Left Kick Panel

G202

I.P

Right Side of I/P

G301

Roof

Next to Room Lamp

G302

Body

Below Driver Seat

G303

Body

Left Rear Seat Back

G305

Body

Passenger Room Right C Pillar

G401

Rear

Trunk Room End Panel

G402

Tailgate

Upper Luggage Left (H/B, S/W)

4) SPLICE PACK

Splice Pack

Number

Color

Wiring Harness

Splice Pack Position

S201

Brown

I.P

Upper Driver Leg Room

S202

Blue

I.P

Upper Driver Leg Room

S203

Brown

I.P

Upper Driver Leg Room

S204

Gray

I.P

Upper Driver Leg Room

S205

Red

I.P

Left Behind Glove Box

S206

Blue

I/P

Right Behind Glove Box

S207

Blue

Engine Control

Behind Co–driver Right Kick Panel

S208

White

Engine Control

Behind Co–driver Right Kick Panel

S301

Blue

Body

Behind Driver Left Kick Panel

S302

Blue

Body

Behind Driver Left Kick Panel

S303

Black

Body

Below Driver Seat
