CRUISE CONRTOL SYSTEM  9U – 11

DAEWOO V–121 BL4

MAINTENANCE AND REPAIR

ON–VEHICLE SERVICE

CRUISE CONTROL ACTUATOR

Removal Procedure

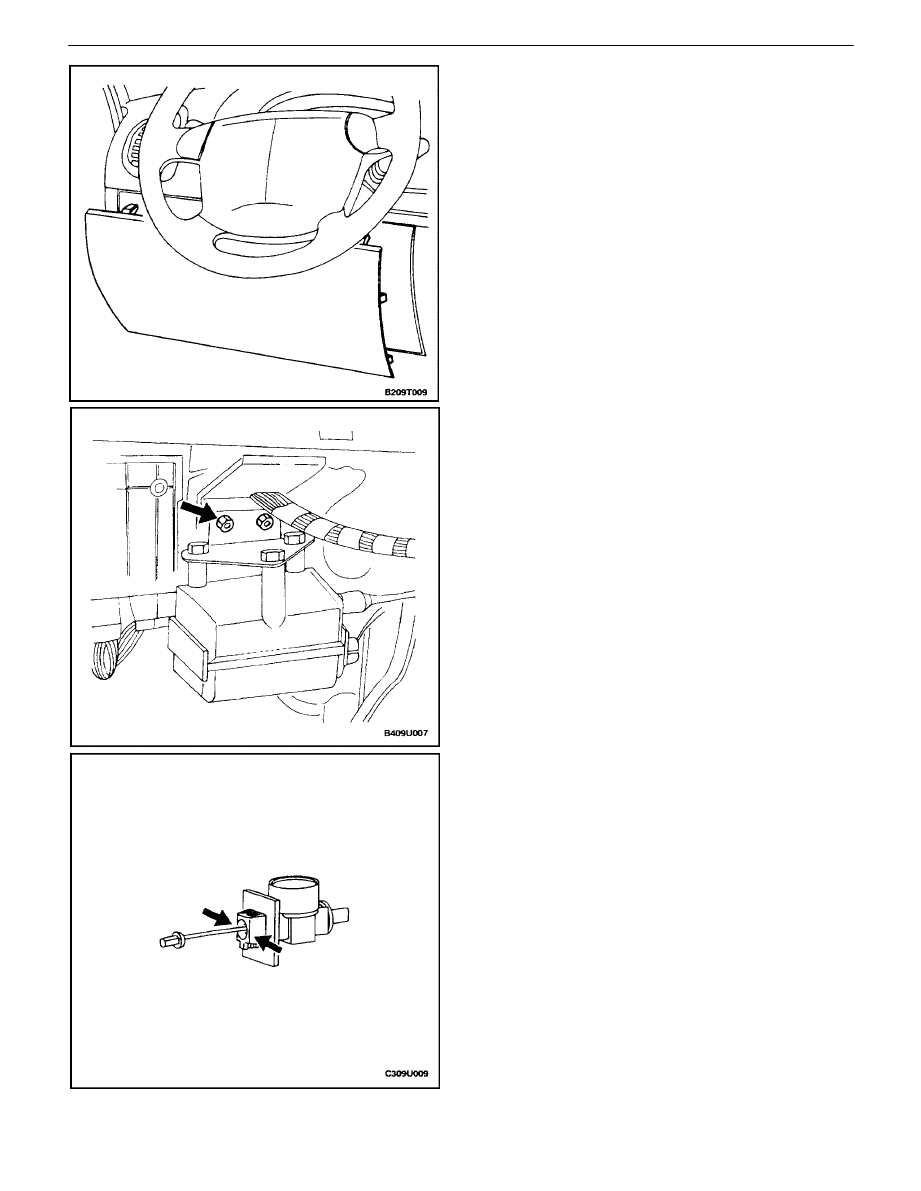

1.  Carefully pull the knee bolster trim panel until it is

loose from its retaining clips.

2.  Remove the knee bolster. Refer to Section 9G, In-

terior Trim.

3.  Remove the actuator bracket with the actuator still

attached.

4.  Press the tabs on the cable adjuster, and remove

the cable and the adjuster from the adjuster brack-
et.

9U – 12

I

CRUISE CONRTOL SYSTEM

DAEWOO V–121 BL4

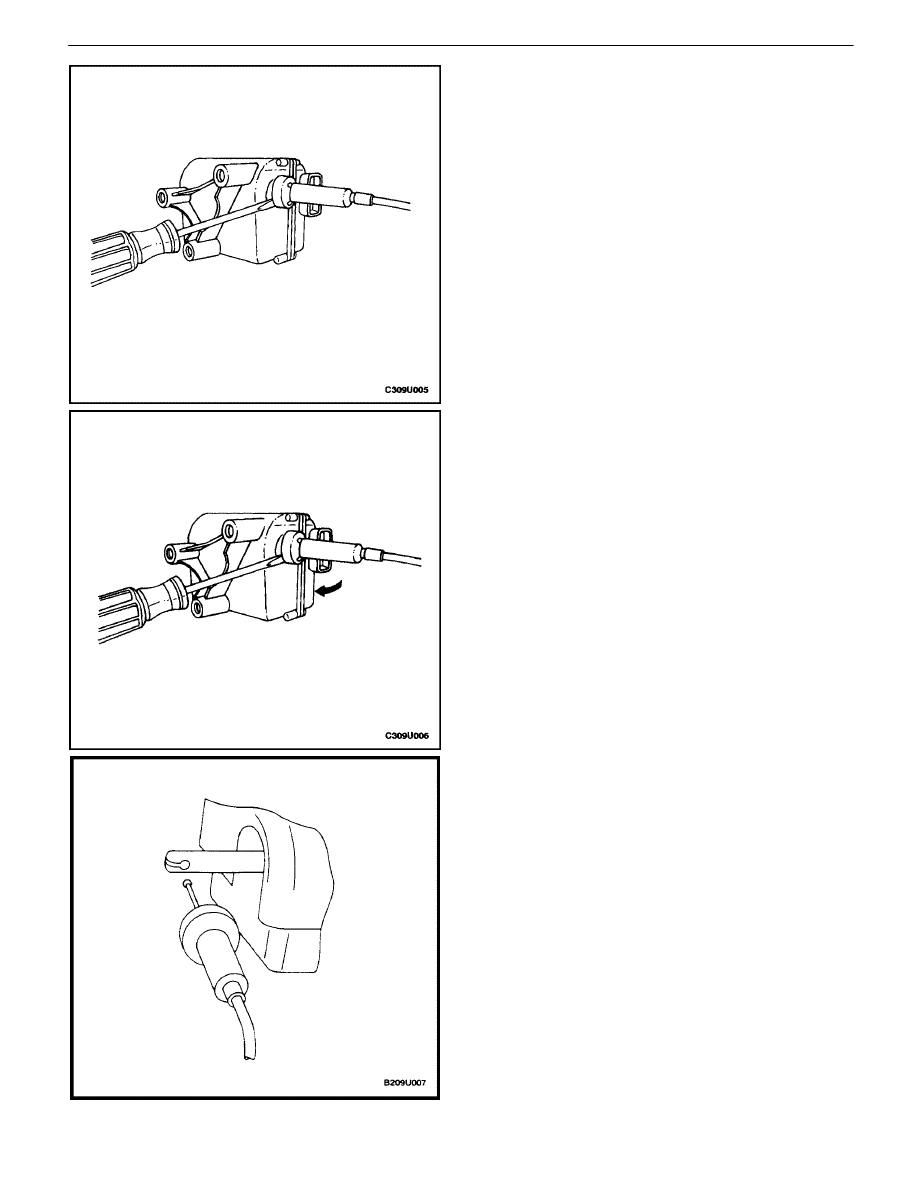

5.  Tilt the cable housing to expose one of the slots in

the actuator, and insert the tip of a flathead screw-
driver into one of the slots.

6.  Tilt the cable housing toward the screwdriver to re-

lease the cable housing retainers.

7.  Remove the cable ball from the actuator rod.

CRUISE CONRTOL SYSTEM  9U – 13

DAEWOO V–121 BL4

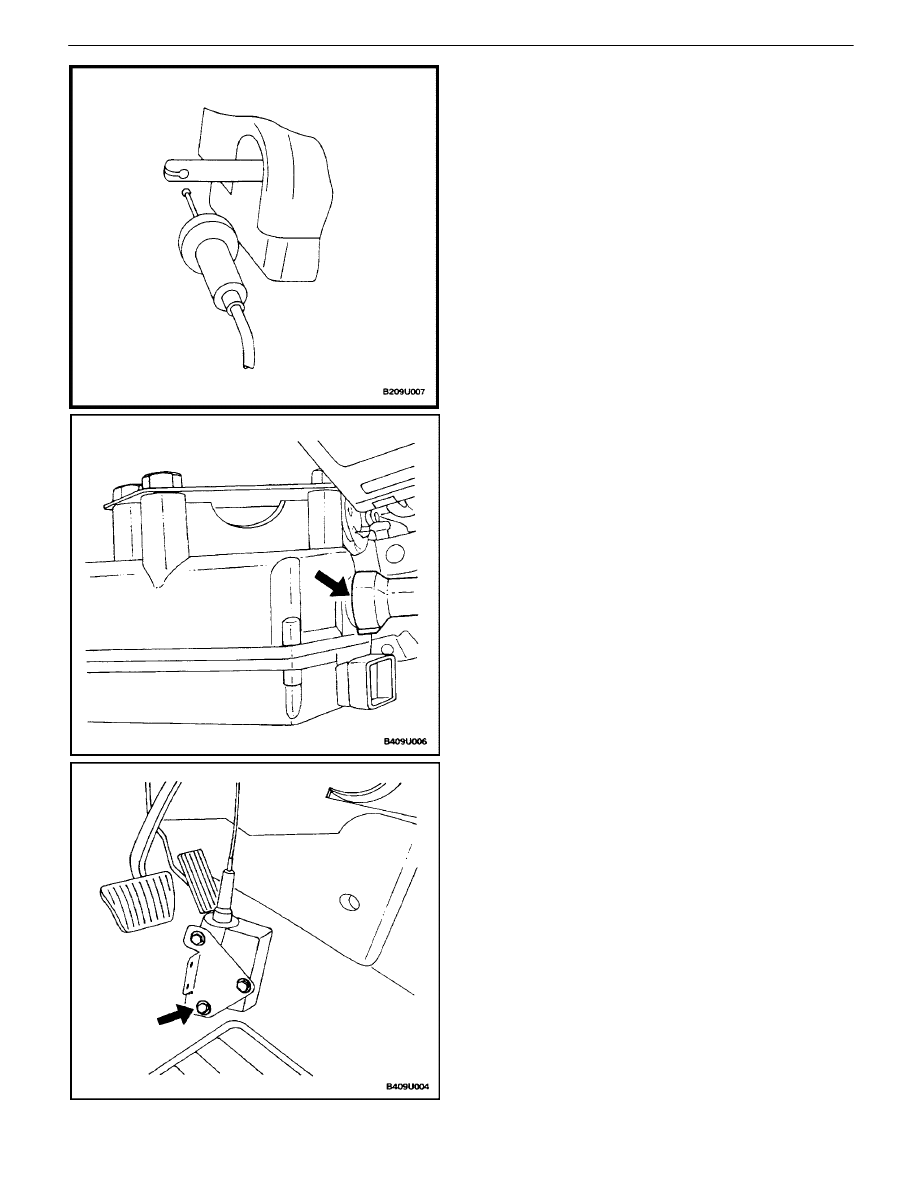

Installation Procedure

1.  Insert the cable ball into the actuator rod.

2.  Align the cable housing and push the cable housing

onto the actuator until it is locked in place by the
retainers.

3.  If a new actuator is being installed, attach it to the

mounting bracket.

Tighten

Tighten the actuator bolts to 4 N

S

m (35 lb–in).

9U – 14

I

CRUISE CONRTOL SYSTEM

DAEWOO V–121 BL4

4.  Install the mounting bracket.

Tighten

Tighten the actuator bracket nuts to 18 N

S

m (13 lb–ft).

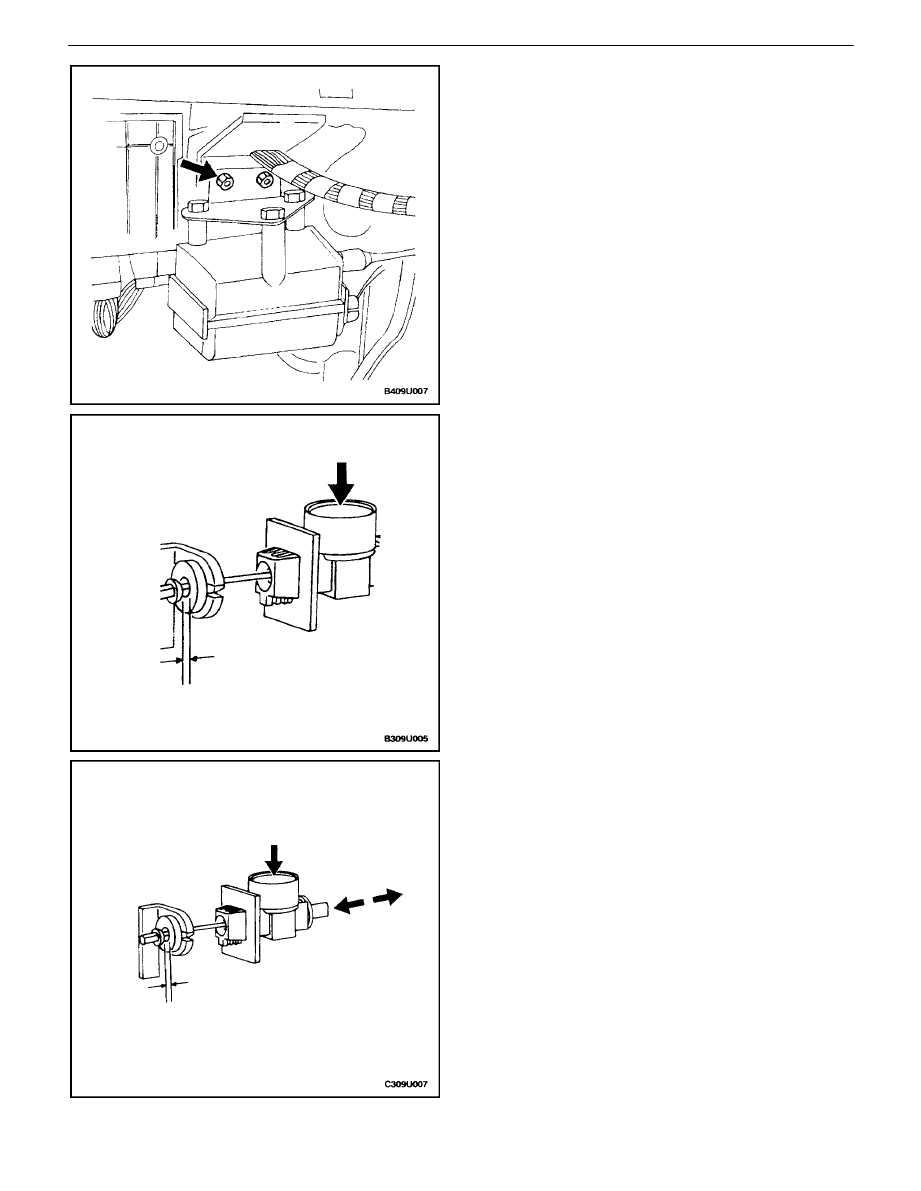

5.  If the adjuster spring is not fully compressed, press

the cable release button and slide the cable into the
adjuster until the spring is fully compressed.

Notice : When the adjuster button is pressed, do not allow
the adjuster spring to expand to a length of more than 2 cm
(3/4 inch) or the adjuster rack will come out of the adjuster,
and will have to be re–inserted. To keep the adjuster in one
piece during adjustment, hold the cable when the adjuster
button is pressed.

6.  Insert the cable adjuster into the adjuster bracket.
7.  Press the cable release button and adjust the cable

to achieve a gap of 0.5 mm (0.02 inches) between
the bushing and the nipple of the cable ball.

8.  Install the knee bolster. Refer to Section 9G, Interi-

or Trim.

9.  Install the knee bolster trim panel.
