Daewoo Nubira. Manual - part 70

AUDIO SYSTEMS  9F – 7

DAEWOO V–121 BL4

Step

No

Yes

Value(s)

Action

12

Repair the open circuit between radio terminal 12
and power antenna connector terminal 3.
Is the repair complete?

System OK

13

Replace the audio system.
Is the repair complete?

System OK



9F – 8

I

AUDIO SYSTEMS

DAEWOO V–121 BL4

MAINTENANCE AND REPAIR

ON–VEHICLE SERVICE

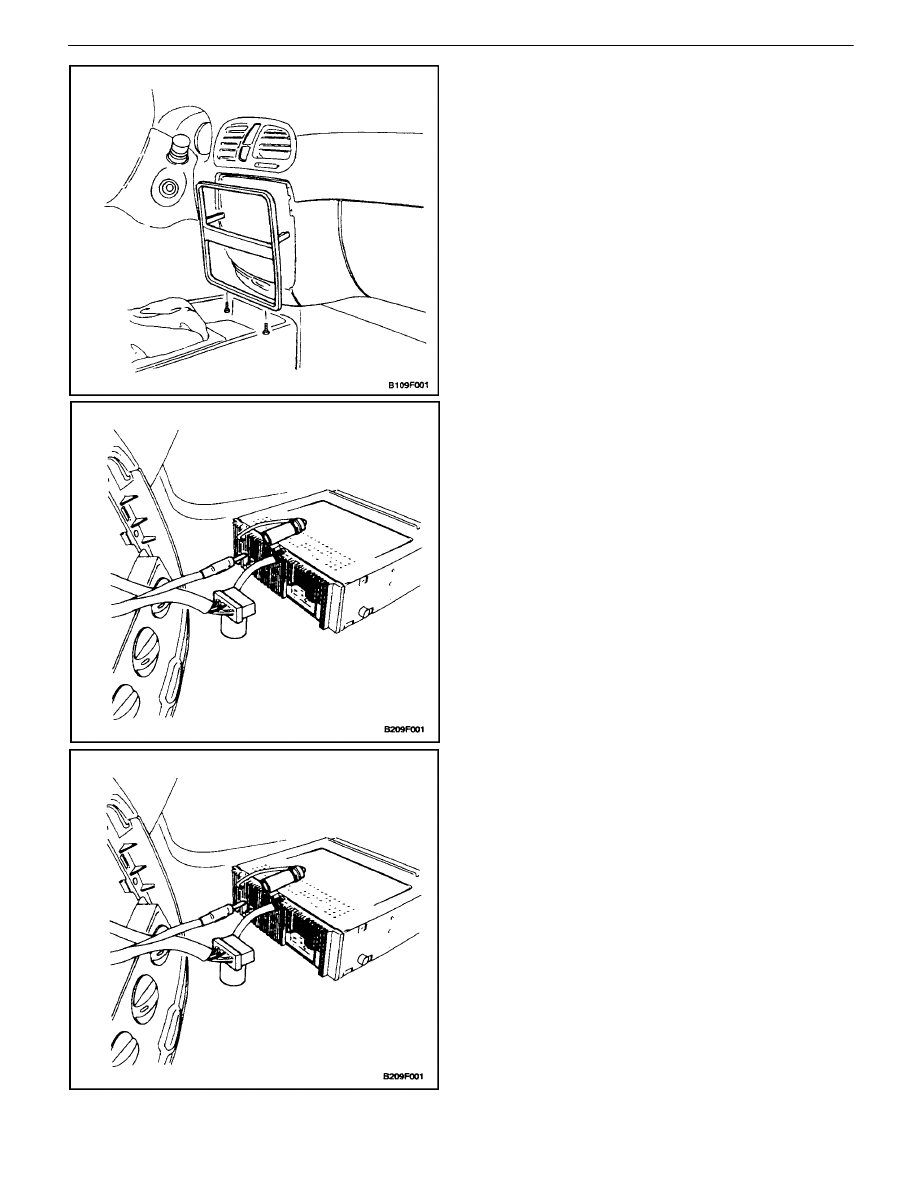

STEREO CASSETTE AM/FM RADIO

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the audio system trim plate screws and

the audio system trim plate.

3.  Remove the audio system bolts and the audio sys-

tem.

4.  Disconnect the audio system electrical connector

and the antenna cable.

Installation Procedure

1.  Connect the audio system electrical connector and

the antenna cable.

AUDIO SYSTEMS  9F – 9

DAEWOO V–121 BL4

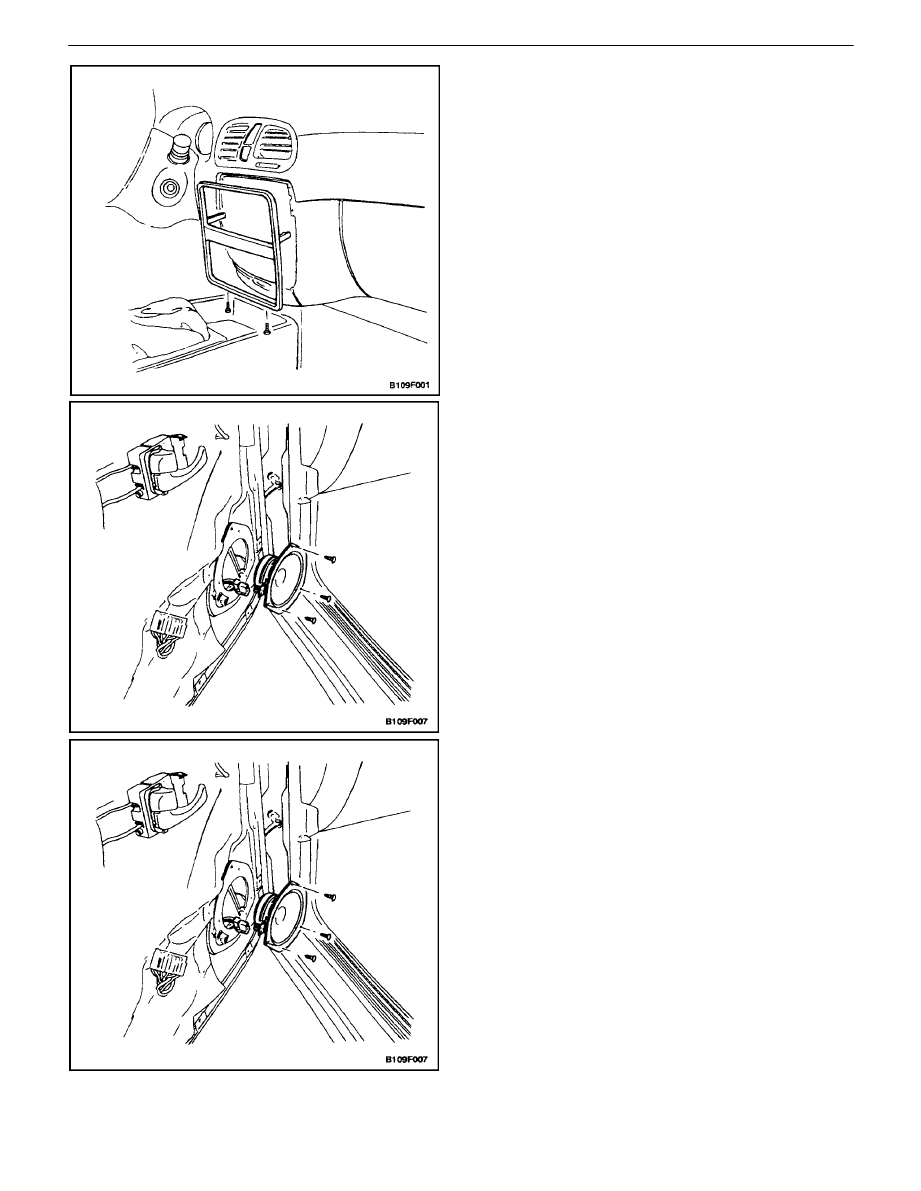

2.  Install the audio system with the bolts.

Tighten

Tighten the audio system bolts to 4 N

S

m (35 lb–in).

3.  Install the audio system trim plate with the screws.
4.  Connect the negative battery cable.
5.  Enter the security code. Refer to ”Audio Security

Sys–tem”  in this section.

FRONT DOOR SPEAKERS

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the front door trim panel. Refer to  section

9G, Interior Trim.

3.  Remove the front door speaker screws and the

front door speaker.

4.  Disconnect the electrical connector.

Installation Procedure

1.  Connect the electrical connector.
2.  Install the front door speaker with the screws.

Tighten

Tighten the front door speaker screws to 4 N

S

m (35

lb–in).

3.  Install the front door trim panel. Refer to  section

9G, Interior Trim.

4.  Connect the negative battery cable.

9F – 10

I

AUDIO SYSTEMS

DAEWOO V–121 BL4

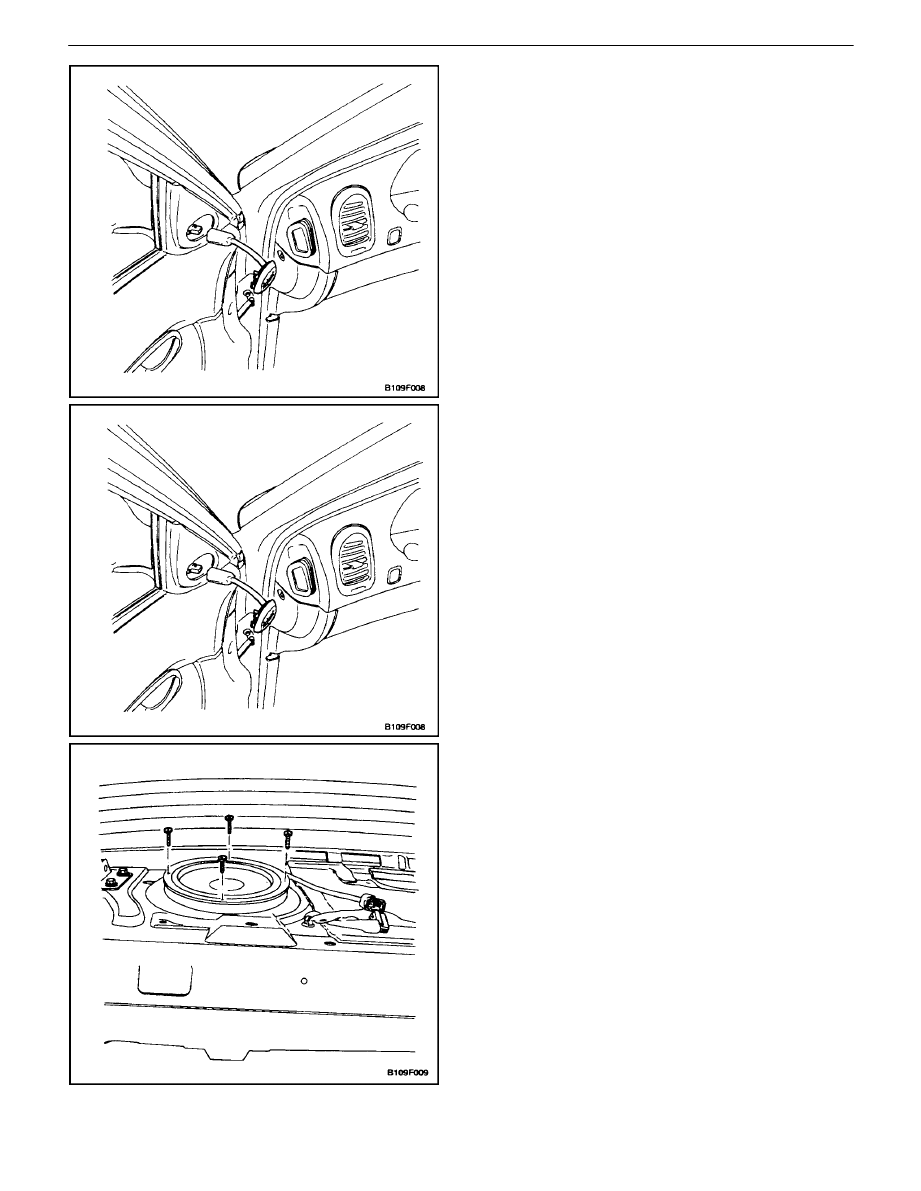

TWEETER SPEAKERS

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the tweeter speaker by prying the tweeter

speaker off of the front door eschutcheon.

3.  Disconnect the electrical connector.

Installation Procedure

1.  Connect the electrical connector.
2.  Install the tweeter speaker by snapping the tweeter

speaker onto the front door eschutcheon.

3.  Connect the negative battery cable.

REAR SPEAKERS (NOTCHBACK)

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the rear seat cushion and the rear seat-

back. Refer to Section 9H, Seats.

3.  Remove the right side C–pillar trim panel and the

deck lid sill plate trim cover. Refer to section 9G,
Interior Trim.

4.  Disconnect the electrical connector.
5.  Remove the screws and the rear speakers.
