4G – 6

I

PARKING BRAKE

DAEWOO V–121 BL4

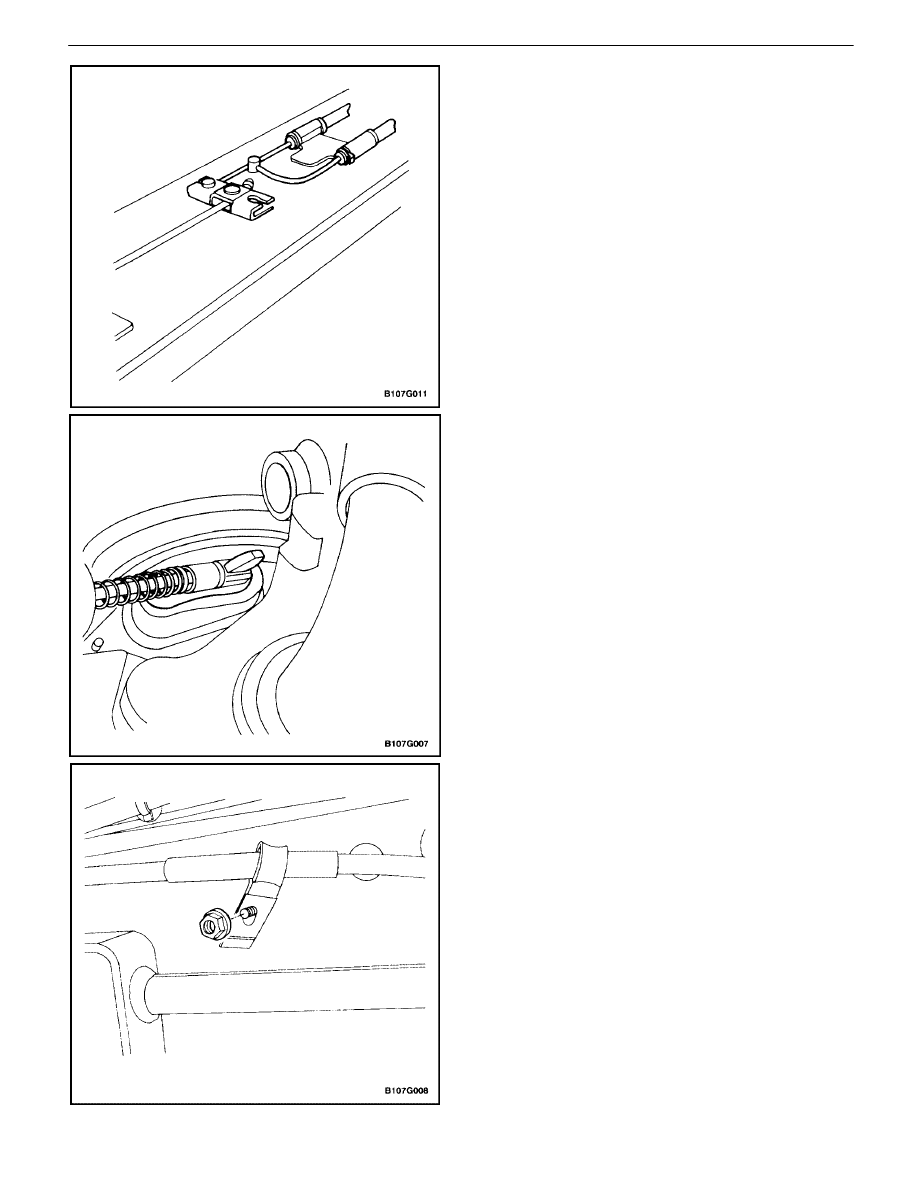

3.  Remove the parking brake cable ends from the

equalizer.

4.  Raise and suitably support the vehicle.
5.  Remove the rear wheels. Refer toSection 2E, Tires

and Wheels.

6.  Unfasten the parking brake cable from the lever at

the rear of the backing plate.

7.  Remove the clip that holds the cable into the pro-

truding hole on the steering knuckle assembly.

8.  Remove the nut securing the parking brake cable to

the underbody clip on both the driver and passen-
ger sides of the vehicle.

PARKING BRAKE  4G – 7

DAEWOO V–121 BL4

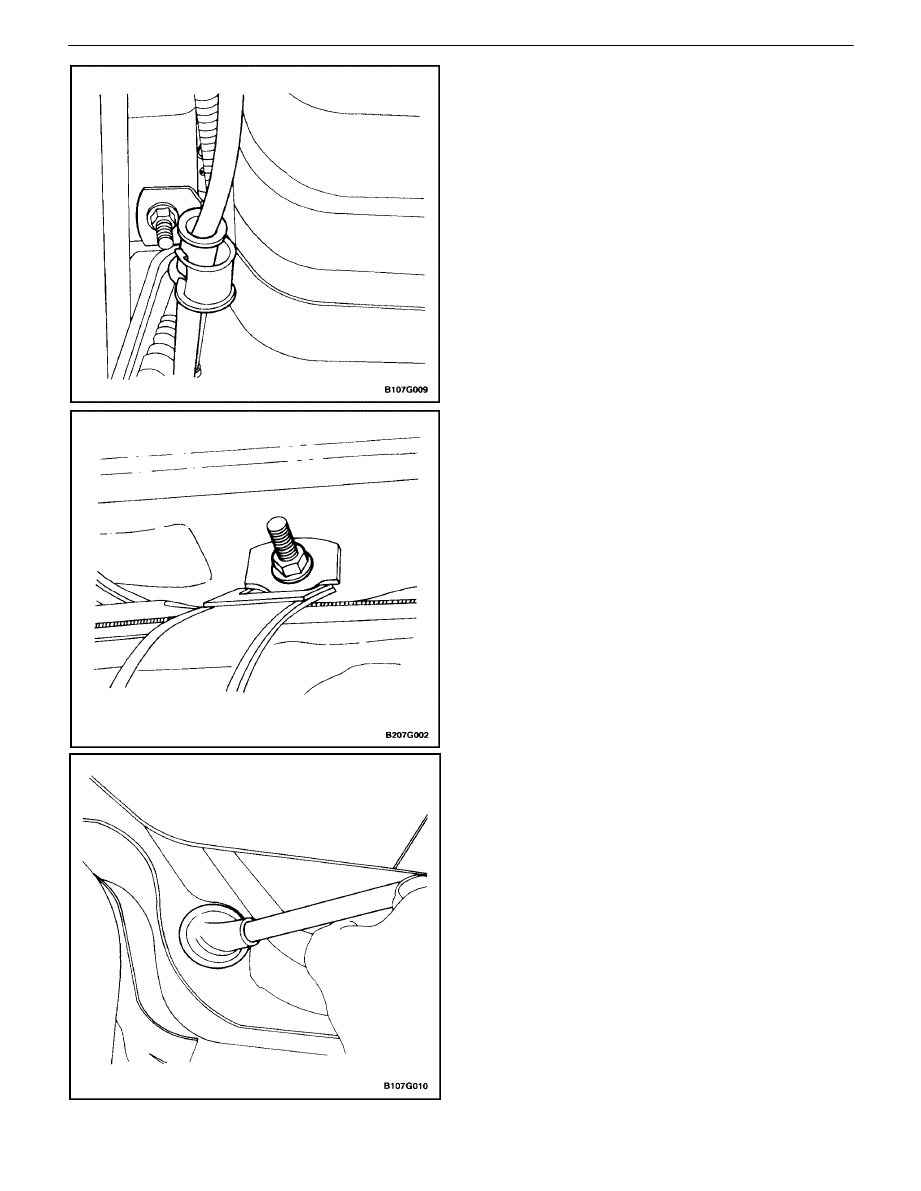

9.  Remove the parking brake cable from the clip near

the fuel tank strap (passenger side).

10.  Suitably support the fuel tank.

11.  Remove the fuel tank retaining strap nut on the

driver’s side and remove the parking brake cable.
Pull the cable through the loop of the welded under-
body bracket.

12.  Remove the parking brake cable and rubber grom-

met.

4G – 8

I

PARKING BRAKE

DAEWOO V–121 BL4

Installation Procedure

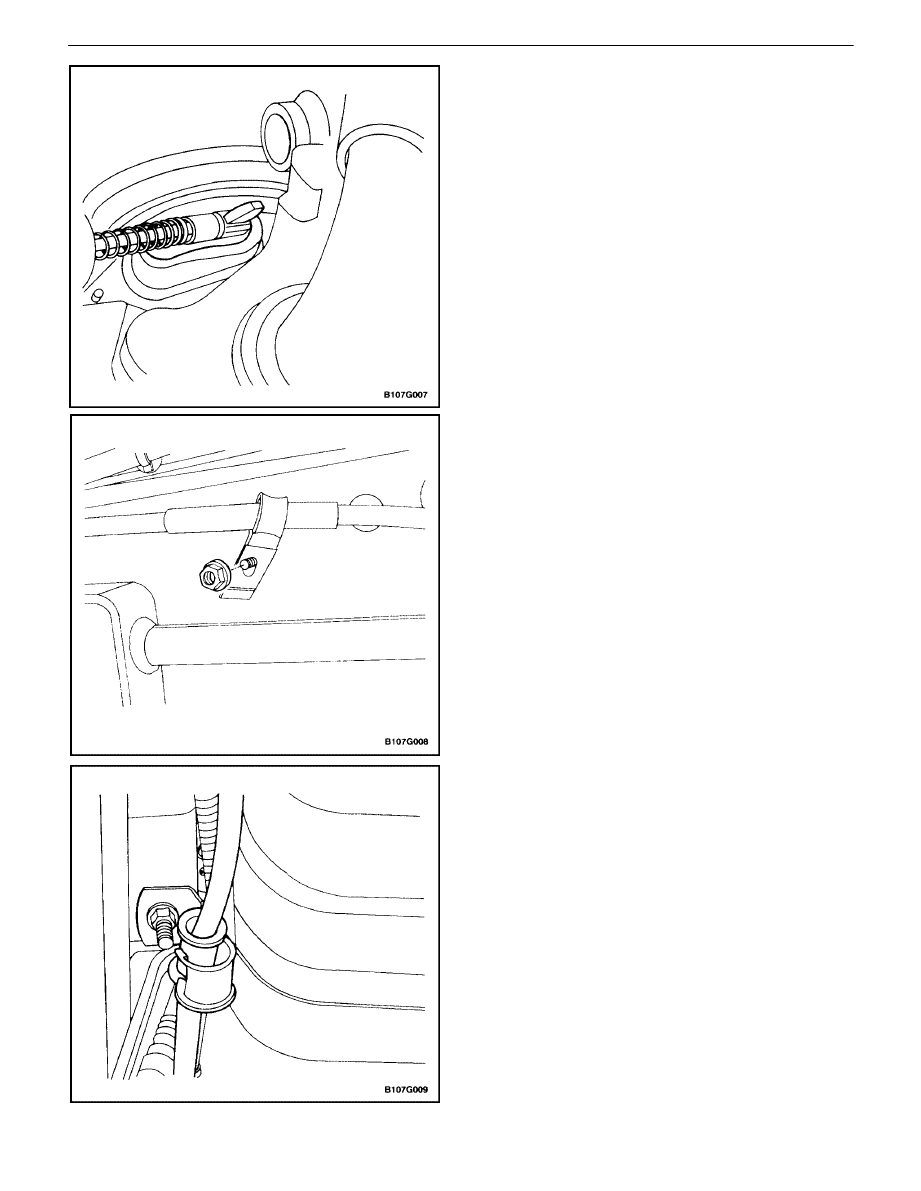

1.  Route the cable to the hole on the steering knuckle

assembly.

2.  Fasten the parking brake cable to the lever at the

rear of the disc brake backing plate.

3.  Install the clip that secures the parking brake cable

to the routing hole on the steering knuckle assem-
bly.

4.  Install the nut securing the parking brake cable to a

bracket on both the driver and passenger sides of
the vehicle.

Tighten

Tighten the parking brake cable–to–underbody side
bracket nuts to 12 N

S

m (106 lb–in).

5.  Install the parking brake cable (passenger’s side) to

the clip near the fuel tank strap.

6.  Route the parking brake cable through the loop of a

welded underbody bracket and under the fuel tank
retaining strap (driver’s side).

Tighten

Tighten the fuel tank retaining strap nut to 12.5 N

S

m

(111 lb–in).

PARKING BRAKE  4G – 9

DAEWOO V–121 BL4

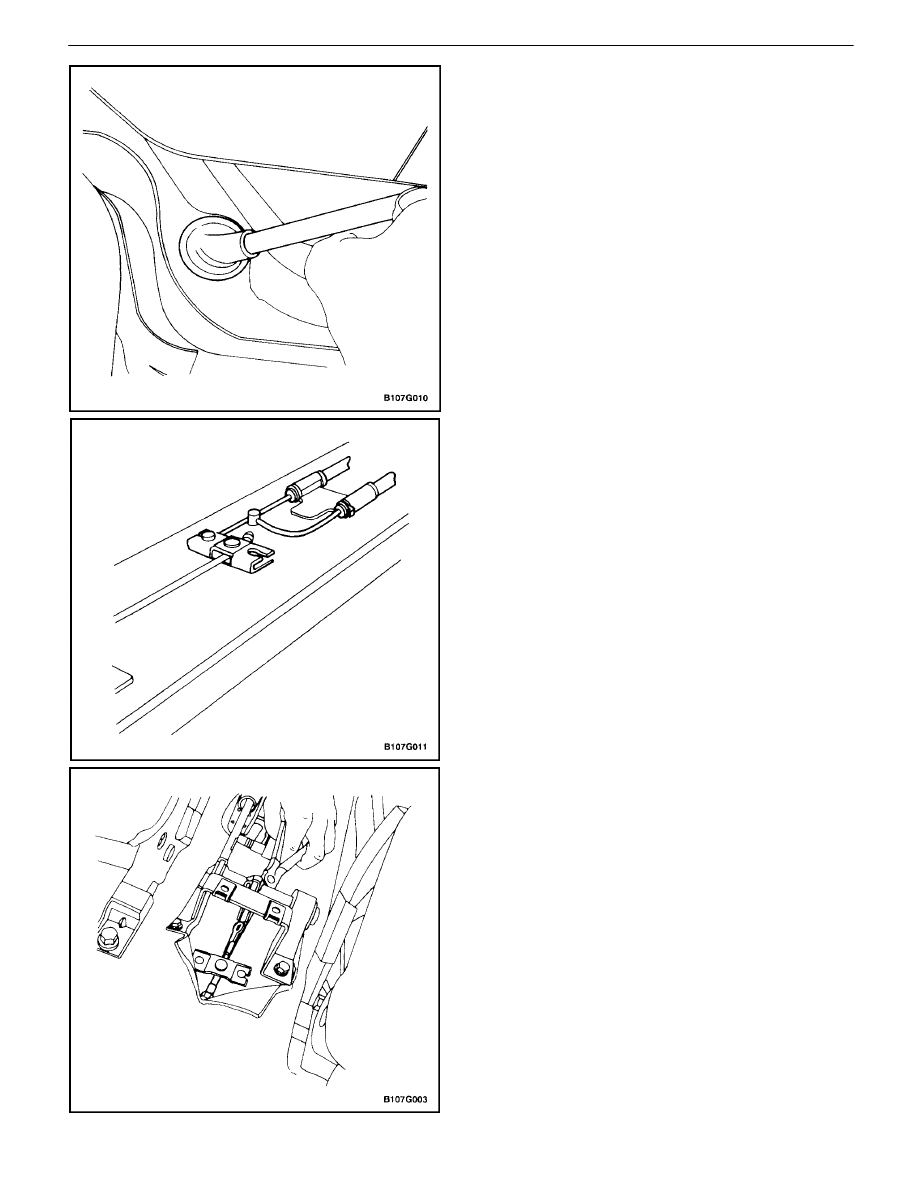

7.  Route the parking brake cables through the access

holes to the parking brake/gearshift console.

8.  Install the rubber grommet for each cable.

9.  Install the rear wheels. Refer toSection 2E, Tires

and Wheels.

10.  Lower the vehicle.
11.  Attach the parking brake cable ends to the equaliz-

er.

12.  Attach the eye bolt pull rod to the parking brake

lever assembly and fasten the split pin.

13.  Install the parking brake/gearshift console hood.

Refer toSection 9G, Interior Trim.

14.  If the parking brake shoe lever was pressed back-

ward before removing the brake drum, now press it
forward and adjust the parking brake. Refer
to”Parking Brake Adjustment”in this section.
