4F – 8

I

ANTILOCK BRAKE SYSTEM

DAEWOO V–121 BL4

ABS CIRCUIT (4 OF 4)

ANTILOCK BRAKE SYSTEM  4F – 9

DAEWOO V–121 BL4

VISUAL IDENTIFICATION

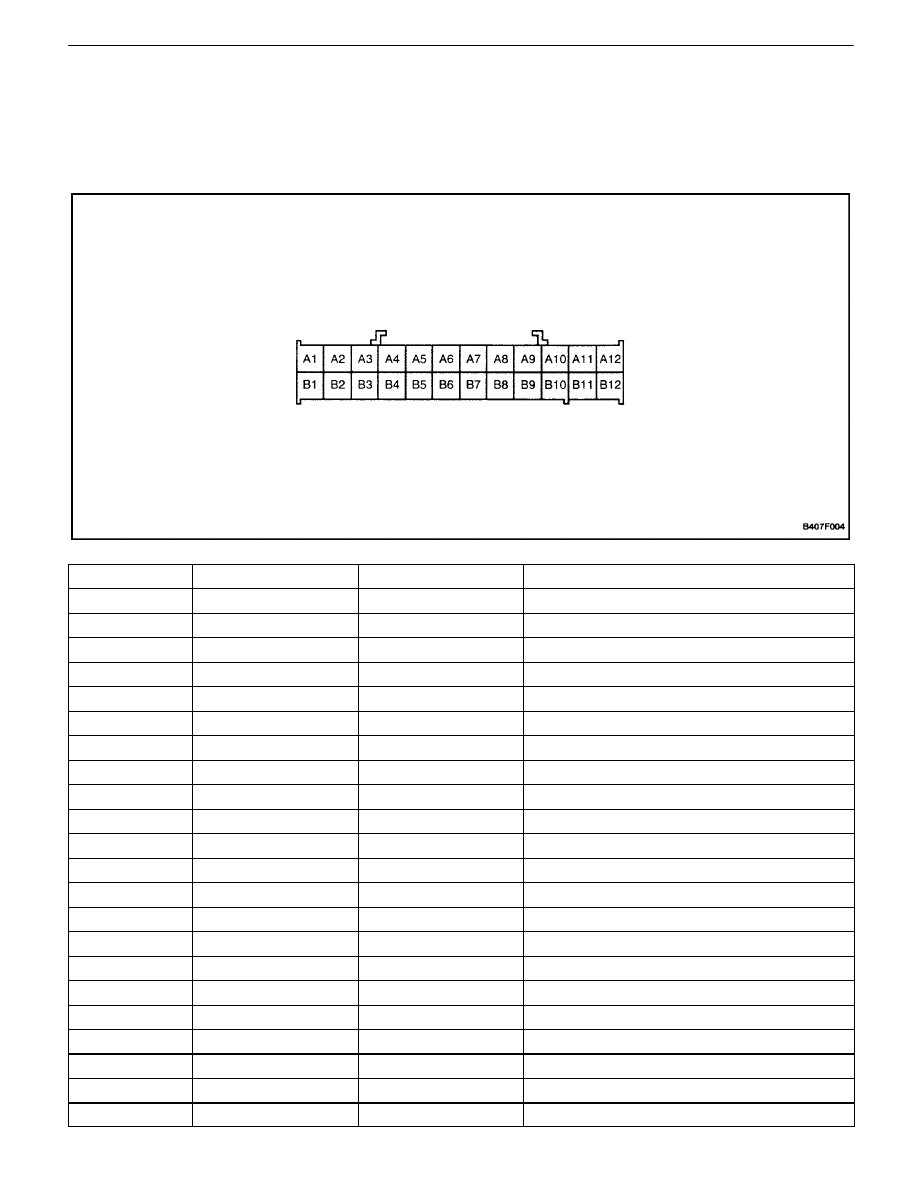

EBCM CONNECTOR FACE VIEW (1 OF 2)

EBCM Connector J1

Pin

Signal Name

Color

Circuit

A1

SDLCLASS2

PPL

Serial Data Link, Class 2

A2

RRWSHI

BRN

Right Rear Wheel Speed High

A3

LRWSHI

BLK

Left Rear Wheel Speed High

A4

RFWSHI

GRY

Right Front Wheel Speed High

A5

LFWSHI

GRY

Left Front Wheel Speed High

A6

–

–

Not Used

A7

ABSWARN

LT GRN/BLK

ABS Warning Indicator

A8

–

–

Not Used

A9

IGN

BRN

Ignition

A10

LFABSOL

DK GRN

Left Front ABS Isolation Solenoid

A11

ENRELAY

PNK

ABS Enable Relay

A12

–

–

Not Used

B1

RRWSLO

WHT

Right Rear Wheel Speed Low

B2

LRWSLO

RED

Left Rear Wheel Speed Low

B3

RFWSLO

WHT

Right Front Wheel Speed Low

B4

LFWSLO

WHT

Left Front Wheel Speed Low

B5

BRAKETT

BRN/BLK

BRAKE Lamp

B6

REABSOL

LT BLU

Right Front ABS Isolation Solenoid

B7

SDLUART

BLK/WHT

Serial Data

B8

–

–

Not Used

B9

BRAKESW

BRN/BLK

Stoplamp Switch

B10

–

–

Not Used

4F – 10

I

ANTILOCK BRAKE SYSTEM

DAEWOO V–121 BL4

Pin

Circuit

Color

Signal Name

B11

–

–

Not Used

B12

BATT

ORN

Battery (+)

ANTILOCK BRAKE SYSTEM  4F – 11

DAEWOO V–121 BL4

EBCM CONNECTOR FACE VIEW (2 OF 2)

EBCM Connector J2

Pin

Signal Name

Color

Circuit

C1

LFMOTLO

PNK

Left Front Motor Low

C2

LFMOTHI

BLK

Left Front Motor HIgh

C3

RFMOTHI

DK GRN

Right Front Motor HIgh

C4

RFMOTLO

ORN

Right Front Motor Low

C5

RAMOTLO

BLK

Rear Axle Motor Low

C6

RAMOTHI

PPL

Rear Axle Motor HIgh

C7

SWBATT

RED

Battery (+) through ABS relay

C8

GND

BLK

Ground (– )
