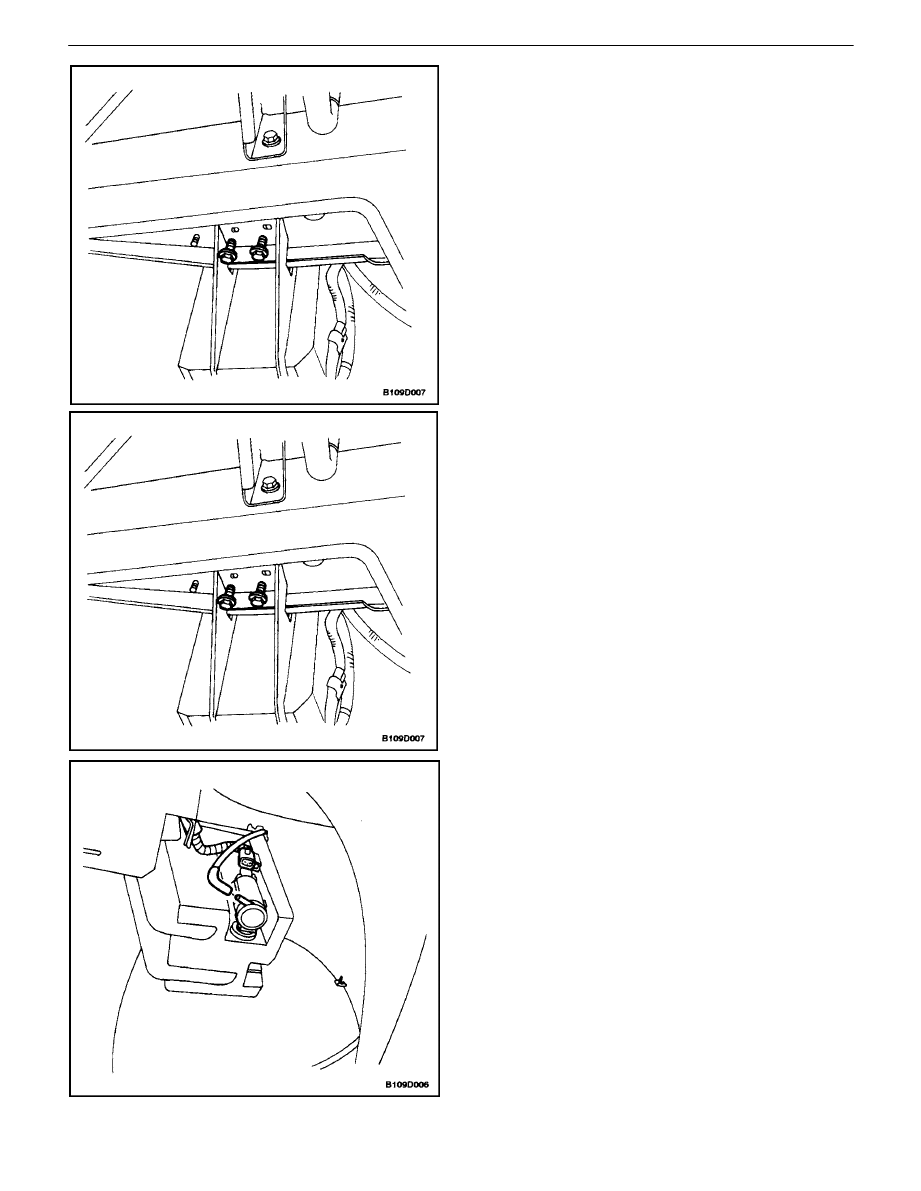

6.  Remove the bolts and the reservoir.

Installation Procedure

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the reservoir with the bolts.

Tighten

Tighten the washer fluid reservoir bolts to 8 N

S

m (71

lb–in).

2.  Connect the reservoir pump electrical connector.
3.  Connect the washer hose to the washer pump.

WIPERS/WASHER SYSTEMS  9D – 17

DAEWOO V–121 BL4

4.  Install the front wheel well splash shield with the

bolts and the screws.

Tighten

Tighten the front wheel well splash shield bolts to 1.5
N

S

m (13 lb–in).

5.  Install the front left wheel. Refer to Section 2E,

Tires and Wheels.

6.  Connect the negative battery cable.

WINDSHIELD WASHER PUMP(S)

(Typical)

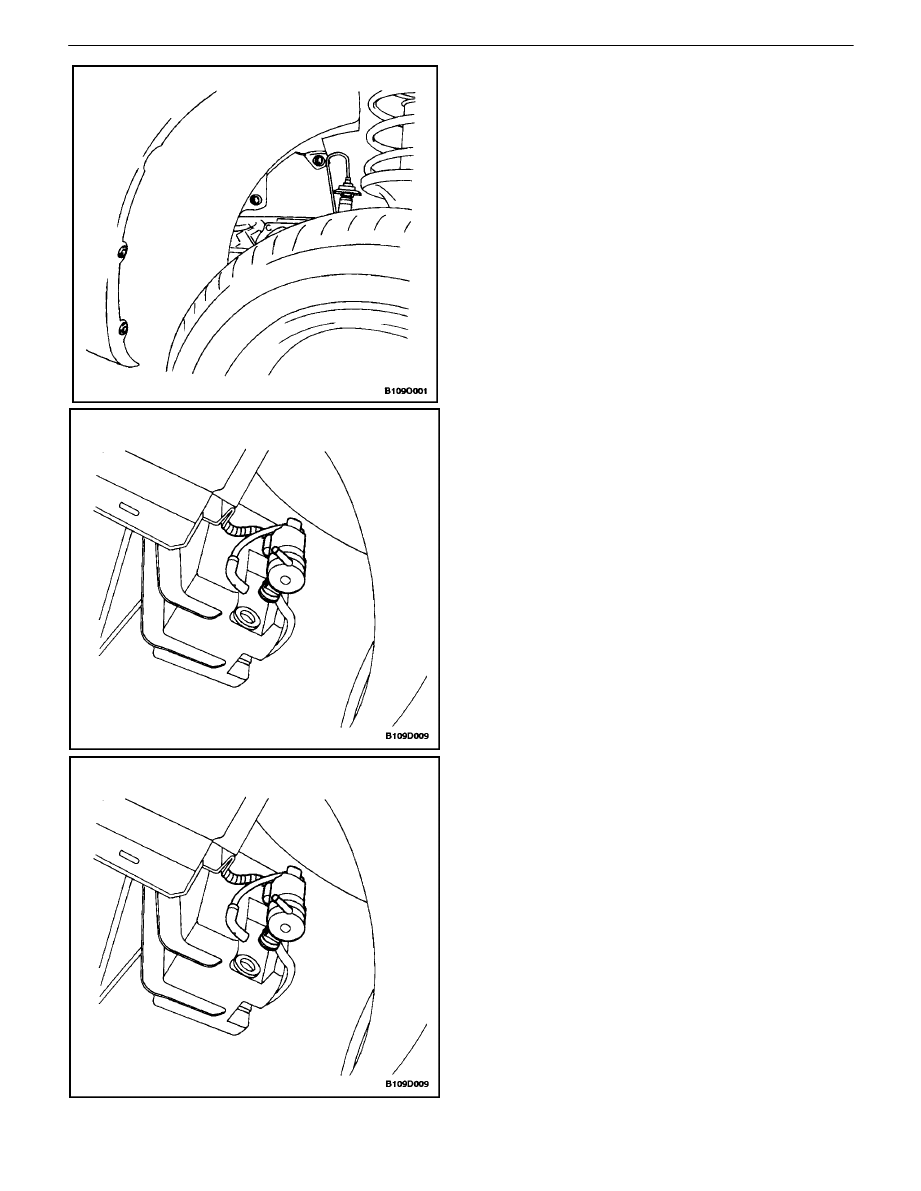

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the front left wheel. Refer to Section 2E,

Tires and Wheels.

3.  Remove the bolts and the screws and the front

wheel well splash shield.

4.  Disconnect the electrical connector.
5.  Disconnect the washer hose from the washer

pump.

6.  Remove the washer pump.

Installation Procedure

1.  Install the washer pump.
2.  Connect the washer hose to the washer pump.
3.  Connect the electrical connector.

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

4.  Install the front wheel well splash shield with the

bolts and the screws.

Tighten

Tighten the front wheel well splash shield bolts to 1.5
N

S

m (13 lb–in).

5.  Install the front left wheel. Refer to Section 2E,

Tires and Wheels.

6.  Connect the negative battery cable.

9D – 18

I

WIPERS/WASHER SYSTEMS

DAEWOO V–121 BL4

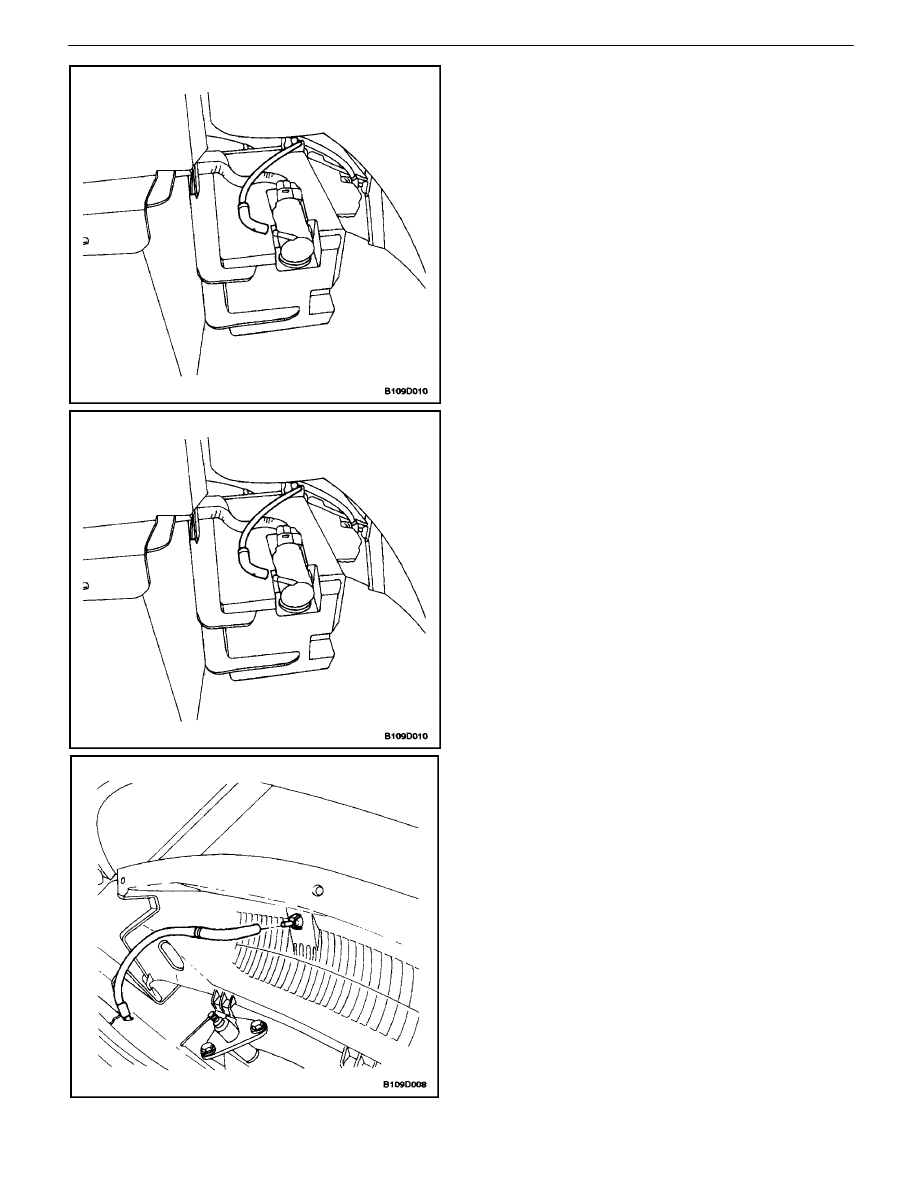

WINDSHIELD WASHER NOZZLES

Removal Procedure

1.  Remove the cowl vent grille. Refer to Section 9R,

Body Front End.

2.  Disconnect the washer hose from the nozzle.
3.  Remove the nozzle from the cowl vent grille.

Installation Procedure

1.  Install the nozzle onto the cowl vent grille.
2.  Connect the washer hose to the nozzle.
3.  Install the cowl vent grille. Refer to Section 9R,

Body Front End.

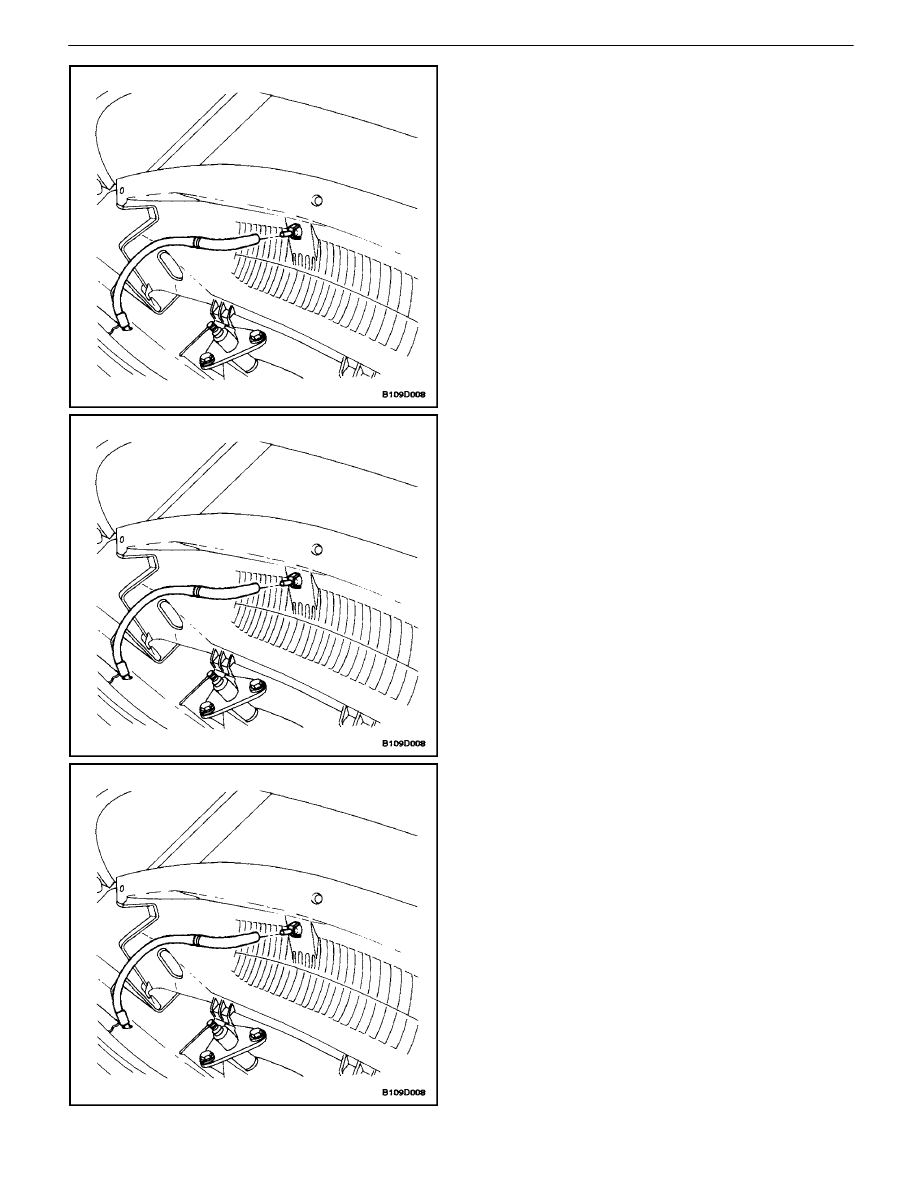

WINDSHIELD WASHER HOSES

(Typical)

Removal Procedure

1.  Remove the cowl vent grille. Refer to Section 9R,

Body Front End.

2.  Disconnect the windshield washer hose from the

washer nozzles.

WIPERS/WASHER SYSTEMS  9D – 19

DAEWOO V–121 BL4

3.  Remove the front left wheel. Refer to Section 2E,

Tires and Wheels.

4.  Remove the bolts and the screws and the front

wheel well splash shield.

5.  Disconnect the washer hose from the washer reser-

voir.

6.  Remove the washer hose.

Installation Procedure

1.  Install the washer hose.
2.  Connect the washer hose to the washer pump.

Notice : Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

3.  Install the front wheel well splash shield with the

bolts and the screws.

Tighten

Tighten the front wheel well splash shield bolts to 1.5
N

S

m (13 lb–in).

4.  Remove the front left wheel. Refer to Section 2E,

Tires and Wheels.

5.  Connect the windshield washer hose to the washer

nozzles.

6.  Install the cowl vent grille. Refer to Section 9R,

Body Front End.
