DOORS  9P – 27

DAEWOO V–121 BL4

REAR DOOR ASSEMBLY

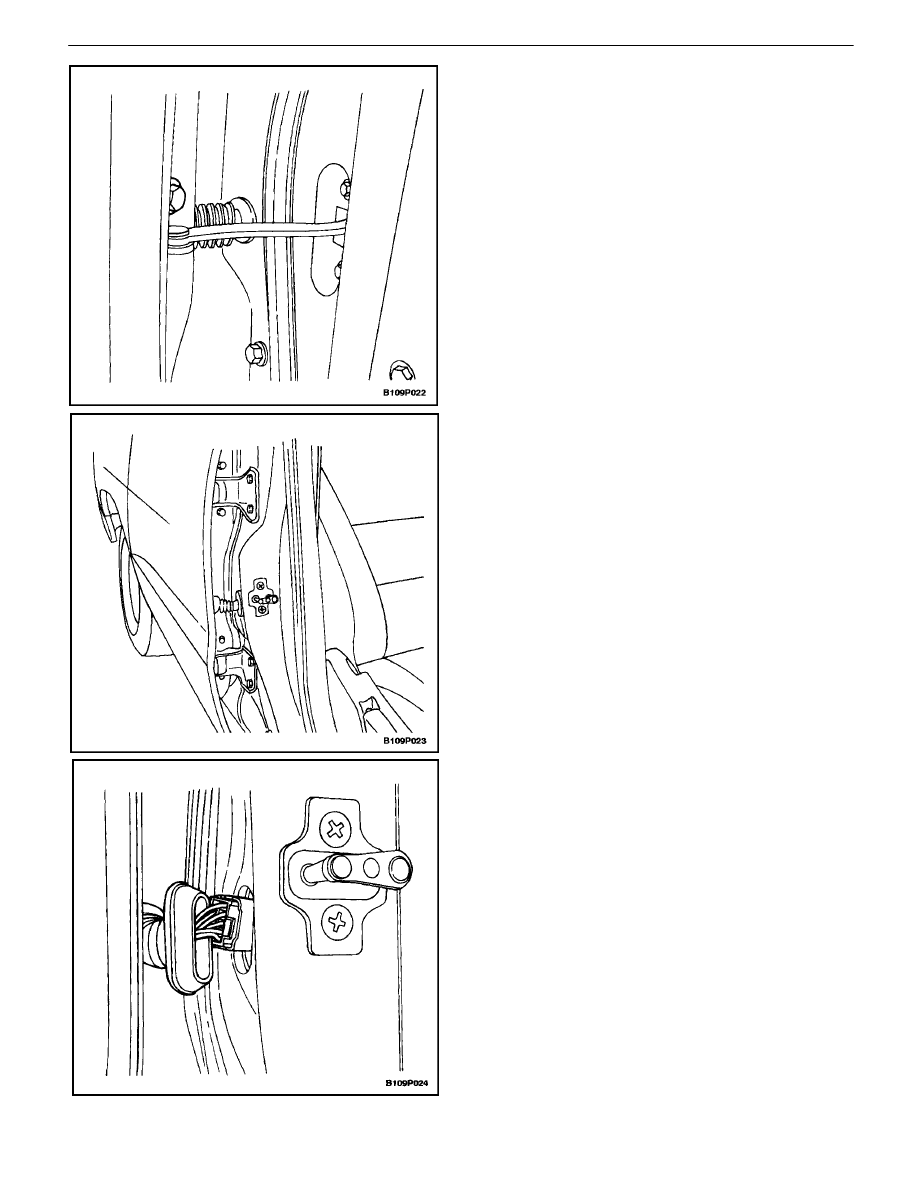

Removal Procedure

1.  Disconnect the negative battery cable.
2.  Remove the bolt and the door hold open link from

the body.

3.  With the aid of another technician, remove the door

hinge bolts and the rear door.

4.  Disconnect the body–to–door rubber grommet and

the electrical connector.

9P – 28

I

DOORS

DAEWOO V–121 BL4

Installation Procedure

1.  Connect the body–to–door rubber grommet and the

electrical connector.

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

2.  With the aid of another technician, lightly secure the

rear door with the door hinge bolts.

3.  Adjust the door for proper fit.

Tighten

Tighten the door hinge bolts to 25 N

S

m (18 lb–ft).

4.  Install the rear door hold open link to the body with

the bolt.

Tighten

Tighten the door hold open link–to–body bolt to 27
N

S

m (20 lb–ft).

5.  Connect the negative battery cable.
6.  Perform the waterleak test. Refer to Section 9I,

Waterleaks.

7.  Check for windnoise. Refer to Section 9J, Wind-

noise.

DOORS  9P – 29

DAEWOO V–121 BL4

DOOR HINGE

Removal Procedure

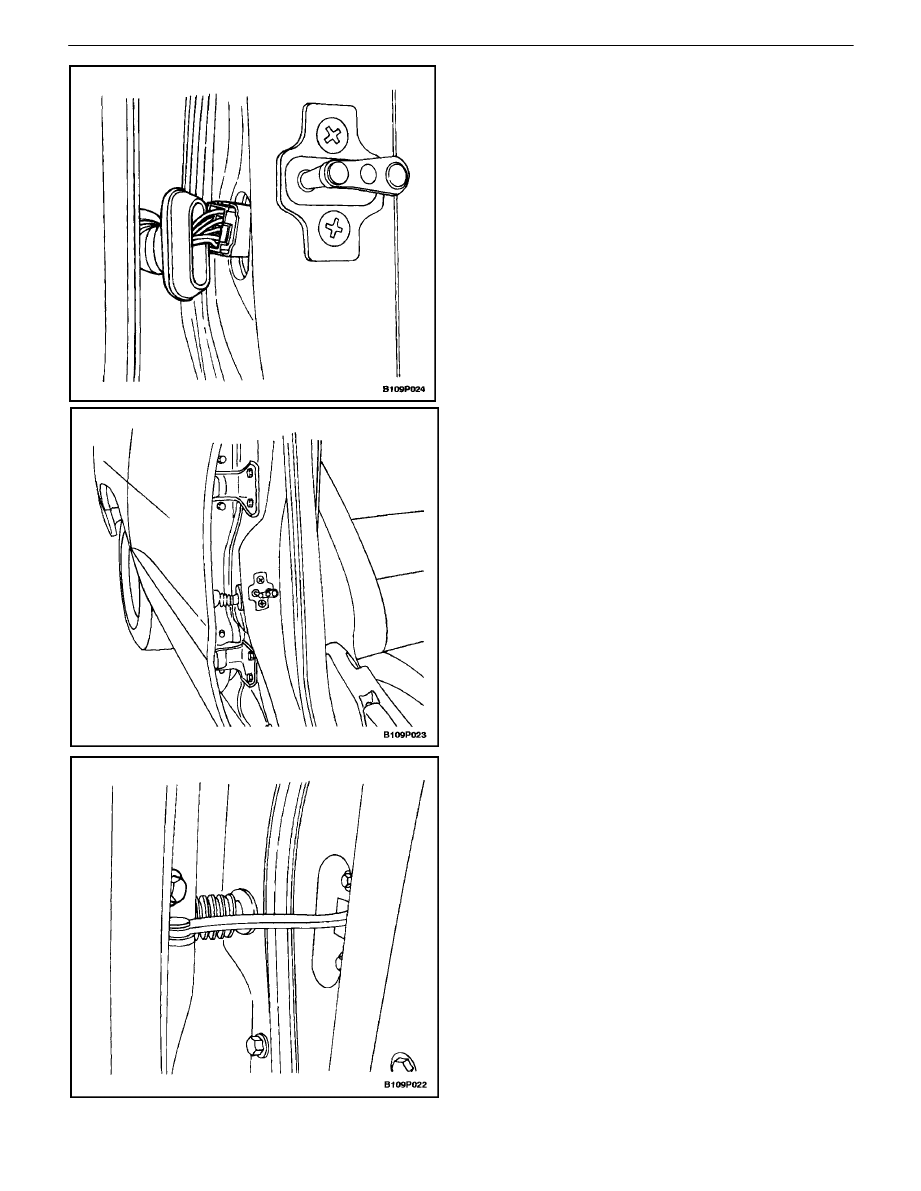

1.  With the aid of another technician, remove the bolts

and the hinge from the door and the body.

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  With the aid of another technician, install the hinge

to the door and the body with the bolts.

Tighten

Tighten the door hinge bolts to 25 N

S

m (18 lb–ft).

DOOR HOLD OPEN LINK

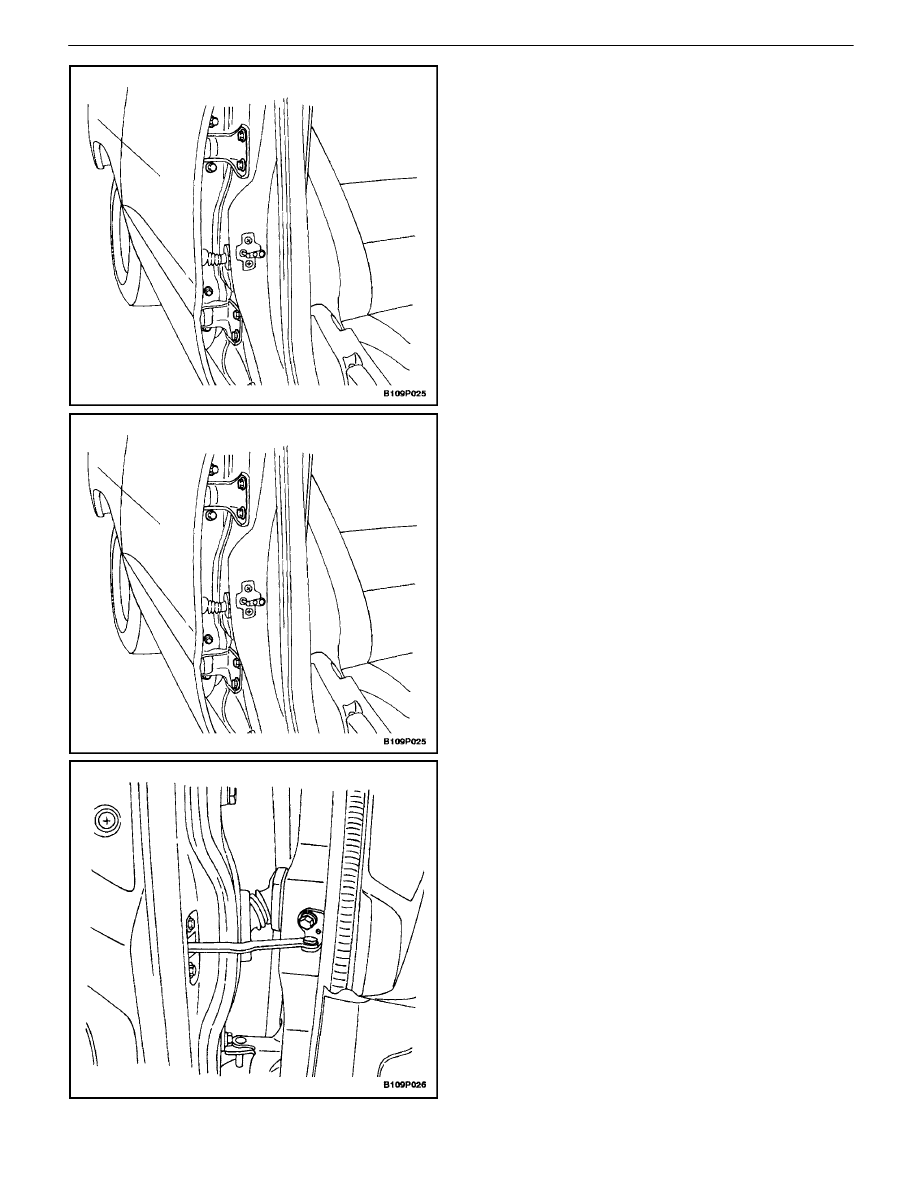

Removal Procedure

1.  Remove the door trim panel. Refer toSection 9G,

Interior Trim.

2.  Reposition the door seal trim.
3.  Remove the bolts on the door and on the body.
4.  Remove the door hold open link.

9P – 30

I

DOORS

DAEWOO V–121 BL4

Installation Procedure

Notice :  Dissimilar metals in direct contact with each other
may corrode rapidly. Make sure to use the correct fasten-
ers to prevent premature corrosion.

1.  Install the door hold open link to the door and the

body with the bolts.

Tighten

Tighten the door hold open link–to–body bolt to 27
N

S

m (20 lb–ft).

Tighten the door hold open link–to–door bolts to 6
N

S

m (53 lb–in).

2.  Reposition the door seal trim.
3.  Install the door trim panel. Refer toSection 9G, Inte-

rior Trim.

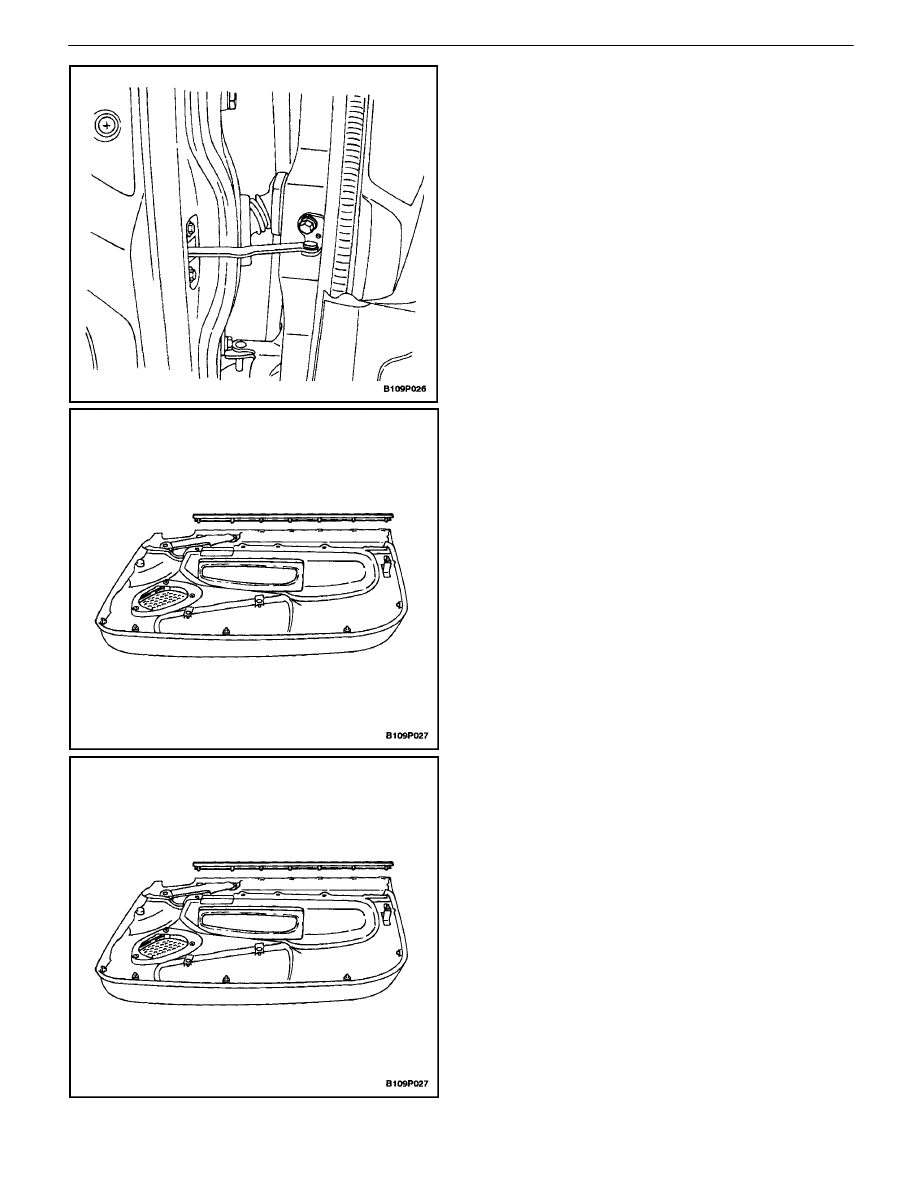

INSIDE CHANNEL MOLDING

Removal Procedure

1.  Remove the door trim panel. Refer to Section 9G,

Interior Trim.

2.  Straighten the retaining tabs in order to release the

channel molding from the door trim panel.

3.  Remove the channel molding.

Installation Procedure

1.  Install the channel molding onto the door trim panel.
2.  Bend the retaining tabs to secure the channel mold-

ing to the door trim panel.

3.  Install the door trim panel. Refer to Section 9G, In-

terior Trim.
