Removal and installation

CAB HEATING

ΧΦ65/75/85 series

1

3

5.

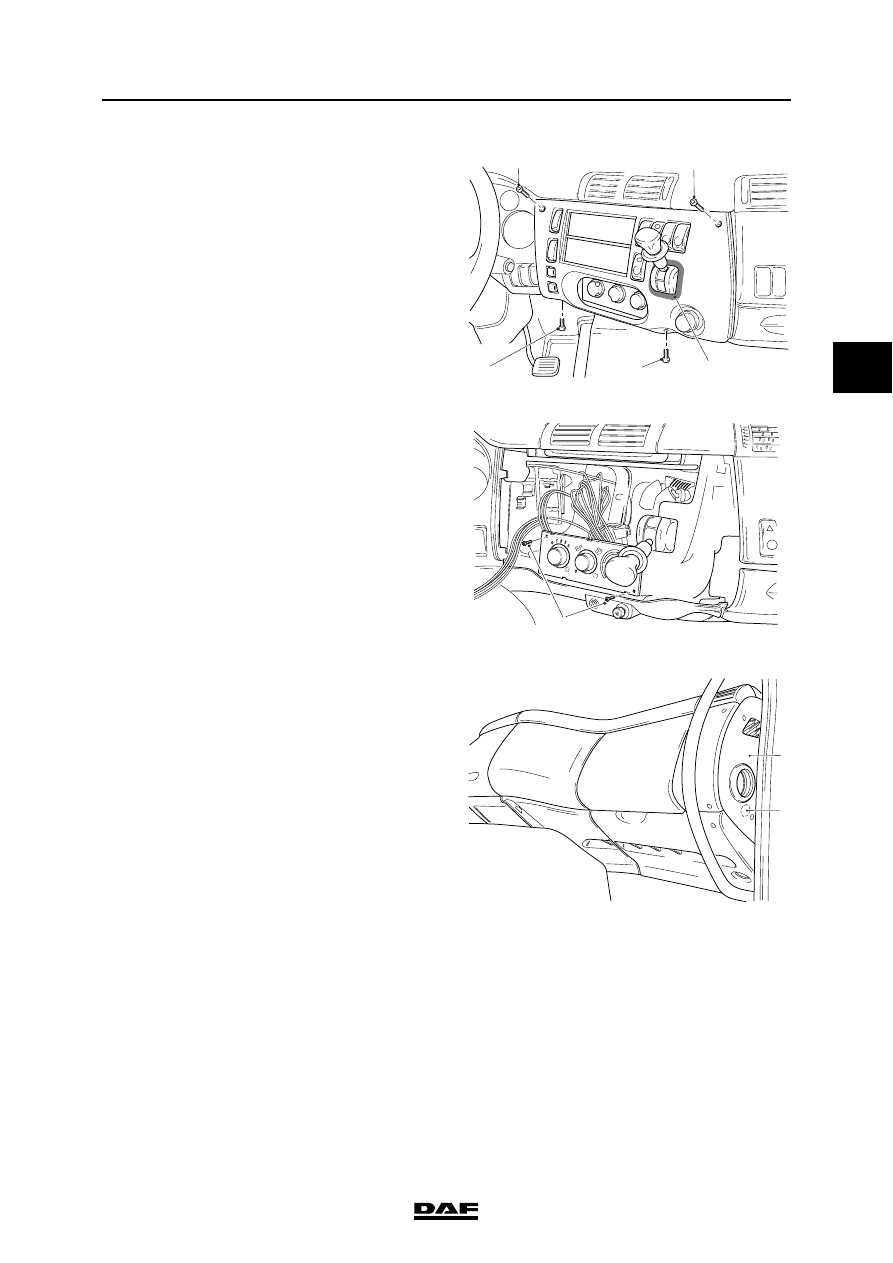

Remove the grommet (1) and the attachment
bolts (2). Remove the radio panel.

6.

Remove the attachment bolts (1) from the
heater control panel and put it to one side.

Note:
When removing the entire heater unit it may be
necessary to remove an air pipe from the parking
brake valve.

7.

Remove the dashboard panel (1) and
remove the panel clamp (2) that is behind the
dashboard panel (1).

8.

Remove the attachment bolts from the foot
air duct and remove the right part of the air
duct from below.

9.

Remove the left part of the air duct that is still
attached to the heater.

K1 00 934

2

2

2

2

1

K1 00 944

1

1

2

K1 01 127

CAB HEATING

4-4

©

 200346

Removal and installation

3

ΧΦ65/75/85 series

1

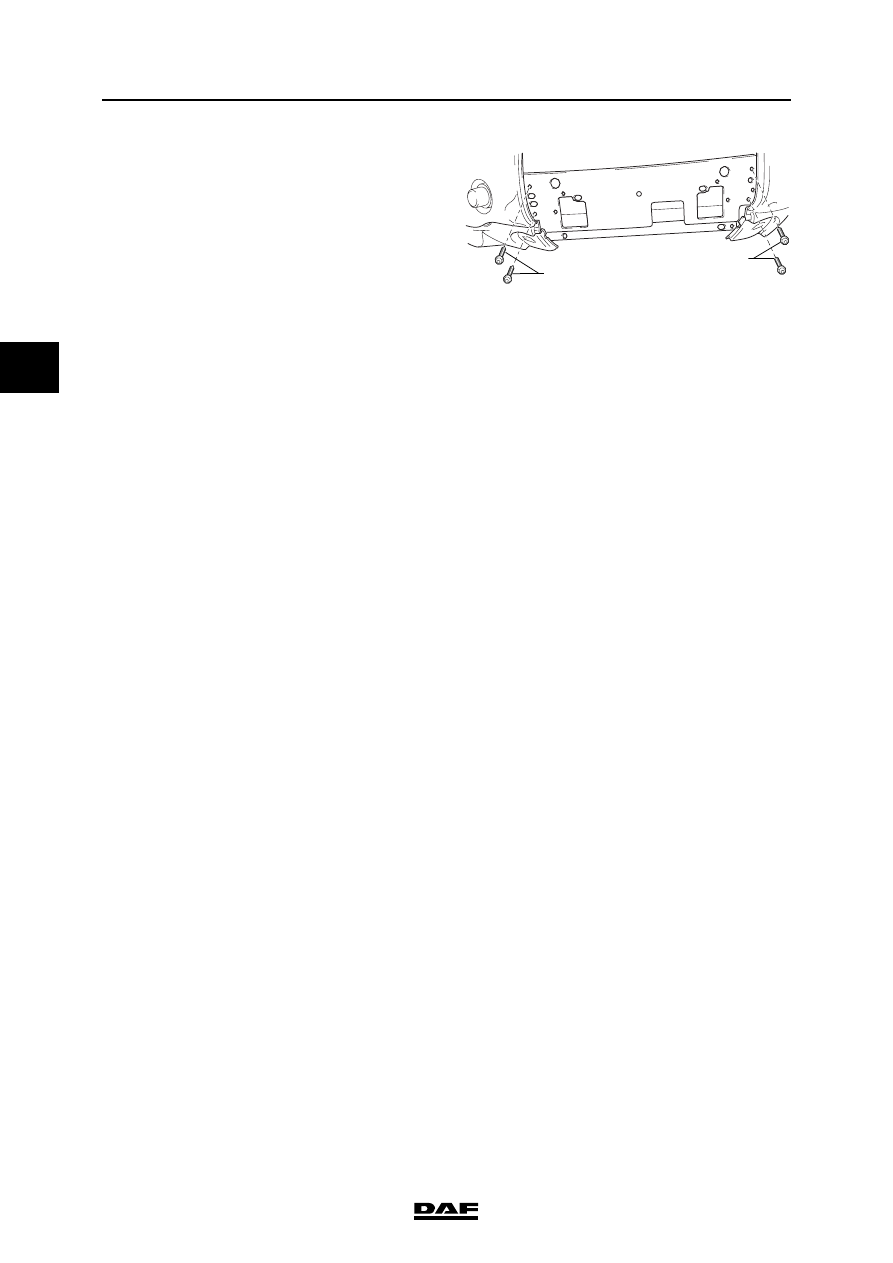

10. Remove the attachment bolts (1) from the

steel connecting piece of both dashboard
frames.

11. Remove the attachment bolts from the

central box and put it to one side.

12. Remove the attachment bolts from the steel

frame over the central box and remove the
frame.

Note:
If the vehicle has air conditioning fitted, any
work done on that must be done by a
qualified person.

13. Partially drain the coolant.

14. If relevant, empty the air conditioning unit.

15. Remove the coolant hoses and, if relevant,

the air conditioning pipes at the front of the
cab. Block off the connections to the coolant
hoses to prevent any coolant escaping into
the cab.

16. Remove the interior filter and remove the

plastic filter casing from the interior filter.

17. Remove the bolts from the heater fixings at

the front of the cab (exterior).

18. Remove the attachment bolts from the

heater fixings on the engine tunnel.

Note:
At the front of the heater, through the
bulkhead, is the condensation drain for the
air conditioning. If the heater is not first
moved straight backwards (

≥ 3 cm) and then

removed sidewards, this condensation drain
will break off.

19. Remove the connector from the heater.

20. Remove the heater unit.

Installing heater unit
1.

Fit the heater unit from the side and then
move it the last 3 cm straight back towards
the bulkhead.

2.

Fasten the heater unit in place with
attachment bolts on the engine tunnel and on
the exterior of the bulkhead.

3.

Attach the heater connector.

1

1

K1 01 099

©

 200346

4-5

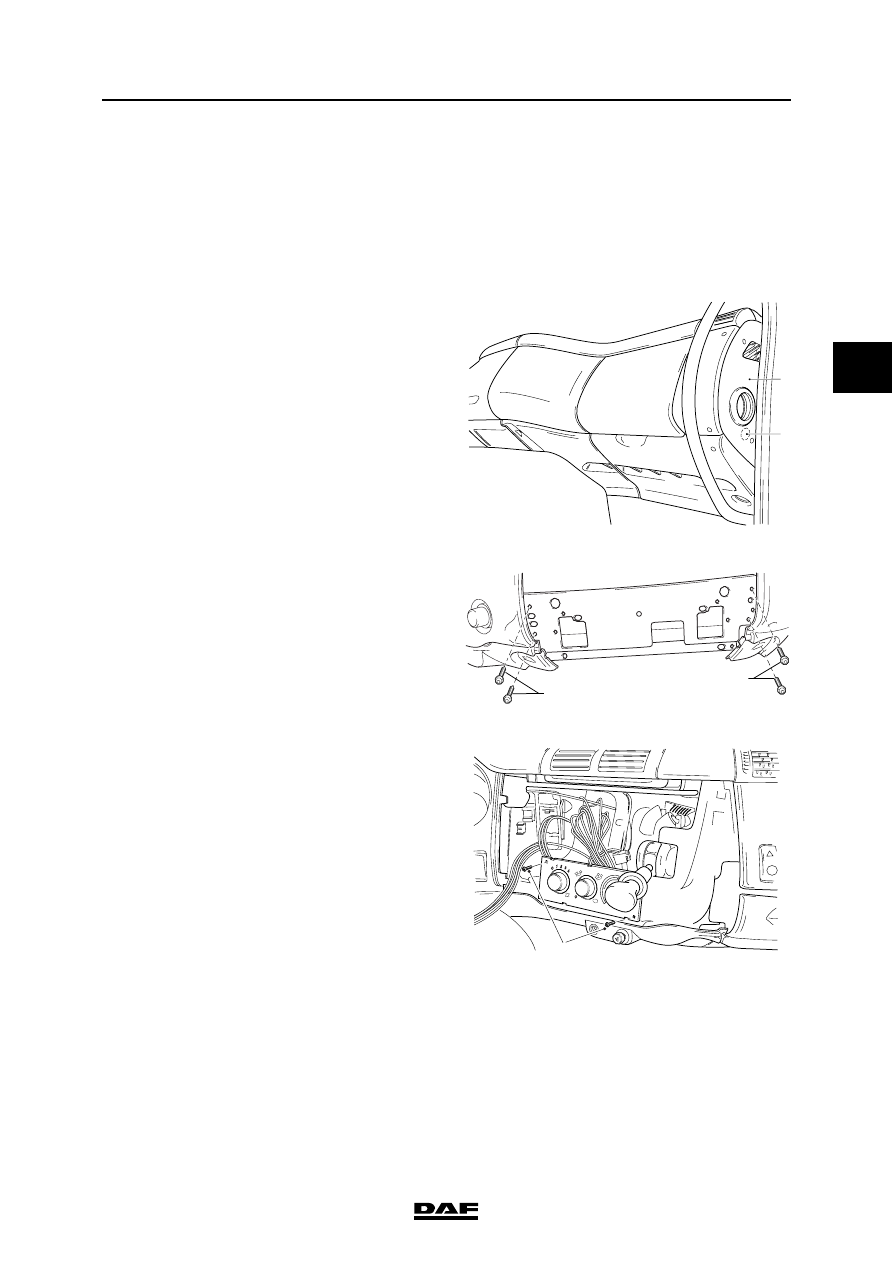

Removal and installation

CAB HEATING

ΧΦ65/75/85 series

1

3

4.

Remove the blocks from the coolant hoses
and attach the hoses.

5.

If applicable, fit the air conditioning pipes at
the front of the cab.

6.

Fit the plastic filter casing of the interior filter
and fit the interior filter.

7.

Fit the air ducts. Fix these under the central
box with the attachment bolts and at the end
with the panel clamp (2). Fit the dashboard
panel (1).

8.

Fit the steel joining piece between the
dashboard frames. Attach with the
attachment bolts (1).

9.

Put the control panel in place and fasten it
with the attachment bolts (1).

10. Fit the radio panel.

1

2

K1 01 127

1

1

K1 01 099

K1 00 944

1

CAB HEATING

4-6

©

 200346

Removal and installation

3

ΧΦ65/75/85 series

1

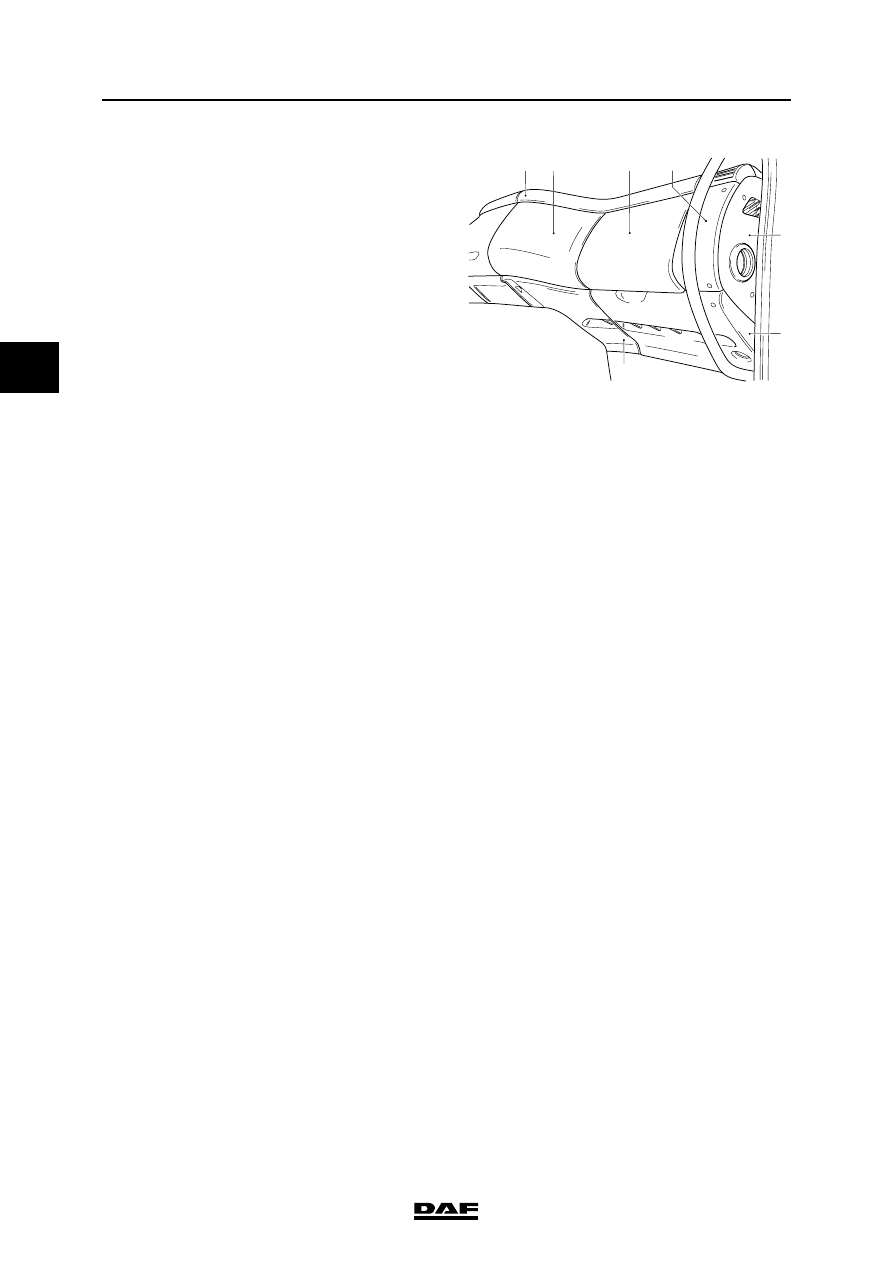

11. Fit the dashboard panels (2 to 7) on co-driver

side.

12. Fit the dashboard panel (1) at the top

13. Fit the dashboard panel on the central

console.

14. Fit the storage tray on the engine tunnel.

15. Fill the cooling system.

16. If applicable, fill the air conditioning system.
