General

LEAF SUSPENSION

ΧΦ65/75/85 series

9

5

During fierce braking on a rough road surface, the

leaf spring and the spring bracket have to deal

with the forces of the weight of the vehicle (which

is increased by driving over holes) and with the

braking forces at the same time. This results in a

considerable total force exerted on the leaf spring

and the spring bracket.

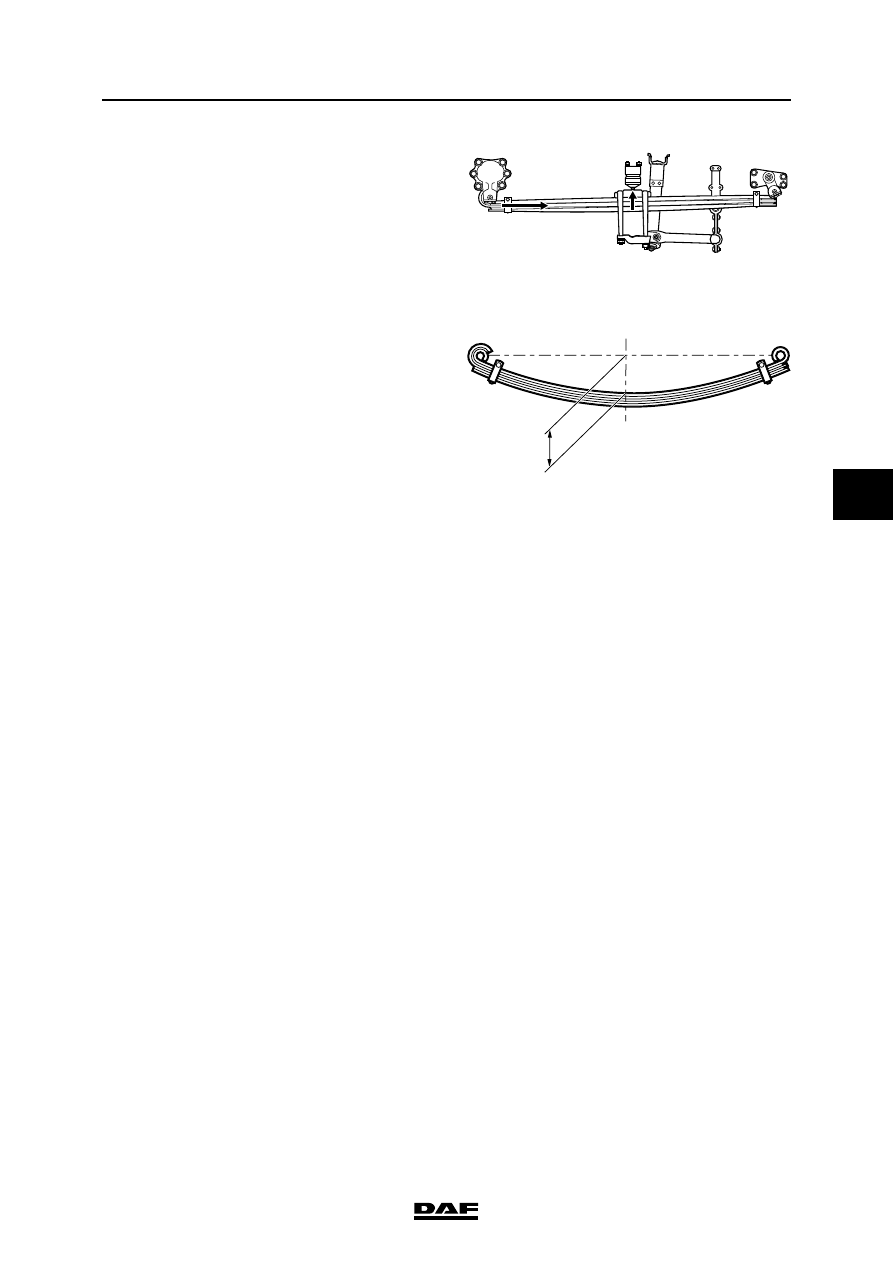

Spring opening
The spring opening (P in the drawing) indicates

the deflection of the spring.

The spring assembly is constructed to obtain the

optimum spring opening for a laden vehicle. If

possible, check the spring opening on both sides

of an evenly laden vehicle.

As a result of tolerances in the manufacturing

process, it is possible that the spring openings

differ from each other when the springs are

unloaded, but are equal when the springs are

loaded.

When spring assemblies are new, the difference

in spring opening is small. As a result of settling

of the spring assembly, the difference in spring

opening may increase.

When the springs are loaded they become longer

and the axle will move backwards. If the left and

right spring openings of one axle differ too much,

the result will be misalignment of both the vehicle

and the axle.

w9 04 004

P

W9 04 005

LEAF SUSPENSION

2-4

©

 200448

General

5

ΧΦ65/75/85 series

9

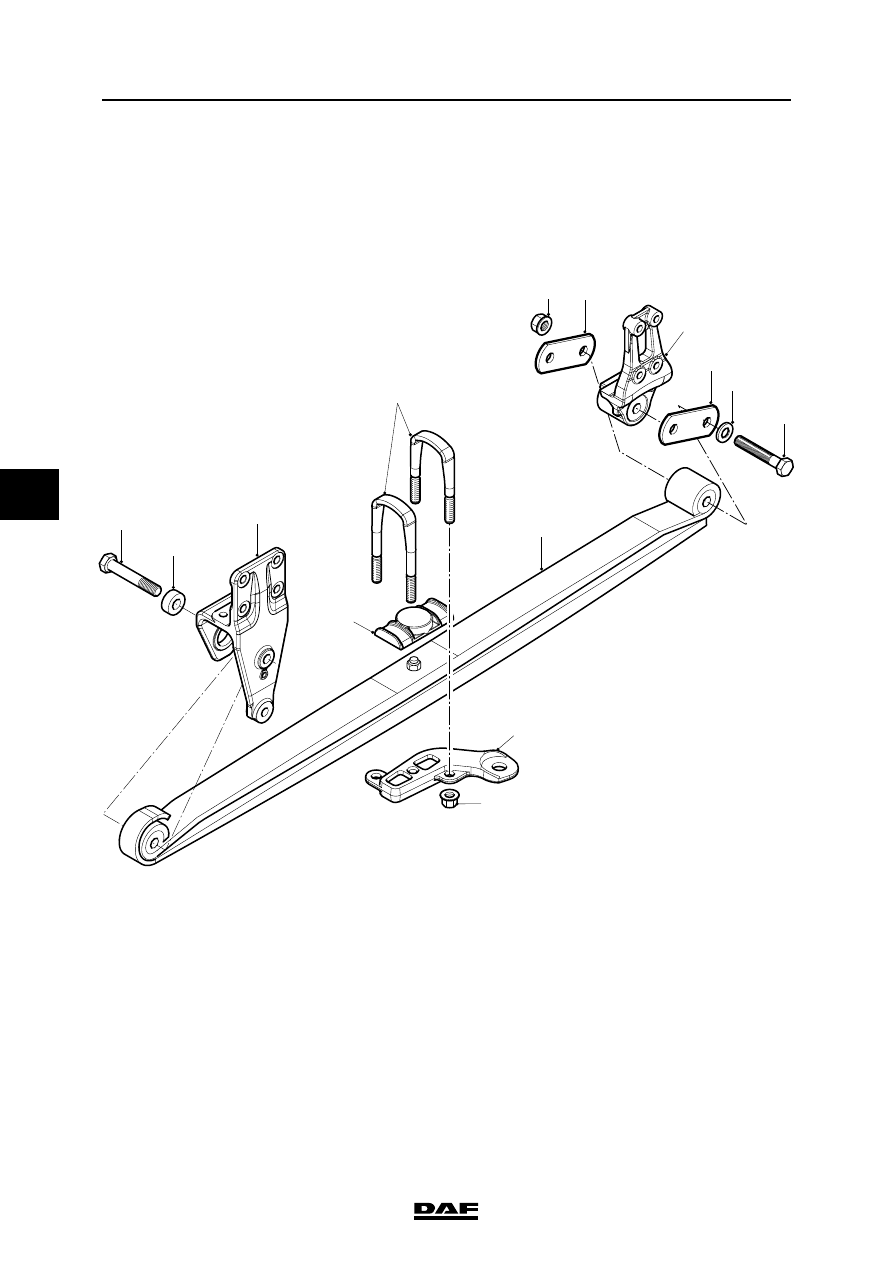

2.2 OVERVIEW DRAWING, SINGLE-AXLE SUSPENSION WITH BOLT

ATTACHMENT

Note:

This drawing gives a general view and may differ

from the actual situation on the vehicle.

1

2

3

8

9

10

10

12

13

11

5

6

7

4

C9 00 305

1.

Attachment bolt

2.

Slide bush

3.

Spring bracket

4.

U-bolt

5.

Upper spring seat

6.

Shock absorber bracket

7.

U-bolt nut

8.

Spring assembly

9.

Attachment nut

10.

Shackle seat

11.

Spring bracket

12.

Sealing ring

13.

Attachment bolt

©

 200448

2-5

General

LEAF SUSPENSION

ΧΦ65/75/85 series

9

5

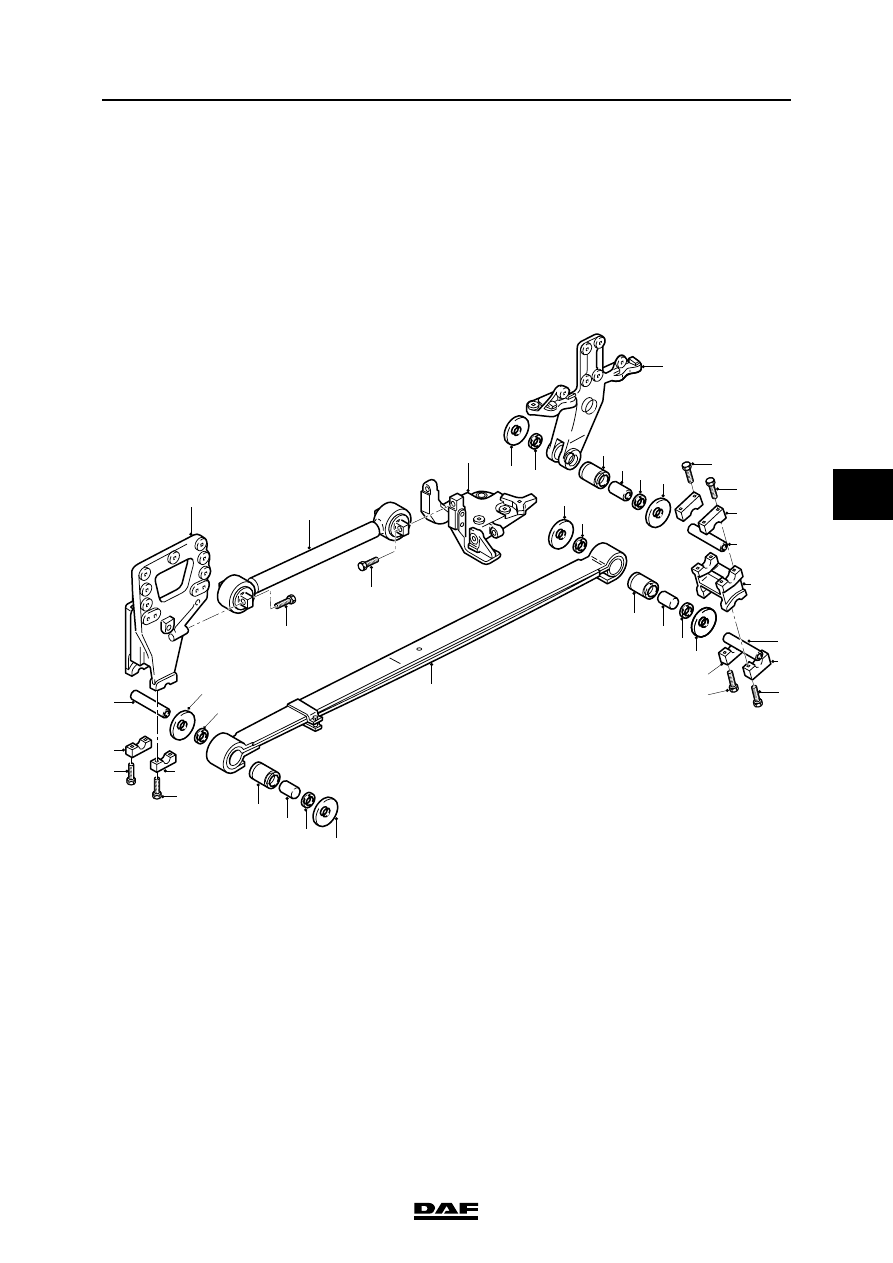

2.3 OVERVIEW DRAWING, SINGLE-AXLE SUSPENSION WITH PIN

ATTACHMENT

Note:

The spring suspension with pin attachment is a

feature of the spring leaf of the air-sprung front

axle suspension.

This drawing gives a general view and may differ

from the actual situation on the vehicle.

C900301

1

2

4

10

11

12

9

8

8

9

8

9

5

6

7

7

6

8

9

4

7

7

14

7

7

6

6

5

5
6

13

3

9

9

11

11

10

10

8

8

1.

Spring bracket

2.

Torque rod

3.

Torque rod bracket

4.

Attachment bolt

5.

Shackle pin

6.

Locking plate

7.

Attachment bolt

8.

Ring

9.

Sealing ring

10.

Shackle bush

11.

Bearing bush

12.

Leaf spring

13.

Spring shackle

14.

Spring bracket

LEAF SUSPENSION

2-6

©

 200448

General

5

ΧΦ65/75/85 series

9

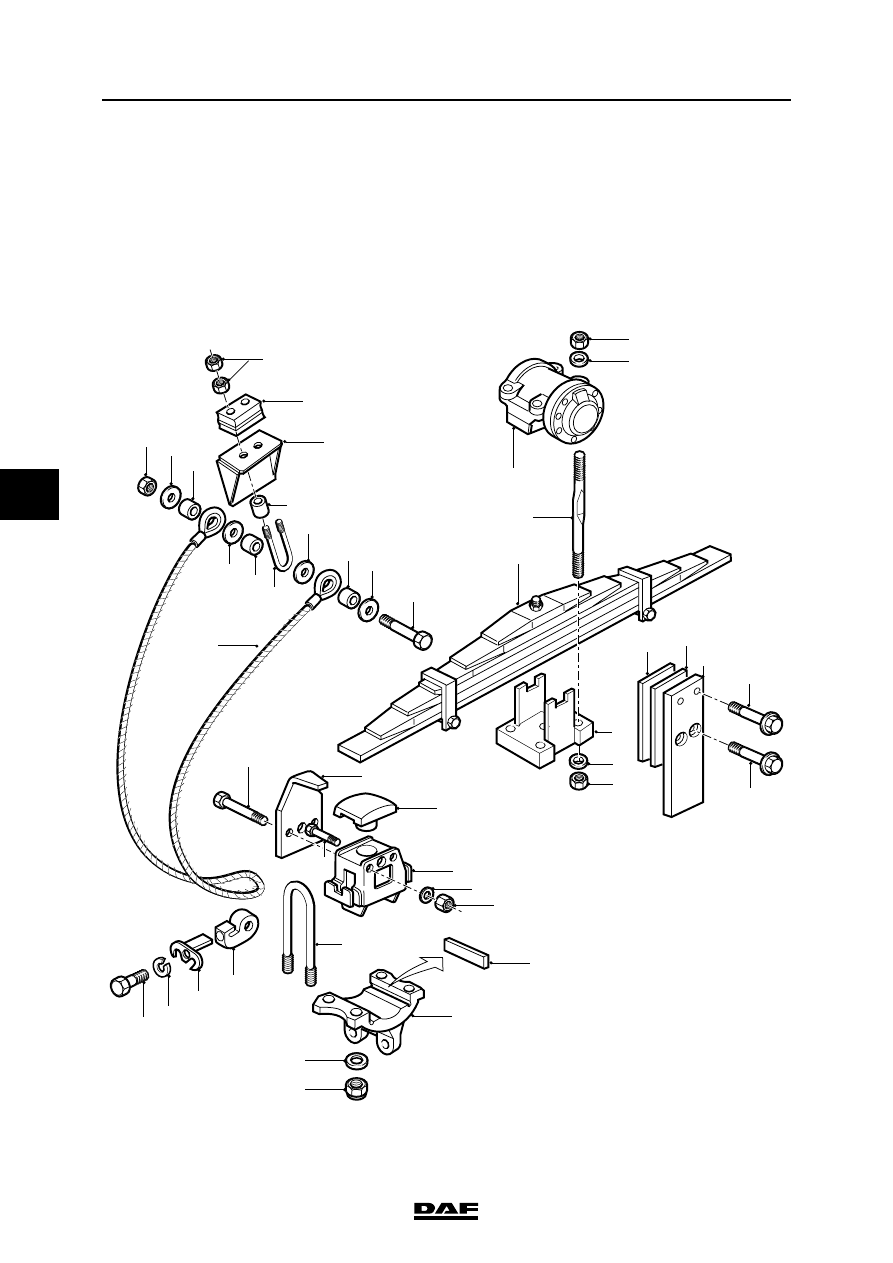

2.4 OVERVIEW DRAWING, TANDEM AXLE SUSPENSION

Note:

The tandem axle suspension may have a

trapezoidal or parabolic leaf spring assembly.

The trapezoidal leaf spring assembly is shown in

the drawing. Neither an arresting cable nor an

alignment plate is used for the parabolic leaf

spring assembly.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21
22

23

24

25

26
27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

W904016
