DAF CF65, CF75, CF85 Series . Manual - part 1090

©

 200448

1-5

General

STABILISERS AND TORQUE RODS

ΧΦ65/75/85 series

9

4

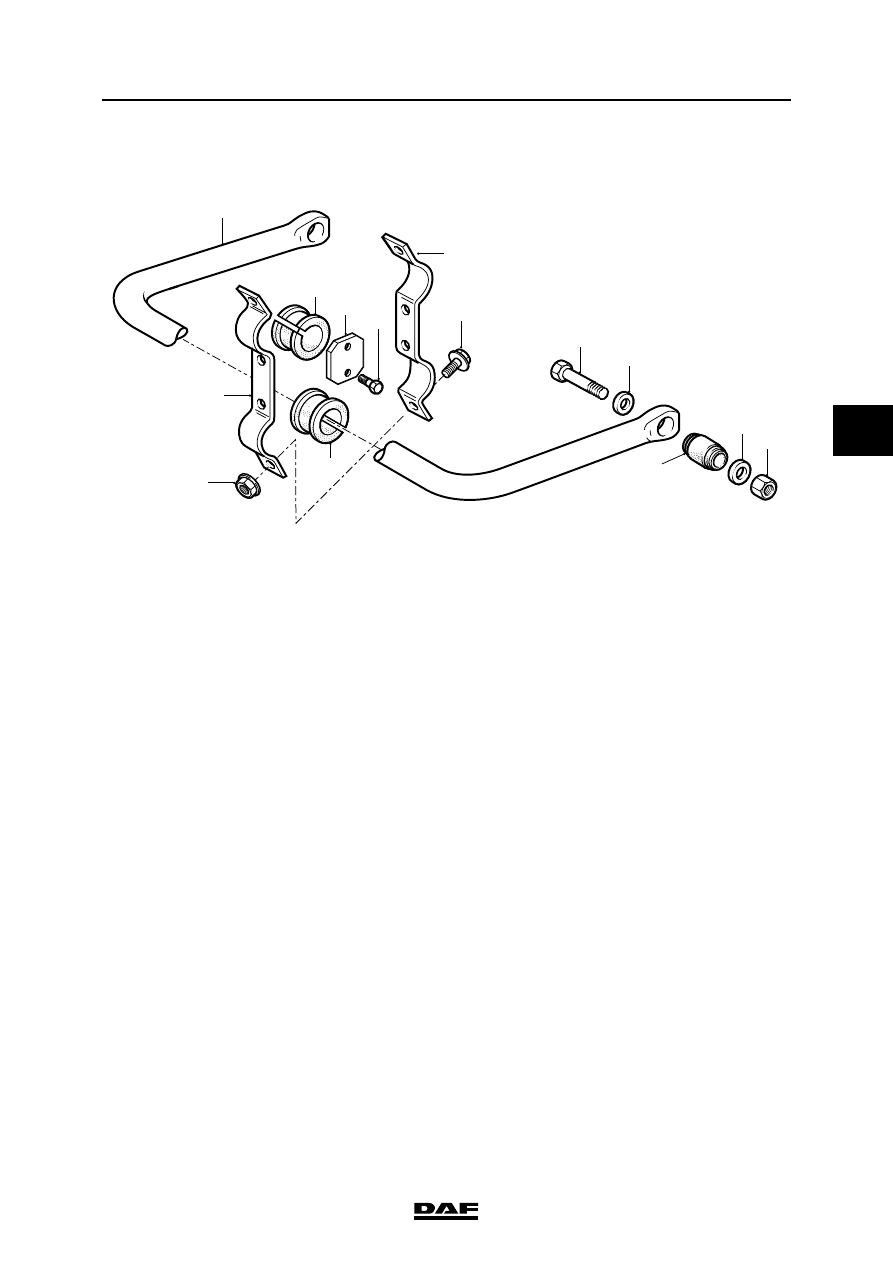

1.5 OVERVIEW DRAWING, LEADING REAR AXLE STABILISER

9

1

8

3

7

2

4

5

6

10

11

13

14

C9 00 313

12

1.

Stabiliser bar

2.

Bracket

3.

Attachment bolt

4.

Bearing bush

5.

Locking plate

6.

Attachment bolt

7.

Bearing bush

8.

Bracket

9.

Attachment nut

10.

Attachment bolt

11.

Ring

12.

Silentblock

13.

Ring

14.

Attachment nut

STABILISERS AND TORQUE RODS

1-6

©

 200448

General

4

ΧΦ65/75/85 series

9

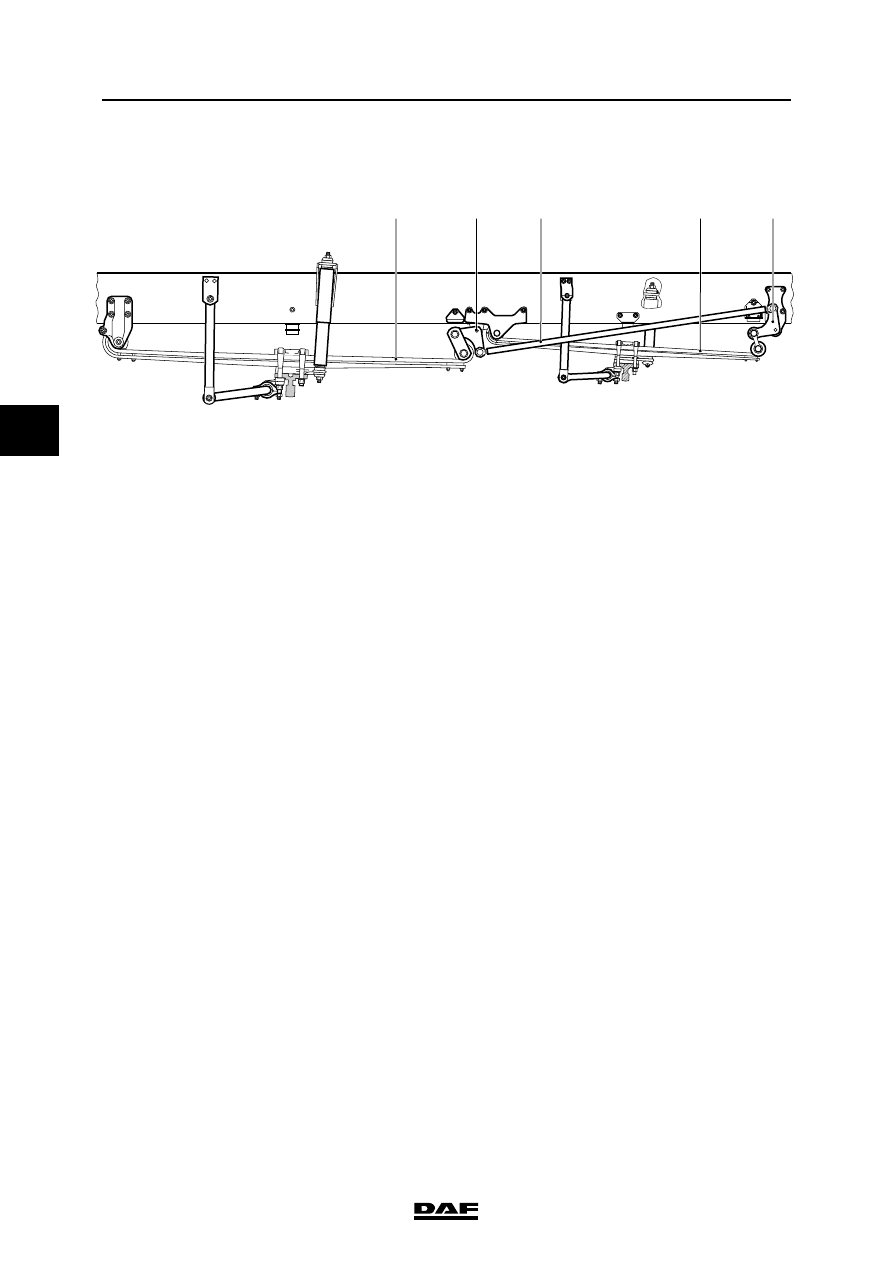

1.6 DESCRIPTION OF AXLE LOAD COMPENSATION DEVICE

Vehicles equipped with a double front axle are

fitted with an axle load compensation device.

The axle load compensation device ensures that

the vehicle weight is distributed evenly over both

front axles.

Via the shackle (2), rod (3) and shackle (5) force

is transferred from the front spring assembly (1)

to the rear spring assembly (4) and vice versa.

C9 00 503

2

1

3

4

5

©

 200448

2-1

Removal and installation

STABILISERS AND TORQUE RODS

ΧΦ65/75/85 series

9

4

2. REMOVAL AND INSTALLATION

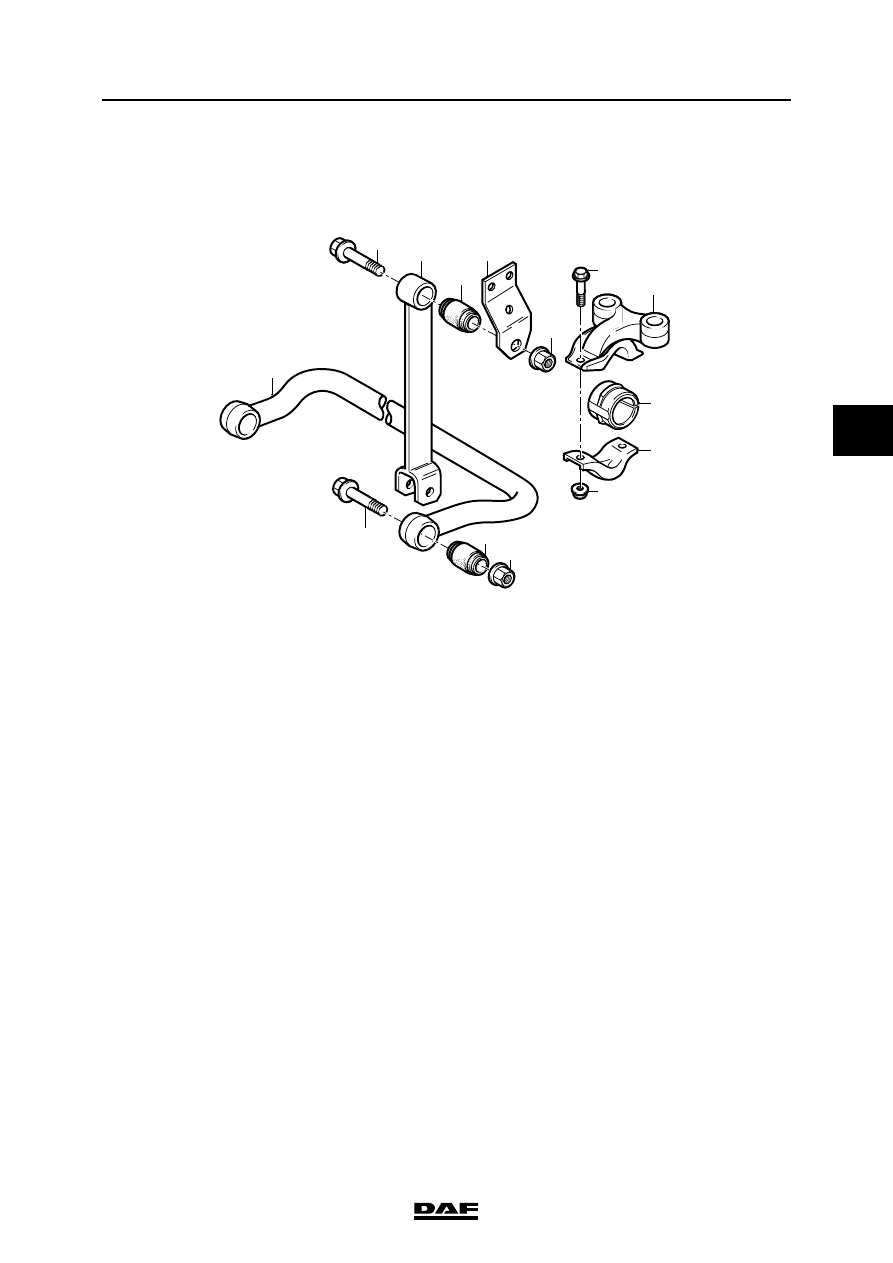

2.1 REMOVAL AND INSTALLATION, FRONT AXLE STABILISER

Removing front axle stabiliser
1.

Remove the bearing bush covers (13).

2.

Remove the attachment bolts (7).

3.

Remove the stabiliser bar (6) from under the

vehicle.

4.

Remove the bearing bushes (12) from the

stabiliser bar (6).

5.

Remove the attachment bolts (1) and the

shackles (2).

C9 00 292

2

6

1

8

7

9

3

5

4

11

12

13

10

14

STABILISERS AND TORQUE RODS

2-2

©

 200448

Removal and installation

4

ΧΦ65/75/85 series

9

Installing front axle stabiliser
1.

Check the condition of the silentblocks (3)

and (8) and the bearing bushes (12).

2.

Fit the shackles (2).

3.

Turn the bearing bush (12) so that the edges

come to rest in the support (11) and the

bearing bush cover (13).

4.

Fit the bearing bush covers (13).

5.

Install the stabiliser bar (6) in the

shackles (2).

6.

Fit the attachment bolts (7) with the heads

facing towards the chassis.

7.

Tighten the attachment bolts (1), (7) and (10)

to the specified torque, see "Technical data".
