6.

Fit the spring (6) on the pin of the magnet-

core (4).

7.

Oil the valve (7) and slide the valve into the

holder (8). Check for freedom of movement.

8.

Install the holder (8) with the adjusting ring(s)

(3) on the valve casing.

9.

Install the valve in the pump unit, see the

chapter "Removal and installation".

HYDRAULIC LIFTING GEAR

5-6

©

 200424

Disassembly and assembly

9

ΧΦ65/75/85 series

8

5.3 DISASSEMBLY AND ASSEMBLY, CYLINDER

Disassembling the cylinder
1.

Remove the cylinder from the vehicle, see

the chapter "Removal and installation".

2.

Check whether all the oil has been drained

from the cylinder.

3.

Clean the cylinder before disassembly. Work

in very clean conditions. Make sure that the

piston rod is not damaged during the repair

or maintenance activities.

4.

Remove the circlips (1) and push the

bearing (2) from the eye.

5.

Remove the circlip (4).

6.

Remove the dirt which has collected before

the O-ring (5) and remove the O-ring (5).

7.

Use a plastic mallet to carefully tap the

piston-rod guide (10) deeper into the

cylinder, until the spring clip (6) can be

removed. Make sure that the piston rod is not

damaged in the process.

8.

Remove the spring clip (6) from the cylinder.

9.

Pull the entire length of the piston rod (11)

out of the cylinder. The piston-rod guide (10)

will come out of the cylinder together with the

piston rod.

10. Remove the plastic rings (14) and (16) from

the piston.

11. Remove the nut (1) and use a plastic mallet

to tap the piston (13) from the piston rod.

12. Slide the piston-rod guide (10), the O-ring (5)

and the circlip (4) from the piston rod. Pay

attention to the position of the circlip.

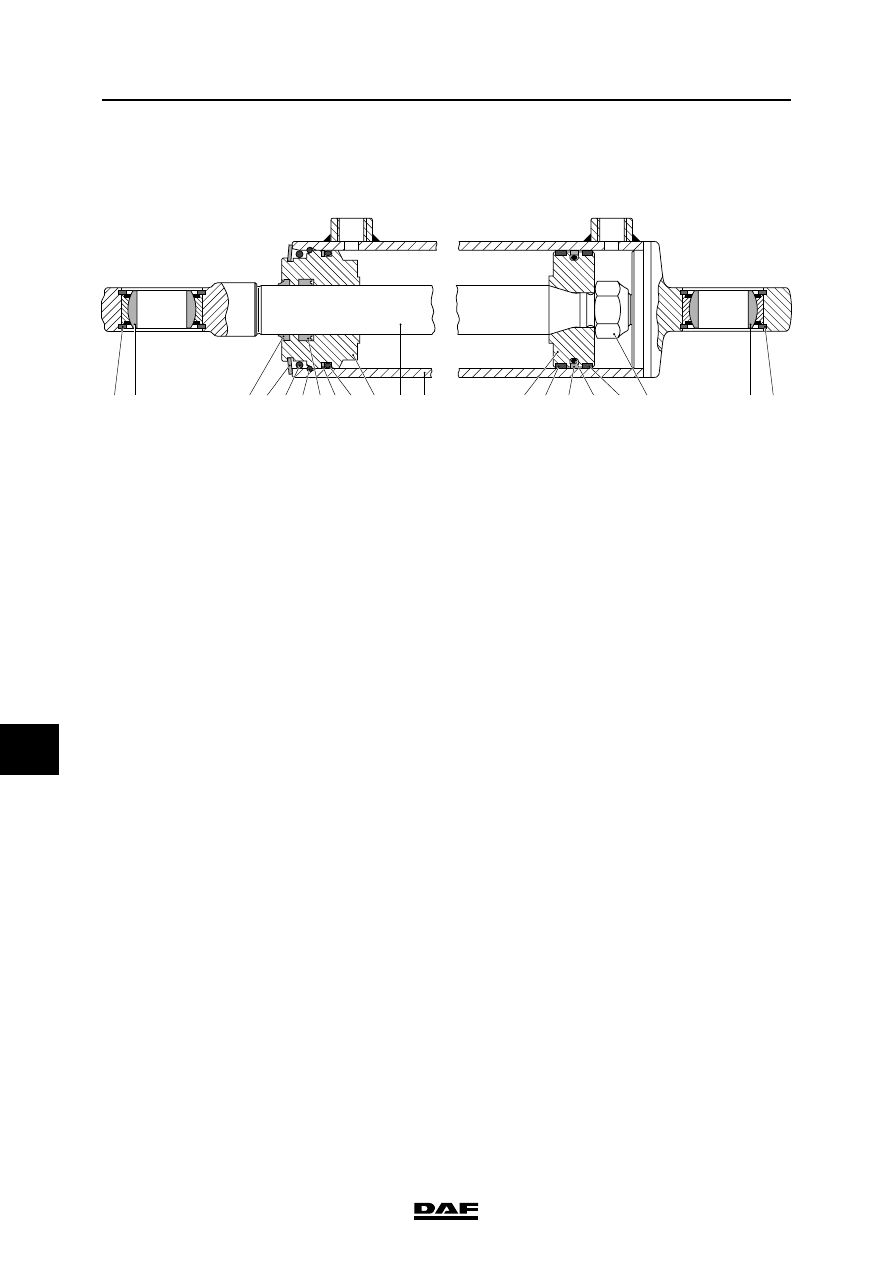

1 2

1

2

11 12

13 14 15 16 17 18

3 4 5 6

8 9

A

B

10

7

A8 00 248

©

 200424

5-7

Disassembly and assembly

HYDRAULIC LIFTING GEAR

ΧΦ65/75/85 series

8

9

13. Remove the dirt scraper (3), the sealing

ring (7), the O-ring (9) and the plastic ring (8)

from the piston-rod guide.

14. Remove the sealing ring (15) and the

underlying O-ring (16) from the piston.

Assembling the cylinder
1.

Check the sealing-ring chambers and

recesses, the dirt scraper and O-rings for

impurities.

Check the surfaces of the piston rod and the

cylinder casing for signs of wear and/or

damage. Even the slightest damage can

cause a leak.

Check the condition of the spring clip (6) and

the circlip (4). Replace if necessary.

Replace the sealing rings, dirt scraper and

O-rings.

Apply a layer of grease to the O-rings and

running surfaces of the sealing rings and dirt

scraper prior to assembly.

2.

Install the O-ring (16) on the piston (13).

3.

Heat the new sealing ring (15) for 5 minutes

in water at a temperature of 90

C.

4.

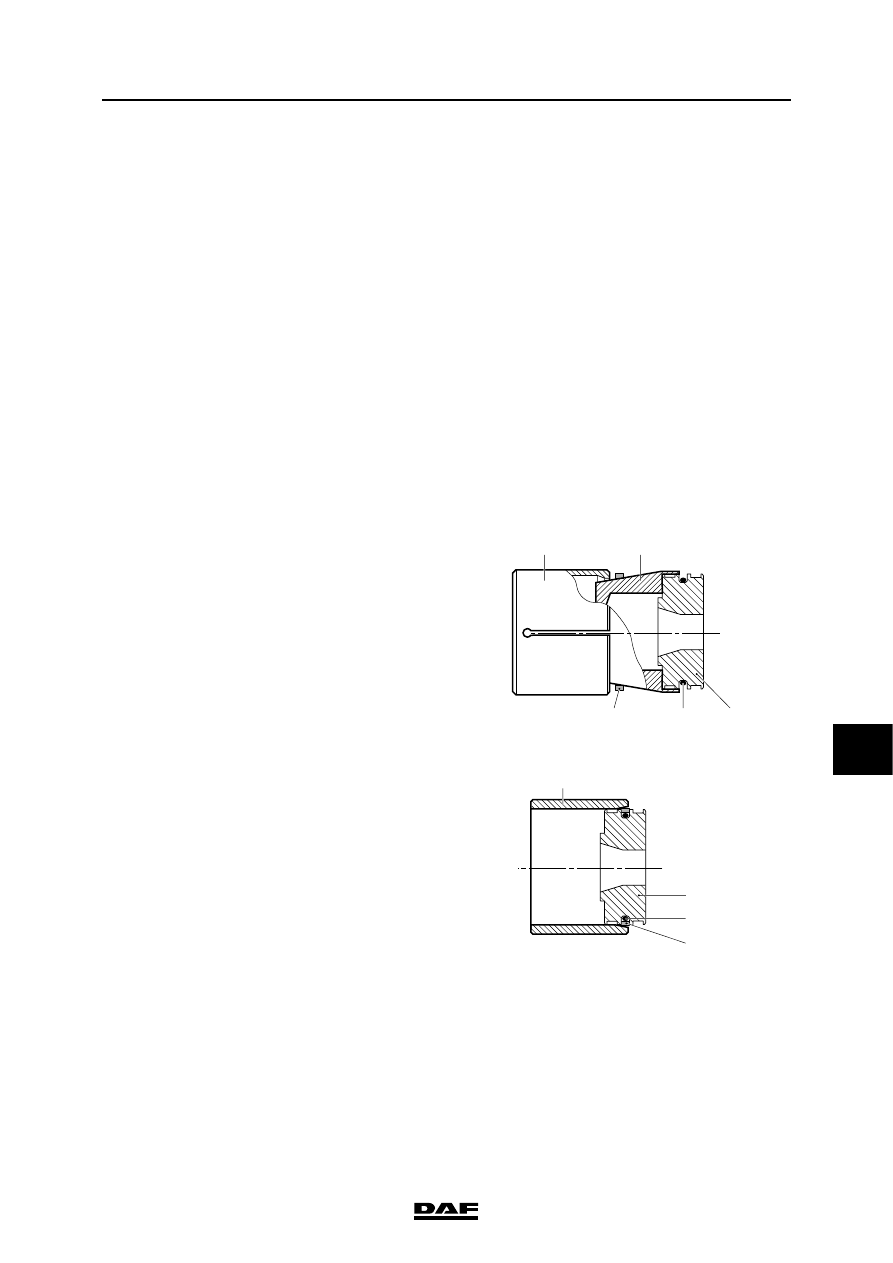

Position the special tool (DAF no. 1310472),

see "b" in the illustration, on the piston (13).

5.

Slide the heated sealing ring (15) onto the

piston using the special tool

(DAF no. 1310473), see "a" in the

illustration.

6.

Slide the special tool (DAF no. 1310474),

see "c" in the illustration, over sealing ring

(15) and leave the special tool on the sealing

ring for 5 minutes.

13

15

16

b

a

A8 00 260

13

15

16

c

A8 00 261

HYDRAULIC LIFTING GEAR

5-8

©

 200424

Disassembly and assembly

9

ΧΦ65/75/85 series

8

7.

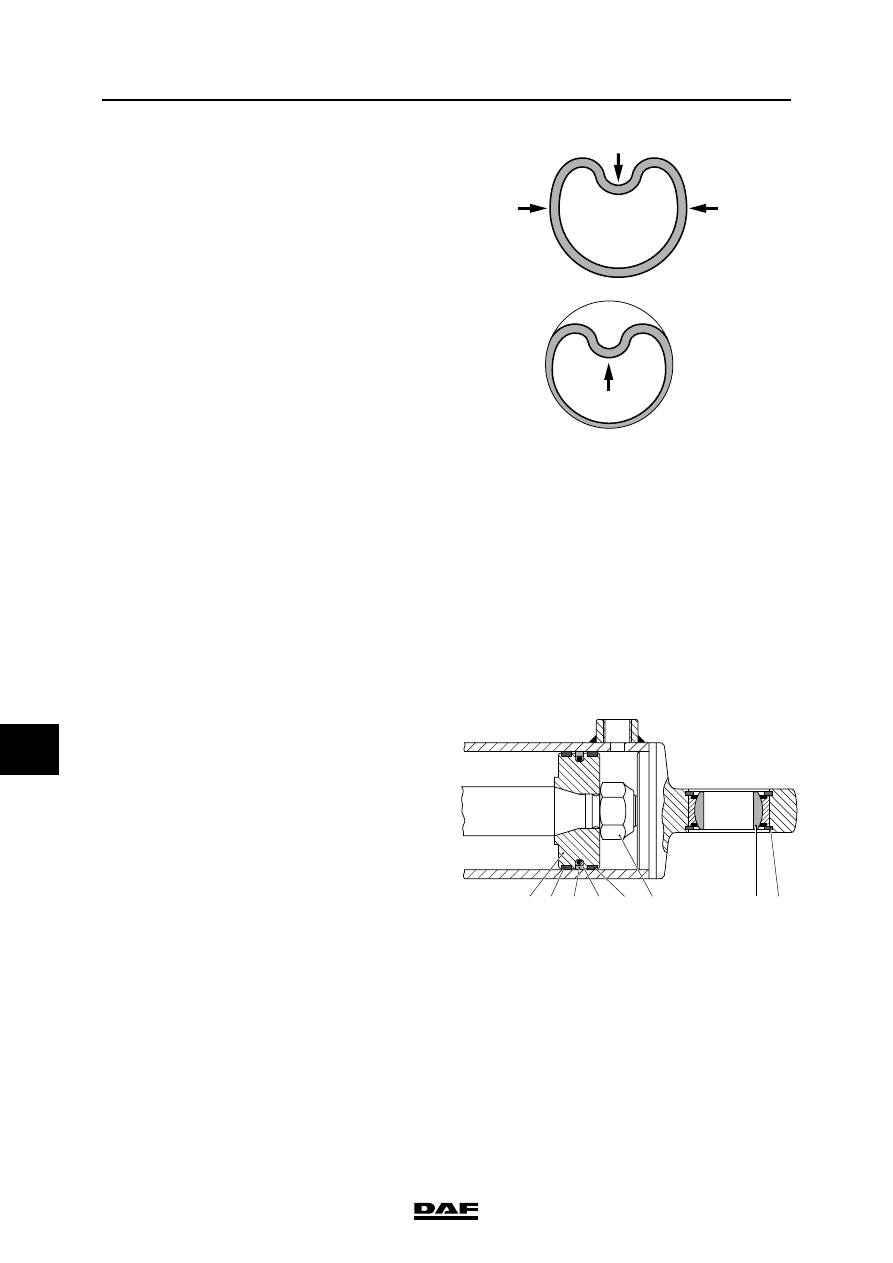

Install the sealing ring (7) with the recess
