1

©

 200528

2-21

Description of components

DMCI ENGINE MANAGEMENT SYSTEM

XF105 series

When the coil is deactivated by the electronic

unit, the valve is pushed up again by the spring

and the opening to the fuel gallery is released

again. This stops the supply of fuel to the injector.

i4 00 715

1

DMCI ENGINE MANAGEMENT SYSTEM

2-22

©

 200528

Description of components

XF105 series

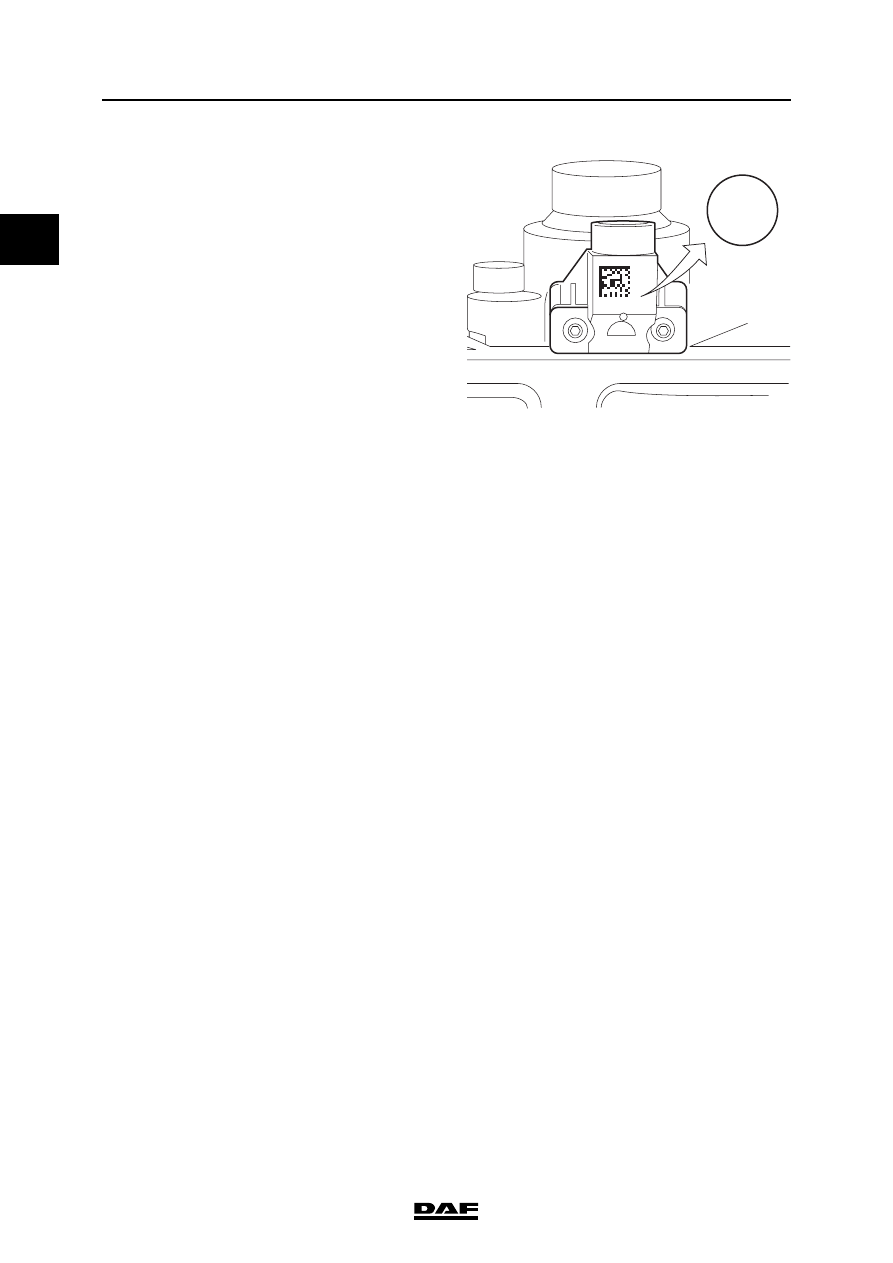

Every pump unit is calibrated after production to

compensate for any inaccuracies/differences in

production. There is a 4-letter calibration code on

the housing of the electrical connections. The

code must be programmed into the electronic unit

so that the unit can optimise controls for fuel

injection. If the pump unit is replaced or moved,

the calibration code must be programmed into the

electronic unit again using DAVIE XD.

1621297

00000FMFM

SN 03030209

FMFM

30209

i400771

1

©

 200528

2-23

Description of components

DMCI ENGINE MANAGEMENT SYSTEM

XF105 series

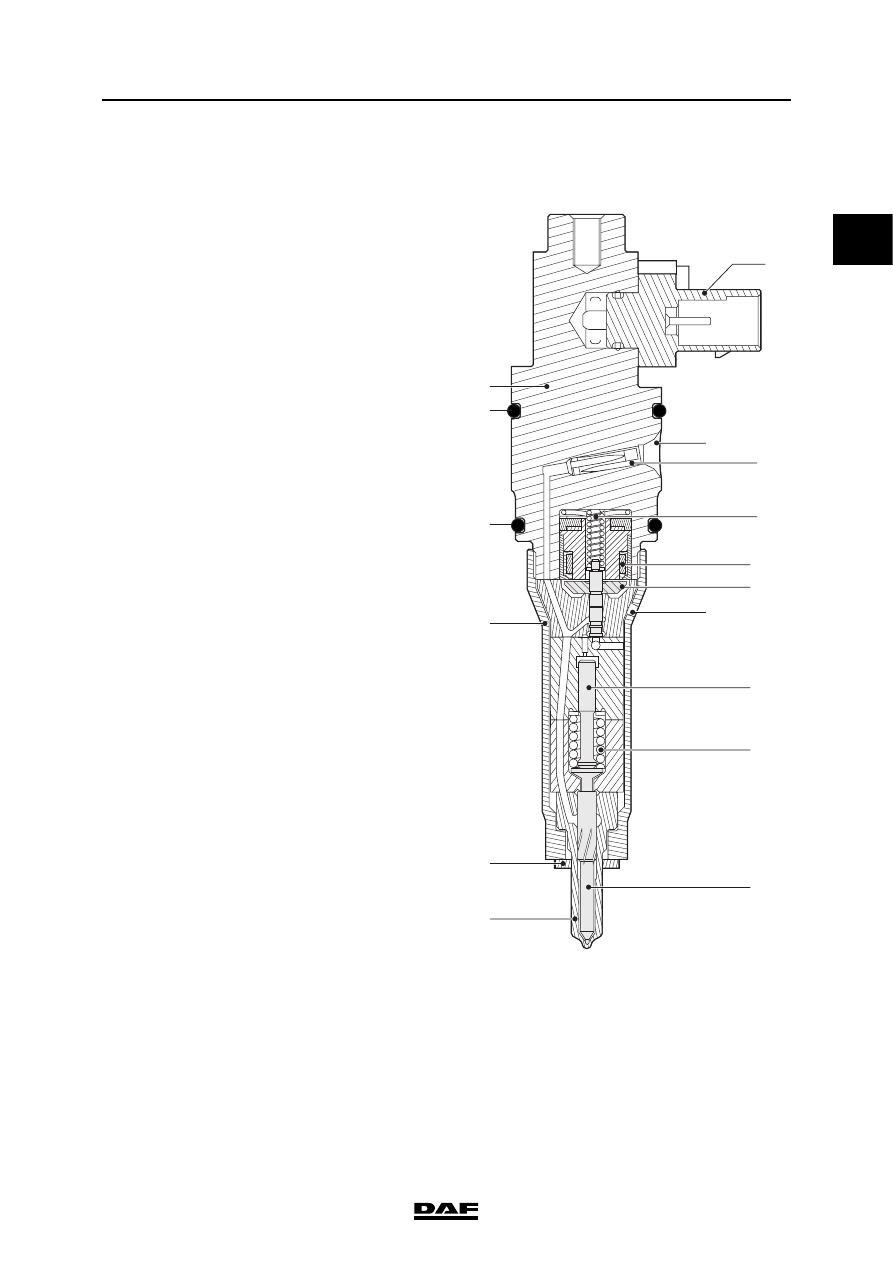

2.12 INJECTOR

General

The pump unit supplies fuel to the injector. The

injector consists essentially of two parts. The top

part is a metal housing (1), to which the electrical

connector (7) is attached. The coil (10) and spring

(9) that open and close the valve (11) are also in

the housing. The bottom part bears the closest

resemblance to a conventional injector. The valve

(11) and its guide are in this part, the nozzle

holder (4). Below this are the plunger (12) and

spring (13) and finally the nozzle (6), with the

injector needle (14) inside. The copper washer

(5) is under the nozzle holder.

The fuel enters the injector via the supply (A), in

which the bar filter (8) is pressed. The return fuel

leaves the injector via the opening (B) and flows

into the cylinder head return duct.

7

A

8

9

10
11

12

13

14

6

5

4

3

2

1

i400721

B

A.

Fuel supply

B.

Return opening

1.

Injector body

2.

O-ring

3.

O-ring

4.

Nozzle holder

5.

Washer

6.

Nozzle

7.

Electrical connection

8.

Bar filter

9.

Spring

10.

Coil

11.

Valve

12.

Plunger

13.

Plunger spring

14.

Injector needle

1

DMCI ENGINE MANAGEMENT SYSTEM

2-24

©

 200528

Description of components

XF105 series

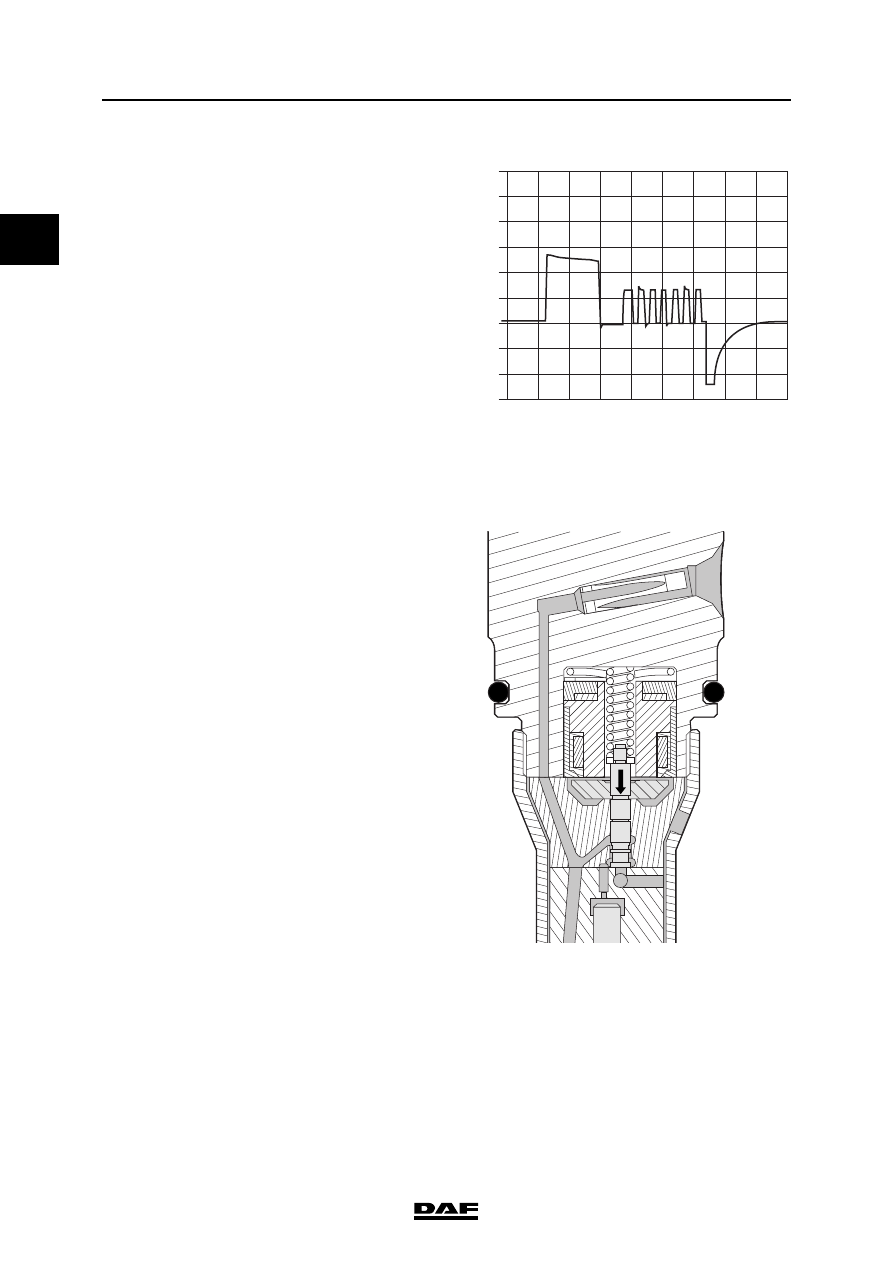

Electrical control
The injector is activated with a voltage of

approximately 50V. This voltage is the discharge

from a capacitor in the DMCI electronic unit. The

current increases rapidly because of this

relatively high voltage. As a result, the valve in the

injector opens quickly. This is the pick-up phase.

If the current were not limited, it would become

too high and damage the coil in the injector. The

increase in the current is limited by switching to

pulsating control of approximately 24V after

discharging the capacitor. This is the withstand

phase. The current now remains high enough to

hold the valve open. The length of the pick-up

phase stays practically the same under all

circumstances. The length of the withstand phase

will vary depending on the calculations carried

out by the electronic unit. When the pump unit is

deactivated a negative induction peak is created

by switching off the current through the injector

coil.

Operation
In the rest position, the valve is pushed down by

the spring above the valve. The opening to the

return is now closed.

U (V)

60

40

20

  0

i400846

i4 00 722
