DMCI engine management system

TECHNICAL DATA

XF105 series

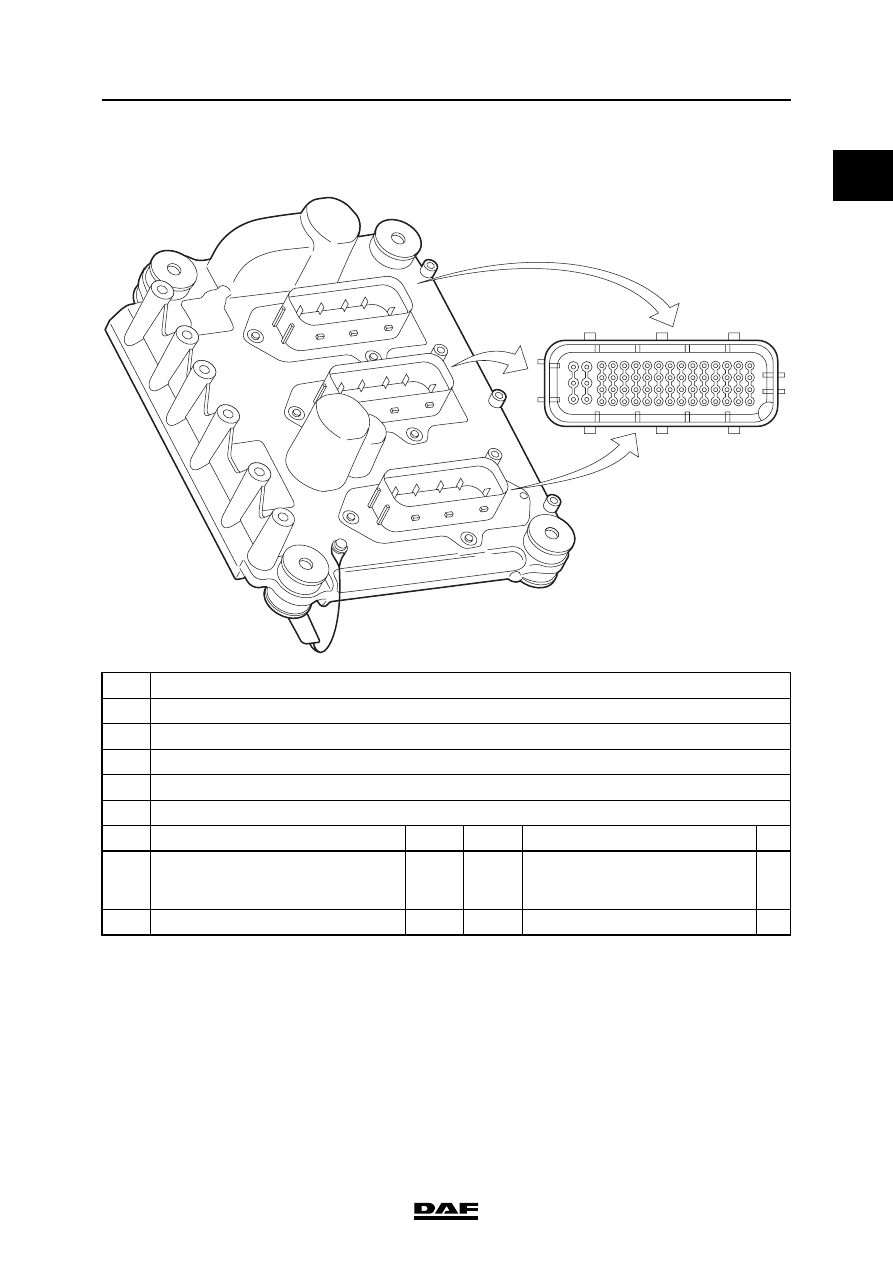

1.11 CAMSHAFT SENSOR

(1) Measurements taken with multimeter in "AC voltage" position (VAC).

(2) Measured on connection points 1 and 2 of the sensor.

A

C

B

i400726

1

4

5

9

13

17

21

25

29

33

37

41

45

49

53

57

60

62

A

Electronic unit connection point

B

Description of connection point

C

Reading at connection point (Ubat = battery voltage)

D

Measuring unit

E

Explanatory notes (if applicable)

F

Additional information available in Technical Data at "X" mark

A

B

C

D

E

F

A53

Input signal camshaft sensor (F558)

-

Hz /

(VAC)

Frequency depends on the

speed

X

A54

Earth, camshaft sensor (F558)

0

V DC

A61

Shield signal camshaft sensor (F558)

0

V DC

Type

Inductive

Signal version

sine-wave alternating voltage

Total number of pulses for every two crankshaft

revolutions

7

Effective voltage when starting

approx. 0.5 V

(1)

Effective voltage when idling

approx. 2.0 V

(1)

Effective voltage at 1200 rpm

approx. 4.0 V

(1)

Resistance value

860

 ≥ 10% at 20C

(2)

0

TECHNICAL DATA

1-22

©

 200528

DMCI engine management system

XF105 series

6

2

4

s 1

5

3

0

a

b

I400762

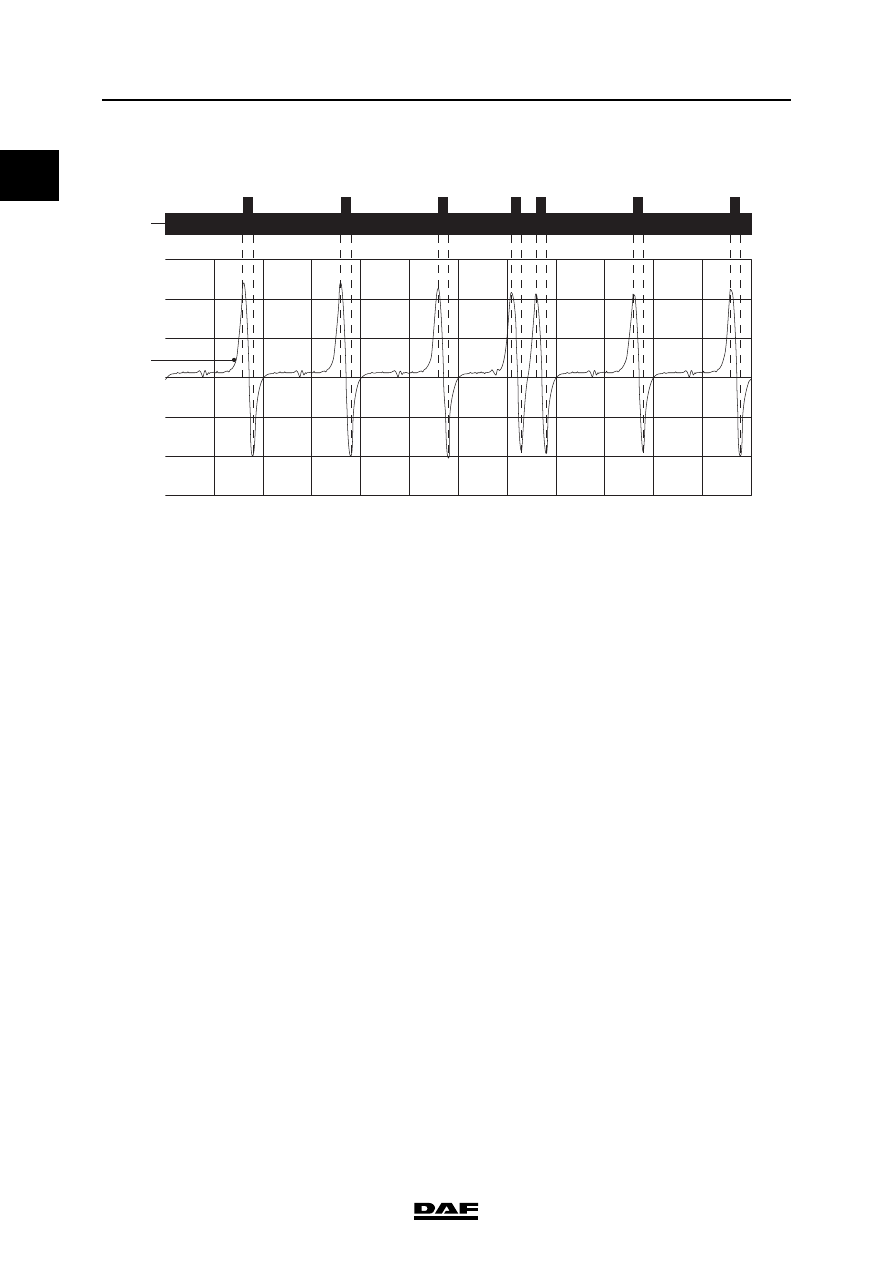

a.

Pulse wheel

b.

Camshaft sensor signal

0

©

 200528

1-23

DMCI engine management system

TECHNICAL DATA

XF105 series

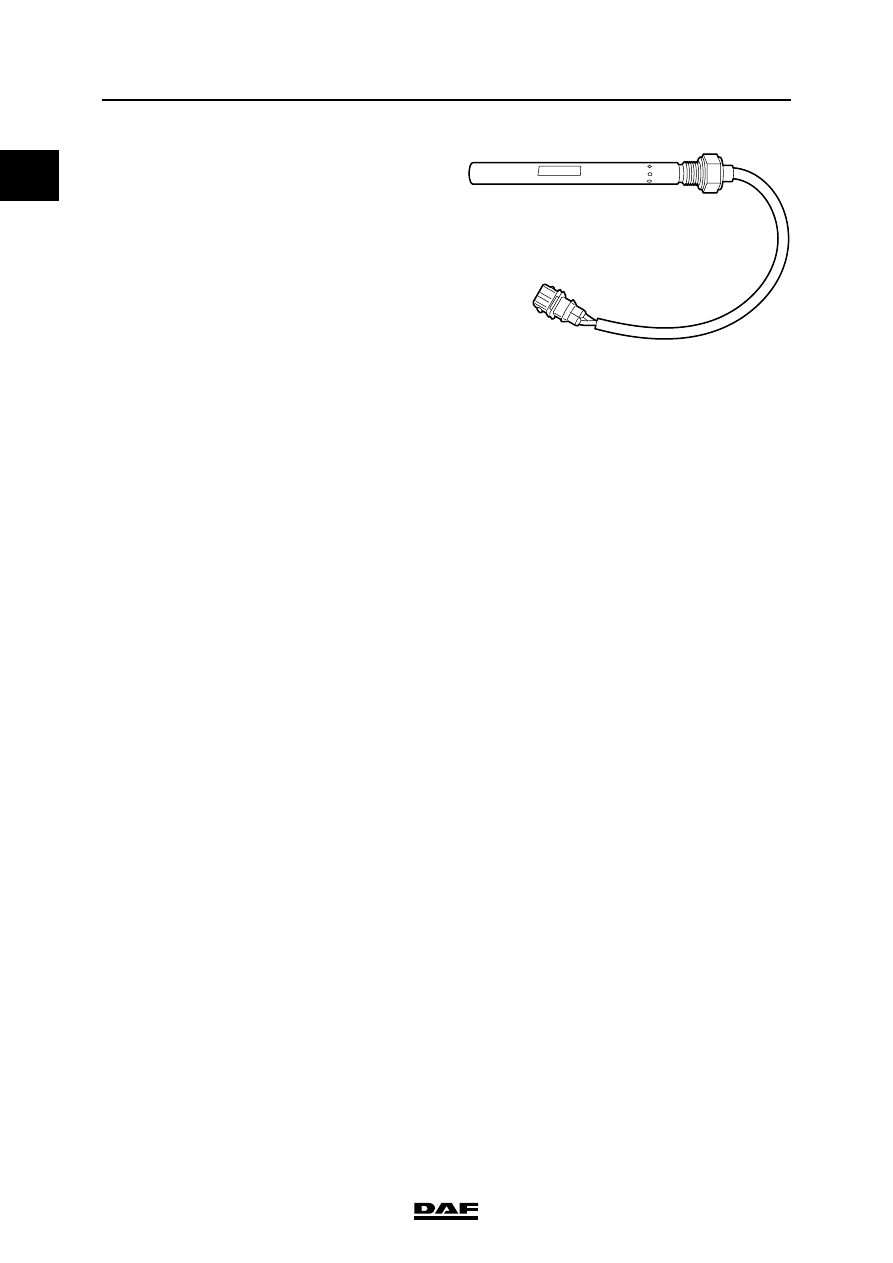

1.12 ENGINE OIL LEVEL SENSOR

A

C

B

i400726

1

4

5

9

13

17

21

25

29

33

37

41

45

49

53

57

60

62

A

Electronic unit connection point

B

Description of connection point

C

Reading at connection point (Ubat = battery voltage)

D

Measuring unit

E

Explanatory notes (if applicable)

F

Additional information available in Technical Data at "X" mark

A

B

C

D

E

F

B13

Output and input signal oil level

sensor (F673)

-

V DC

Voltage increase or decrease

depending on the oil level and the

oil temperature

B14

Earth oil level sensor (F673)

0

V DC

0

TECHNICAL DATA

1-24

©

 200528

DMCI engine management system

XF105 series

(1) During the measurement of the resistance value the

current may not be more than 200mA.

E501146

Supply voltage

approx. 24 V

Resistance value (at 20

C)

20.5 - 23.5



(1)
