DAF LF45, LF55 Series. Manual - part 679

©

 200419

61

ENGINE



2

2

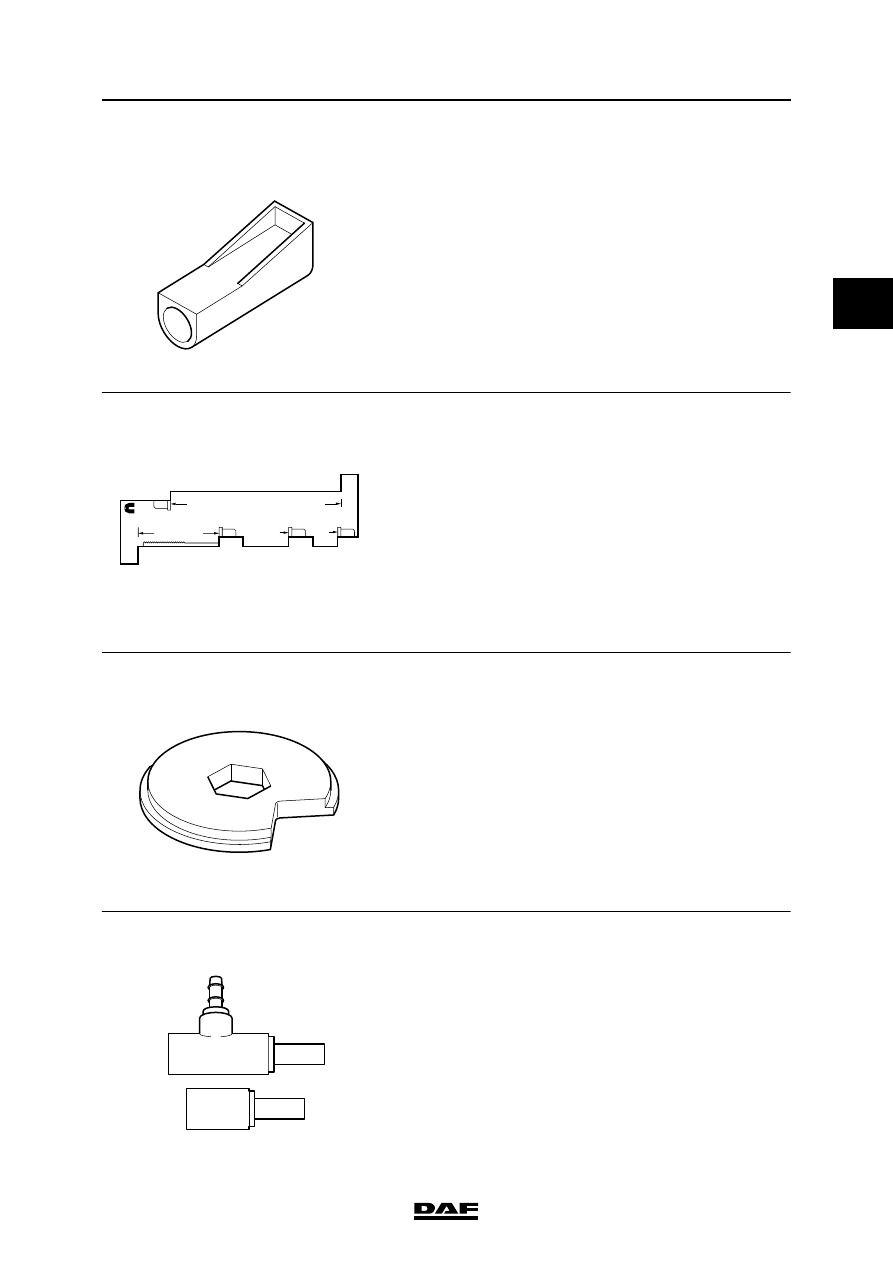

1240052

Cylinder lining clamping piece

1240054

Cylinder head bolt length gauge

1240073

Plate (part of 0535625)

1240080

Oil sump pressure inspection tool (i.c.w. 1240081)

1240052

NT

L10

L10

NT

um

m

in

s

Cylinder Head Capecrew Length Gauge

To determine if capscrew has been stretched beyond reuse limit when used in TORQUE PLUS ANGLE lightening
method, place in appropriate slot and align with edge of gauge. Discard capscrew if threaded end extends beyond
maximum allowable length. Do not shorten capscrew. Flenged head capscrews only.

(6.310 in.)

160.3 mm

3823546

(2.933 in.)

74.5 mm max.

(5.492 in.)

139.5 mm

(7.310 in.)

185.6 mm

1240054

1240073

1240080

ENGINE

62

©

 200419

2

2

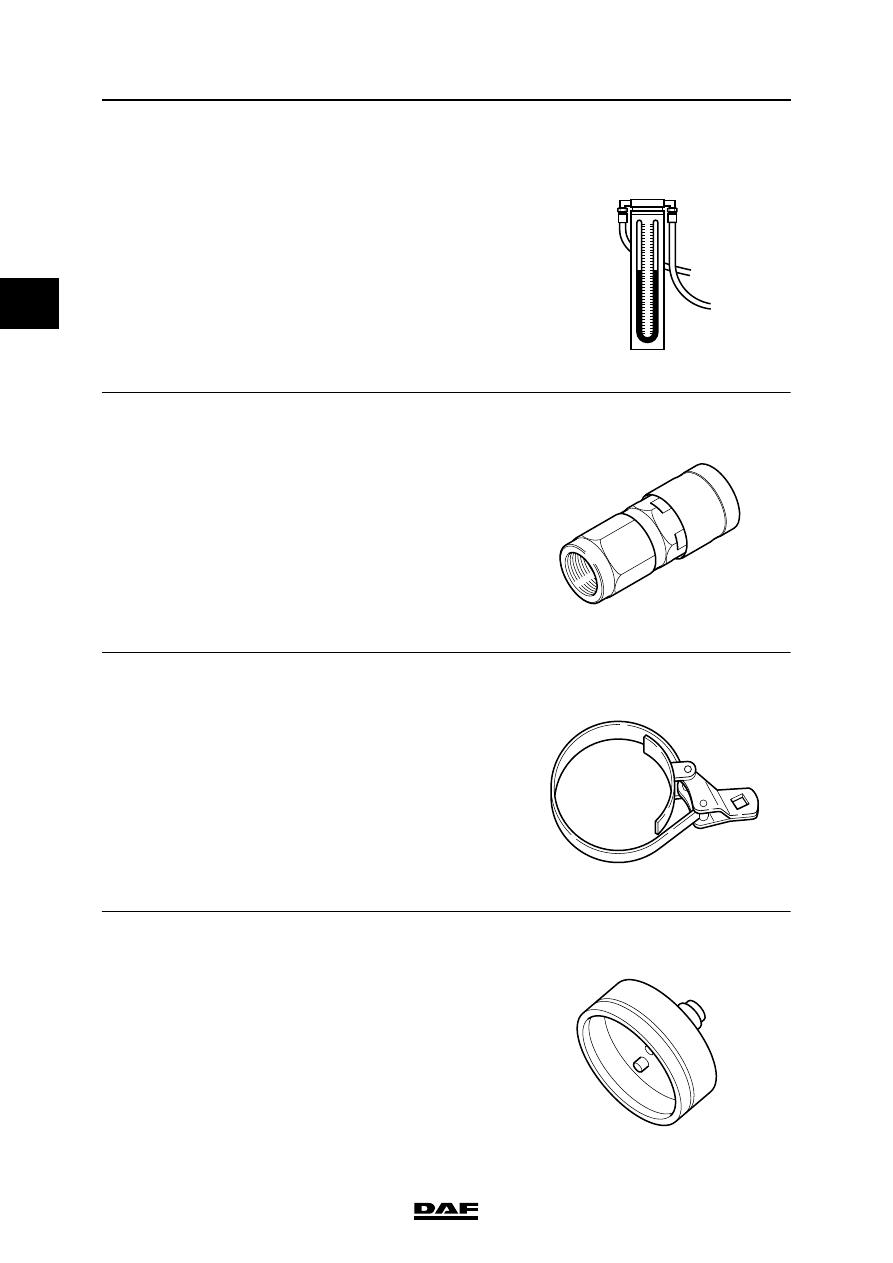

1240081

Oil sump pressure gauge (i.c.w. 1240080)

1240090

Quick-release coupling for measuring fuel
overpressure/fuel supply underpressure/engine oil
pressure

1240115

Oil filter wrench

1240121

Press for fitting rear crankshaft seal

1240081

;;

;;

;;

;;

1240090

1240115

1240121

©

 200419

63

ENGINE



2

2

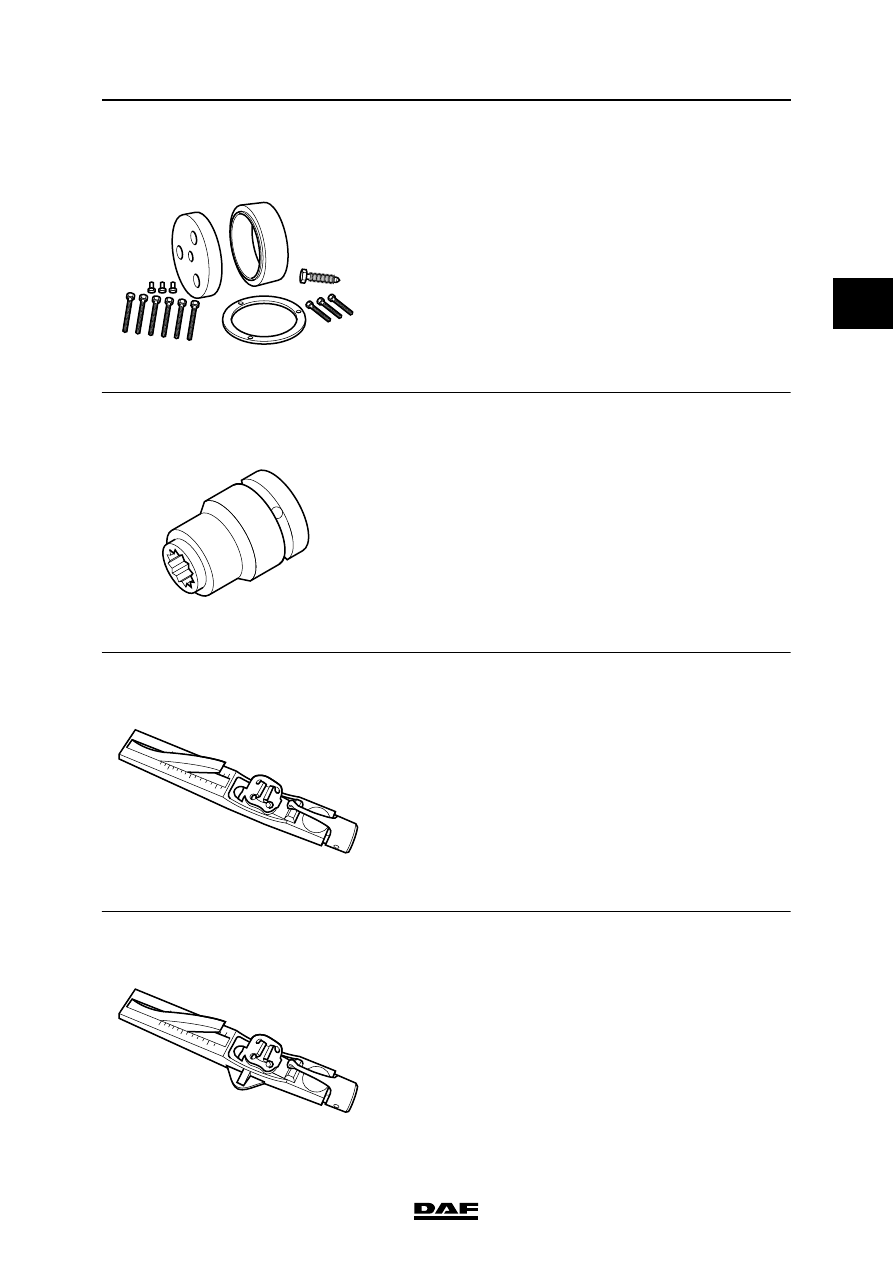

1240122

Press for fitting front crankshaft seal

1240432

Socket for connecting rod bearing cap bolts

1240442

Krikit I belt tension gauge (250-700 N)

1240443

Krikit II belt tension gauge (450-1500N)

1240122

;;

;;

;;

;;

1240432

50

100

150

200

00

1240442

100

500

1600

200

300

1240443

ENGINE

64

©

 200419

2

2

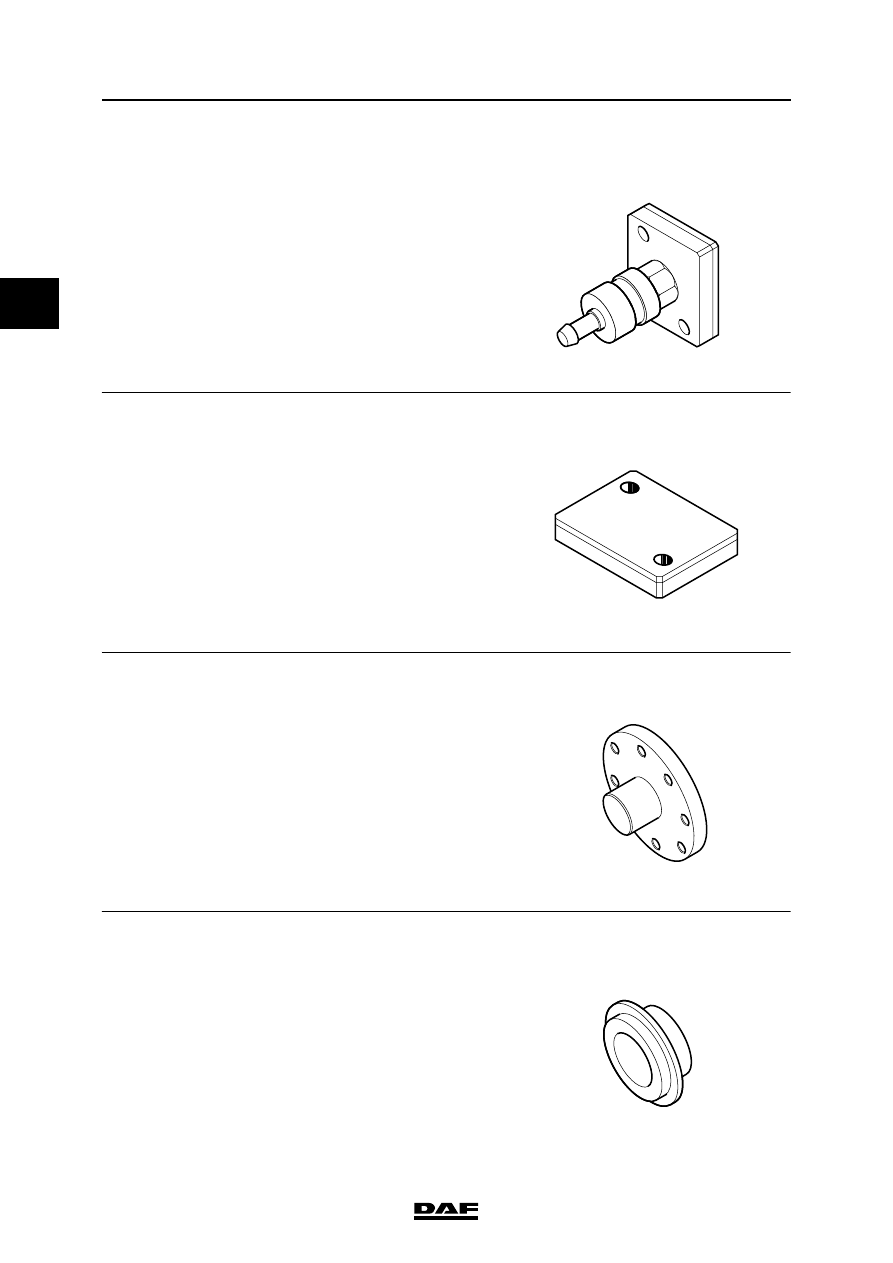

1240476

Oil cooler pressure-test plate

1240477

Cover plate for pressure-testing oil cooler

1310423

Puller for removing vibration damper

1310424

Front crankshaft seal installer

;

;

;;

;;

;;

;;

;;

1240476

1240477

1310423

1310424
