DAF LF45, LF55 Series. Manual - part 460

©

 200436

2-19

Inspection and adjustment

BRAKE SYSTEM AND COMPONENTS

ΛΦ45/55 series

6

4

2.13 INSPECTING BRAKE PADS, WABCO MODEL

With wheels fitted

No external wear indicators are fitted on these

models. The brake pad thickness must be

inspected by using a mirror and a lamp, if

necessary.

BRAKE SYSTEM AND COMPONENTS

2-20

©

 200436

Inspection and adjustment

4

ΛΦ45/55 series

6

2.14 INSPECTING BRAKE PADS, KNORR MODEL

Inspecting Knorr SB7000 brake pads
With wheels fitted:

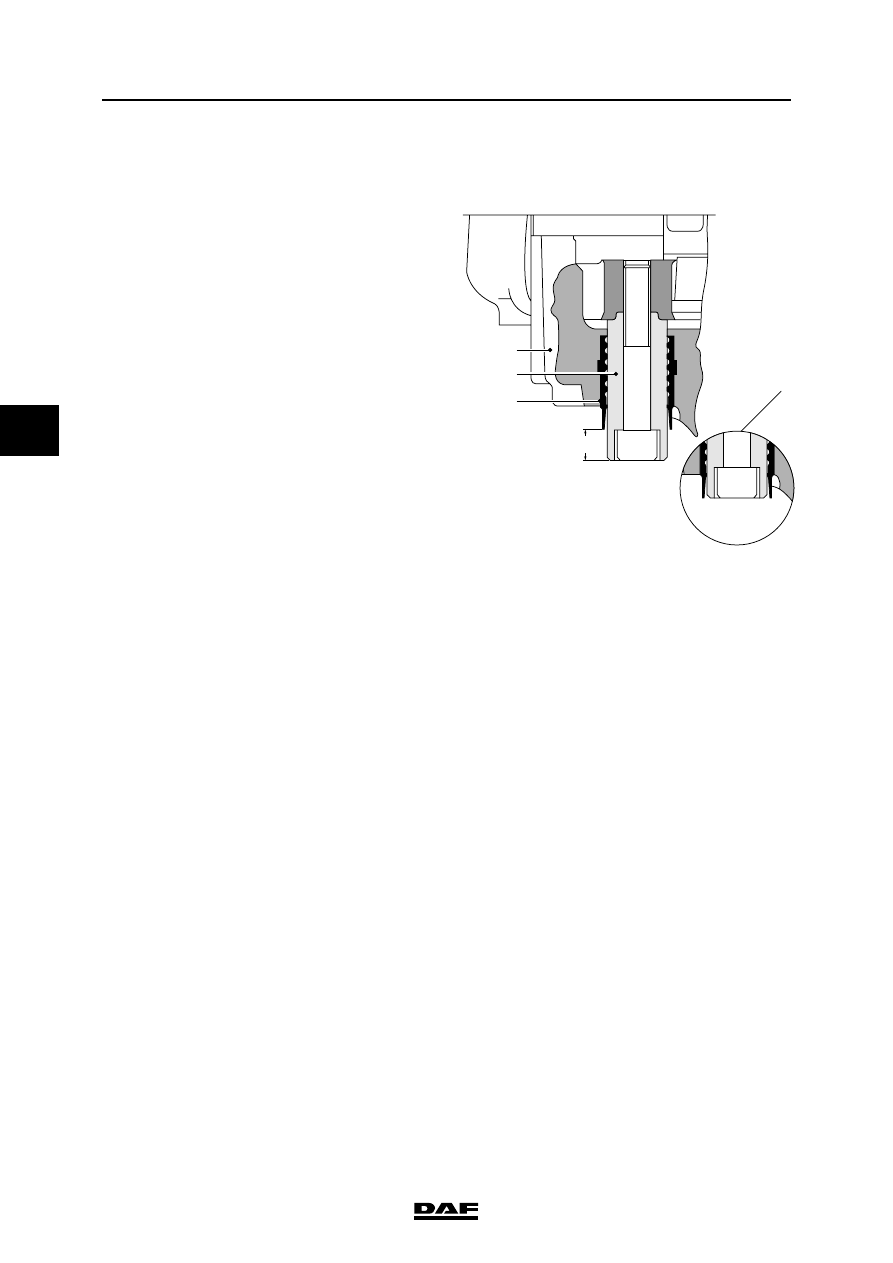

If the guide sleeve (4) no longer protrudes (C)

from the guide bush (6) but is flush with it (detail

A), the brake pad thickness must be inspected

with the wheels removed. See "Technical data".

C

1

4

6

R600481

A

©

 200436

2-21

Inspection and adjustment

BRAKE SYSTEM AND COMPONENTS

ΛΦ45/55 series

6

4

Inspecting Knorr SN7000 brake pads
With wheels fitted

The brake pad thickness can be checked on the

basis of the position of the guide bush relative to

the rubber bush.

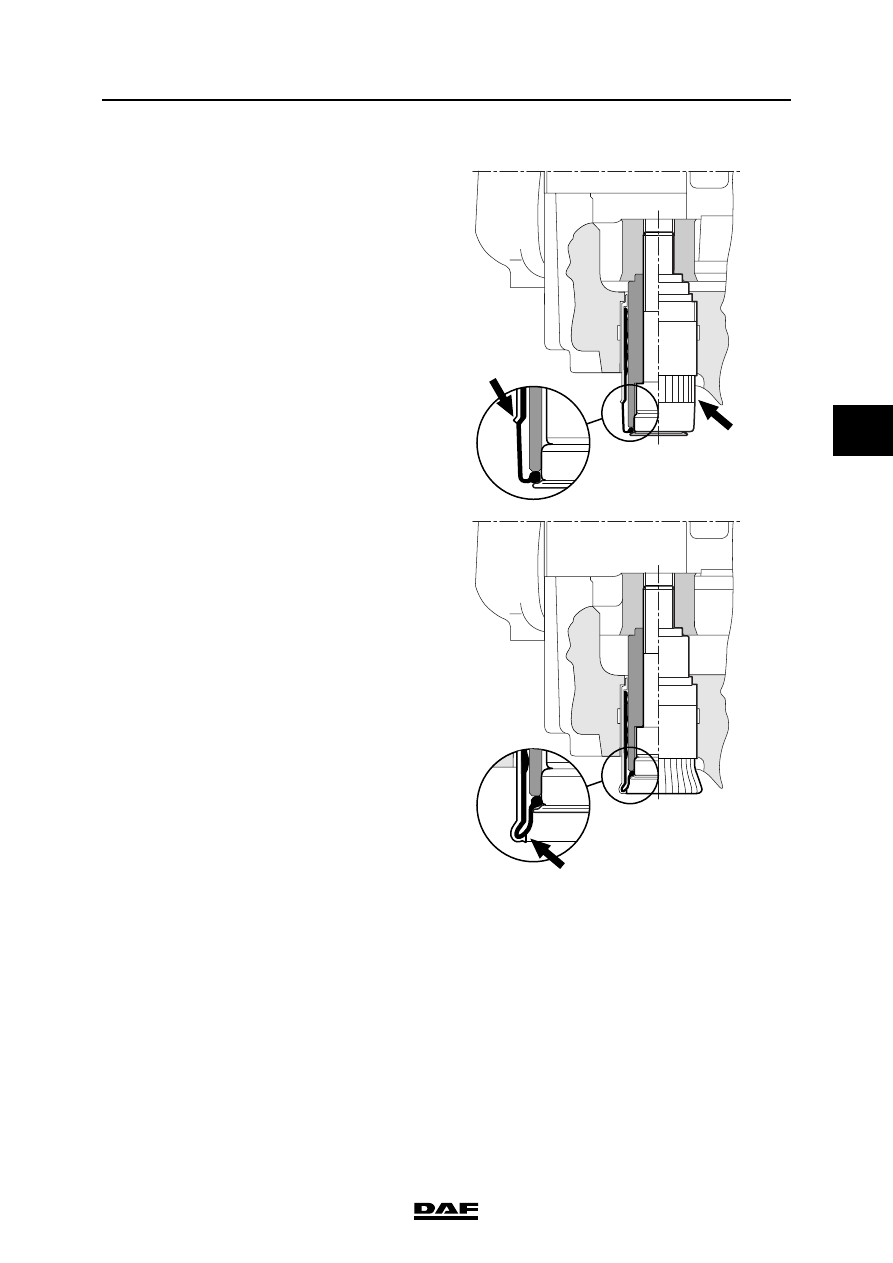

At maximum brake pad thickness the rubber

cover is stretched. Wear of the brake pads and

movement of the brake calliper along the guide

bushes will cause the rubber cover to roll up.

As soon as the transition from the ribbed section

of the rubber cover to the smooth section (A)

starts to roll inward, the brake pad thickness is to

be checked with the wheels removed. See

"Technical data".

A

A

A

R600730

BRAKE SYSTEM AND COMPONENTS

2-22

©

 200436

Inspection and adjustment

4

ΛΦ45/55 series

6

2.15 INSPECTION, BRAKE DISCS

1.

Remove the wheels.

2.

Measure the disc thickness at different

points to find the thinnest measurement.

Compare the reading with the technical data.

See "Technical data".

3.

Check the brake discs for signs of wear. See

"Technical data".

Note:

The brake discs may be turned. See

"Technical data".
