DAF LF45, LF55 Series. Manual - part 444

©

 200436

1-1

General

OPERATION OF BRAKE COMPONENTS

ΛΦ45/55 series

6

3

1. GENERAL

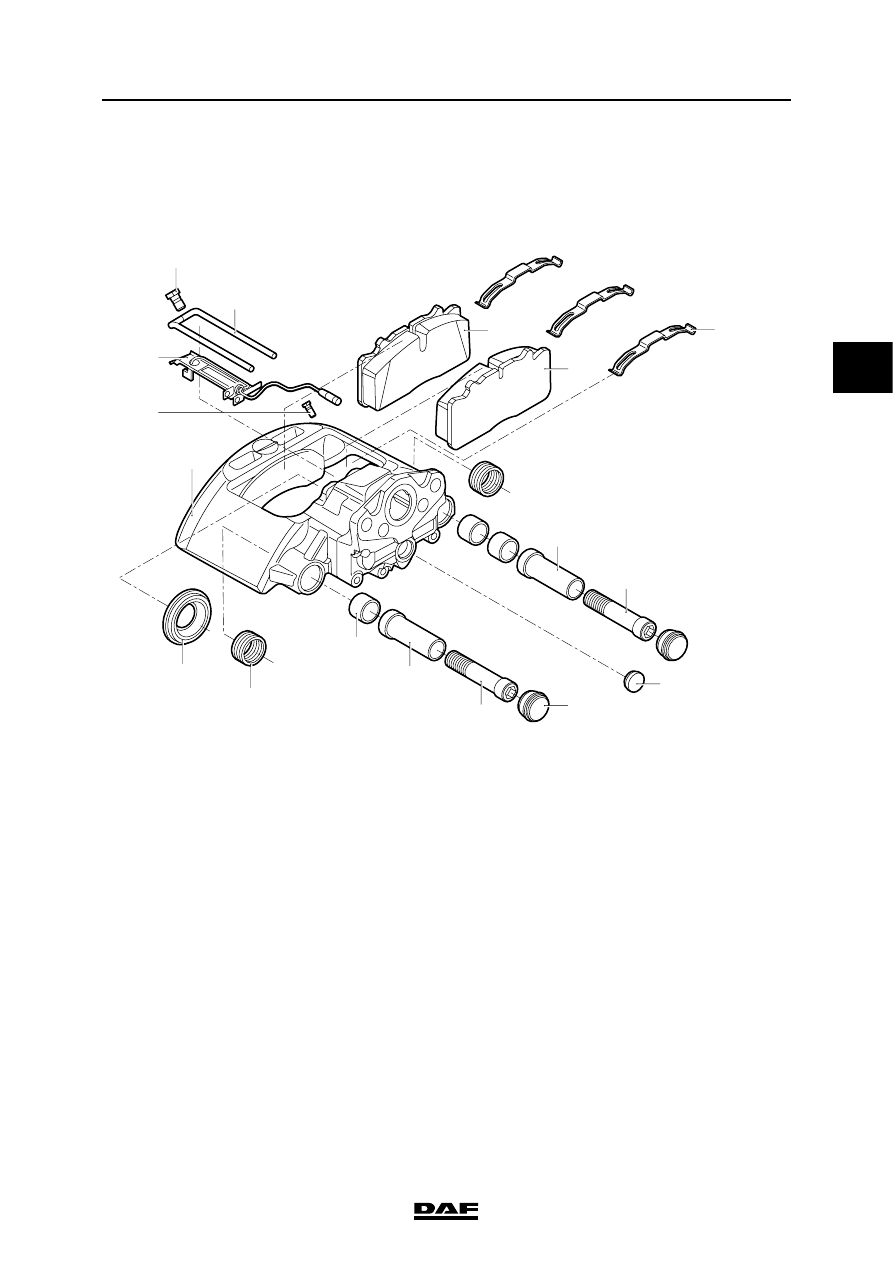

1.1 OVERVIEW DRAWING, WABCO PAN 17 AND PAN 19-1+ DISC BRAKE

CONSTRUCTION

R600538

4

7

15

16

1

11

12

13

9

6

10

3

3

2

14

8

5

1.

Hexagon

2.

Spring clip

3.

Brake pads

4.

Locking bracket

5.

Cable strip

6.

Cable clamp attachment screw

7.

Brake calliper

8.

Cap

9.

Brake piston dust cover

10.

Guide bush dust cover

11.

Bearing bush

12.

Guide bush (short)

13.

Allen screw (short)

14.

Cover

15.

Allen screw (long)

16.

Guide bush (long)

OPERATION OF BRAKE COMPONENTS

1-2

©

 200436

General

3

ΛΦ45/55 series

6

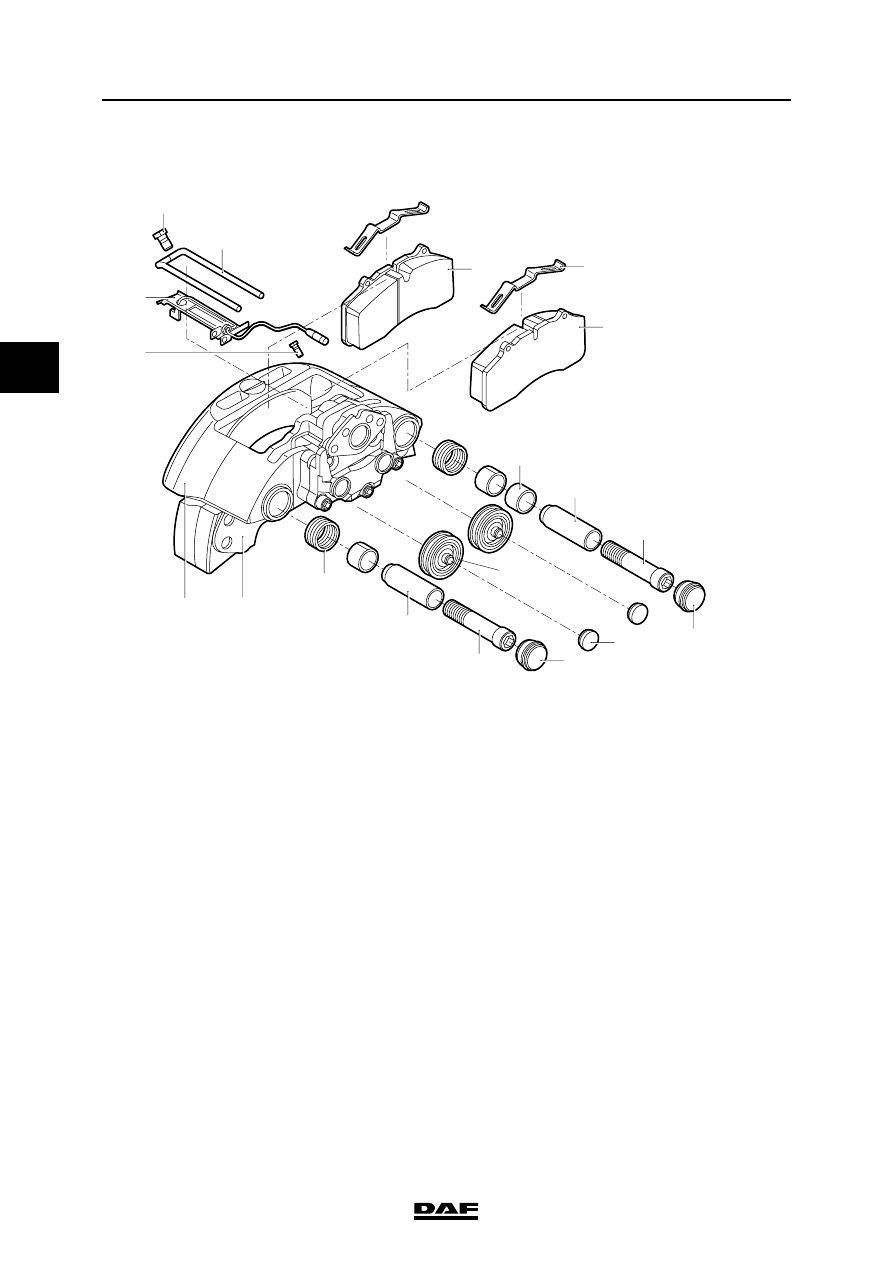

1.2 OVERVIEW DRAWING, WABCO PAN 19-2 DISC BRAKE CONSTRUCTION

R600539

7

14

16

13

6

17

15

18

9

12

3

4

11

19

10

8

1

2

5

1.

Brake calliper

2.

Brake calliper carrier

3.

Wheel-side brake pad

4.

Drive-side brake pad

5.

Spring clip

6.

Hexagon

7.

Locking bracket

8.

Cable strip

9.

Cable clamp attachment screw

10.

Cap

11.

Brake piston dust cover

12.

Guide bush dust cover

13.

Bearing bush

14.

Allen screw (long)

15.

Allen screw (short)

16.

Guide bush (long)

17.

Guide bush (short)

18.

Cover

19.

Cover

©

 200436

1-3

General

OPERATION OF BRAKE COMPONENTS

ΛΦ45/55 series

6

3

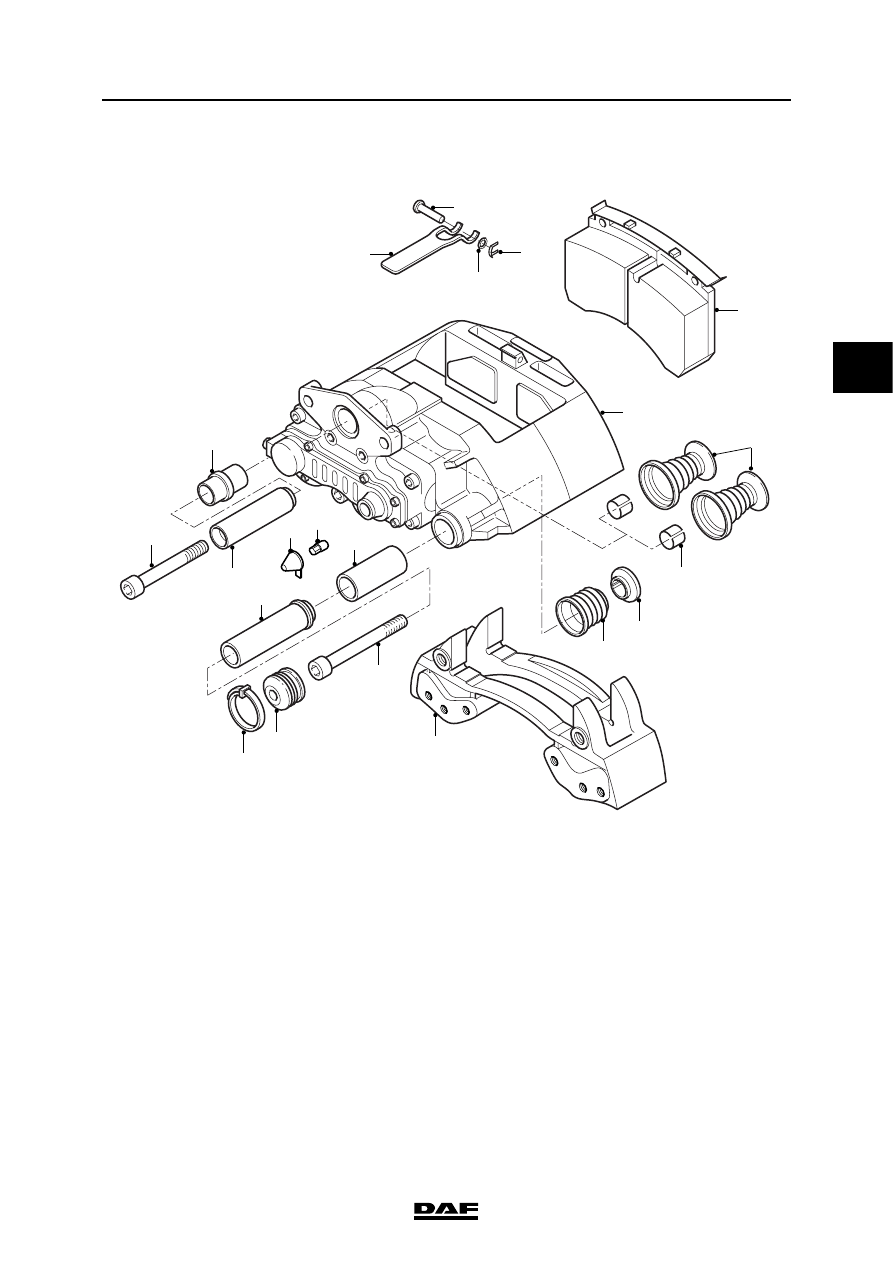

1.3 OVERVIEW DRAWING, KNORR SB700 DISC BRAKE CONSTRUCTION

1

Brake calliper

11

Allen screw

2

Brake calliper carrier

14

Bellows

3

Rubber bearing bush

15

Ring

4

Allen screw

16

Bearing bushes

5

Guide sleeve

17

Brake pad

6

Cap

18

Attachment bracket

7

Brass bearing bush

19

Sealing ring

8

Guide sleeve

20

Pin

9

Clamping strap

21

Retainer clip

10

Bellows

22

Thrust pieces with bellows

R600746

18

1

22

7

19

11

14

15

16

10

9

2

17

20

21

8

5

4

3

6

6a

OPERATION OF BRAKE COMPONENTS

1-4

©

 200436

General

3

ΛΦ45/55 series

6

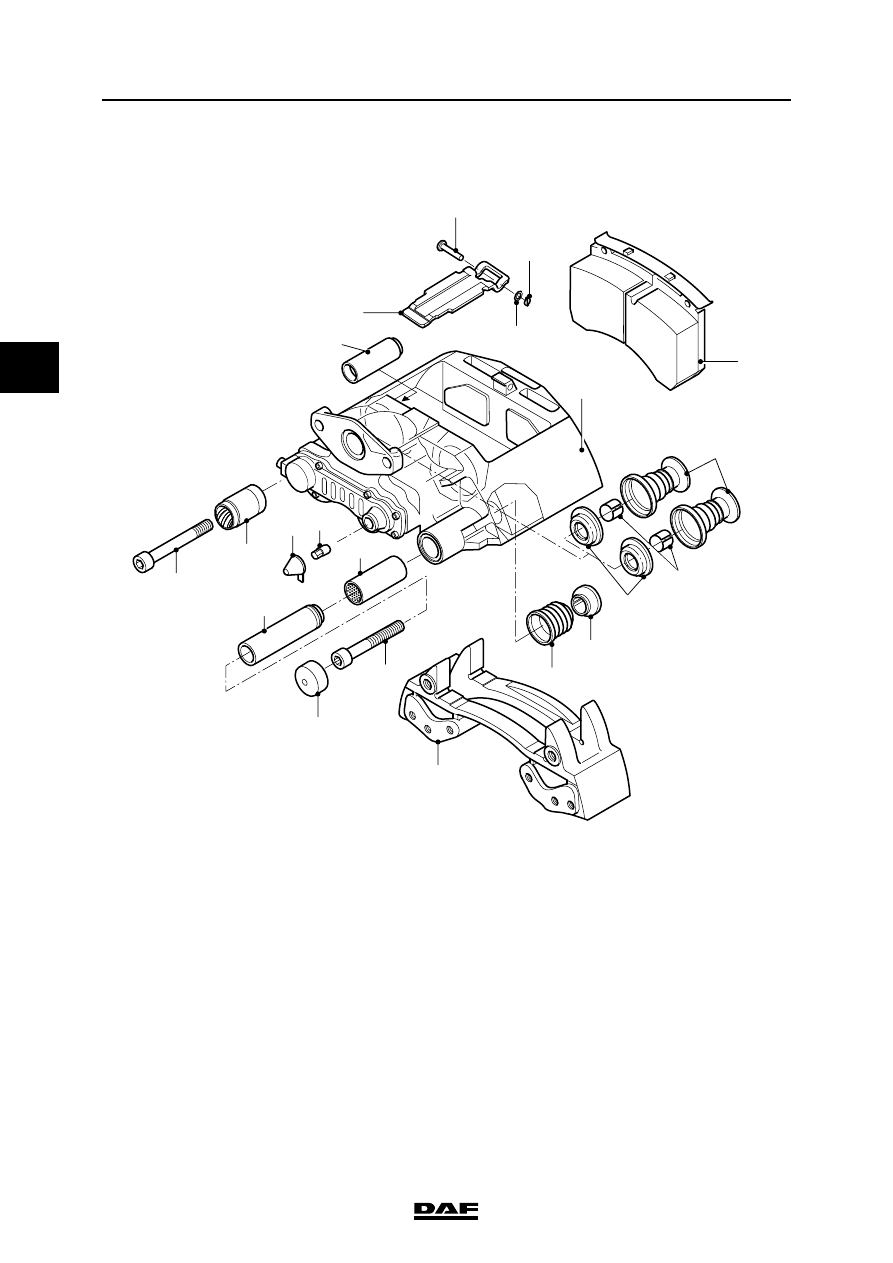

1.4 OVERVIEW DRAWING, KNORR SN700 DISC BRAKE CONSTRUCTION

1

Brake calliper

14

Bellows

2

Brake calliper carrier

15

Ring

3

Rubber bearing bush

16

Bearing bushes

4

Allen screw

17

Brake pad

5

Guide sleeve

18

Attachment bracket

6

Cap

19

Sealing ring

6a

Adapter

20

Pin

7

Brass bearing bush

21

Retainer clip

8

Guide sleeve

22

Thrust pieces with bellows

10

Protective cover

23

Sealing rings

11

Allen screw

R600755

17

22

23

16

18

20

21

5

1

6 6a

7

8

19

15

14

2

11

10

4

3
