DAF LF45, LF55 Series. Manual - part 221

©

 200508

7-3

Allison MD3060 automatic gearbox

TECHNICAL DATA

ΛΦ45/55 series

3

0

2

1

V3 00 883

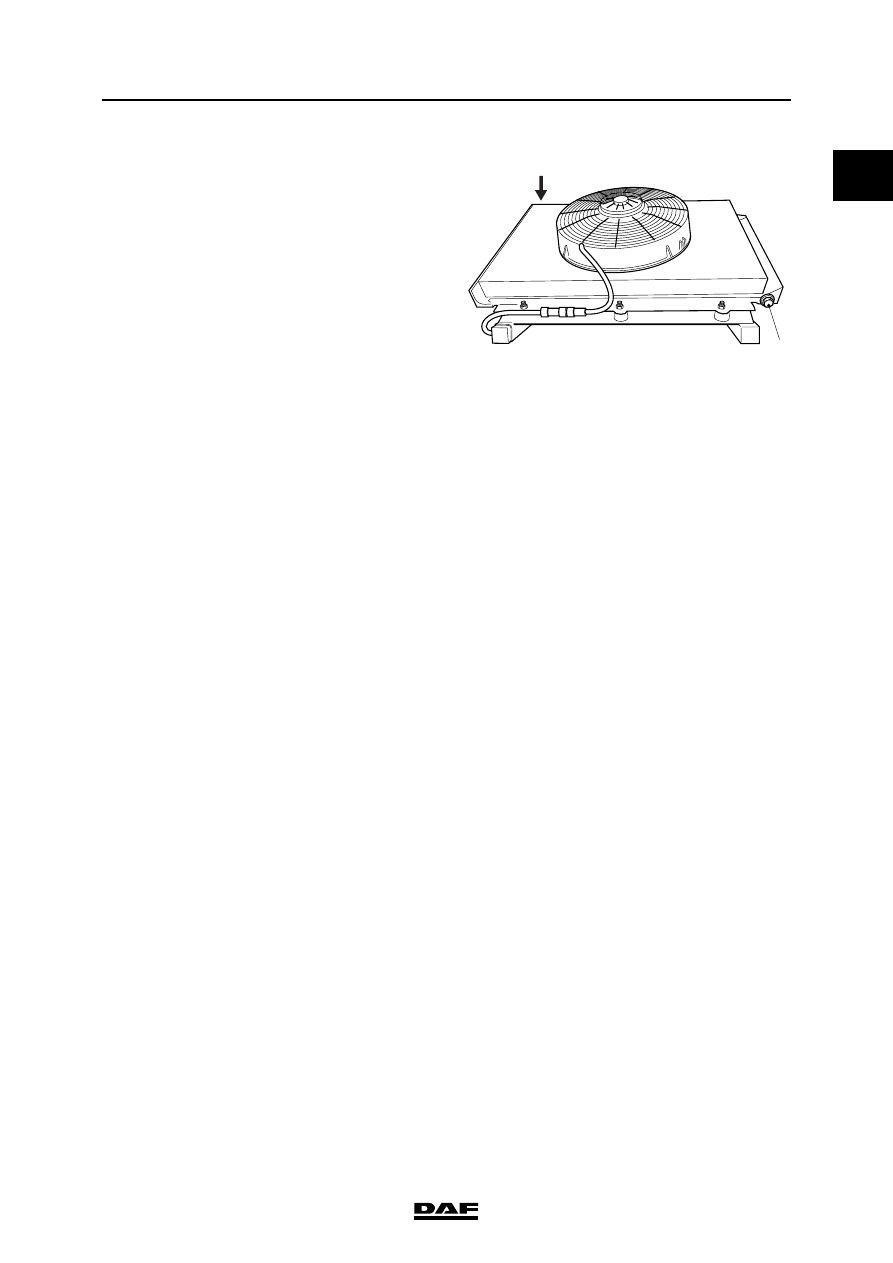

Oil cooler air bleed plug (1)

28 Nm

Oil cooler drain plug (2)

28 Nm

TECHNICAL DATA

7-4

©

 200508

Allison MD3060 automatic gearbox

0

ΛΦ45/55 series

3

7.3 FILLING CAPACITIES

Allison automatic gearbox oil capacities

The oil level when cold must be on the "Cold full"

mark.

Type of gearbox

Capacity at first filling

Capacity at second filling

MD 3060P 4" oil sump

27 litres

20 litres

HOT  FULL

COLD FULL

HOT ADD

COLD ADD

W 3 03 099

"Cold add" add when cold
"Cold full" full when cold
"Hot add"

add when hot

"Hot full"

full when hot

©

 200508

8-1

Clutch

TECHNICAL DATA

ΛΦ45/55 series

3

0

8. CLUTCH

8.1 GENERAL

Gearbox

Clutch release assembly

Clutch plate

ZF S5-42

MF 362

WGTZ (1

1

/

2

")

ZF S6-850

MF 395

WGTZ (1

1

/

2

")

Eaton FS/6309A

MF 395

WGTZ (1

1

/

4

")

TECHNICAL DATA

8-2

©

 200508

Clutch

0

ΛΦ45/55 series

3

8.2 TIGHTENING TORQUES

The tightening torques stated in this paragraph

are different from the standard tightening torques

stated in the overview of the standard tightening

torques.

The other threaded connections not specified

must therefore be tightened to the torque

mentioned in the overview of standard tightening

torques.

When attachment bolts and nuts are replaced, it

is important that - unless stated otherwise - these

bolts and nuts are of exactly the same length and

property class as those removed.

Clutch release assembly

MF 362 clutch release assembly attachment bolts

40 Nm

MF 395 clutch release assembly attachment bolts

80 Nm

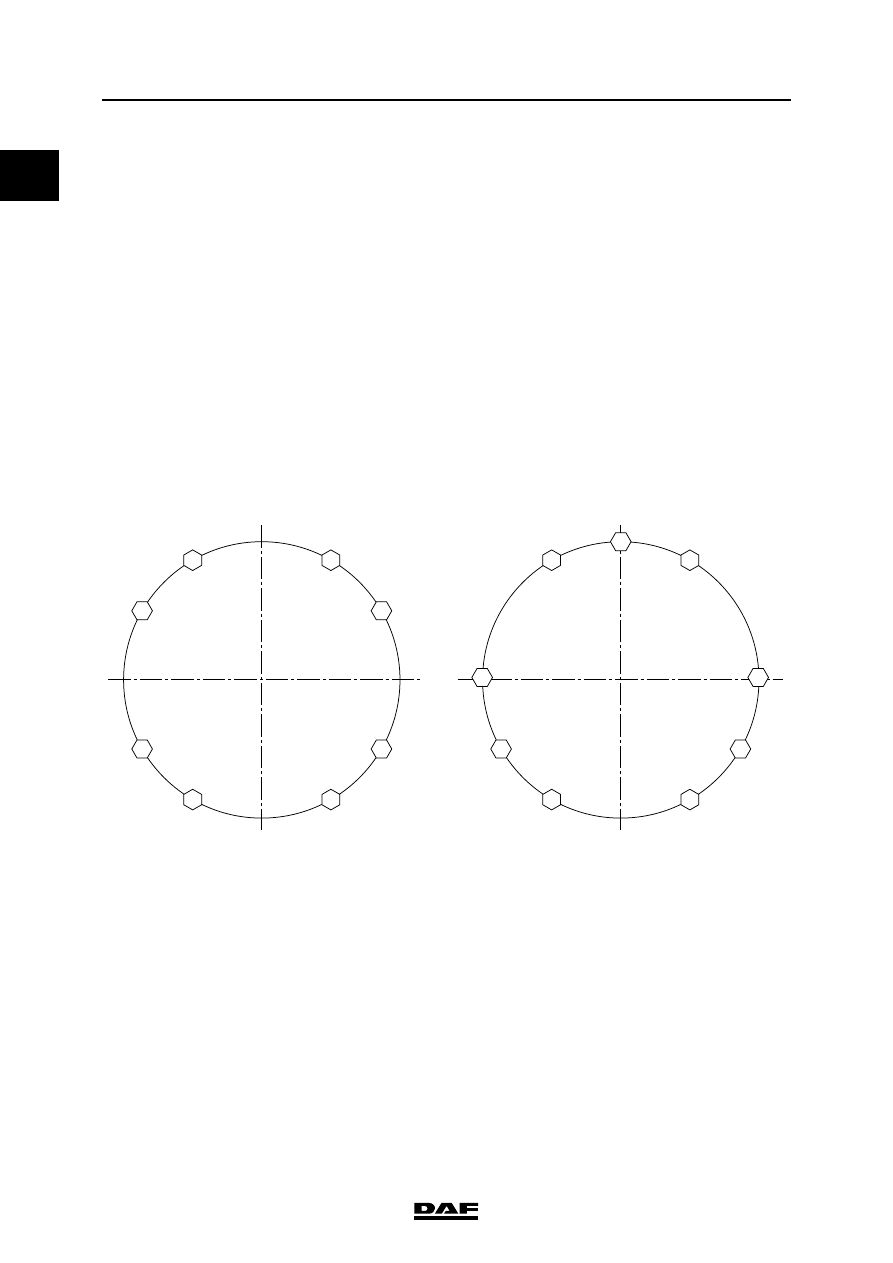

Tighten attachment bolts as illustrated

1

6

4

7

2

5

3

8

MF 395

6

8

9

4

2

5

7

3

1

MF 362

V3 00 414
