DAF LF45, LF55 Series. Manual - part 113

1

LF45/55 series

Removal and installation

CAB HEATING

3-15

3.6 REMOVAL AND INSTALLATION, HEATER RADIATOR

Removing the heater radiator
1.

Remove the heater unit.

2.

Remove the cover.

K1 00 953

3.

Detach the connectors from the air
conditioning thermostat and remove the
series resistor.

K1 00 954

4.

Remove the heater motor.

K1 00 955

3

ǹ 0210

1

CAB HEATING

Removal and installation

LF45/55 series

3-16

5.

Remove the attachment bolts from the air
conditioning thermostat. Remove the
capillary tube from the evaporator.

K1 00 959

6.

Remove the fastening clip from the control
cable and remove the heater valve.

K1 00 961

7.

Remove the attachment bolts from the
heater valve holder.

8.

Remove the O-rings.

K1 00 962

3

ǹ 0210

1

LF45/55 series

Removal and installation

CAB HEATING

3-17

9.

Remove the attachment bolt from the heater
pipe fastening.

K1 00 963

10. Remove the heater pipes and remove the

O-rings.

K1 00 964

11. Remove the radiator attachment bolts.

K1 00 965

3

ǹ 0210

1

CAB HEATING

Removal and installation

LF45/55 series

3-18

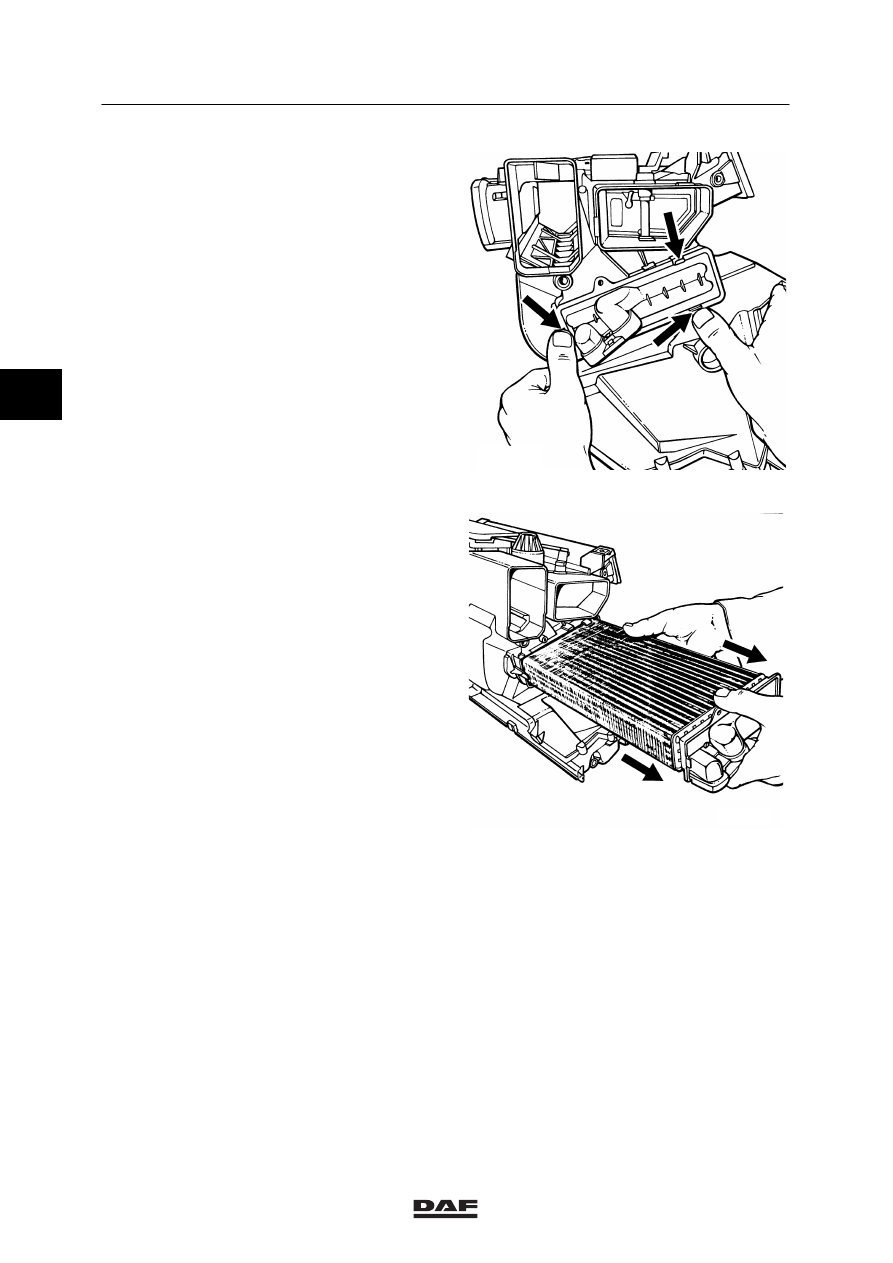

12. Push the retainer aside.

K1 00 966

13. Remove the radiator.

K1 00 967

3

ǹ 0210
