XE ENGINE BRAKE

Inspection and adjustment

95

XF series

3-4

3.3

INSPECTION AND ADJUSTMENT OF EXHAUST BRAKE

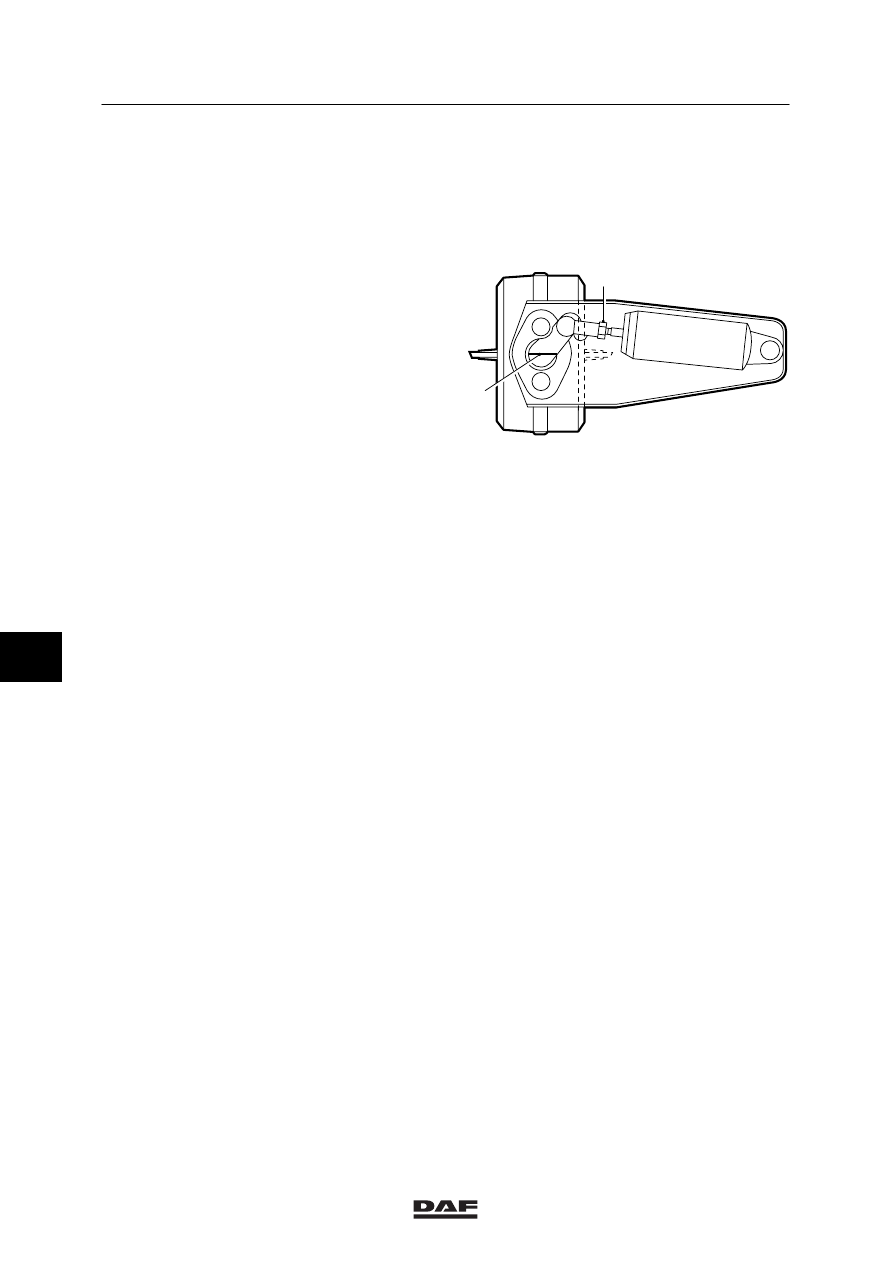

Adjusting the exhaust brake
1.

Release the ball head of the butterfly valve
control lever.

2.

Open the butterfly valve fully (engine brake
inactive), indicated by the mark (1) on the
butterfly valve shaft.

3.

Set the length of the piston rod (2) making
sure that without air pressure, a pre-stress
is present of 1 to 2 mm.

4.

Use air pressure to check the exhaust brake
for smooth operation.

I400186

1

2

7

©

 0008

4

95

XF series

Removal and installation

XE ENGINE BRAKE

4-1

4.  REMOVAL AND INSTALLATION

4.1

REMOVAL AND INSTALLATION OF DEB

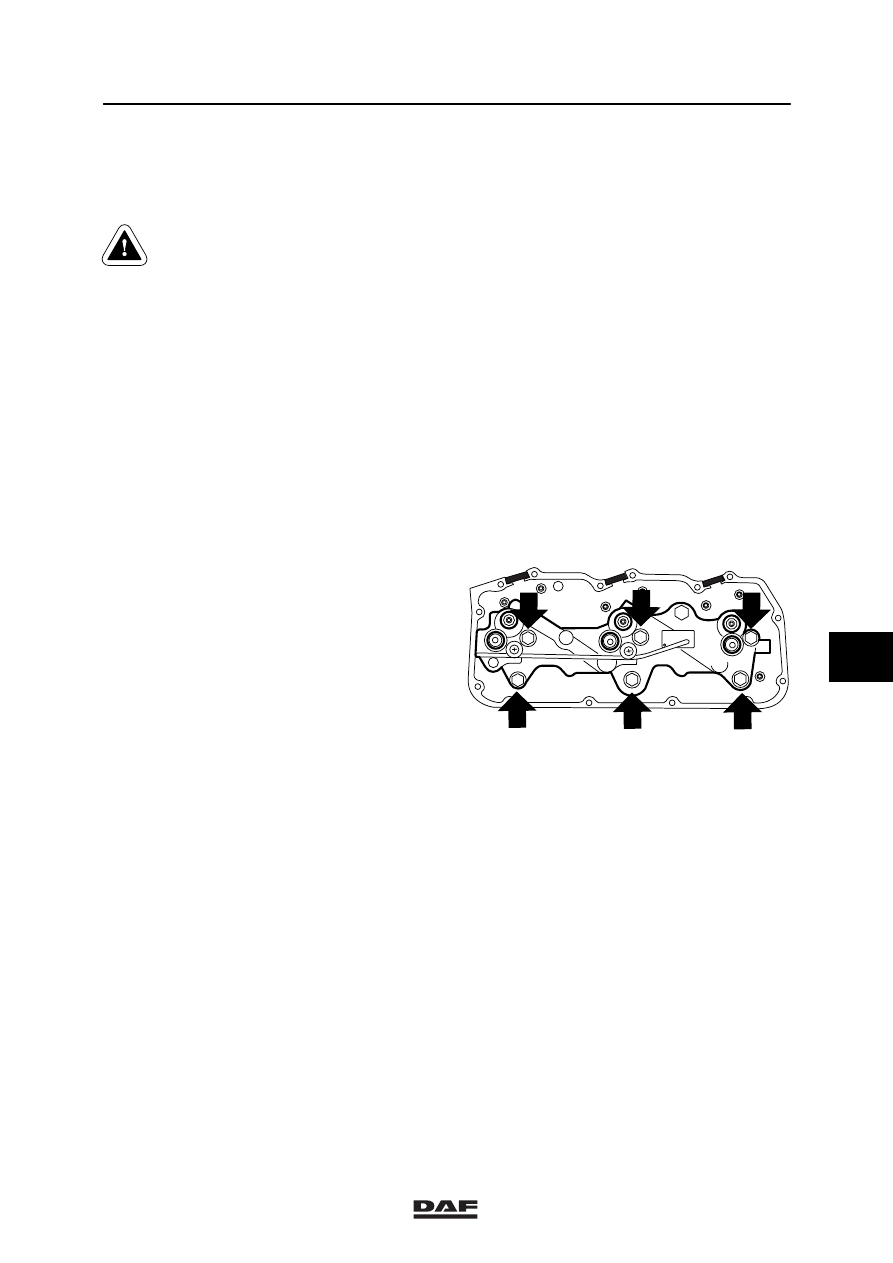

Make sure that the spring plate (5)
under the main piston (4) is not
damaged or deformed.
When the DEB is in operation, this
spring plate, if it is damaged or
disformed, can break off and result
in serious damage to the engine.

When the engine is or parts thereof
are opened, it is possible for dirt to
penetrate which can result in
serious damage to the engine. You
should therefore clean the engine
before opening it.

Removing the DEB
1.

Remove the valve covers.

2.

Disconnect the electrical connections and
remove the wiring harness from its housing.

3.

Remove the DEB fixing bolts and the entire
DEB.

Installing the DEB
1.

Tighten the rocker bracket fixing bolts to the
specified torque, see main group “Technical
data”.

2.

Note:
Note that there are two different DEB
housings for cylinders 1 to 3, and
cylinders 4 to 6, indicated on the DEB
housing.

Place the DEB on the rocker brackets

3.

Insert the DEB fixing bolts and tighten them
to the specified tightening torque, see main
group “Technical data”.

4.

Attach the electrical connections.

5.

Adjust the valve clearance.

6.

Set the DEB clearance, see chapter
“Inspection and adjustment”.

7.

Fit the valve covers.

i 400187

7

©

 0008

4

XE ENGINE BRAKE

Removal and installation

95

XF series

4-2

4.2

REMOVAL AND INSTALLATION OF DEB SPRING PLATE

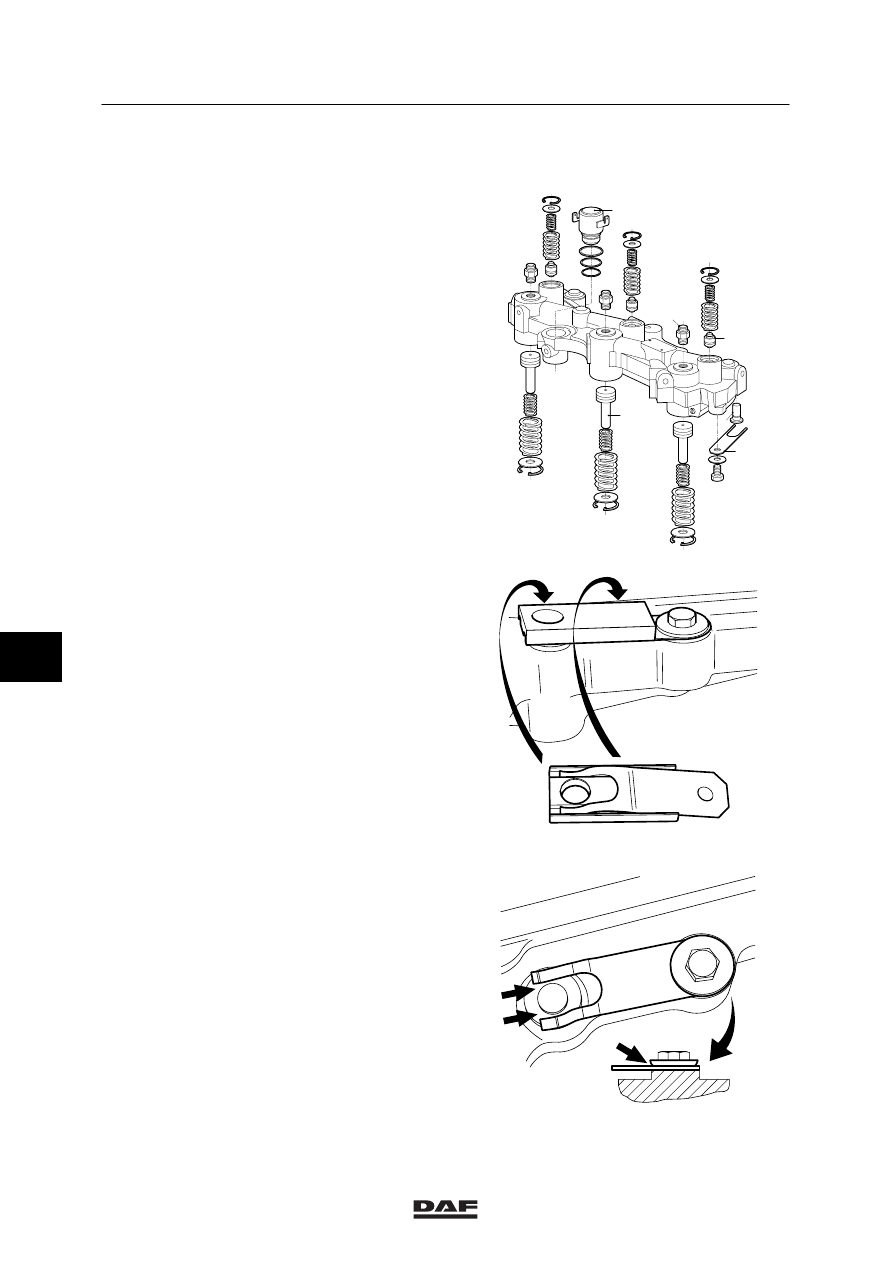

Removing the DEB spring plate
1.

Remove the DEB.

2.

Remove the spring plate (5) with shim and
fixing bolt.

Installing the DEB spring plate

Note:
To prevent the spring plate from being
damaged or broken, it should be positioned
very carefully.

1.

Use the special tool (DAF no. 1329321) to
position the spring plate (5) onto the main
piston (4).

2.

Install the washer with fixing bolt and tighten
it to the specified tightening torque, see
main group “Technical data”.

3.

Install the DEB.

1

2

4

5

3

6

i 400167

i 400239

i400238

7

©

 0008

4

95

XF series

Removal and installation

XE ENGINE BRAKE

4-3

4.3

REMOVAL AND INSTALLATION OF EXHAUST BRAKE

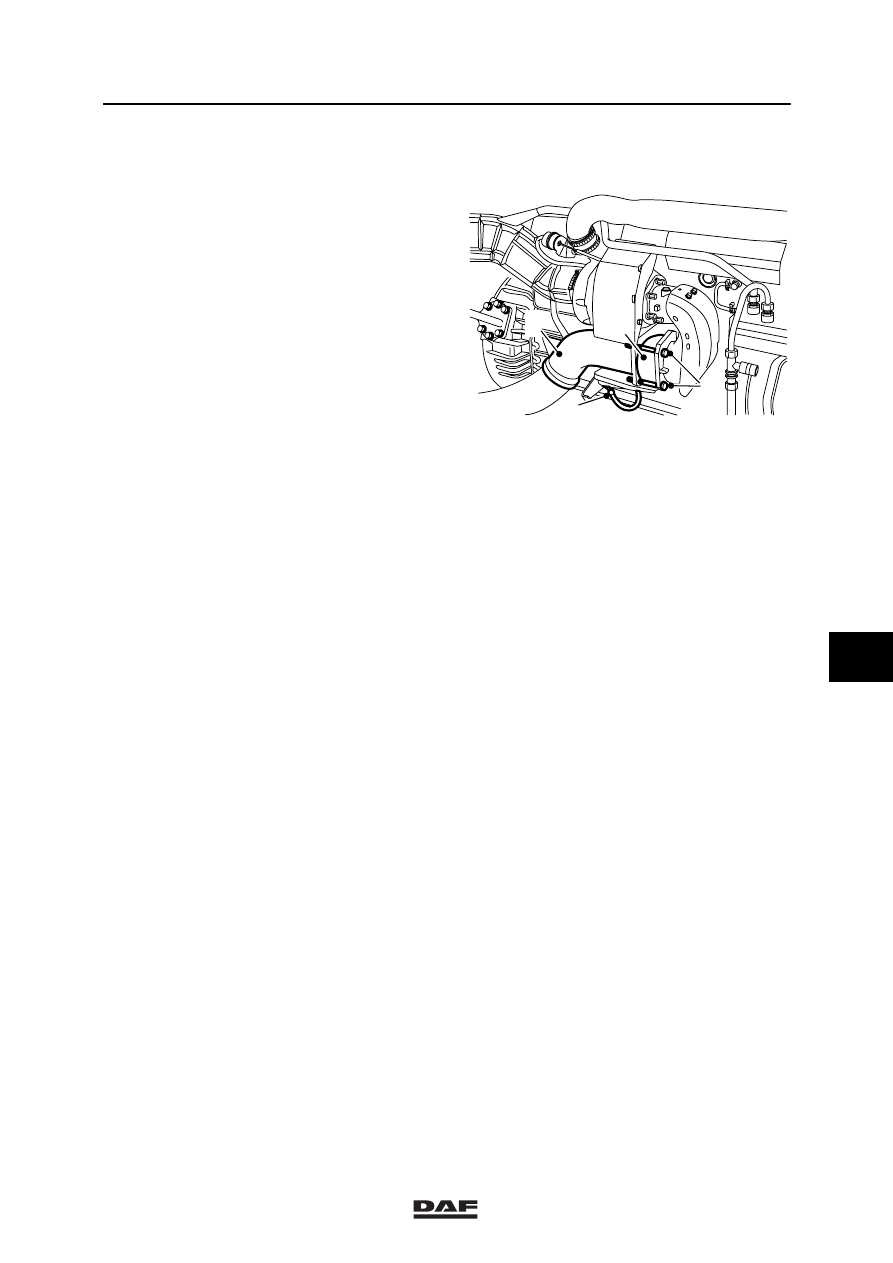

Removing the exhaust brake
1.

Disconnect the air supply connector (1)
from the operating cylinder.

2.

Remove the attachment (2) holding the
butterfly valve housing in the exhaust pipe.

3.

Remove the flexible exhaust pipe (3).

4.

Remove the entire exhaust brake (4).

Installing the exhaust brake
1.

Check the butterfly valve for smooth
operation.

2.

Check the sealing faces of the butterfly
valve housing and the exhaust pipes.

3.

Clean the fixing bolts and apply
heat-resistant grease to the threads.

4.

Install the four fixing bolts and the exhaust
brake.

5.

Install the flexible exhaust pipe.

6.

Tighten the attachment of the butterfly valve
housing evenly.

7.

Check the setting of the exhaust brake. See
“Inspection and adjustment”.

i 400210

3

1

4

2
